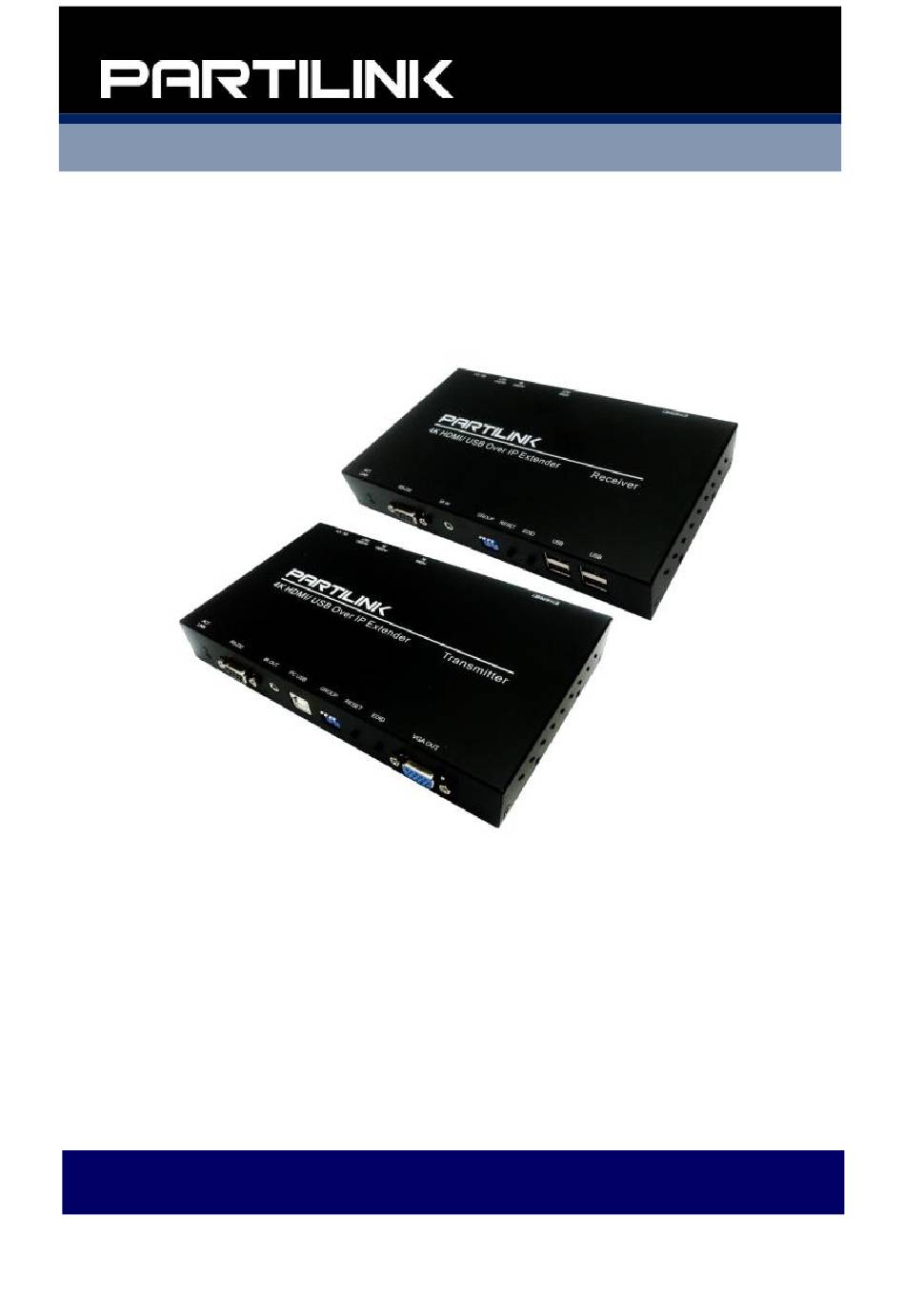

- Page 1 User manual P4K-HUL4E1 4K UHD HDMI & USB Over IP Extender P4K-HUL4E1-P 4K UDH HDMI & USB Over IP Extender with PoE P4K-HRSUL4E1 / P4K- LHRSU1E4 P4K-HRSUL4E1- P/ P4K-LHRSU1E4-P Partilink Technology Co., Ltd Copyright @2017...
-
Page 2: Table Of Contents
Table of Contents 1. INTRODUCTION 2. FEATURES & APPLICATIONS 3. SPECIFICATION 4. HARDWARE DESCRIPTION 4.1 Transmitter 4.2 Receiver 5. INSTALLATION 5.1 Device Connection 5.2 IP Configuration 6. WEB USER INTERFACE CONFIGURATION 6.1 System 6.1.1 [Version Information] 6.1.2 [Update Firmware] 6.1.3 [Utilities] 6.1.4 [Statistics] 6.2 Video Wall 6.2.1 [Basic Setup]... - Page 4 6.3 Network: Update the network setup of the extender system 6.3.1 [IP Setup] 6.3.2 [Casting Mode] 6.4 Functions: 6.4.1 [Video over IP]: Setup the video output mode 6.4.2 [USB over IP]: Setup the USB extension mode 6.4.3 [Serial over IP]: set up the serial extension mode 7.
-
Page 5: Introduction
Extender by web browser. An easy installation system built up with Giga Ethernet switch which has IGMP function and CATx cable for extension or broadcast. The P4K-HUL4E1-P supports PoE (Power over Ethernet) function. Partilink Technology Co., Ltd Copyright @ 2017... -
Page 6: Features & Applications
Point to point extension via CAT5e cable without Ethernet switch up to 100M Ethernet webpage management RS-232 Serial control command management P4K-HUL4E1-P supports Power over Ethernet Partilink Technology Co., Ltd Copyright @ 2017... -
Page 7: Specification
Power adapter AC in 100~240V (50~60Hz) ESD protection air gap discharge ±8KV, contact discharged ±4KV DIMENSION 194 x 114 x 28 mm WEIGHT TX 620g, RX 610g ** Product specifications are subject to change without notice. Partilink Technology Co., Ltd Copyright @ 2017... -
Page 8: Hardware Description
4. HARDWARE DESCRIPTION 4.1 Transmitter P4K-HUL4E1/ 4K-HUL4E1-P (TX) Partilink Technology Co., Ltd Copyright @ 2017... - Page 9 USB mouse, USB keyboard and USB pen drive connecting to PC 11. Group configuration, 4-bit DIP switch to set up the group ID 12. Restart the 4K HDMI & USB over IP extension by pressing RESET button Partilink Technology Co., Ltd Copyright @ 2017...
-
Page 10: Receiver
13. Press EDID button for manual EDID copy function 14. DB9 connector for VGA local display 4.2 Receiver P4K-LHRSU1E4/ P4K-LHRSU1E4-P (RX) 12 VDC power supply with locking for 4K HDMI & Partilink Technology Co., Ltd Copyright @ 2017... - Page 11 12. Press EDID button for manual EDID copy function 13. 4 USB ports for additional USB devices such as USB mouse, USB keyboard and USB pen drive. Group Setting via 4-bit DIP switch Partilink Technology Co., Ltd Copyright @ 2017...
-
Page 12: Installation
Receiver to a monitor or display with HDMI cable. 4. Connect the USB cables from Transmitter to PC, and connect the USB additional devices such as USB mouse, USB keyboard and USB pen drive to Receiver. Partilink Technology Co., Ltd Copyright @ 2017... - Page 13 7. Power on and activate all the connected devices. 8. Connect the IR extension cable with Transmitter and the IR receiver cable with Receiver for remote control. ◆ Configuration ◆ Application Pattern Partilink Technology Co., Ltd Copyright @ 2017...
- Page 14 ■ Unicast ■ Multicast a. Video Distribution b. Matrix Distribution Partilink Technology Co., Ltd Copyright @ 2017...
- Page 15 Billboard & Kiosk, PC to HDMI and USB Interactive Monitor ■ Screen Wall Partilink Technology Co., Ltd Copyright @ 2017...
-
Page 16: Ip Configuration
LAN in the same subnet. 1. Assign a LAN IP address to the computer in the same subnet. The IP address default of the Transmitter and Receiver is B class Networking: 169.254.xxx.xxx. Partilink Technology Co., Ltd Copyright @ 2017... - Page 17 Figure 1. Internet Protocol (TCP/IP) Properties 2. Connect all devices with proper cables except video source, please refer to Figure 2 Figure 2. Demonstrate the 4K HDMI & USB Over IP Extender Partilink Technology Co., Ltd Copyright @ 2017...
- Page 18 4. The administrator can input Transmitter or Receiver IP address into address bar of web browser to enter the Extender Web UI. If link success, administrator will see the Web UI as shown in Figure 4. Partilink Technology Co., Ltd Copyright @ 2017...
-
Page 19: Web User Interface Configuration
Figure4. Web User Interface 6. WEB USER INTERFACE CONFIGURATION 6.1 System The relevant information of the connected extender and setting 6.1.1 [Version Information] Indicating the firmware version and relevant information of the devices Partilink Technology Co., Ltd Copyright @ 2017... -
Page 20: Update Firmware]
To update the firmware of the connected extender, please click on the [Select File] to select the firmware and click on [Upload] to upload the firmware and update accordingly. Figure 6. Update Firmware Transmitter Firmware Update: please select Partilink Technology Co., Ltd Copyright @ 2017... - Page 21 Web user interface shows the status as below diagram. The extender system will reboot automatically after updating firmware. If it doesn’t reboot automatically, please reboot to apply the new firmware manually. Figure 8. Firmware Update Progress Partilink Technology Co., Ltd Copyright @ 2017...
-
Page 22: Utilities]
There are some functions Factory Default: Click on to return to the factory default when necessary Reboot: Click on to reboot the extender system Console API Command: Input Linux command for advanced setting Partilink Technology Co., Ltd Copyright @ 2017... -
Page 23: Statistics]
Figure 10. Utilities 6.1.4 [Statistics] Indicating the extender linking and working status Partilink Technology Co., Ltd Copyright @ 2017... - Page 24 Figure 11. Statistics of Linking and Working Status Partilink Technology Co., Ltd Copyright @ 2017...
-
Page 25: Video Wall
6.2 Video Wall To set up the video wall application 6.2.1 [Basic Setup] Figure 12. Basic Setup page Partilink Technology Co., Ltd Copyright @ 2017... - Page 26 2) If administrator doesn’t need this, just set all values to 0. 3) The unit is 0.1mm and the value MUST be integer. Figure 13. Monitor Bezel and Gap Setup Partilink Technology Co., Ltd Copyright @ 2017...
- Page 27 Select number of vertical and/ or horizontal monitors, row position and column position. Vertical monitor number 1~8, horizontal monitor number 1~16 Figure 14. Vertical Monitor Number Setup Figure 15. Horizontal Monitor Number Setup Figure 15. Row Position Setup Partilink Technology Co., Ltd Copyright @ 2017...
- Page 28 Figure 16. Column Position Setup Preferences: Select the video fit in the screen or stretch out and the rotate angle Figure 17. Video Stretch or Fit Screen Setup Partilink Technology Co., Ltd Copyright @ 2017...
- Page 29 1) All: Configure all Transmitter and Receiver in the same Group IP. 2) This (Local): The IP you input into address bar of web browser. 3) Hosts or Clients: select which Transmitter or Receiver you want to configure. Partilink Technology Co., Ltd Copyright @ 2017...
- Page 30 Show OSD: Check this box to output each receiver’s specific number to the connected monitor Figure 19. Monitor Setting Application Figure 20. Show OSD Check box Partilink Technology Co., Ltd Copyright @ 2017...
-
Page 31: Advance Setup]
6.2.2 [Advance Setup] Figure 21. Video Wall Advanced Setup Partilink Technology Co., Ltd Copyright @ 2017... - Page 32 Monitor Count = 3, Horizontal Monitor Count = 5 Figure 22. Basic Setup of the Video Wall before Access Sept2: In “Advanced Setup”, choose the target of the video wall to control Figure 23. Choose Video Wall Control Target Partilink Technology Co., Ltd Copyright @ 2017...
- Page 33 Set up the number of vertical and horizontal monitor based on the video wall layout. Vertical number 1~8 and horizontal number 1~16. Setup the row postion of monitor, number from 0 to the total number of vertical monitor. Partilink Technology Co., Ltd Copyright @ 2017...
- Page 34 Setup the column position of monitor, number from 0 to the total number of horizontal monitor. Figure 28. Seup the Row Position of the Monitor Figure 29. Setup Column Position of the Monitor Partilink Technology Co., Ltd Copyright @ 2017...
- Page 35 Horizontal Scale Up: Setup the video horizontal scale up. Vertical Shift Scale Up: Setup the video vertical scale up. Figure 30. Output Video Adjustment Consol API Command: Input Linux command to do advanced setup. Partilink Technology Co., Ltd Copyright @ 2017...
- Page 36 Figure 31. Consol API Command Input 6.3 Network Update the network setup of the Partilink Technology Co., Ltd Copyright @ 2017...
- Page 37 6.3.1 [IP Setup] Auto IP: use automatically Extender assign IP system for example: 169.254.xxx.xxx Figure 33. Auto IP Setup Figure 32. Network Setup DHCP: use the DHCP of the external device Partilink Technology Co., Ltd Copyright @ 2017...
- Page 38 Static: use the static IP to assign manually Figure 35. Assign Static IP 6.3.2 [Casting Mode] Select the broadcast mode of the extender application Multicast: point to multiple points or multiple point to multiple points broadcast Partilink Technology Co., Ltd Copyright @ 2017...
- Page 39 Unicast: point to point broadcast Figure 36. The Casting Mode Setup 6.4 Functions: Partilink Technology Co., Ltd Copyright @ 2017...
- Page 40 Setup the video output and USB extension mode Figure 37. Video and USB over IP Functions Partilink Technology Co., Ltd Copyright @ 2017...
-
Page 41: Video Over Ip]: Setup The Video Output
80000004: HD 720p60 81000061: WXGA 1366x768@60 81000040: WXGA+ 1440x900@60 81000051: WUXGA 1920x1200@60 8100003C: SXGA+ 1400x1050@60 Timeout for Detecting Video Lost: Setup the time of stop the video storage when detecting video lost to transmit Partilink Technology Co., Ltd Copyright @ 2017... - Page 42 Figure 38. Video over IP Setup Figure 39. Customize Scaler Output Mode Partilink Technology Co., Ltd Copyright @ 2017...
-
Page 43: Usb Over Ip]: Setup The Usb Extension
IP Operation Mode: Including “auto select mode”, “active on line” and “active per request” modes for option. Compatibility Mode: Check to enable USB keyboard, USB mouse transmission mode. Partilink Technology Co., Ltd Copyright @ 2017... -
Page 44: Serial Over Ip]: Set Up The Serial Extension
Figure 41. USB over IP Functions 6.4.3 [Serial over IP]: set up the serial extension mode Select Type 2 as operation mode Set up the baud rate for Type 2. Partilink Technology Co., Ltd Copyright @ 2017... - Page 45 Figure 42. Serial over IP Figure 43. Broadcast Mode Setting Partilink Technology Co., Ltd Copyright @ 2017...
- Page 46 Broadcast setting including unicast and multicast 7.1 Multicast : To enable the USB interactive devices controlled turns, please check “Auto select USB operation mode per casting mode” Figure 44. USB Interaction Application Partilink Technology Co., Ltd Copyright @ 2017...
- Page 47 Install multiple transmitters and setting ID of these transmitters individually, edit the group of transmitters and receivers. The correspondent receivers will output the video from the transmitter belonged to the same group ID. Figure 46. Transmitter and Receiver Unit Grouping Partilink Technology Co., Ltd Copyright @ 2017...
- Page 48 In multicast and matrix application mode, access the Web user interface of correspondent receiver to setup 7.4.1 [Basic Setup] Please refer to “Section 6.2.1 Basic setup” and follow the steps as below. Partilink Technology Co., Ltd Copyright @ 2017...
-
Page 49: Advanced Setup
7.4.2 Advanced Setup Select the monitor you want to control. The one you select will show “This” in green in video wall matrix layout. Take below diagram for Partilink Technology Co., Ltd Copyright @ 2017... - Page 50 Figure 53. Example for the Video Wall Control Here’s the diagram of the actual video wall layout showing the selected monitor in the upper left corner with green outline. Figure 54. Example for the Video Wall Control Partilink Technology Co., Ltd Copyright @ 2017...
- Page 51 Figure 56. Example for Adjust the Monitor of Video Wall Adjust the vertical position of the video output, “Up/ Down Shift”, the selected monitor to adjust is shown with green outline. Partilink Technology Co., Ltd Copyright @ 2017...
- Page 52 Figure 57. Example for Adjust the Monitor of Video Wall Horizontal Scale Up: To scale up the video output horizontally as the monitor shown with green outline Figure 58. Example for Adjust the Monitor of Video Wall Partilink Technology Co., Ltd Copyright @ 2017...
- Page 53 Vertical Scale Up: To scale up the video output vertically as the monitor shown with green outline Figure 59. Example for Adjust the Monitor of Video Wall Partilink Technology Co., Ltd Copyright @ 2017...
- Page 54 PoE model doesn’t include power adapter. 4. IR receiver cable comes with receiver (1) 5. IR emitter cable comes with transmitter (1) 6. User manual (1) 7. Rear bracket (2) Partilink Technology Co., Ltd Copyright @ 2017...
- Page 55 Partilink Technology Co., Ltd Copyright @ 2017...
- Page 56 www.partilink.com...
