Partilink P2K-HL3E1 User Manual

1080p hdmi extender over ip, 1080p hdmi extender over ip with poe
Hide thumbs Also See for P2K-HL3E1:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

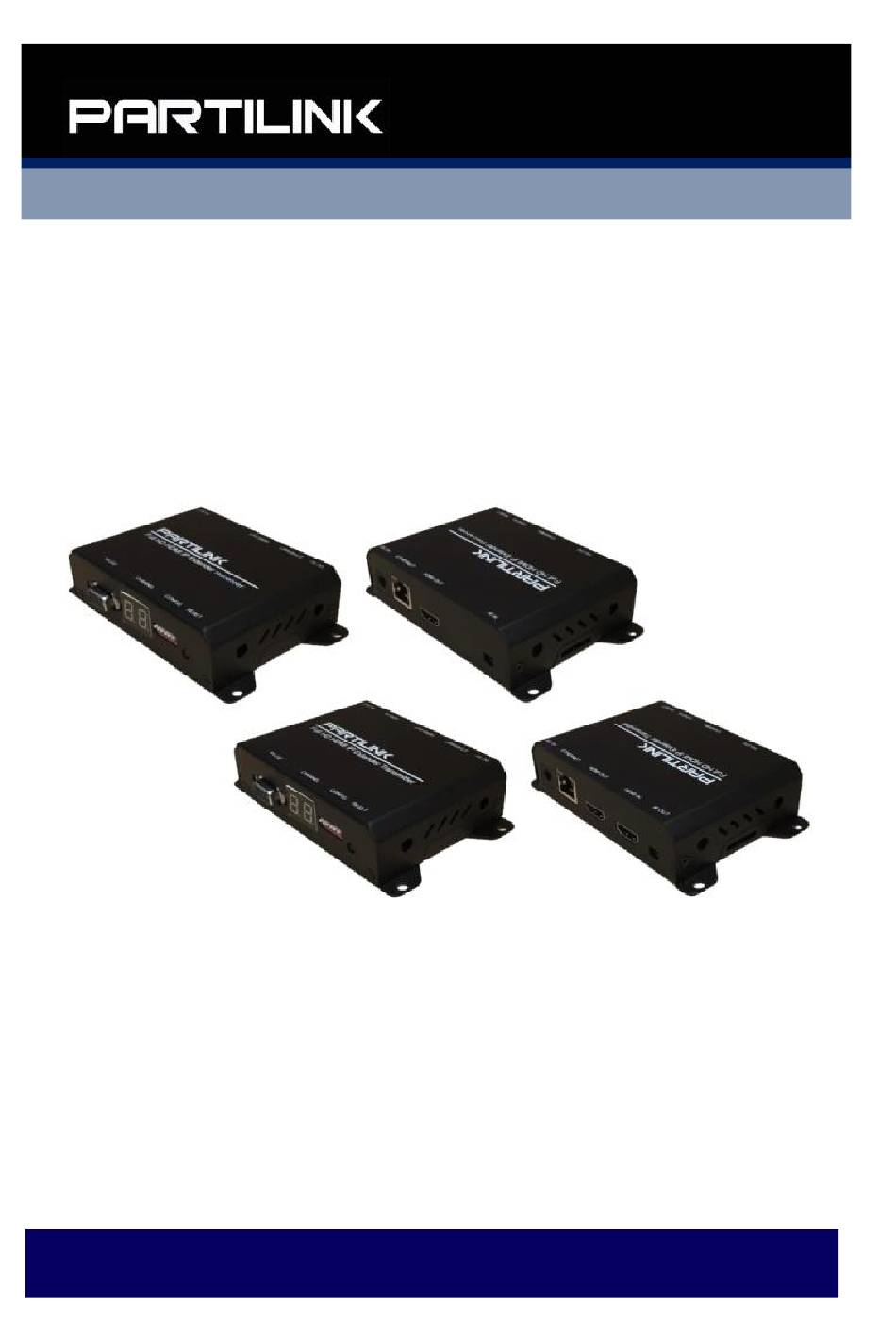

Usermanual
P2K-HL3E1
P2K-HL3E1-P 1080p HDMI Extender over IP with PoE
Partilink Technology Co., Ltd Copyright @2016
1080p HDMI Extender over IP
P2K-HRSL3E1/ P2K-
LHRS1E3
P2K-HRSL3E1
P2K-HRSL3E1-P / P2K-LHRS1E3-P
/ P2K-LHRS1E3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P2K-HL3E1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Partilink P2K-HL3E1

Summary of Contents for Partilink P2K-HL3E1

  • Page 1 Usermanual P2K-HL3E1 1080p HDMI Extender over IP P2K-HL3E1-P 1080p HDMI Extender over IP with PoE P2K-HRSL3E1/ P2K- LHRS1E3 P2K-HRSL3E1 / P2K-LHRS1E3 P2K-HRSL3E1-P / P2K-LHRS1E3-P Partilink Technology Co., Ltd Copyright @2016...

  • Page 3: Table Of Contents

    1. Introduction 2. Features & Application 3. Specifications 4. Hardware Description 5. Installation 5.2 Configuration 5.3 Application Pattern 5.4 PC Tool Setup and Control 6. Web-based UI configuration 7. Package Contents...

  • Page 4: Introduction

    RS-232 and IR control extension. Easy installation with networking 10/100 BASE-T switch hub and CAT-5 cable for building up the extension or broadcast system. P2K-HL3E1-P supports power over Ethernet Partilink Technology Co., Ltd Copyright @ 2016...

  • Page 5: Features & Application

     Point to point extension, unicast, multicast and screen wall system  Point to point extension via CATx without Ethernet switch up to 100M  Support PC tool Ethernet control  P2K-HL3E1-P version supports Power over Ethernet. Partilink Technology Co., Ltd Copyright @ 2016...

  • Page 6: Specifications

    AC in 100~240V (50~60Hz), DC5V/2A out ESD protection air gap discharge ±8KV, contact discharged ±4KV DIMENSION (W x D x L) 130 x 82 x 30.25 mm ( L x W x H ) Partilink Technology Co., Ltd Copyright @ 2016...

  • Page 7: Hardware Description

    3. HDMI Type-A female connector for loop through video output. 4. HDMI Type-A female input connector. 5. 3.5mm phone jack for IR emitter to control video source device. 6. DB-9 female connector for RS-232 cable bi- directional remote extension Partilink Technology Co., Ltd Copyright @ 2016...
  • Page 8 7. Display group indication. 8. Group configuration, 6 bits switch for 64 stream channel selection. Reset button. Channel DIP SWITCH 000000 100000 111111 Dimension P2K-HRSL3E1 Transmitter P2K-HRSL3E1-P Shell Metal Width 110mm/130mm Height 30mm Partilink Technology Co., Ltd Copyright @ 2016...
  • Page 9 4. 3.5mm phone jack for IR receiver cable to receive signal from remote controller. 5. DB-9 female connector for RS-232 bi- directional remote extension. 6. Display group indication. 7. Group configuration, 6 bits switch for 64 Partilink Technology Co., Ltd Copyright @ 2016...
  • Page 10 8. Reset button. Channel DIP SWITCH 000000 100000 111111 9. Dimension P2K-LHRS1E3 Receiver P2K-LHRS1E3-P Shell Metal Width 110mm/130mm Height 30mm Depth 86mm Weight 290g Partilink Technology Co., Ltd Copyright @ 2016...

  • Page 11: Installation

    5. Turn on and play source. 6. Connect the IR emitter cable with the transmitter and the IR receiver cable with the receiver to control the source remotely. Partilink Technology Co., Ltd Copyright @ 2016...

  • Page 12: Configuration

    5.2 Configuration 5.3 Application Pattern ■ Unicast Partilink Technology Co., Ltd Copyright @ 2016...
  • Page 13 ■Multicast Partilink Technology Co., Ltd Copyright @ 2016...
  • Page 14 ■ Screen Wall Partilink Technology Co., Ltd Copyright @ 2016...

  • Page 15: Pc Tool Setup And Control

    5.4 PC Tool Setup and Control The P2K-HL3E1 / P2K-HL3E1-P is a Ethernet based system, administrator can control the system by PC via the PC tool ” IPTV_Control_Center.exe” to set up and control the system. ※Please download the PC tool from the Partilink website or contact us by email to get the software.
  • Page 16 2. Connect the PC with the Ethernet switch of application site to enter. 3. Activate the tool “IPTV_Control_Center.exe” to search and setup. Partilink Technology Co., Ltd Copyright @ 2016...
  • Page 17 4. Enter the tool in “Device Scan Page” and click on “Start Scan”to search for the connected devices. The connected devices will be indicated in “Output Window” area. (Illustration [1] [2]) 5. In Partilink Technology Co., Ltd Copyright @ 2016...
  • Page 18 “TX Device Selection” and the relevant setting information of the selected TX device will be shown in the “TX Device Info” area (Illustration [4] [5]) Partilink Technology Co., Ltd Copyright @ 2016...
  • Page 19 The setting functions of the transmitter clarified below, please set up based on the request of the application site.  IP Setup: Setting the static IP of the selected TX. **We Partilink Technology Co., Ltd Copyright @ 2016...
  • Page 20 Setting the selected TX video output path. Options including “Loopthrough and Network Output”, “Disable Network Output”, “Disable Loopthrough Output” and “Disable All Video Output” to activate the HDMI output on the transmitter and receiver simultaneously or Partilink Technology Co., Ltd Copyright @ 2016...
  • Page 21 Up to 32 digits is accepted for the device name setting. (Illustration [13]) 7. RECEIVER SETING In the “RX Setup Page”, please select the RX device which is required to setup on the “RX Partilink Technology Co., Ltd Copyright @ 2016...
  • Page 22 Device Selection” and the relevant setting information of the selected RX device will be shown in the “RX Device Info” area (Illustration [14] and [15]) Partilink Technology Co., Ltd Copyright @ 2016...
  • Page 23 Mode” and “Info Display Off Mode”. (Illustration [18])  UART Baudrate: Setting the baud rate of RS-232 extension on the selected RX. (Illustration [19])  MAC Address: Setting the selected RX MAC address with Partilink Technology Co., Ltd Copyright @ 2016...
  • Page 24 RX, maximum up to 64 groups from 0 to 63 (Illustration [21])  Device name: Setting the selected RX name for identification. Up to 32 digits is accepted for the device name setting. (Illustration [22]) 8. NOTICE: Partilink Technology Co., Ltd Copyright @ 2016...
  • Page 25 Please reboot after setting up the P2K-HL3E1 system via the PC tool and the previous setting via hardware or software will be ignored, the system will auto detect to update the latest setting and apply as the start mode. (Illustration [23] and [24]) 9.
  • Page 26 “Factory Reset” to recover the initial default of the system. (Illustration [25]) 10. The P2K-HL3E1 / P2K-HL3E1-P system can be firmware upgraded via PC. To upgrade the firmware please click on “Firmware Upgrade” and select the path to save the firmware and click on “Upgrade TX Firmware”...

  • Page 27: Web-Based Ui Configuration

    6. Web User Interface Configuration 6.1 TX System 6.1.1 TX Log-in Log-in page will pop up when entering TX system  Default User Name and Password: Partilink Technology Co., Ltd Copyright @ 2016...
  • Page 28 System provides 1 set user name and password. If user doesn’t want to user default, please put preferred User Name and Password as follows. Then press “Confirm” to change user name and password. Partilink Technology Co., Ltd Copyright @ 2016...
  • Page 29 6.1.2 Version Information Here user can see firmware information and network setting of TX Note. Please also set TX and all RXs in the same group by setting DIP SWITCH. Partilink Technology Co., Ltd Copyright @ 2016...
  • Page 30 Download Site: “Technical Service” http://www.partilink.com/index.php/en/download-2 To upgrade firmware please press “Upgrade” button which is under “Upgrade Firmware”. Please choose the location of firmware file. Then press ”Upgrade” button again to load firmware and Partilink Technology Co., Ltd Copyright @ 2016...
  • Page 31 6.1.5 Reset  Encoder Reset: To reboot Encoder only please click on “Encoder Reset” button. Partilink Technology Co., Ltd Copyright @ 2016...
  • Page 32  Reboot Device: To reboot whole device please click on “Reboot” button. 6.2 RX System 6.2.1 RX Log-in Log-in page will pop up when entering RX system Default User Name and Password:  User Name: admin Password: 123456 Partilink Technology Co., Ltd Copyright @ 2016...
  • Page 33 To upgrade firmware please press “Upgrade” button which is under “Upgrade Firmware”. Please choose the location of firmware file. Then press ”Upgrade” button again to load firmware and system will start firmware upgrade automatically. Partilink Technology Co., Ltd Copyright @ 2016...
  • Page 34 6.2.3 Reboot To reboot whole device please click on “Reboot” button. It will show message as “Reload page after 10 seconds” in the bottom of the page. Partilink Technology Co., Ltd Copyright @ 2016...

  • Page 35: Package Contents

    IP receiver (1) 3. DC5V 2A power adapter, one comes with transmitter and one comes with receiver 4. IR receiver cable comes with receiver (1) IR emitter cable comes with transmitter (1) User manual (1) Partilink Technology Co., Ltd Copyright @ 2016...
  • Page 36 Partilink Technology Co., Ltd Copyright @ 2016 www.partilink.com...

This manual is also suitable for:

P2k-hl3e1-p
