Partilink P2K-HL3E1 User Manual

1080p hdmi extender over ip, 1080p hdmi extender over ip with poe
Hide thumbs Also See for P2K-HL3E1:
Table of Contents

Advertisement

Quick Links

Download this manual

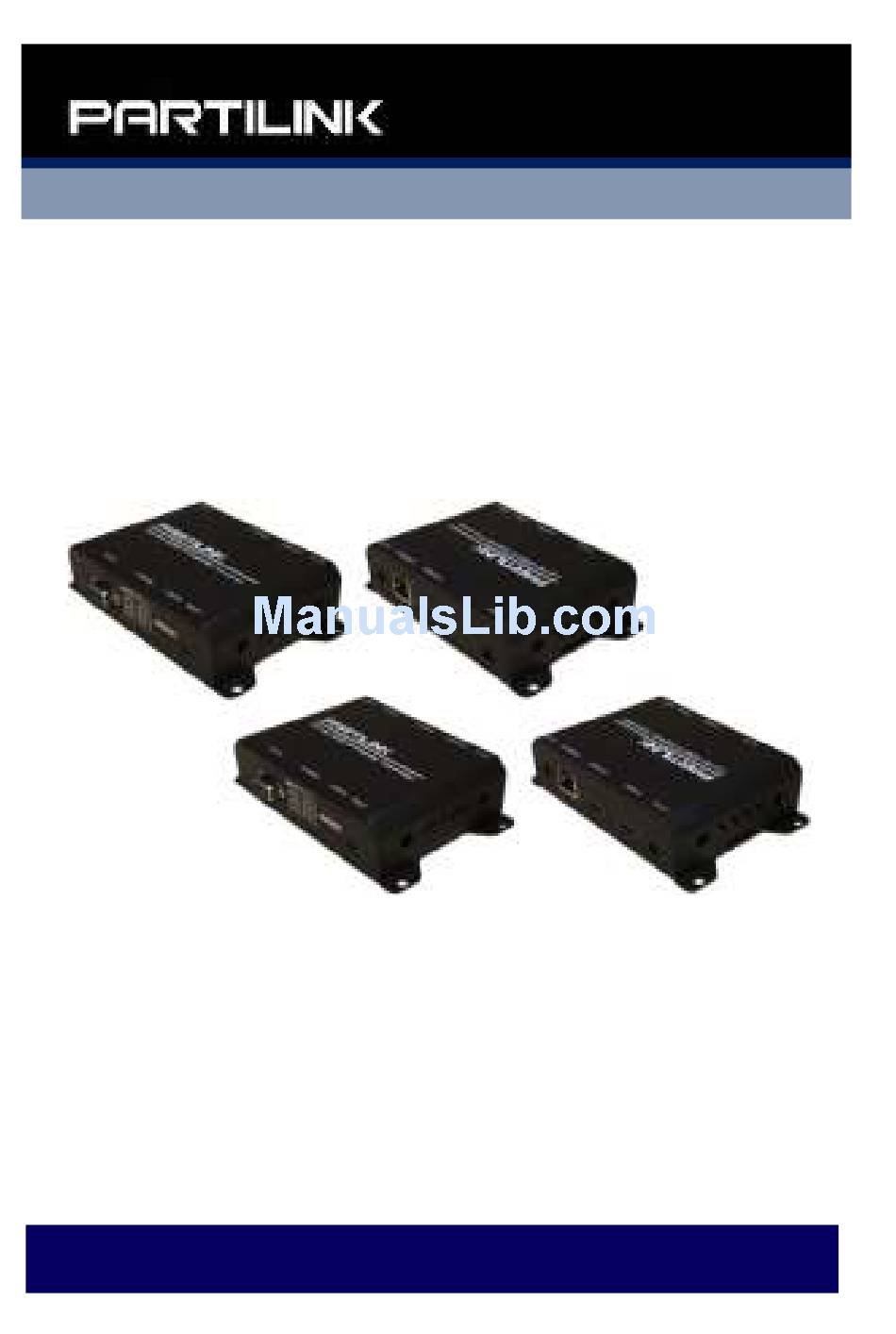

User manual
P2K-HL3E1
P2K-HL3E1-P
Partilink Technology Co., Ltd Copyright @2016
1080p HDMI Extender over IP
1080p HDMI Extender over IP with PoE
P2K-HRSL3E1/ P2K-LHRS1E3
P2K-HRSL3E1
P2K-HRSL3E1-P / P2K-LHRS1E3-P
/ P2K-LHRS1E3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P2K-HL3E1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Partilink P2K-HL3E1

Summary of Contents for Partilink P2K-HL3E1

  • Page 1 User manual P2K-HL3E1 1080p HDMI Extender over IP P2K-HL3E1-P 1080p HDMI Extender over IP with PoE P2K-HRSL3E1/ P2K-LHRS1E3 P2K-HRSL3E1 / P2K-LHRS1E3 P2K-HRSL3E1-P / P2K-LHRS1E3-P Partilink Technology Co., Ltd Copyright @2016...

  • Page 3: Table Of Contents

    1. Introduction 2. Features & Application 3. Specifications 4. Hardware Description 5. Installation 5.1 Device Connection 5.2 Configuration 5.3 Application Pattern 5.4 PC Tool Setup and Control 6. Web-based UI configuration 7. Package Contents...

  • Page 4: Introduction

    RS-232 and IR control extension. Easy to install and with networking 10/100 BASE-T switch hub as well as CAT-5 cable for building up the extension or broadcast system. P2K-HL3E1-P supports power over Ethernet Partilink Technology Co., Ltd Copyright @ 2016...

  • Page 5: Features & Application

     Point to point extension, unicast, multicast and screen wall system  Point to point extension via CATx without Ethernet switch up to 100M  Supports PC tool Ethernet control  Power over Ethernet version is provided (P2K-HL3E1-P). Partilink Technology Co., Ltd Copyright @ 2016...

  • Page 6: Specifications

    DIMENSION (W x D x L) 130 x 82 x 30.25 mm ( L x W x H ) WEIGHT 290g per transmitter or receiver unit ** Product specifications are subject to change without notice. 4. Hardware Description Partilink Technology Co., Ltd Copyright @ 2016...
  • Page 7 5. 3.5mm phone jack for IR emitter to control video source device. 6. DB-9 female connector for RS-232 cable bi-directional remote extension 7. Display group indication. 8. Group configuration, 6 bits switch for 64 stream channel selection. Partilink Technology Co., Ltd Copyright @ 2016...
  • Page 8 Reset button. Channel DIP SWITCH 000000 100000 111111 Dimension P2K-HRSL3E1 Transmitter P2K-HRSL3E1-P Shell Metal Width 110mm/130mm Height 30mm Depth 86mm Weight 290g Partilink Technology Co., Ltd Copyright @ 2016...
  • Page 9 4. 3.5mm phone jack for IR receiver cable to receive signal from remote controller. 5. DB-9 female connector for RS-232 bi-directional remote extension. 6. Display group indication. 7. Group configuration, 6 bits switch for 64 stream channel selection. Partilink Technology Co., Ltd Copyright @ 2016...
  • Page 10 8. Reset button. Channel DIP SWITCH 000000 100000 111111 9. Dimension P2K-LHRS1E3 Receiver P2K-LHRS1E3-P Shell Metal Width 110mm/130mm Height 30mm Depth 86mm Weight 290g Partilink Technology Co., Ltd Copyright @ 2016...

  • Page 11: Installation

    DC5V power adapter. 5. Turn the Source on and hit play button. 6. Connect the IR emitter cable with transmitters and the IR receiver cable with the receiver to control the Source remotely. Partilink Technology Co., Ltd Copyright @ 2016...

  • Page 12: Configuration

    5.2 Configuration 5.3 Application Pattern ■ Unicast Partilink Technology Co., Ltd Copyright @ 2016...
  • Page 13 ■Multicast Partilink Technology Co., Ltd Copyright @ 2016...
  • Page 14 ■ Screen Wall Partilink Technology Co., Ltd Copyright @ 2016...

  • Page 15: Pc Tool Setup And Control

    5.4 PC Tool Setup and Control The P2K-HL3E1 / P2K-HL3E1-P is a Ethernet based system, administrator can control the system by PC via the PC tool ” IPTV_Control_Center.exe” to set up and control the system. ※To inquire about the software, visit Partilink website to download the PC tool or simply contact us by email.
  • Page 16 2. Connect the PC with the Ethernet Switch of application site to enter. 3. Activate the tool “IPTV_Control_Center.exe” to search and setup. Partilink Technology Co., Ltd Copyright @ 2016...
  • Page 17 4. Enter the tool in “Device Scan Page” and click on “Start Scan” to search for the connected devices. The connected devices will be indicated in “Output Window” area. (Illustration [1] [2]) 5. Adjust transmitter settings in “TX Setup Page” Partilink Technology Co., Ltd Copyright @ 2016...
  • Page 18 “TX Device Selection” and the relevant setting information of the selected TX device will be shown in the “TX Device Info” area (Illustration [4] [5]) Partilink Technology Co., Ltd Copyright @ 2016...
  • Page 19 Partilink Technology Co., Ltd Copyright @ 2016...
  • Page 20 Set the resolution downscale of each group on the selected TX. (Illustration [8])  Group ID: Set the selected TX group ID, with maximum up to 64 groups from 0 to 63. (Illustration [9]) Partilink Technology Co., Ltd Copyright @ 2016...
  • Page 21  MAC Address: Set the selected TX MAC address with 12 digits and hexadecimal base, values is limited to 0~F. Please use legal MAC address to avoid conflict with other devices. (Illustration [12]) Partilink Technology Co., Ltd Copyright @ 2016...
  • Page 22 In the “RX Setup Page”, please select RX device which is required to setup on the “RX Device Selection” and the relevant setting information of selected RX device will be shown in “RX Device Info” section (Illustration [14] and [15]) Partilink Technology Co., Ltd Copyright @ 2016...
  • Page 23 Partilink Technology Co., Ltd Copyright @ 2016...
  • Page 24 “Info Display Off Mode”. (Illustration [18])  UART Baudrate: Set the baud rate of RS-232 extension on the selected RX. (Illustration [19])  MAC Address: Set the selected RX MAC address with 12 Partilink Technology Co., Ltd Copyright @ 2016...
  • Page 25 RX, maximum up to 64 groups from 0 to 63 (Illustration [21])  Device name: Set the selected RX name for identification. Up to 32 digits is accepted for the device name setting. (Illustration [22]) Partilink Technology Co., Ltd Copyright @ 2016...
  • Page 26 NOTICE: Please Reboot the device after setting up the P2K-HL3E1 system via the PC tool and the previous setting via hardware or software will be ignored, the system will auto detect to update the latest setting and apply as the start mode.
  • Page 27 9. When the system is setting incompletely, click on “Factory Reset” to recover the initial default of the system. (Illustration [25]) Partilink Technology Co., Ltd Copyright @ 2016...
  • Page 28 10. The P2K-HL3E1 / P2K-HL3E1-P system can be firmware upgraded via PC. To upgrade the firmware please click on “Firmware Upgrade” and select the path to save the firmware and click on “Upgrade TX Firmware” to accomplish upgrade version. (Illustration [26] and [27])

  • Page 29: Web-Based Ui Configuration

    6. Web User Interface Configuration 6.1 TX System 6.1.1 TX Log-in Log-in page will pop up when entering TX system  Default User Name and Password: User Name: ite000 Password: 123456 Partilink Technology Co., Ltd Copyright @ 2016...
  • Page 30 If user doesn’t want user default, please put preferred User Name and Password as follows. Then hit “Confirm” to change user name and password. 6.1.2 Version Information Below shows firmware information and network setting of TX Partilink Technology Co., Ltd Copyright @ 2016...
  • Page 31 Note: Please also set TX and all RXs in the same group by setting DIP SWITCH. 6.1.3 Multicast To support several more than one RX enable “Multicast” for multicast function. (see below) Partilink Technology Co., Ltd Copyright @ 2016...
  • Page 32 Download Site: “Technical Service” http://www.partilink.com/index.php/en/download-2 To upgrade firmware please hit “Upgrade” under “Upgrade Firmware”, and choose the location of firmware file. Then hit ”Upgrade” again to load firmware and the system will start firmware upgrade automatically. Partilink Technology Co., Ltd Copyright @ 2016...
  • Page 33 6.1.5 Reset  Encoder Reset: To reboot Encoder simply click on “Encoder Reset” button. Partilink Technology Co., Ltd Copyright @ 2016...
  • Page 34  Reboot Device: To reboot whole device please click on “Reboot” button. 6.2 RX System 6.2.1 RX Log-in Log-in page will pop up when entering RX system Default User Name and Password:  User Name: admin Password: 123456 Partilink Technology Co., Ltd Copyright @ 2016...
  • Page 35 Download Site: “Technical Service” http://www.partilink.com/index.php/en/download-2 To upgrade firmware please hit “Upgrade” under “Upgrade Firmware”. Please choose the location of firmware file. Hit “Upgrade” again to load firmware and the system will start firmware upgrade automatically. Partilink Technology Co., Ltd Copyright @ 2016...
  • Page 36 6.2.3 Reboot To reboot the device please click on “Reboot” button. It will show message as “Reload page after 10 seconds” in the bottom of the page. Partilink Technology Co., Ltd Copyright @ 2016...

  • Page 37: Package Contents

    IP receiver (1) 3. DC5V 2A power adapter, one comes with transmitter and one comes with receiver 4. IR receiver cable comes with receiver (1) IR emitter cable comes with transmitter (1) User manual (1) Partilink Technology Co., Ltd Copyright @ 2016...
  • Page 38 Partilink Technology Co., Ltd Copyright @ 2016...
