Partilink P4K-HUL4E1 User Manual

4k uhd hdmi & usb over ip
Hide thumbs Also See for P4K-HUL4E1:
Table of Contents

Advertisement

Quick Links

Download this manual
User manual
P4K-HUL4E1
P4K-HUL4E1-P 4K UDH HDMI & USB Over IP Extender with PoE
Partilink Technology Co., Ltd Copyright @2016
4K UHD HDMI & USB Over IP Extender
P4K-HRSUL4E1 / P4K- LHRSU1E4
P4K-HRSUL4E1-P/ P4K-LHRSU1E4-P

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P4K-HUL4E1 and is the answer not in the manual?

Questions and answers

Related Manuals for Partilink P4K-HUL4E1

Summary of Contents for Partilink P4K-HUL4E1

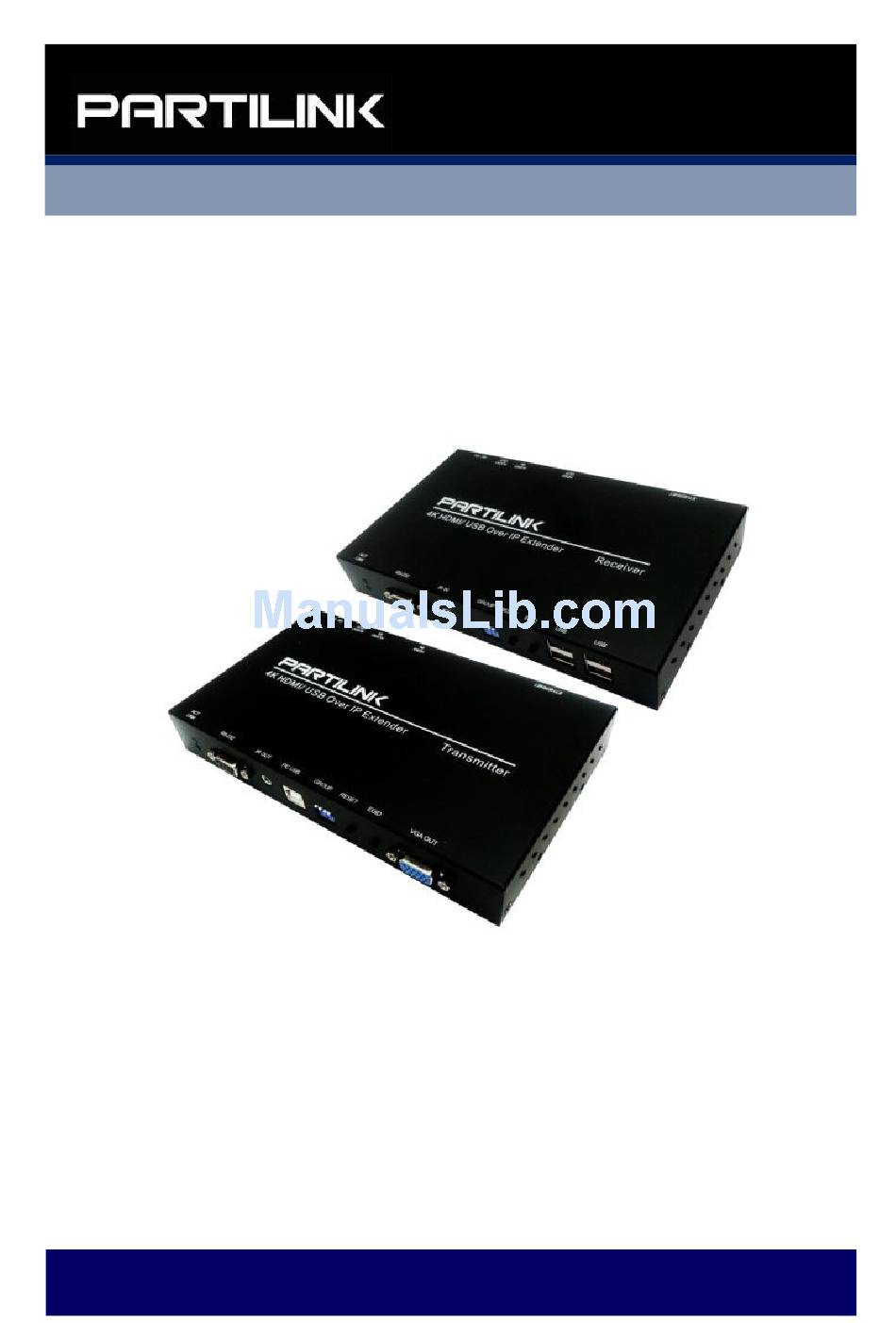

  • Page 1 User manual P4K-HUL4E1 4K UHD HDMI & USB Over IP Extender P4K-HUL4E1-P 4K UDH HDMI & USB Over IP Extender with PoE P4K-HRSUL4E1 / P4K- LHRSU1E4 P4K-HRSUL4E1-P/ P4K-LHRSU1E4-P Partilink Technology Co., Ltd Copyright @2016...

  • Page 2: Table Of Contents

    Table of Contents Introduction Features & Application Specifications Hardware Description 4.1 Transmitter 4.2 Receiver Installation 5.1 Device Connection 5.2 IP Configuration Web User Interface Configuration 6.1 System 6.1.1 Version Information 6.1.2 Update Firmware 6.1.3 Utilities 6.1.4 Statistics 6.2 Video Wall 6.2.1 Basic Setup 6.2.2...
  • Page 3 6.3 Network 6.3.1 IP Setup 6.3.2 Casting Mode 6.4 Functions 6.4.1 IP Setup 6.4.2 Casting Mode 6.4.3 Serial over IP Broadcast Configuration Example 7.1 Multicast 7.2 Unicast 7.3 Matrix 7.4 Video Wall 7.4.1 Basic Setup 7.4.2 Advanced Setup Package Contents...

  • Page 4: Introduction

    4K HDMI & USB over IP Extender by web browser. An easy installation system built up with Giga Ethernet switch which has IGMP function and CATx cable for extension or broadcast. The P4K-HUL4E1-P supports PoE (Power over Ethernet) function. Partilink Technology Co., Ltd Copyright @ 2016...

  • Page 5: Features & Application

     Point to point extension via CAT5e cable without Ethernet switch up to 100M  Ethernet webpage management  RS-232 Serial control command management  P4K-HUL4E1-P supports Power over Ethernet Partilink Technology Co., Ltd Copyright @ 2016...

  • Page 6: Specifications

    Power adapter AC in 100~240V (50~60Hz) ESD protection air gap discharge ±8KV, contact discharged ±4KV DIMENSION 194 x 114 x 28 mm WEIGHT TX 620g, RX 610g ** Product specifications are subject to change without notice. Partilink Technology Co., Ltd Copyright @ 2016...

  • Page 7: Hardware Description

    4. HARDWARE DESCRIPTION 4.1 Transmitter P4K-HUL4E1/ 4K-HUL4E1-P (TX) 1. 12 VDC power supply with locking for 4K HDMI & USB over IP Extender. Partilink Technology Co., Ltd Copyright @ 2016...
  • Page 8 11. Group configuration, 4-bit DIP switch to set up the group ID 12. Restart the 4K HDMI & USB over IP extension by pressing RESET button 13. Press EDID button for manual EDID copy function 14. DB9 connector for VGA local display Partilink Technology Co., Ltd Copyright @ 2016...

  • Page 9: Receiver

    4.2 Receiver P4K-LHRSU1E4/ P4K-LHRSU1E4-P (RX) 12 VDC power supply with locking for 4K HDMI & USB over IP Extender. RCA connector for stereo audio output. Partilink Technology Co., Ltd Copyright @ 2016...
  • Page 10 11. Restart the 4K HDMI & USB over IP extension by pressing RESET button 12. Press EDID button for manual EDID copy function 13. 4 USB ports for additional USB devices such as USB mouse, USB keyboard and USB pen drive. Partilink Technology Co., Ltd Copyright @ 2016...

  • Page 11: Installation

    3. Connect the Transmitter to video source with HDMI cable, and connect Receiver to a monitor or display with HDMI cable. 4. Connect the USB cables from Transmitter to PC, and connect the USB additional devices such as Partilink Technology Co., Ltd Copyright @ 2016...
  • Page 12 6. Power on the Transmitter, Receiver and all the connected devices. 7. Power on and activate all the connected devices. 8. Connect the IR extension cable with Transmitter and the IR receiver cable with Receiver for remote control. ◆ Configuration Partilink Technology Co., Ltd Copyright @ 2016...
  • Page 13 ◆ Application Pattern ■ Unicast ■ Multicast a. Video Distribution Partilink Technology Co., Ltd Copyright @ 2016...
  • Page 14 Matrix Distribution c. Billboard & Kiosk, PC to HDMI and USB Interactive Monitor Partilink Technology Co., Ltd Copyright @ 2016...

  • Page 15: Ip Configuration

    LAN in the same subnet. 1. Assign a LAN IP address to the computer in the same subnet. The IP address default of the Transmitter and Receiver is B class Networking: 169.254.xxx.xxx. Partilink Technology Co., Ltd Copyright @ 2016...
  • Page 16 Figure 1. Internet Protocol (TCP/IP) Properties 2. Connect all devices with proper cables except video source, please refer to Figure 2 Figure 2. Demonstrate the 4K HDMI & USB Over IP Extender Partilink Technology Co., Ltd Copyright @ 2016...
  • Page 17 4. The administrator can input Transmitter or Receiver IP address into address bar of web browser to enter the Extender Web UI. If link success, administrator will see the Web UI as shown in Figure 4. Partilink Technology Co., Ltd Copyright @ 2016...

  • Page 18: Web User Interface Configuration

    Figure4. Web User Interface 6. WEB USER INTERFACE CONFIGURATION 6.1 System The relevant information of the connected extender and setting 6.1.1 [Version Information] Indicating the firmware version and relevant information of the devices Partilink Technology Co., Ltd Copyright @ 2016...

  • Page 19: Update Firmware

    [Select File] to select the firmware and click on [Upload] to upload the firmware and update accordingly. Figure 6. Update Firmware  Transmitter Firmware Update: please select [webfw.bin] to update Partilink Technology Co., Ltd Copyright @ 2016...
  • Page 20 Web user interface shows the status as below diagram. The extender system will reboot automatically after updating firmware. If it doesn’t reboot automatically, please reboot to apply the new firmware manually. Figure 8. Firmware Update Progress Partilink Technology Co., Ltd Copyright @ 2016...

  • Page 21: Utilities

    There are some functions  Factory Default: Click on to return to the factory default when necessary  Reboot: Click on to reboot the extender system  Console API Command: Input Linux command for advanced setting Partilink Technology Co., Ltd Copyright @ 2016...

  • Page 22: Statistics

    Figure 10. Utilities 6.1.4 [Statistics] Indicating the extender linking and working status Partilink Technology Co., Ltd Copyright @ 2016...
  • Page 23 Figure 11. Statistics of Linking and Working Status Partilink Technology Co., Ltd Copyright @ 2016...

  • Page 24: Video Wall

    6.2 Video Wall To set up the video wall application 6.2.1 [Basic Setup] Figure 12. Basic Setup page Partilink Technology Co., Ltd Copyright @ 2016...
  • Page 25 2) If administrator doesn’t need this, just set all values to 0. 3) The unit is 0.1mm and the value MUST be integer. Figure 13. Monitor Bazel and Gap Setup Partilink Technology Co., Ltd Copyright @ 2016...
  • Page 26 Select number of vertical and/ or horizontal monitors, row position and column position. Vertical monitor number 1~8, horizontal monitor number 1~16 Figure 14. Vertical Monitor Number Setup Figure 15. Horizontal Monitor Number Setup Partilink Technology Co., Ltd Copyright @ 2016...
  • Page 27 Figure 16. Column Position Setup  Preferences: Select the video fit in the screen or stretch out and the rotate angle Figure 17. Video Stretch or Fit Screen Setup Partilink Technology Co., Ltd Copyright @ 2016...
  • Page 28 Group IP. 2) This (Local): The IP you input into address bar of web browser. 3) Hosts or Clients: select which Transmitter or Receiver you want to configure. Figure 19. Monitor Setting Application Partilink Technology Co., Ltd Copyright @ 2016...
  • Page 29  Show OSD: Check this box to output each receiver’s specific number to the connected monitor Figure 20. Show OSD Check box Partilink Technology Co., Ltd Copyright @ 2016...

  • Page 30: Advanced Setup

    6.2.2 [Advance Setup] Figure 21. Video Wall Advanced Setup Partilink Technology Co., Ltd Copyright @ 2016...
  • Page 31 Monitor Count = 3, Horizontal Monitor Count = 5 Figure 22. Basic Setup of the Video Wall before Access Sept2: In “Advanced Setup”, choose the target of the video wall to control Figure 23. Choose Video Wall Control Target Partilink Technology Co., Ltd Copyright @ 2016...
  • Page 32 Set up the number of vertical and horizontal monitor based on the video wall layout. Vertical number 1~8 and horizontal number 1~16. Setup the row postion of monitor, number from 0 to the total number of vertical monitor. Partilink Technology Co., Ltd Copyright @ 2016...
  • Page 33 Setup the column position of monitor, number from 0 to the total number of horizontal monitor. Figure 28. Seup the Row Position of the Monitor Figure 29. Setup Column Position of the Monitor Partilink Technology Co., Ltd Copyright @ 2016...
  • Page 34  Horizontal Scale Up: Setup the video horizontal scale up.  Vertical Shift Scale Up: Setup the video vertical shift scale up. Figure 30. Output Video Adjustment  Consol API Command: Input Linux command to do advanced setup. Partilink Technology Co., Ltd Copyright @ 2016...
  • Page 35 Figure 31. Consol API Command Input 6.3 Network Update the network setup of the extender system Figure 32. Network Setup Partilink Technology Co., Ltd Copyright @ 2016...

  • Page 36: Ip Setup

     Auto IP: use automatically Extender assign IP system for example: 169.254.xxx.xxx Figure 33. Auto IP Setup  DHCP: use the DHCP of the external device such as the IP sharer to assign IP Figure 34. DHCP Partilink Technology Co., Ltd Copyright @ 2016...

  • Page 37: Casting Mode

    Select the broadcast mode of the extender application  Multicast: point to multiple points or multiple point to multiple points broadcast  Unicast: point to point broadcast Figure 36. The Casting Mode Setup Partilink Technology Co., Ltd Copyright @ 2016...
  • Page 38 6.4 Functions: Setup the video output and USB extension mode Figure 37. Video and USB over IP Functions Partilink Technology Co., Ltd Copyright @ 2016...

  • Page 39: Ip Setup

    80000004: HD 720p60 81000061: WXGA 1366x768@60 81000040: WXGA+ 1440x900@60 81000051: WUXGA 1920x1200@60 8100003C: SXGA+ 1400x1050@60  Timeout for Detecting Video Lost: Setup the time of stop the video storage when detecting video lost to transmit Partilink Technology Co., Ltd Copyright @ 2016...
  • Page 40 Figure 38. Video over IP Setup Figure 39. Customize Scaler Output Mode Partilink Technology Co., Ltd Copyright @ 2016...
  • Page 41 IP  Operation Mode: Including “auto select mode”, “active on line” and “active per request” modes for option.  Compatibility Mode: Check to enable USB keyboard, USB mouse transmission mode. Partilink Technology Co., Ltd Copyright @ 2016...

  • Page 42: Serial Over Ip

    Figure 41. USB over IP Functions 6.4.3 [Serial over IP]: set up the serial extension mode  Select Type 2 as operation mode  Set up the baud rate for Type 2. Partilink Technology Co., Ltd Copyright @ 2016...
  • Page 43 Figure 42. Serial over IP Figure 43. Broadcast Mode Setting Partilink Technology Co., Ltd Copyright @ 2016...

  • Page 44: Casting Mode

    Broadcast setting including unicast and multicast 7.1 Multicast : To enable the USB interactive devices controlled by turns, please check “Auto select USB operation mode per casting mode” Figure 44. USB Interaction Application Partilink Technology Co., Ltd Copyright @ 2016...
  • Page 45 Install multiple transmitters and setting ID of these transmitters individually, edit the group of transmitters and receivers. The correspondent receivers will output the video from the transmitter belonged to the same group ID. Figure 46. Transmitter and Receiver Unit Grouping Partilink Technology Co., Ltd Copyright @ 2016...

  • Page 46: Basic Setup

    Web user interface of correspondent receiver to setup 7.4.1 [Basic Setup] Please refer to “Section 6.2.1 Basic setup” and follow the steps as below. Step1: Set up the vertical monitor count to “3” Partilink Technology Co., Ltd Copyright @ 2016...

  • Page 47: Advanced Setup

    Select the monitor you want to control. The one you select will show “This” in green in video wall matrix layout. Take below diagram for example, the monitor we select to control here is the monitor in the upper left corner. Partilink Technology Co., Ltd Copyright @ 2016...
  • Page 48 Figure 54. Example for the Video Wall Control Return to the previous setup of video wall quickly when incorrect operation was input. Figure 55. Reset Partilink Technology Co., Ltd Copyright @ 2016...
  • Page 49 Figure 56. Example for Adjust the Monitor of Video Wall Adjust the vertical position of the video output, “Up/ Down Shift”, the selected monitor to adjust is shown with green outline. Figure 57. Example for Adjust the Monitor of Video Wall Partilink Technology Co., Ltd Copyright @ 2016...
  • Page 50 Figure 58. Example for Adjust the Monitor of Video Wall Vertical Scale Up: To scale up the video output vertically as the monitor shown with green outline Figure 59. Example for Adjust the Monitor of Video Wall Partilink Technology Co., Ltd Copyright @ 2016...

  • Page 51: Package Contents

    PoE model doesn’t include power adapter. 4. IR receiver cable comes with receiver (1) 5. IR emitter cable comes with transmitter (1) 6. User manual (1) 7. Rear bracket (2) Partilink Technology Co., Ltd Copyright @ 2016...
  • Page 52 www.partilink.com...
