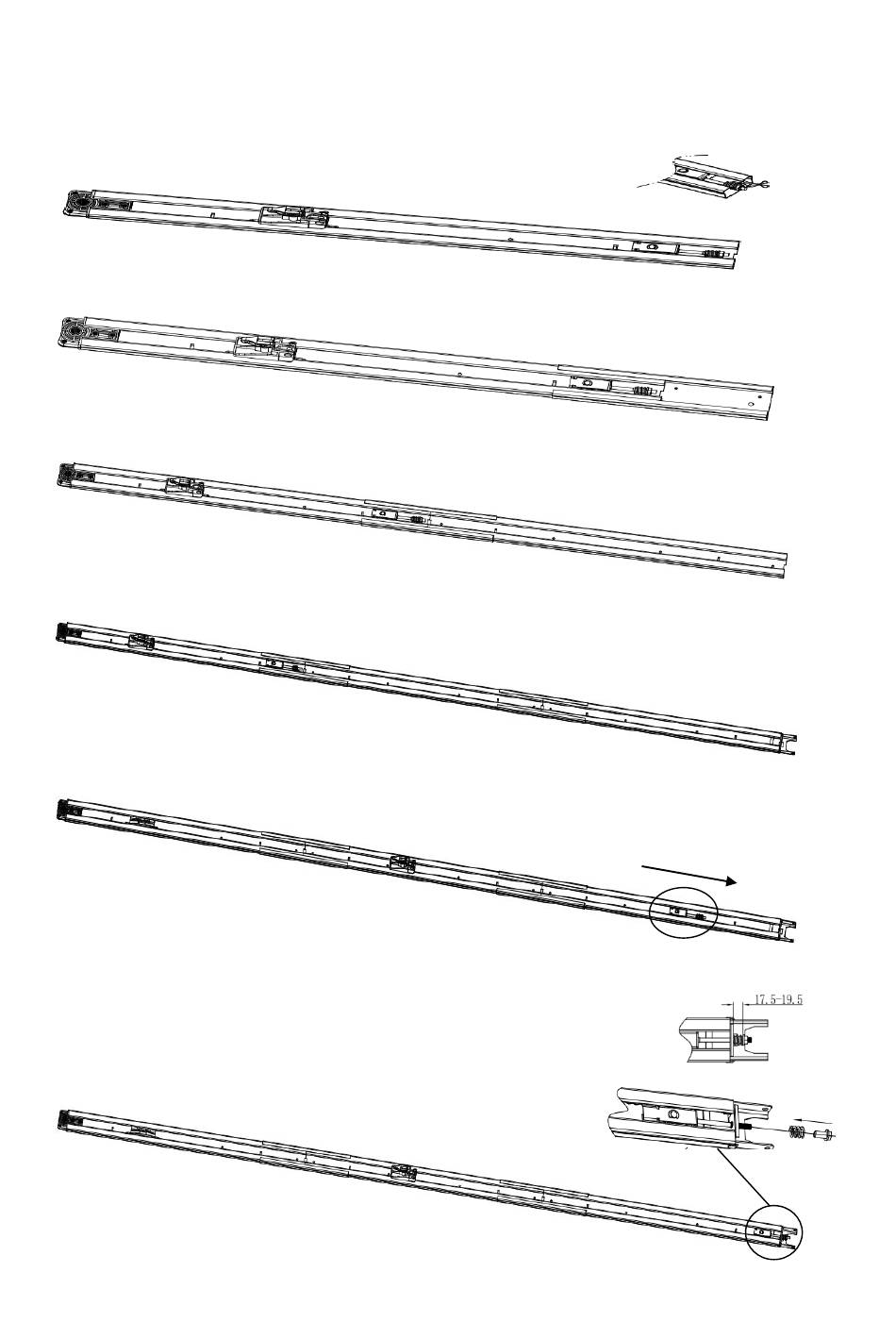

Installation (sectional steel track)
1. Cut the plastic cable tie on the first piece track
Fig.9
2. Fix the first sleeve to the first piece track
Fig.10
3. Fix the second piece track to another end of first sleeve
Fig.11
4. Repeat above steps to fix the second sleeve, third piece track
Fig.12
5. Pull the rod along the track towards another end
Fig.13
6. Fix rod according to below picture
Fig.14
7. Install according Fig. 7
- 9 -
