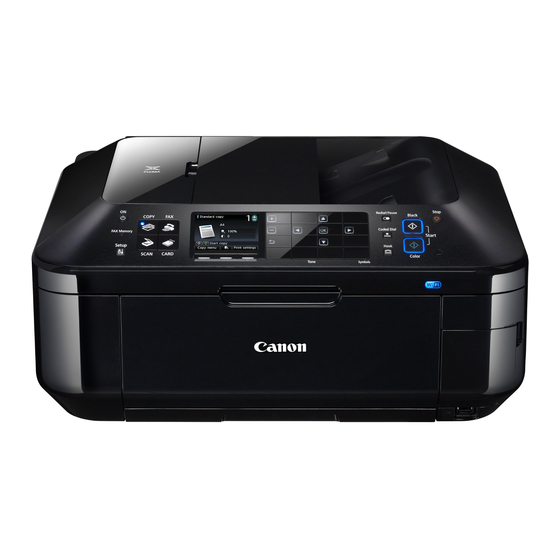

Canon Inkjet Office All-In-One
Equipo multifunción para oficina Canon Inkjet

Getting Started

Read Me First

Guía de inicio
Léame en primer lugar
Make sure to read this manual before using the machine. Please keep it in hand for future reference.
Asegúrese de leer este manual antes de usar el equipo. Consérvelo a mano para utilizarlo como referencia en el futuro.
series
ENGLISH
ESPAÑOL

Advertisement

Table of Contents

   Also See for Canon PIXMA MX882 Series

   Related Manuals for Canon PIXMA MX882 Series

   Summary of Contents for Canon PIXMA MX882 Series

  • Page 1: Getting Started

    Canon Inkjet Office All-In-One Equipo multifunción para oficina Canon Inkjet series Getting Started Read Me First Guía de inicio Léame en primer lugar Make sure to read this manual before using the machine. Please keep it in hand for future reference.
  • Page 2 ■ Contents ■ Symbols Used in This Document 1 Preparation P.4 2 Install the Print Head P.10 3 Install the Ink Tanks P.13 4 Align the Print Head P.16 5 Load Paper P.18 6 Set Up for Fax Reception P.21 7 Select Connection Method P.24 •...
  • Page 3: Machine Installation

    ■ Machine Installation USB Connection Flow ■ Flujo de instalación Conexión USB del equipo Machine Preparation Preparación del equipo Fax Reception Setup Configuración de recepción de faxes Software Installation Instalación del software Wireless Connection Wired Connection Conexión inalámbrica Conexión por cable Machine Wireless Setup Machine Wired Setup Configuración inalámbrica...
  • Page 4 On-screen manuals can be viewed on a computer. They are included on the Setup CD-ROM and are installed during the software installation. Some parts of the manual may be displayed in English. For details on opening the on-screen manuals, refer to page 52. Los manuales en pantalla se pueden ver en un ordenador.
  • Page 5 ■ Devices Required for Wireless/Wired Connection ■ Dispositivos necesarios para la conexión inalámbrica/por cable When using the machine over a wireless/wired connection, the following devices are required depending on the connection method. Cuando el equipo se utilice mediante una conexión inalámbrica/por cable, se necesitarán los dispositivos siguientes en función del método de conexión. Wireless Connection Conexión inalámbrica A commercial access point or router that supports IEEE802.11n/g/b is required.
  • Page 6 • Do not install the machine where an object may fall on it. In addition, do not place any object on the top of the machine. It may fall into the machine when opening covers, resulting in malfunction. • Paper Output Tray (A) automatically opens when printing starts. Do not place anything in front of the Paper Output Tray.
  • Page 7 Make sure all the following items are supplied. Some accessories (1) are stored within the Paper Output Tray (A). Open the Paper Output Tray to remove them. 1. Print Head 6. Setup CD-ROM (containing the drivers, applications and on-screen manuals) 2.
  • Page 8 Connect one end of supplied telephone line cable (B) to the lower connector labeled "L" on the machine, and then connect the other Use FAX features? end to the telephone jack on the wall (C). Go to • If you cannot send faxes after installing the machine, check the following: 1.
  • Page 9 Only when connecting a telephone or an answering machine Sólo al conectar un teléfono o un contestador automático Remove the Cap (D) (1), then connect a telephone or an answering machine with the telephone line cable (2). • Do not use a telephone jack line duplexer to connect the machine and a telephone in parallel. The machine may not operate properly.
  • Page 10 Press the ON button (F). • The machine may make some operating noises. This is normal operation. • It takes about 5 seconds for the ON button to work after the power cord is plugged in. Pulse el botón ACTIVADO (ON) (F). •...
  • Page 11 When it is necessary to turn off the machine Cuando sea necesario desconectar el equipo Be sure to follow the procedure below. 1. Press the ON button to turn off the machine. 2. Make sure that all the lamps on the Operation Panel are not lit. Operating noise may continue for up to 1 minute until the machine turns off.
  • Page 12 1. Make sure the Document Cover (A) is closed, then lift to open the Scanning Unit (Cover) (B). 2. Fix it with the Scanning Unit Support (C). • When you lift the Scanning Unit (Cover), do not touch the buttons on the Operation Panel (D) or the LCD (E).
  • Page 13 Firmly lift the part (G) of the Print Head Lock Lever in the Print Head Holder until it stops. The Print Head Lock Lever may feel heavy. • Do not touch the inside of the Print Head Holder (H). The machine may not print properly if you touch it.
  • Page 14 Tilt the Print Head forward and set it in place as shown. • Do not knock the Print Head against the sides of the holder. • Install in a well-lit environment. Incline el cabezal de impresión hacia adelante y sitúelo como se muestra. •...
  • Page 15 1. Remove the orange tape completely. 2. Remove the protective film completely. • Handle the ink tanks carefully. Do not drop or apply excessive pressure to them. • Be sure to use the supplied ink tanks. • If the orange tape remains on the L-shape air hole, ink may splash or the machine may not print properly.
  • Page 16 Tilt the ink tank, then insert it under the label and against the back end of the slot. Make sure that the color of the label matches the ink tank. • Install in a well-lit environment. Incline el depósito de tinta y, a continuación, introdúzcalo bajo la etiqueta y contra la parte trasera de la ranura.
  • Page 17 1. Lift the Scanning Unit (Cover) (E) slightly. 2. Fold the Scanning Unit Support (F) towards the left. 3. Close the Scanning Unit (Cover) gently. 1. Levante la unidad de escaneado (cubierta) (E) ligeramente. 2. Pliegue el soporte de la unidad de escaneado (F) hacia la izquierda. 3.
  • Page 18 Extend the Paper Support (A). 1. Open the cover. 2. Lift it upwards. 3. Tilt it back to set in place. Despliegue el soporte del papel (A). 1. Abra la tapa. 2. Levántela hacia arriba. 3. Inclínela hacia atrás para que quede colocada.
  • Page 19 Slide the left and right Make sure the Paper Paper Guides against Output Tray (E) is open. both edges of the paper. If printing starts while the Paper Output Tray is closed, it will automatically open. Deslice las guías Compruebe que está de papel izquierda abierta la bandeja de y derecha contra ambos...
  • Page 20 With the machine, the paper source varies depending on the media type. Con el equipo, el origen del papel varía en función del tipo de soporte. Specialty paper including photo paper Load paper in the Rear Tray (A). Plain paper Load paper in the Cassette (B).
  • Page 21 Pull out the Cassette (E). Extraiga el cassette (E). Move the left Paper Guide (F) to Slide the front Paper Guide the edge. (G) to align with the size of the paper. The front Paper Guide will click and stop when it aligns with the corresponding mark of paper size.
  • Page 22 Align the paper to the right side of the Insert the Cassette slowly into the Cassette (1), and slide the left Paper machine until it clicks into place. Guide completely against the left edge of the paper (2). Make sure that the height of the paper stack does not exceed the line (H).
  • Page 23 Read this section only when using the fax features. If not using the fax features, go to "7 Select Connection Method" on page 24. Lea esta sección sólo si utiliza las funciones de fax. De lo contrario, vaya a “7 Selección del método de conexión”...
  • Page 24 When a fax call arrives Si recibe una llamada de fax While the telephone's ringtone sounds, pick up the handset. When the fax reception starts, replace the handset. If an answering machine is connected, the fax is received automatically. Mientras suene el tono de llamada del teléfono, descuelgue el auricular.
  • Page 25 Press the FAX button (A). Button layout on the Operation Panel changes automatically depending on use. When the display changes, check the button positions. Pulse el botón FAX (A). La disposición de los botones en el panel de control cambia automáticamente en función del uso.
  • Page 26 Intended Use Uso previsto • Connect to a computer with a USB cable. • Conectar a un ordenador con un cable USB. • Connect to computers without using cables. • Use from multiple computers. • Conectar a ordenadores sin usar cables. •...
  • Page 27 Do not connect the USB cable yet. No conecte aún el cable USB. To use the machine by connecting it to a computer, software including the drivers needs to be copied (installed) to the computer’s hard disk. The installation process takes about 20 minutes. (The installation time varies depending on the computer environment or the number of application software to be installed.) •...
  • Page 28 If the USB cable is connected before the software is installed Si el cable USB está conectado antes de instalar el software For Windows 7 1. Remove the USB cable connected to your computer. 2. Proceed to For Windows Vista/Windows XP This dialog box may appear.
  • Page 29 1. Make sure that the machine has turned off. 2. Turn on the computer. 3. Insert the Setup CD-ROM into the CD-ROM drive. If you are using Windows, the setup program starts automatically. For Windows • If the program does not start automatically, double-click the CD-ROM icon in Computer or My Computer.
  • Page 30 Click Easy Install. The drivers, application software, and on-screen manuals are installed. • If you want to select particular items to install, click Custom Install. Haga clic en Instalación simple (Easy Install). Se instalarán los controladores, el software de aplicación y los manuales en pantalla.
  • Page 31 USB Port Puerto USB When the Printer Connection screen appears, connect the machine to the computer with a USB cable. After connecting the cable, TURN ON THE MACHINE. The USB Port is located on the right side at the back of the machine.
  • Page 32 For Windows Solution Menu EX starts. For Macintosh Solution Menu EX starts when clicking OK in the Canon Solution Menu EX dialog. Remove the Setup CD-ROM and keep it in a safe place. •...
  • Page 33 Before Configuring Wireless Settings Antes de configurar la conexión inalámbrica Make sure that the computer and access point or router are connected. Asegúrese de que el ordenador y del punto de acceso o del router están conectados. Internet Internet ■ Notes on Wireless Connection ■...
  • Page 34 * También se conoce como SSID. Identificador del punto de acceso específico. You can retrieve your network key by using the Canon PIXMA Wireless Setup Assistant or the instructions which can be downloaded from the Canon support webpage (www.usa.canon.com/WirelessHelp). If you are unable to retrieve the network key or other settings, refer to the manual of your access point or router, or contact its manufacturer.
  • Page 35 1. Press the Setup button (A). 2. Use the [ or ] button (B) to select Wireless LAN setup. 3. Press the OK button. 1. Pulse el botón Configuración (Setup) (A). 2. Utilice el botón [ o ] (B) para seleccionar Configurac. LAN inalámbrica (Wireless LAN setup).
  • Page 36 Select Easy setup, then press the OK button. • If you are living in an apartment, access points in use nearby may also be detected. • The access point names with 2-byte characters are not displayed properly, however, can be selected. Seleccione Configuración fácil (Easy setup) y, a continuación, pulse el botón OK.
  • Page 37 Enter the network key you wrote down on page 32, then press the left FUNCTION button (E). Press the center FUNCTION button (F) to switch character entry modes. • Network key entry is case-sensitive. Be sure to enter upper and lower case letters correctly.
  • Page 38 Before Configuring Wired Settings Antes de configurar la conexión cableada Make sure that the computer and router are connected. Asegúrese de que el ordenador y el router están conectados. Internet Internet ■ Notes on Wired Connection ■ Notas acerca de la conexión por cable •...
  • Page 39 Remove the Cap (A), then connect a network device (router, etc.) with an Ethernet cable (B). The Wired LAN Connector is located on the right side at the back of the machine. The upper port is for an Ethernet cable. Retire la tapa (A);...
  • Page 40 Use the { or } button (E) to select LAN settings, then press the OK button. Utilice el botón { o } (E) para seleccionar Configuración de LAN (LAN settings) y, a continuación, pulse el botón OK. Select Change wireless/wired, then press the OK button.
  • Page 41 • If the firewall function of your security software is turned on, a warning message may appear that Canon software is attempting to access the network. If such a warning message appears, set the security software to always allow access.
  • Page 42 Turn on the computer, then insert the Setup CD-ROM into the CD-ROM drive. If you are using Windows, the setup program starts automatically. For Windows • If the program does not start automatically, double-click the CD-ROM icon in Computer or My Computer. When the CD-ROM contents appear, double-click MSETUP4.EXE.
  • Page 43 Click Easy Install. The drivers, application software, and on-screen manuals are installed. • If you want to select particular items to install, click Custom Install. Haga clic en Instalación simple (Easy Install). Se instalarán los controladores, el software de aplicación y los manuales en pantalla.
  • Page 44 When the Printer Detection screen appears, click Next. • If the Printer Connection screen appears instead of this screen, the connection method is not correctly selected in − For Windows Click Cancel and start again from − For Macintosh Follow on-screen instructions and proceed with the installation. Click Exit on the installation complete screen, then start again from select on page 24, in Cuando aparezca la pantalla Detección de impresora (Printer Detection), haga clic en Siguiente (Next).
  • Page 45 Lista de impresoras detectadas (Detected Printers List), consulte el manual impreso: Solución de problemas de configuración de red. If the Check Printer Settings dialog box is displayed or the machine is not displayed in the Canon IJ Network Tool screen, refer to the printed manual: Network Setup Troubleshooting.
  • Page 46 Macintosh computer. Windows users: read “Information” on page • The alphanumeric characters after Canon MX880 series is the machine’s Bonjour service name or MAC address. • If the machine is not detected, make sure of the following.
  • Page 47 Cuando aparezca la pantalla No hay impresoras disponibles. (You have no printers available.), haga clic en Añadir (Add). Select Canon IJ Network in the pop-up Make sure that Canon MX880 series menu, select Canon MX880 series in is added to the list of printers.
  • Page 48 Cuando aparezca la pantalla Registro de la impresora y del escáner (Register Printer and Scanner), haga clic en Registrar el escáner (Register Scanner). Select Canon MX880 series on the Click Next on the Register Printer and Scanner Canon IJ Network Scanner Selector screen.
  • Page 49 Click Next. Follow any on-screen instructions to proceed with the software installation. Haga clic en Siguiente (Next). Siga las instrucciones que aparezcan en pantalla para continuar con la instalación del software. If the serial number is not displayed on the registration screen, input the number found inside the machine.
  • Page 50 For Windows Solution Menu EX starts. For Macintosh Solution Menu EX starts when clicking OK in the Canon Solution Menu EX dialog. Remove the Setup CD-ROM and keep it in a safe place. •...
  • Page 51 Using the Machine from Additional Computers Now that the machine is setup on your wireless/wired connection, you can install the software and drivers on additional computers on the same network. Additional settings are not required. To add computers from which to use the machine, go to “12 Use from Additional Computers” on page 50. Uso del equipo desde ordenadores adicionales Una vez finalizado el proceso de instalación de la conexión inalámbrica/cableada del equipo, se puede instalar el software y los controladores en ordenadores adicionales de la misma red.
  • Page 52 If the machine is already connected to a wireless/wired connection, it can be used from additional computers on the same network. Si el equipo ya está conectado a una conexión inalámbrica/por cable, se puede utilizar desde otros ordenadores de la misma red. To use from additional computers Insert the Setup CD-ROM into the computer from which you want to use the machine.
  • Page 53 To change to a wireless connection from a USB connection, start over from “9 Wireless Setup” on page 31 to set up a wireless connection. Para cambiar a una conexión inalámbrica desde una conexión USB, vuelva a empezar desde “9 Configuración inalámbrica” en la página 31 para configurar una conexión inalámbrica.
  • Page 54 Various application software are installed on the computer along with the drivers. You can print creative items by correcting/enhancing photos using the application software. For details on how to use the application software and the machine, refer to the on-screen manual. Junto con los controladores, en el ordenador se instala diverso software de aplicación.
  • Page 55 Para conocer todos los detalles, consulte “5 Carga del papel” en la página 18. Start Solution Menu EX from the Canon Solution Menu EX icon on the desktop (Windows) or on the Dock (Macintosh), click Photo Print, then click Photo Print (C).
  • Page 56 Click Select Paper, then select the Select a folder containing images, then select an image you want to print. Paper Size and Media Type settings that match the loaded paper. When an image is selected, the number of copies is set to "1." Seleccione una carpeta que contenga Haga clic en Seleccionar papel imágenes y, a continuación seleccione...
  • Page 57 Load A4 or Letter-sized plain Open the Paper Output Tray (B), then open the paper into the Cassette (A). Document Cover (C). If printing starts while the Paper Output Tray is closed, it will automatically open. This section describes how to perform a standard copy.
  • Page 58 1. Close the Document Cover. 2. Press the COPY button (F). The copy standby screen is displayed. 3. Press the Color button (G) to make color copies or the Black button (H) to make black-and-white copies. Copying will start. Do not open the Document Cover until copying is complete. Remove the document after printing.
  • Page 59 Press the FAX button (A). This section explains how to send a fax in black and white from the ADF (Auto Document Feeder) (B). • Make sure that the telephone line type is set correctly. For the setting procedure, refer to "Preparing for Faxing" in the on-screen manual: Basic Guide.
  • Page 60 Insert the document until a beep sounds, then slide the left and right Document Guides against both ends of the document. • Place the document face-up. Inserte el documento hasta que suene un pitido y, a continuación, deslice las guías de documentos izquierda y derecha hacia ambos extremos del documento. •...
  • Page 61 Read this section only when setting up a wireless connection by using the WPS (Wi-Fi Protected Setup). Lea esta sección sólo si utiliza una conexión inalámbrica mediante WPS (Wi-Fi Protected Setup). 1. Press the Setup button (A). 2. Use the [ or ] button (B) to select Wireless LAN setup.
  • Page 62 Select Other setup, then Select WPS, then press press the OK button. the OK button. Seleccione Otra Seleccione WPS y, configuración (Other a continuación, pulse setup) y, a continuación, el botón OK. pulse el botón OK. To use the PIN code method for setup Para utilizar el método de código PIN en la instalación Select PIN code method in , then press the OK button.
  • Page 63 Press and hold the WPS button on the access point (for about 5 seconds), then press the OK button on the machine within 2 minutes. For details on the WPS button pressing, refer to the manual of your access point. The Wi-Fi lamp (blue) on the machine flashes while searching for or connecting to an access point.
  • Page 64 5. Vaya a The machine supports “WCN-UFD.” • Canon assumes no responsibility for any damage or loss of data stored on your USB flash drive regardless of the cause even within the warranty period. • Operation may not be guaranteed depending on your USB flash drive. USB flash drives with security enabled may not be used.
  • Page 65 Black: Approx. 3 seconds/page at 33.6 kbps (Based on ITU-T No.1 chart for US specifications and Canon FAX Standard chart No.1 for others, both in standard mode or Canon FAX Standard chart No.1, standard mode.) Color: Approx. 1 minute/page at 33.6 kbps (Based on Canon COLOR FAX TEST SHEET.)
  • Page 66 Windows: Operation can only be guaranteed on a PC with Windows 7, Windows Vista or Windows XP pre-installed. • Windows: Uninstall software bundled with the Canon inkjet printer before upgrading from Windows Vista to Windows 7, then, install the bundled software again.
  • Page 67 Memoria Transmisión/recepción: 250 páginas aprox. (Basado en el cuadro n.º 1 de ITU-T para especificaciones de EE UU y en el cuadro n.º 1 del estándar de FAX de Canon para el resto, ambos en modo estándar). Resolución de fax Negro Estándar: 8 píxeles/mm X 3,85 líneas/mm...
  • Page 68: Getting Help From Canon

    4548B001 CLI-226C 4547B001 PGI-225PGBK 4530B001 CLI-226Y 4549B001 Call 1-800-OK-CANON to locate a dealer near you, or visit the Canon online store at www.shop.usa.canon.com CANON U.S.A. INC. One Canon Plaza, Lake Success, NY 11042 U.S.A. www.usa.canon.com QT5-3555-V01 XXXXXXXX Ayuda de Canon Soporte técnico por correo electrónico —...
