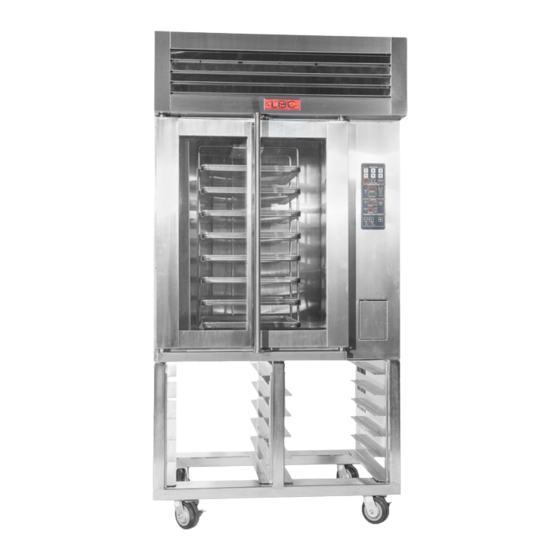

Mini rotating rack oven

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

MODELS LMO-E-P, LMO-E-S, LMO-G-P & LMO-G-S

MINI ROTATING RACK OVEN

INSTALLATION, OPERATION & MAINTENANCE MANUAL

GAS OVENS: POST IN A PROMINENT LOCATION, THE INSTRUCTIONS TO BE FOLLOWED IN THE

EVENT THE SMELL OF GAS IS DETECTED. THIS INFORMATION CAN BE OBTAINED FROM THE

LOCAL GAS SUPPLIER

RETAIN THIS MANUAL FOR FUTURE REFERENCE

LBC BAKERY EQUIPMENT, INC.

6026 31

Ave NE

Tulalip, WA 98271, USA

Toll Free: 888-722-5686

Email:

sales@lbcbakery.com

Website:

www.lbcbakery.com

REV 6-2022B

Table of Contents

Need help?

Do you have a question about the LMO-E-P and is the answer not in the manual?

Questions and answers

Summary of Contents for LBC LMO-E-P

Page 1 EVENT THE SMELL OF GAS IS DETECTED. THIS INFORMATION CAN BE OBTAINED FROM THE LOCAL GAS SUPPLIER RETAIN THIS MANUAL FOR FUTURE REFERENCE LBC BAKERY EQUIPMENT, INC. 6026 31 Ave NE Tulalip, WA 98271, USA Toll Free: 888-722-5686 Email: sales@lbcbakery.com Website: www.lbcbakery.com COPYRIGHT © 2020 – 2022 LBC BAKERY EQUIPMENT, INC. REV 6-2022B...
Page 2: Read First
THIS MANUAL MUST BE RETAINED FOR FUTURE REFERENCE. READ, UNDERSTAND AND FOLLOW THE INSTRUCTIONS AND WARNINGS CONTAINED IN THIS MANUAL. This LBC Rotisserie was manufactured to rigid standards. The appliance has been tested and is listed by Intertek Testing Services (ETL Semko) and meets applicable safety and sanitation standards.
Page 4: Lighting And Shutdown - Gas Ovens
1. Lift the gas valve access door located below the control panel and switch the gas valve to “OFF” position. 2. Turn off the gas supply to the oven. COPYRIGHT © 2020 – 2022 LBC BAKERY EQUIPMENT, INC. REV 6-2022B...
Page 5: Conditions Of Installation
LBC Rotisserie. The job site must be ready for the installation before LBC Bakery Equipment or its authorized agent arrives. If the installation site is not properly prepared or if there are construction delays, the customer shall be responsible for all expenses incurred during this delay.
Page 6 Y = gas type (use -N for natural gas, -LP for propane gas) and Z denotes the base (use -S for stand, - P for proofer base). Example: LMO-G6-N-S is a natural gas oven with a 6-pan rack and stand. COPYRIGHT © 2020 – 2022 LBC BAKERY EQUIPMENT, INC. REV 6-2022B...
Page 8: Installation
3/4” iron pipe. Ensure the pipes are free and clear of any dirt or obstruction. Corrugated lines must not be used. Codes require installation of a gas shutoff valve in the gas line ahead of the oven. COPYRIGHT © 2020 – 2022 LBC BAKERY EQUIPMENT, INC. REV 6-2022B...
Page 9 National Electrical Code, ANSI/NFPA 70 or the Canadian Electrical Code, CSA C22.2, as applicable. WARNING: Gas Ovens: Do not connect oven to electrical supply until after gas connections have been made. COPYRIGHT © 2020 – 2022 LBC BAKERY EQUIPMENT, INC. REV 6-2022B...
Page 10 Massachusetts, or where a hood interface is required, remove the jumper wire from the two-pole terminal block and connect the two wires from the hood sensing switch there. COPYRIGHT © 2020 – 2022 LBC BAKERY EQUIPMENT, INC. REV 6-2022B...
Page 11 From the termination of the flue to the filters of the hood venting system a clearance of 18” must be maintained. The exhaust hood fan can be directly interlocked to the oven. Refer to the Wiring Diagrams of this manual for terminal location. COPYRIGHT © 2020 – 2022 LBC BAKERY EQUIPMENT, INC. REV 6-2022B...
Page 12 If your oven is used with a proofer insert, it is recommended that a separate drain line is provided. Shutter Settings Rear shutter Middle shutter Front shutter Top View of Oven Interior COPYRIGHT © 2020 – 2022 LBC BAKERY EQUIPMENT, INC. REV 6-2022B...
Page 13: Startup Procedure And Check List
Adequate means must be provided to limit the movement of the appliance. STARTUP PROCEDURE and CHECK LIST (Part 1 of 3) LMO START-UP FORM: This form MUST BE SIGNED & RETURNED to LBC via Email to service@lbcbakery.com or FAX 425-642-8310, in order for the Customers Warranty to take effect.
Page 14 (If temp does not start to rise, Call LBC) Supply side gas pressure when burner is running? _____ _____ (If less than 5" and greater than 14", Call LBC) Set to 300° F. Minutes to go from 150° to 250° F? _____ Mins Combustion Test: Set to 350°...
Page 15 All plumbing connections are tight and do not leak. Y_____ N_____ _____ Fig. 1 Fig. 2 Fig.3 FOR TECHNICAL SUPPORT, CALL LBC: 888-722-5686 x1 __________________________________________ Company: Name: _____________________________ Signature: ____________________________________________________ Date ____________________________________________________ COPYRIGHT © 2020 – 2022 LBC BAKERY EQUIPMENT, INC. REV 6-2022B...
Page 17 2) “PULSE” will cause the blower to turn on and off during the bake cycle to slow the baking process down. 3) “DELAY” will cause the blower to COPYRIGHT © 2020 – 2022 LBC BAKERY EQUIPMENT, INC. REV 6-2022B...
Page 18 The control can be configured to operate in Step mode. In step mode, the control creates six sequential recipe steps and executes all six in order. The step mode is best utilized with preset recipes only. Recipe Set-up in Step Mode COPYRIGHT © 2020 – 2022 LBC BAKERY EQUIPMENT, INC. REV 6-2022B...
Page 19 The control can change from one temperature scale to the other. To change, simply press the button (K) marked “F/C”. The oven can also be configured to lock in either degrees F or degrees C. COPYRIGHT © 2020 – 2022 LBC BAKERY EQUIPMENT, INC. REV 6-2022B...
Page 26 Bottom Door Handle Spring 151-493 Silicone Lap Strip 151-518 Inner Door Latch 151-792 Door Handle Assembly 51001-16 Top Door Handle Spring 72602-24-5 Vertical Door Gasket 180-762-2 Reed Switch Assembly (Door sw.) COPYRIGHT © 2020 – 2022 LBC BAKERY EQUIPMENT, INC. REV 6-2022B...
Page 27 10mm Set Screw, SS 151-524 Spacer, Roller Switch 151-523A Rotator Cam 70200-12 Washer 1.55 ID 151-524-1 Rack Rotation Plate 40704-12 Rotation Capacitor 70200-15 Split Rulon Bushing (Part not Shown) COPYRIGHT © 2020 – 2022 LBC BAKERY EQUIPMENT, INC. REV 6-2022B...
Page 28 Impeller, Forward Curve 151-717 Blower Mount Weldment 151-268 Motor Mount, C-Face 151-271 Clamp, Blower Seal 151-270 Seal, Blower 151-272 Stiffeners, Blower Plate 151-273b Blower Involute 151-211 Pipe, Temperature Sensor COPYRIGHT © 2020 – 2022 LBC BAKERY EQUIPMENT, INC. REV 6-2022B...
Page 30 80302-12 Ignitor, Hot Surface 151-763 Burner / Heat Exchanger Assy * Orifice Sizes: Natural Gas @ 3.5 inwc = 3/64” (0.047)[1.19mm] Propane Gas @ 5.0 inwc = #65 (0.035)[0.89mm] COPYRIGHT © 2020 – 2022 LBC BAKERY EQUIPMENT, INC. REV 6-2022B...
Page 31 Element Assy (4166W @240V) 11091-03-1 Element Assy (4166W @480V) 31200-08 Ground Lug, 2-Hole 30500-07 Term Block, 3-Pole 151-164b Cover, Heat Exchanger 20202-01 Hex Bolt, 6mm-1x12mm, MS 30700-17 Contactor, 3-Pole, 40A, 24V Coil COPYRIGHT © 2020 – 2022 LBC BAKERY EQUIPMENT, INC. REV 6-2022B...

This manual is also suitable for:

Lmo-e-s Lmo-g-p Lmo-g-s
