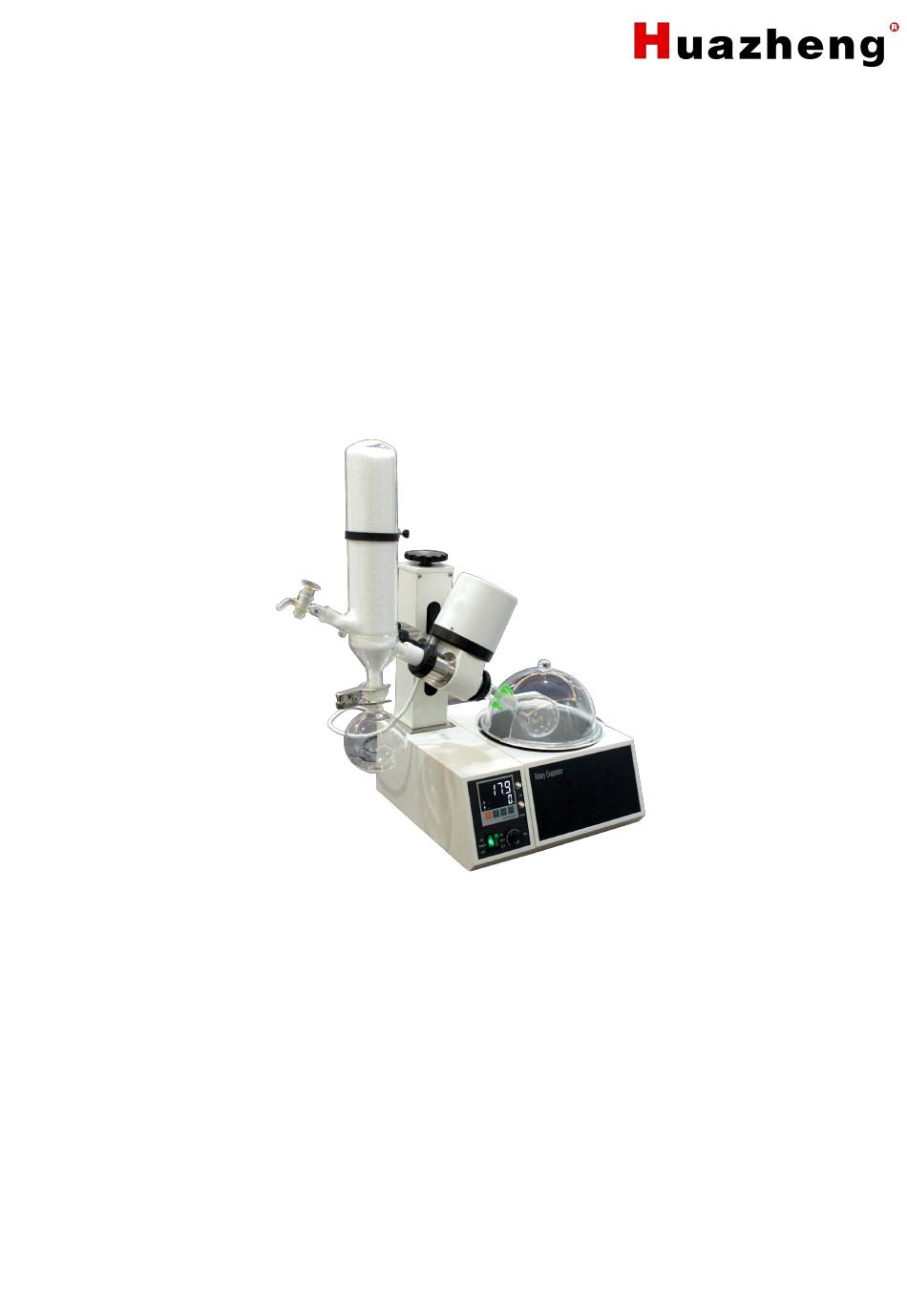

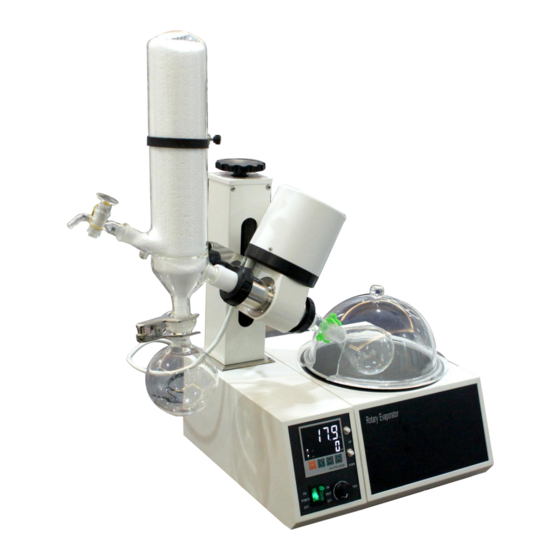

- Page 1 HZX52AA RotaryEvaporator Huazheng Electric Manufacturing (Baoding) Co., Ltd...
- Page 2 (0312) 6775656 to tell you to serve you at all times- Baoding Huazheng Elect ric Manufact ur ing Co. , Lt d. , our company will def initely make you satisf ied !
-
Page 3: Table Of Contents
Contents I. Introduction of usage........................1 II. Structural features........................1 III. Matters needing attention for use.....................2 IV. Main technical parameters ......................2 V.Maintenance...........................2 VI. Failure analysis and exclusion methods .................3 VII. Storage and transportation...................... 3 VIII. Accessories..........................3 IX. Packing List ..........................4 JC-SHZ-III............................ -
Page 4: Introduction Of Usage
Manual for Rotary Evaporator I. Introduction of usage Rotary evaporator is a kind of device with the operation principle as follows: put the rotary evaporation bottle (flask used to increase the evaporation area) in water bath under the condition of reduced pressure, and make it rotate while heating it, so as to make the solution in the bottle diffuse and evaporate. -
Page 5: Matters Needing Attention For Use
5.Evaporation pipe Evaporation pipe uses PTFE, which is corrosion-resistant and can maintain a high vacuum. 6.Cooler (made of high-quality glass of thermostability, and refined) Vertical, Dual-reflux. 7. Main metal components are made of corrosion-resistant high-quality stainless steel, thus extending the service life. III. -
Page 6: Failure Analysis And Exclusion Methods
1. Glass component: in case of serious dirt, clean it with the dilute sulfuric acid. 2. PTFE connection tube: in general, it needs to be removed and washed only under serious dirt. 3. The clear water inside the water tank pot should be frequently replaced, with the pot cleaned. -
Page 7: Packing List
In case of needing flasks of other specification, the customer should purchase otherwise. IX. Packing List Item Principal machine(including: control box, the head, lifting column, base of principal machine) Water bath tank (connected to the right side of principal machine) Condensation pipe Collection bottle 500ml Rotation bottle 250ml... - Page 8 mouth), screw on the nut with square rings, and make square rings button the flask rim closely. In case of needing to back off the rotation bottle, screw off the nut with square rings to make the bottle exit the Embossed-grinding mouth. 6.Encase collection bottle on the ball-milling mouth of condensation pipe, and clamp with the clip.
- Page 9 knob on the right side of stand pillar, turn the head of principal machine, and then screw it tightly after reaching the appropriate angle. 6. After completion of commissioning, power and heating switches will switched to the state of Off (0), followed by the unplugging of power plug.
-
Page 10: Jc-Shz-Iii
JC-SHZ-III Circulating Water Type Vacuum Pump Huazheng Electric Manufacturing (Baoding) Co., Ltd... -
Page 11: I.safety Warning
I.Safety warning Beware Warning Do not repair Keep away from grounding burns by yourself explosive substances II.Function and purpose This product is a new type of multi-purpose vacuum pump designed with circulating water as the working fluid and using the principle of negative pressure generated by radiation. -
Page 12: Iv.technical Index
pipe to prevent the circulating water from flowing back to the vacuumed equipment when the vacuum operation stops unexpectedly. 5. Corrosion resistance and pollution-free. The water pump parts of this machine are made of stainless steel, and the water tank is made of ABS plastic. It is formed at one time and is not affected by corrosive substances such as acid and alkali. -
Page 13: Vi.common Faults And Troubleshooting Methods
connect the water inlet and outlet pipes of the device that needs to be cooled to the circulating water pressure tank and the water inlet nozzle at the rear of the machine on the basis of the previou soperation 3. Turn on the circulating water switch to realize circulating cooling water supply.
