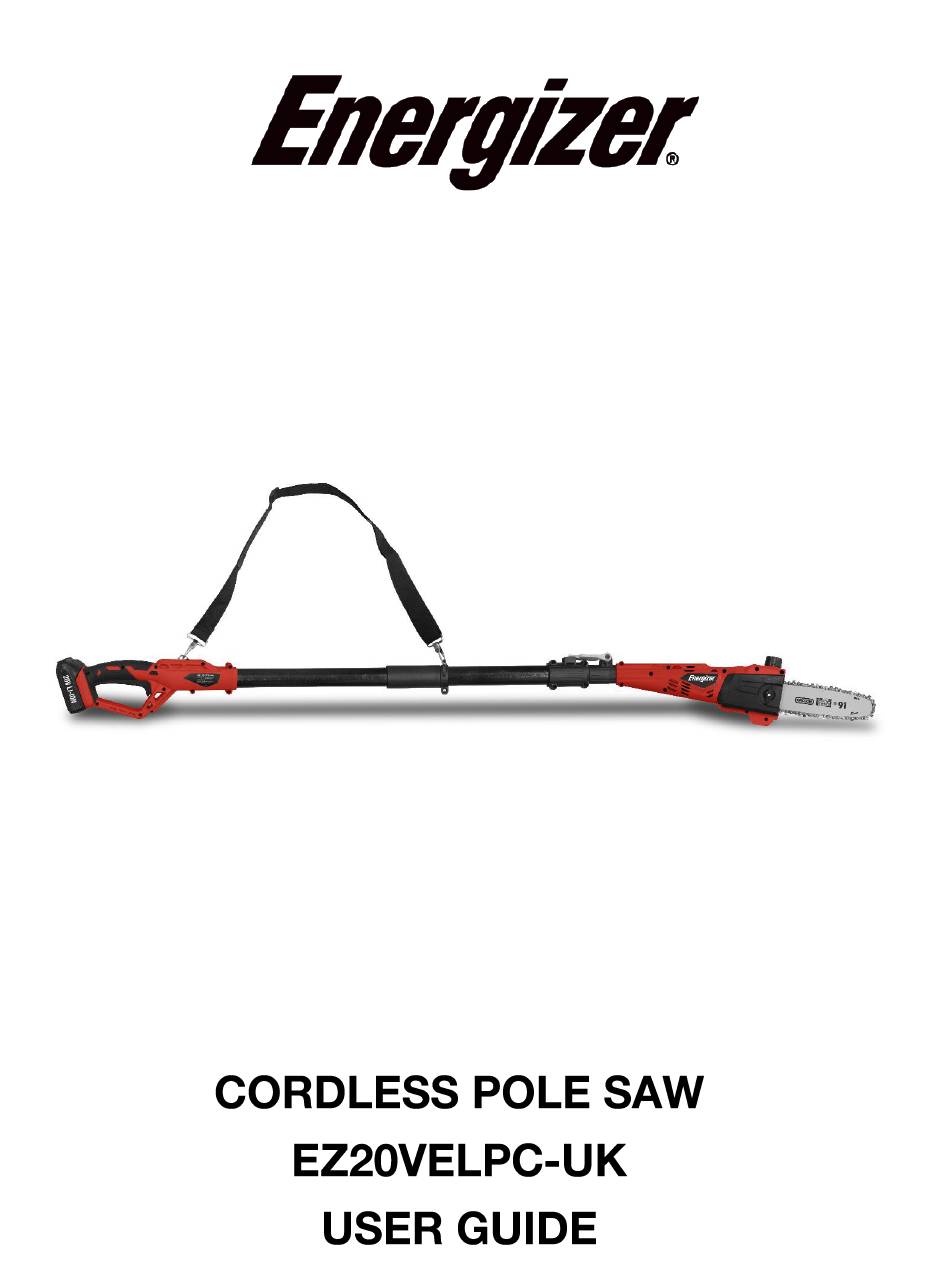

Summary of Contents for Energizer EZ20VELPC-UK
- Page 2 Energizer and certain graphic designs are trademarks of Energizer Brands, LLC and related subsidiaries and are used under license by Builder SAS. All other brand names are trademarks of their respective owners. Neither Builder SAS nor Energizer Brands, LLC is affiliated with the respective owners of their trademarks.
-
Page 3: Let's Get Started
Let's get started. You're excited to power up, so we'll keep this brief! -
Page 4: Security Instructions
1. SECURITY INSTRUCTIONS WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. - Page 5 e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jeweller. Keep your hair, clothing and gloves away from moving parts.
- Page 6 Pole saw warnings Respect the capacity of the tool. Use the tool as described in this manual and for its intended use, safely and safely. Do not use the tool if the switch is defective. In the event of a malfunction, do not use the tool and take it to a qualified service for repairs.
- Page 7 Use the device only if all protective devices are mounted. Do not use the device with faulty protective equipment. Do not modify the unit. Keep the cable away from the work area. Do not work with the tool when it rains, in bad weather or in a damp environment. Do not use the machine when there is a risk of thunderstorms and storms.
- Page 8 Warning symbol Risk of projections. Keep bystanders away. Risks de projection. Do not use the tool under rain and by moist weather. Wear gloves of protection Wear hearing protections and glasses of protection Read the instruction manual Keep the pole pruner a sufficient distance away from electrical power lines at least 10 m Wear head protection.
- Page 9 NEVER be used intensively, for professional use (including rental) or agriculture or for public gardens or forests. This tool is provided without charger and battery. It is designed to work only with Energizer range battery and charger. Please ask advice to your dealer. Do not buy others kind of batteries.
-
Page 10: Your Product
2. YOUR PRODUCT a. Description 1. Cutting head pole 8. ON/OFF trigger 2. Oil lever indicator 9. Locking lever 3. Cutter bar with Saw chain 10. Oil cap 4. Telescopic tube 11. Harness connection point 1 5. Telescopic tube locking lever 12. -
Page 11: Technical Data
b. Technical data Voltage 20Vdc Cutting capacity 165mm Sound power level 91.8dB(A) K=3dB(A) Sound pressure level 82dB(A) K=3dB(A) Vibration value 2,109m/s² K=1,5m/s² Mass (empty tool, without cutting 3,5 kg attachment, harness, oil and battery) Volume of oil tank 50 ml Information: ... - Page 12 3. USE...
- Page 14 Charging Energizer range battery and charger not sold together with the impact screwdriver, Battery has not been fully charged at the factory. Before using it for the first time, charge the screwdriver's battery for 60min to 130min. Insert the charger plug into the charging socket and plug the charger into a 230V/50Hz electrical...
- Page 15 Charge status To display the amount of charge left in the battery, press the charge level indicator button, Fig.4. b. Assembly Warning! To prevent accidental starting that could cause serious personal injury, always remove the battery pack from the product when assembling part. Connecting the pole Unlock the locking lever on the cutting head pole by lifting upwards, Fig 3.
- Page 16 NOTE: when assembled correctly, the cutting head pole should not be able to separate from the intermediate pole when pulled. Repeat above steps if pole can be separated from the intermediate pole. Warning! Failure to securely assembly and lock all poles together as directed above could cause the poles to separate and could result in serious personal injury or death.
-
Page 17: Operation
NOTE: It is normal for oil to seep from the saw when not in use. To prevent seepage, empty the oil tank after each use then run for one minute. When storing the unit for a long period of time (three months or longer) be sure the chain is lightly lubricated. - Page 18 Basics cutting guide Follow the steps below to prevent damage to tree or shrub bark. Do not use a back-and- forth sawing motion. Make a shallow first cut (1/4 of limb diameter) in the underside of the limb close to the main limb or trunk, Fig 14 (A).
-
Page 19: Limbing And Pruning
k. Limbing and pruning This unit designed for trimming small branches and limbs up to 100mm diameter. For best results, observe the following precautions. Plan the cut carefully. Be aware of the direction in which the branch will fall. Never stand directly under the limb you are cutting. -
Page 20: Maintenance And Storage
4. MAINTENANCE AND STORAGE Before inspecting, cleaning or servincing the unit, stop the motor, wait for all moving parts to stop, and remove the battery pack. Failure to follow these instructions can result in serious personal injury or properly damage. a. -
Page 21: Guide Bar
During normal operation, the temperature of the chain will increase. The drive links of a correctly tensioned warm chain will hang approximately 0.050 in. out of the bar groove, as shown in Fig 19. c. Replacing the bar and chain Remove the battery pack before replacing the bar, chain to avoid possible serious injury. - Page 22 When the guide bar is dismounted, remove any sawdust from the “GROOVE” in the guide bar rail. Dissemble the saw chain and guide bar in reversed order of assembly. The circular groove of the guide bar will wear particularly on the lower edge with time. When replacing the chain turn the chain bar 180º...
- Page 23 Depth gauge measuring jigs are available from most reputable tool merchants. NOTE: Dull or improperly sharpened chain can cause excessive motor speed during cutting which may result in severe motor damage. Storage Clean all foreign material from the product. Store idle unit indoor in a dry, well-ventilated area that is inaccessible to children.
- Page 24 5. DISPOSAL Electrical products should not be discarded with household products. According to the European Directive 2012/19/EU on waste electrical and electronic equipment and its implementation into national law, electrical products used must be collected separately and disposed of at collection points provided for this purpose. Talk with your local authorities or dealer for advice on recycling.
- Page 25 The manufacturer warrants the product against defects in materials and workmanship for a period of 2 years from the date of purchase to the original purchaser. The guarantee applies when the product is used as a home tool. The warranty does not extend for failures due to normal wear and tear.
- Page 26 READ THE MANUAL CAREFULLY BEFORE USING THE MACHINE. When ordering spare parts, please quote the part number or code, this can be found in the parts list included in this manual. Keep the purchase receipt; Without it, no guarantee will be valid. In order to get help about your pole saw we invite you to go through this link or to call us by phone +33 (0)8.20.20.22.68:...
- Page 27 BUILDER SAS ZI, 32 rue Aristide Bergès – 31270 Cugnaux – France Declares that the following machine: CORDLESS POLE SAW EZ20VELPC-UK Serial number: Is in conformity with the Directive Machine 2006/42/EC and with the regulations transposing it. Also in conformity with the following Directives:...
