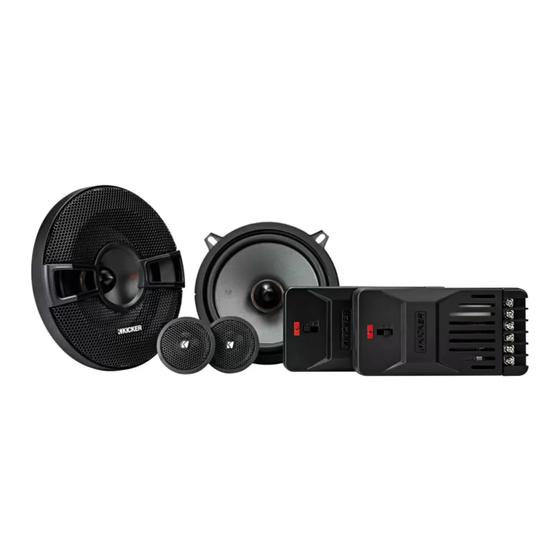

Summary of Contents for Kicker KSS50
- Page 1 Owner’s Manual Manual del Propietario Manuel d’utilisatio Benutzerhandbuch KS COMPONENTS Altavoz Componentes KS KS Komponenten-System Haut-parleurs Composants KS...
-
Page 2: Table Of Contents
Contents Overview ......3 Specifications ......4 Installation ......5 Coaxial Configuration ....5 Crossover & Wiring Configuration 8 Crossover Mounting ....10 Speaker Mounting ....11 Tweeter Mounting ..... 14 Warranty ......17 English... -
Page 3: Overview
VENTILATION. SUBWOOFERS SHOULD BE MOUNTED WITH AT LEAST 1 INCH (2.5CM) CLEARANCE BETWEEN THE FRONT OF THE SPEAKER AND ANY SURFACE. KICKER PRODUCTS ARE CAPABLE OF PRODUCING SOUND LEVELS THAT CAN PERMANENTLY DAMAGE YOUR HEARING! TURNING UP A SYSTEM TO A LEVEL THAT HAS AUDIBLE DISTORTION IS MORE DAMAGING TO YOUR EARS THAN LISTENING TO AN UNDISTORTED SYSTEM AT THE SAME VOLUME LEVEL. -
Page 4: Specifications
0, 4.5, 9 0, 4.5, 9 Note: All specifications and performance figures are subject to change. Please visit www.kicker. com for the most current information. To get the best performance from your new KICKER speakers, we recommend using genuine KICKER accessories and wiring. -
Page 5: Installation
Coaxial Configuration KICKER’s latest KSS system allows for directional mounting of the KSS Tweeter in coaxial configuration up to 12 degrees. The KSS speakers come in a separates configuration. For coaxial operation, use the following steps to attach the tweeter. - Page 6 screw the lower tweeter post to the speaker Assemble the tweeter housing as shown, securing the tweeter cup to the upper tweeter post using the included screw and washer. Set the desired angle of the tweeter before tightening. thread the tweeter wire through the washer, tweeter housing, and upper tweeter post English...
- Page 7 Attach the tweeter to the tweeter housing using the included tweeter tool Thread the tweeter wire through the lower tweeter post and insert the tweeter assembly to the tweeter post until it clicks into place English...
-
Page 8: Crossover & Wiring Configuration
At least two amplifier channels are needed for stereo operation (only one channel is shown) crossover Pro Tip: You’re a KICKER KX amplifier and a few cables away from a full system upgrade that will dominate any factory system! KICKER line of amplifiers make it easy to upgrade to solid bass with... - Page 9 Crossover Wiring Two component sets per channel At least two amplifier channels are needed for stereo operation (only one channel is shown) Requires two complete KSS systems (four woofers, four tweeters, four crossovers) Crossovers wired in parallel. Make sure your source unit or amplifier is rated for 2 ohm operation.
-
Page 10: Crossover Mounting
Crossover Mounting Mount the crossover in a location that is easy to access for wiring and tweeter output level adjustment. Make sure that the crossover will not be exposed to water. The bottom of the car door is not a good location. -
Page 11: Speaker Mounting
Speaker Mounting The KICKER KS Speakers are designed for free-air applications and do not require a sealed enclosure for optimum performance. It is important to isolate the sound coming from the front of the speaker from the sound radiating from the back of the speaker. - Page 12 The multi-bracket adapter will help accommodate the KSS speakers in factory or custom locations. You may need to cut off parts or otherwise modify these adapters to fit your vehicle or application. KS65/KS67 ADAPTER KS69 ADAPTER English...
- Page 13 Secure speaker to desired location door door panel speaker cut-out KS Speaker English...
-
Page 14: Tweeter Mounting
Tweeter Mounting The tweeter can be separately mounted one of three ways: flush, angled and pod. For flush mounting applications, choose a flat location on the panel with space behind the panel to allow room for the short mounting nut, motor structure, and tweeter. After checking the clearances, cut a 1-3/4”... - Page 15 Flush Mounting short flush ring tweeter mounting nut panel Angle Mounting long back front mounting angle angle panel ring ring tweeter rounded surface inset surface Use a 1/8 turn with tweeter tool to secure the tweeter to the mounting nut. English...
- Page 16 Pod Mounting The tweeter pod not only allows you to mount the KSS tweeter in nearly any location or application, but can also rotate 360 degrees and be directionally aimed! thread tweeter wires 1/8” turn tweeter tweeter tool wing nut Drill a 1/2”...
-
Page 17: Warranty
Should service be necessary under this warranty for any reason due to manufacturing defect or malfunction during the warranty period, KICKER will repair or replace (at its discretion) the defective merchandise with equivalent merchandise. Warranty replacements may have cosmetic scratches and blemishes. - Page 18 Service performed by anyone other than KICKER HOW LONG WILL IT TAKE? KICKER strives to maintain a goal of one-week service for all acoustics (subwoofers, midrange drivers, tweeters, crossovers, etc) returns. Delays may be incurred if lack of replacement inventory or parts is encountered.
