  • Page 1 Operator’s Manual Document No. 690020 - Rev.3.0...
  • Page 2 Uson has made every attempt to completely describe the operation of the tester. Uson shall not be liable for technical or editorial errors or omissions. USON L.P. reserves the right to revise this manual and to make changes to its content, at any time, without obligation to notify any person or entity of such revisions or changes.

  • Page 3: Table Of Contents

    Safety Precautions (English)....................1-2 WEEE Material Disposal....................1-3 Abbreviations........................1-4 EU Declaration of Conformity ..................1-5 China RoHS Declaration ....................1-6 Chapter 2: Introduction Uson 628 Overview ......................2-1 Specifications........................2-3 Front Panel Overview ......................2-6 Front Panel .........................2-6 Pneumatic Configuration ....................2-7 Component Operation....................2-8 Leak Test Cycle ......................2-9 Chapter 3: Installation/Wiring Installation ........................3-1...
  • Page 4 Comp/Cal Menu......................5-6 Linking Menu ......................5-6 Data Menu........................5-7 Date Time Menu ......................5-8 Set Up Menu ......................5-8 Config Menu ......................5-10 Gauge Sensor ......................5-10 Differential Sensor ....................5-11 Regulator Menu .......................5-12 Hardware Menu .......................5-12 Chapter 6: Run Mode Overview..........................6-1 Operations ........................6-1 Uson 628 Operator’s Manual...
  • Page 5 Chapter 7: How To Program Basic Test Parameters ..................7-1 Preliminary Tasks ......................7-1 Set Pressure Units ......................7-2 Set Test Program Details ...................7-3 Perform a Test........................7-4 Test Results........................7-7 Lamp Outputs ......................7-8 Audit Results Output ....................7-8 Optimize a Program ......................7-9 Fill Time ........................7-9 Stabilize Time ......................7-9 Measure Time ......................7-9 Reject Level ......................7-10...
  • Page 6 Chapter 10: Spares/Accessories 10-1 Spares..........................10-1 Accessories ........................10-2 Chapter 11: Appendix A -Sample Reports 11-1 Sample Reports ......................11-1 Uson 628 Operator’s Manual...
  • Page 7 Preface Chapter 1 Please read this Operating Manual carefully before putting your 628 into service, especially all safety related WARNINGS and CAUTIONS throughout the manual. About this manual The purpose of this manual is to inform the operator how to connect, wire, operate, maintain, and troubleshoot the 628 Tester.

  • Page 8: Chapter 1: Safety

    1.1 Introduction This section explains the warnings and cautions that should be observed before using, wiring, installing, or operating the Uson 628. Safety information is covered at relevant points throughout the manual. Please read this manual in its entirety before installing/wiring or operating the instrument.

  • Page 9: Safety Precautions (English)

    Disconnect all pressure sources when working with internal components of Uson equipment: WARNING: The component to be tested, and the air supply line to the Uson 628, must be free from water or liquid residue before testing; otherwise damage may be inflicted on the sensitive transducer within the instrument.

  • Page 10: Weee Material Disposal

    Uson 628 is switched on. 1.3 WEEE Material Disposal Uson is committed to meeting the requirements of the European Union (EU) Waste Electrical and Electronic Equipment (WEEE) Directive. Uson products that are within the scope of the Directive are labelled with a crossed-out "wheelie-bin"...

  • Page 11: Abbreviations

    Binary Coded Decimal Low Voltage Directive European Union Electromagnetic Compatibility RHOS Restriction of Hazardous Substances Input/Output End of Cycle Direct Current Sealed Component. Reference Universal Serial Bus Programmable Logic Controller Isolated File Allocation Table Analogue to Digital Convertor Uson 628 Operator’s Manual...
  • Page 12 Safety...
  • Page 13 Uson 628 Operator’s Manual...

  • Page 14: Chapter 2: Introduction

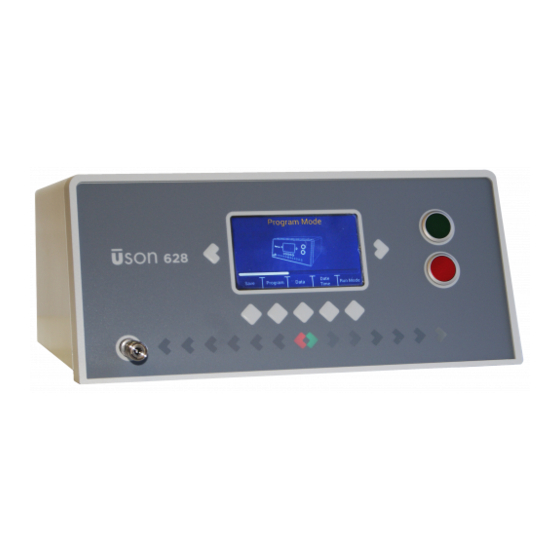

    Chapter 2 2.1 Uson 628 Overview The Uson 628 is a differential pressure decay tester that is easily configurable to test a wide range of components using the Differential Pressure Decay method. The tester uses the highly sensitive and reliable Uson differential pressure transducer to measure leak rate within a test component.
  • Page 15 The testers can be used in almost any leak testing application, some typical examples are: Typical Applications Water Pumps Medical Tube Sets Heat Exchangers Bottle Tests Fuel Pumps Blood Bags / Ostomy Pouches Steering Racks Domestic Appliances Hydraulic Components Packaging Valves Castings Combustion Chambers Pressure Switches Uson 628 Operator’s Manual...

  • Page 16: Specifications

    2.2 Specifications Model Uson 628 Description: Differential Pressure Decay Tester Regulator Manual or Electronic Differential Sensor Sensor Type: Capacitive differential pressure sensor Resolution: 0.0001 psi, 0.01 mbar, 1 Pa. Range: 0 to 0.3psi, 0 to 20mbar, 0 to 2000 Pa.
  • Page 17 Output pressure 5 bar ±0.5 bar. Serial Port: Baud rate; 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 Parity; none, odd, even  Data Bits; 7, 8 Control; none, RTS/CTS USON reserves the right to change the specification without notice. Uson 628 Operator’s Manual...
  • Page 18 Figure 2–1: 628 Overall Dimensions Introduction...

  • Page 19: Front Panel Overview

    2.3 Front Panel Overview 2.3.1 Front Panel shows the Uson 628’s front panel controls/connections, while  Figure 2–2 describes their functions. Table 2–1 Figure 2–2: Uson 628 Front Panel Overview Table 2–1: Uson 628 Front Panel Descriptions Item# Connection/Control Description...

  • Page 20: Pneumatic Configuration

    2.4 Pneumatic Configuration The Uson 628 employs two pneumatically controlled valves to supply compressed air (or other gas) for leak testing a component. The valves operate in a programmed sequence, to pressurize a test component and a reference component or chamber. The test and reference components are then isolated from each other and a differential transducer is used to monitor the pressure difference between the two ports.

  • Page 21: Component Operation

    Pressure Gauge: The Pressure Gauge Transducer measures the test pressure within the component and is used to check that the test pressure is within the pre- set tolerance. Uson 628 Operator’s Manual...

  • Page 22: Leak Test Cycle

    2.4.2 Leak Test Cycle A leak test cycle consists of the following steps, which are controlled by the parameters of the selected program: Test Step Description Pressurizes the couple port on the rear panel and can be used to activate external devices (e.g., optional auto- coupler).

  • Page 23: Chapter 3: Installation/Wiring

    Installation/Wiring Chapter 3 3.1 Installation 3.1.1 Unpacking The standard tester is supplied with the following components. If any component is missing please contact your supplier: • User manual • Power Supply Unit • Calibration Certificate 3.1.2 Location • Locate the tester as near as possible to the test component in order to keep the internal volume to a minimum.

  • Page 24: Wiring/Connections

    2) The covers on the equipment should be removed/replaced only by personnel trained to avoid the risk of electric shock.  3) Do not plug the Uson 628’s into an electrical power supply until all installation, wiring, servicing/adjusting, wiring, etc. procedures have been completed;...
  • Page 25 Table 3–1: Description of Rear Panel Electrical Connections Item Connection/Control Description Fuse The main inlet fuse T5.0A/250V, 20mm, glass. On/Off Switch: Used to switch the tester On/Off. Power Supply Connector 24V DC inlet power connection. 9-pin male, D type connector for connection to an Serial Port optional serial printer or other external serial data collection device.

  • Page 26: Power Supply

    WARNING: The power lead plug is the disconnect device; it must be accessible in an emergency. • The Uson 628 is powered by an external 24V DC power supply (2) supplied with a mains cable (1) appropriate for the country of use.

  • Page 27: Power Supply Specifications

    3.2.3 Power Supply Specifications Input • Voltage: 100 to 240V AC • Current: 3.2A Max • Frequency: 47 to 63 Hz. Output • Voltage: 24V DC. • Current 5.4A max • Power 70 W General • Weight: 0.4 Kg / 0.8 lb net •...

  • Page 28: Pneumatic Connections

    WARNING: To avoid damaging the transducer, before testing, ensure the component to be tested, and the air supply line to the Uson 628, are free from water or liquid residue. The use of an external dump valve or an in-line filter is recommended for contaminated components.

  • Page 29: Serial Port Connection

    3.2.6 Serial port connection Port “D", on the rear panel (see 3–1), provides a serial data output for use Figure with external devices. The default Communication’s Protocol is 9600 baud, 1 start bit, 8 data bits, 1 stop bit, and No parity. shows the serial Figure 3–3 interconnections between the tester and a serial printer using 9 and 25-way D Type...

  • Page 30: Isolated Power Supply

    Unit. The Ready Output indicates when the tester is ready to perform a test cycle. The maximum contact rating is 24V at 50mA per output and a minimum current of 1mA. Figure 3–4: Remote Unit Circuit Notes: All diodes for protection. (Iso) = Isolated voltage source from main PSU. Uson 628 Operator’s Manual...

  • Page 31: Start/Reset/Enable Inputs

    3.2.10 Start/Reset/Enable Inputs The remote control inputs allows the user to remotely control the operation (refer to the Setup start method for further details.) The Start input is negative edge triggered. The pulse should be held low for at least 500ms. Nominal input sink rating at 24VDC is 10mA per input.

  • Page 32: Program Selection

    Table 3–5 example binary codes for program selection. Nominal current sink rating at 24V DC is 10 mA per input. Table 3–5: Binary Encoding for Program Selection Program E.10:2 E.6:2 E.7:2 E.8:2 E.11:2 Invalid Input 3-10 Uson 628 Operator’s Manual...
  • Page 33 BCD Input Coding The inputs are BCD weighted where contact closure =1. shows example Table 3–6 codes for program selection. Table 3–6: Program Selection for BDC Encoding BCD Tens BCD Units Program E.18:2 E.10:2 E.6:2 E.7:2 E.8:2 E.11:2 Invalid Input Installation/Wiring 3-11...

  • Page 34: Alarm/ End-Of-Cycle Outputs

    The end of cycle relay closes momentarily, typical duration of 500 ms at the end of a test cycle to indicate the test has completed and results outputs have been updated. Figure 3–7: Alarm & End-of-Cycle Outputs See Table Pinouts Alarm or End-of-Cycle Relay 3-12 Uson 628 Operator’s Manual...
  • Page 35 Figure 3–8: Output Timing Diagram - Single Test Program Figure 3–9: Output Timing Diagram- Linked Programs Installation/Wiring 3-13...

  • Page 36: Chapter 4: Getting Started

    Getting Started Chapter 4 4.1 Introduction Effective operation of the Uson 628 tester depends on programmers’ and operators’ proficiency in five areas: • Understanding pressure and flow in the test environment • Understanding Uson 628’s components and capabilities • Test program development and optimization •...

  • Page 37: Turning The Tester On/Off

    To Turn Tester On 1. Turn the AC power to the PSU On. 2. Turn the Tester power switch On (located on the rear panel of the tester), the Run Mode Main Screen displays, as shown: Uson 628 Operator’s Manual...

  • Page 38: Menu Navigation

    Program mode when pressed. Calibration Port Pass Indicator Abort Indicator Reject Indicator 4.3.2 Key Pad The Uson 628 key pad functions are described in Table 4–1. Table 4–1: Key Pad Description Item# Connection/Control Description Starts a test cycle or updates the selected value when Start Button editing parameters.

  • Page 39: Menu Toolbars

    4.3.3 Menu Toolbars The Uson 628 has the following modes of operation: Run Mode: Allows the user to perform a test. Program Mode: Allows the user to configure the instrument and to set the operating parameters for a test. See Charts 1-1 to 1-3 for the menu visual hierarchy.

  • Page 40: Menu Selection

    4.3.5 Menu Selection The general menu navigation layout and selection is shown below: Mode Heading Scroll bar displays when the left and right cursor buttons are active to show additional items. Sub parameters or parameters assigned to. 4.3.6 Parameter Entry Screen The general layout for data entry is shown below: Parameter Heading.

  • Page 41: Selection List Entry

    Use the <> keys to select next or previous position and to enter character selection. Cursor position selected by <> cursor keys. Current entry. Change value using function keys. Use the function keys to navi- gate the character menu. Uson 628 Operator’s Manual...

  • Page 42: Numeric Entry

    Numeric Entry The picture below shows the screen layout for numeric entry: Cursor position selected by <> function keys. Current entry displayed fixed format and units depending on parameter. Change value using up/ down function keys. Logs Review The picture below shows the screen layout for log review: Fill step - gauge pressure Stab step - gauge pressure sensor reading.
  • Page 43 Uson 628 Operator’s Manual...
  • Page 44 Getting Started...
  • Page 45 4-10 Uson 628 Operator’s Manual...

  • Page 46: Password Overview

    4.4 Password Overview The 628 supports a password scheme to control access to the menu options and parameters when enabled. lists the access levels available and the Table 4–2 display background color indicates the level selected. shows the Table 4–3 password setup menu parameters.

  • Page 47: Setting A Password

    6. Press Start Button to disable password entry. (Note: Pressing the Abort button will log you out and you will need to login to proceed with further changes.) 7. Scroll right to enter required time out. 8. Exit menus and return to Run mode to save settings. 4-12 Uson 628 Operator’s Manual...

  • Page 48: Password Entry

    4. Press the Abort button to logout. 4.5.2 Forgot Password Contact Uson to obtain a temporary password when the password has been forgotten. The temporary password must be entered within 3 days. Note: Check the tester has the correct date and time set before entering the temporary password.

  • Page 49: Menu Item Access Control

    Measure Time Password Vent Time Password Comp Cal Data Data None. Comp Control Password Comp Value Password Cal Control Password Cal Value Password Flow units Password Leak format Password Leak Value Password Linking Data None Jump Method Password Jump On Password Jump To Program Password Pause Time Password Data Password None 4-14 Uson 628 Operator’s Manual...
  • Page 50 Last Log None Logs Review None Statistics Password Export None Import Password Reports None Clear Data Password Date Time Year None Month None None Hours  None Minutes None Setup Gauge Units Password Diff Units Password Start Method Password Program Selection Password Reset Mode Password Spool Check Password Audit Output Password Serial Port Password Password Password...
  • Page 51 Span Read Only Target Read Only Calibration Date Read Only Hardware Read Only Digital I/O Read Only PWM Control Read Only Valve Control Read Only Serial Test Read Only Protected Cycle Counter Protected Linux Information Protected Software Version Password 4-16 Uson 628 Operator’s Manual...

  • Page 52: Chapter 5: Program Mode

    Program Mode Chapter 5 5.1 Introduction Program Mode is accessed via the Uson 628 front display and is where you access the test programs and configuration parameters. Once all test setup information has been completed, the system will need to be put into Run Mode to save programming and to initiate tests.

  • Page 53: Program Categories

    Global Settings. Config Tester configuration details. Sensor configuration details, including calibration Gauge Sensor option. Sensor configuration details, including calibration Diff Sensor option. Regulator Regulator setup. Hardware General options to check operation. Run Mode Selects Run mode. Uson 628 Operator’s Manual...

  • Page 54: Program Menu (Submenus)

    5.3.1 Program Menu (submenus) The Program menu allows the user to set the standard parameters required to perform a leak test. These parameters cannot be modified when the password option is enabled. The menu parameters are: Program Menu Parameters Parameter Description The options are: Load: Loads an alternative program.
  • Page 55 The programming range is 0.0 to 5000.0 Fill Time seconds and the default value is 0 seconds. If this parameter is set to 0 seconds, no valve or phase actions are performed. Uson 628 Operator’s Manual...
  • Page 56 Program Menu Parameters Parameter Description This parameter sets the time period to pressurize the test component to the set test pressure. The programming range is 0.0 to 5000.0 Fill 2 Time seconds and the default value is 0 seconds. If this parameter is set to 0 seconds, no valve or phase actions are performed.

  • Page 57: Comp/Cal Menu

    Specifies the delay time required before starting the next test. The Pause Time programming range is 000 to 1000.0 s. Specifies if a vent step is performed between linked programs. The Vent Enabled default is enabled to perform a vent step. Uson 628 Operator’s Manual...

  • Page 58: Data Menu

    Reports Output: Selects the destination. Update: Outputs selected date. The USB option saves the data to location \uson\628\< serial number> \Reports. This option allows the following information to be cleared and set to Clear Data the defaults setting: All, Setup, Datalog, Logs, Reports.

  • Page 59: Date Time Menu

    Down function keys, default setting. Remote: Remote binary and Program Remote BCD are via the remote I/O interface. For encoding, see Selection Section See Program Mode: "Program Selection" on page 3-10 Pre-selected in Program Mode to prevent user(s) from selecting other programs. Uson 628 Operator’s Manual...
  • Page 60 File: To file in internal memory which can be accessed using the Export option. Notes: 1. Files are created daily with the name: Resultsyyyymmdd.log. 2. The USB option saves data to \uson\628\<serial number>\audit This option allows the serial port communication parameters to be changed. Default Parameters are: Baud rate: 9600.

  • Page 61: Config Menu

    This menu displays the tester configuration entered by manufacturing and cannot be modified. Config Menu Parameters Parameter Description Model Code Specifies sales order smart code in the Format 628-abc-defg. Serial Number Specifies serial number in the format 000000-000U8. Company Name Specifies the company name. 5.3.8 Gauge Sensor This menu displays the gauge sensor configuration.

  • Page 62: Differential Sensor

    5.3.9 Differential Sensor This menu displays the differential sensor configuration. The menus are: Differential Sensor Menu Parameters Parameter Description Sensor Type* Set to Differential. Sensor Unit Defines the measurement unit. Calibrate * Function to perform zero and span calibration. Displays the current calibration data: Last calibration date and time Adc Zero Count reading, defaults to 0.

  • Page 63: Regulator Menu

    Calibration Date Last calibration date and time * Set by manufacturing and cannot be modified. 5.3.11 Hardware Menu General functions to check hardware operation and should only be used by Uson personnel: The menus are: Hardware Menu Parameters Parameter Description ADC* Displays adc readings.

  • Page 64: Chapter 6: Run Mode

    Run Mode Chapter 6 6.1 Overview This section describes the options available in Run mode. The Tester displays the main Run mode main screen (as shown below) after completing power on initialization or when exiting program mode. 6.1.1 Operations The following operations are available when tester is ready: Program Mode: used to setup tests and general parameters.

  • Page 65: Chapter 7: How To

    How To Chapter 7 7.1 Program Basic Test Parameters 7.1.1 Preliminary Tasks 1. To begin setting up test parameters, you will need to get the unit up and running by connecting the air and electrical supplies (refer to Safety, Installation/Wiring, and Getting Started sections earlier in this document). 2.

  • Page 66: Set Pressure Units

    4. Press Start button to enter value and select Exit to return to Setup menu. 5. Select Diff units option. 6. Set the required pressure units. 7. Press Start button to enter value and select Exit to return to Setup menu. 8. Select Exit to return to program mode menu. Uson 628 Operator’s Manual...

  • Page 67: Set Test Program Details

    7.1.3 Set Test Program Details 1. Select Program Menu. 2. Select Program option and set required program. 3. Press Start Button to enter selection and select exit. 4. Select the individual options and enter the following values: If the leak test conditions are not known for the component, the following figures may be used as a guideline for setting the test parameters: Parameter Setting...

  • Page 68: Perform A Test

    2. Press the Up/Down Arrow keys to select the required test program. 3. Connect the test component to the Test Port using the tubing provided or suitable hard-nylon tube. Do not over tighten couplings. It is recommended to Uson 628 Operator’s Manual...
  • Page 69 (when enabled) to continue new tests. Additional information and troubleshooting for each message is listed in 7–1. If an error persists, Table please contact Uson support for further information. Table 7–1: Test Cycle Error/Abort Messages - Troubleshooting Message Solution A low inlet supply pressure was detected, check the air supply pressure is Air Supply higher than minimum pressure required by the tester.
  • Page 70 (i.e. BCD or Binary) refer to user manual for more information. A problem with the pneumatic control valves was detected during the test Valve Error cycle invalidating the test. Repeat test and if the error persists contact Uson support. Uson 628 Operator’s Manual...

  • Page 71: Test Results

    6. When the test cycle has successfully finished, the Green and Red LEDs indicate a Pass or Reject respectively. If a reject condition displays (Red LED), press the Reset button before starting the next test. The Setup menu parameter Reset Mode parameter controls the operation of the Tester on reject condition.

  • Page 72: Lamp Outputs

    The USB and File options log results to a file created daily with the naming convention ResultsYYYYMMDD.log (i.e. Results20170703.log). The USB option creates the file on the USB in location \uson\Uson 628\<Serial Number>\Audit. The export option will save the file to location \uson\Uson 628\<Serial Number>\Logs.

  • Page 73: Optimize A Program

    7.3 Optimize a Program After an initial test, you can adjust the following parameters to achieve optimum performance. 7.3.1 Fill Time • Ideally the fill time should be set so that, for a good component, no pressure variation occurs during the stabilization phase; generally, a small variation is acceptable.

  • Page 74: Reject Level

    This can be obtained from component specifications, trials, comparisons with previous test components or any other reliable source of information. • Once the maximum admissible leak rate is known, the Reject Level (RL) can be calculated using the following equation: 7-10 Uson 628 Operator’s Manual...

  • Page 75: Program Linking

    7.4 Program Linking The test requirements for many components require more than one test to be performed at different test conditions e.g. test pressure, port selection, etc which can be automated using Program Linking. Program Linking allows individual programs to be uniquely configured to perform a predetermined sequence of tests instead of manually selecting the individual programs required.

  • Page 76: Fast Fill

    1. The upper pressure tolerance during Fill 1 and 2 steps will be set to the highest level of test pressure 1 or 2 plus the pressure tolerance. 2. The lower pressure limit is checked at the end of each step based on the set step test pressure – pressure tolerance. 7-12 Uson 628 Operator’s Manual...

  • Page 77: Chapter 8: Leak Calibration (Comp/Cal)

    Leak Calibration (Comp/Cal) Chapter 8 8.1 Overview Leak Calibration, also known as Comp /Cal, is the process by which the tester is ‘taught’ to accept a non-leaking part and reject a leaking part. The Tester is supplied fully calibrated to measure pressure changes due to leaks. However, in many cases, the user will require the tester to display leak rate readings directly in flow rate units and be able to set reject limits accordingly.
  • Page 78 The cal test determines the ratio between pressure drop and flowrate units for given leak master and master part. The tester uses the comp and cal values to display the flowrate units in the following way: Flowrate = Leak master value * (Pressure Drop - Comp) / Cal Uson 628 Operator’s Manual...

  • Page 79: Performing A Leak Rate Calibration

    8.2 Performing a Leak Rate Calibration To perform a calibration a suitable standard leak or flow device is required that is traceable to National Standards. It is advisable to have 2 standard leaks of a given value to allow one to be sent for calibration while the other remains in use. Before starting any calibration procedure, the user must have set and optimized the test parameters to achieve good discrimination between acceptable and leaking components, (refer to Section 7.0).

  • Page 80: Cal Test

    7. Select Cycle Type. 8. Select Normal and press Start button to enter value. 9. Select Save option to save new comp/cal values. 10. Select Run mode. 11. Perform normal cycles with and without leak master to verify calibration. Uson 628 Operator’s Manual...

  • Page 81: Chapter 9: Maintenance

    Chapter 9 For suspected leaks, see “Functional Check” in this section. If a problem persists, call Uson’s Service Manager at (1) (281)- 671-2000 between the hours of 8 a.m. and 5 p.m., USA Central time. The Service Manager will assign a tracking number, evaluate the situation, and schedule service resources as required.

  • Page 82: Preventive Maintenance

    4. Fit a new fuse of the same type and rating into the fuse holder. 5. Screw the fuse holder back into position. Note: It is recommended that the reason why the fuse has blown is established and rectified before power is re-applied. Uson 628 Operator’s Manual...

  • Page 83: Functional Check

    9.5 Functional Check 9.5.1 Introduction This check should be repeated as often as appropriate, at the start of a shift, on change of component, etc. This procedure entails two tests: the first is to check the system integrity for leak tightness, and the second is to ensure that the system reports a reject condition for a known leaking component.

  • Page 84: Software Update

    9.6 Software Update Contact Uson Support to receive new software updates. Once you receive your software update, copy the files (install.sh and 628) to a USB memory device in folder \uson\628 (note: uson must be in lower case letters). NOTE: Only USB devices formatted with FAT32 are supported.
  • Page 85 Spares/Accessories Chapter 10 10.1 Spares Spares can be ordered from your sales office or through support ( 281-671-2222) When ordering spares, please quote the description and part number of the item required. The right is reserved to supply alternative items with equal or improved performance to those quoted in this parts list.
  • Page 86 Printer Kit 650201 Remote Start/Reset Pendant. 690210 SP712 Printer Ribbon Q7/4600 SP712 Paper Roll Q7/3791 Q6 I/O Adapter Cable 69020 Vacuum Oil-less Pump (UK) 690211 Vacuum Oil-less Pump (USA) 690212 Vacuum Oil-less Pump (EU) 690213 10-2 Uson 628 Operator’s Manual...
  • Page 87 Appendix A -Sample Reports Chapter 11 11.1 Sample Reports The following are sample reports for: Configuration, Differential Sensor, Gauge Sensor, Program 1, Regulator, Setup, Statistics 1. Appendix A -Sample Reports 11-1...
  • Page 88 11-2 Uson 628 Operator’s Manual...
  • Page 89 Appendix A -Sample Reports 11-3...
  • Page 90 11-4 Uson 628 Operator’s Manual...
  • Page 91 Index export ............. 5–7 abbreviations ..........1–4 alarm relay ............ 3–12 fill/vent valve ..........2–8 applications .............2–2 front panel ............4–3 audit ...............5–9 controls/connections ......... 2–6 audit result output ..........7–8 descriptions ..........2–6 auto zero ........5–4 5–10 5–11 fuse ............3–3 9–2 ............3–11 5–8...
  • Page 92 logs reject level ..............4–7 ............5–3 remote bcd ............5–8 remote binary ........3–10 5–8 remote program selection .......3–10 maintenance ........... 9–1 remote switch ..........3–9 measure time ..........7–9 remote unit ............3–8 menu selection ..........4–5 reports ............5–7 menu structure tree ..........
  • Page 93 unpacking ............3–1 updates ............9–4 valve timing ............2–9 vent port ............3–3 WEEE material disposal ........1–3 wiring .............3–2 component layout ........3–2 rear panel ..........3–2 Index...
