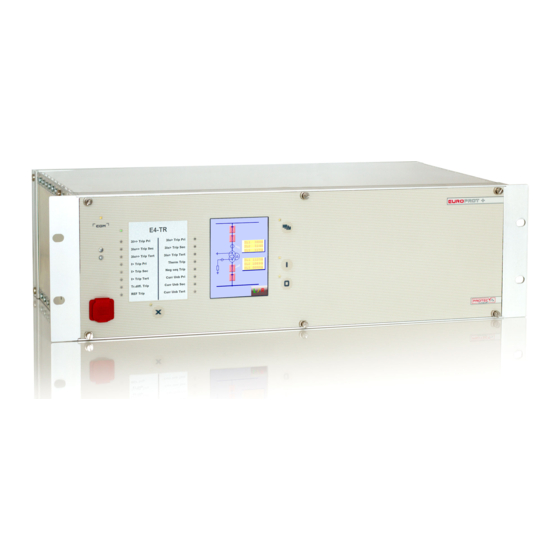

Protecta EuroProt Plus Installation Manual
Hide thumbs
Also See for EuroProt Plus:
- Operating manual with troubleshooting manual (49 pages) ,
- Maintenance manual (9 pages) ,
- Operating manual with troubleshooting manual (56 pages)
Subscribe to Our Youtube Channel
Related Manuals for Protecta EuroProt Plus
Summary of Contents for Protecta EuroProt Plus
- Page 1 PPLICATION UIDE Installation Manual ID: PP-06-22516 OCUMENT ROTECTION AUTOMATION AND : 1.0 AST VERSION CONTROL FOR POWER INDUSTRY 2022-02-21, B UDAPEST...
- Page 2 ERSION INFORMATION VERSION INFORMATION ERSION ODIFICATION OMPILED BY 2022-02-21 First edition Hanti Installation Manual www.protecta.hu...
-
Page 3: Table Of Contents
Connections of the device ..................7 3.5.3 Optical ports ......................7 3.5.4 Removing and changing modules ................. 8 Wiring ............................ 8 Tools for connecting ...................... 8 Connectors ........................9 Deinstallation and Repair...................... 9 Deinstallation ......................... 9 Repair ..........................9 Disposal ......................... 9 Installation Manual www.protecta.hu... -
Page 4: Introduction
Therefore, this manual shall be used in conjunction with the “EuroProt+ Hardware description” document, which includes essential information about all hardware components of the product. 2 Equipment handling 2.1 Unpacking Inspect the package for transport damages. Carefully remove the packing material without applying excessive force. Installation Manual www.protecta.hu... -
Page 5: Visual Inspection
Check, that these items are also included in the shipment. Visually inspect all unpacked items for damages, water ingress, or any sign of external impact. If you discover any transport damage, please notify Protecta Ltd. first and do not start any further work on the equipment. -
Page 6: Mounting The Device
3.5.1.2 Stranded wires Soft soldering of stranded wires is not allowed due to the cold flow of the solder material. Loose strands of stranded wires can cause fire risk or electric shock. Insulated crimp terminals shall be used. Installation Manual www.protecta.hu... -
Page 7: Cable Screen Connection
The CT connectors shall be fixed with screws provided. During the operation of the device, the CT connectors can be disconnected only after the CT circuits having short-circuited. 3.5.3 Optical ports Take adequate measures to protect your eyes and do not view directly into optical ports. Installation Manual www.protecta.hu... -
Page 8: Removing And Changing Modules
After changing a module, it shall be fixed with the screws provided with a torque of 0,5 Nm. Use Philips 2 screwdriver. 4 Wiring 4.1 Tools for connecting Screwdrivers for the connectors: blade 0,6/3,5 mm, 0,4/2,5 mm. Cutter, stripper, crimper tools to prepare the connecting end of the wires. Installation Manual www.protecta.hu... -
Page 9: Connectors
In addition, attention shall be paid to the sharp edges of the modules to avoid minor injuries on the hand. 5.3 Disposal Removed IEDs shall be handed over to a local electronic waste handler for proper disposal and recycling. Installation Manual www.protecta.hu... - Page 10 Modules Connectors Plastic, various metals Separation and recycling Transformers, coils Iron, copper, plastic, Separation and paper recycling Relays Iron, copper, plastic, Separation and other metals recycling Package Cardboard Recycling Attachments Manuals, certificates Paper Recycling Installation Manual www.protecta.hu...
