I-2-2 Wall-Mounted Installation - Draytek Vigor167 User Manual

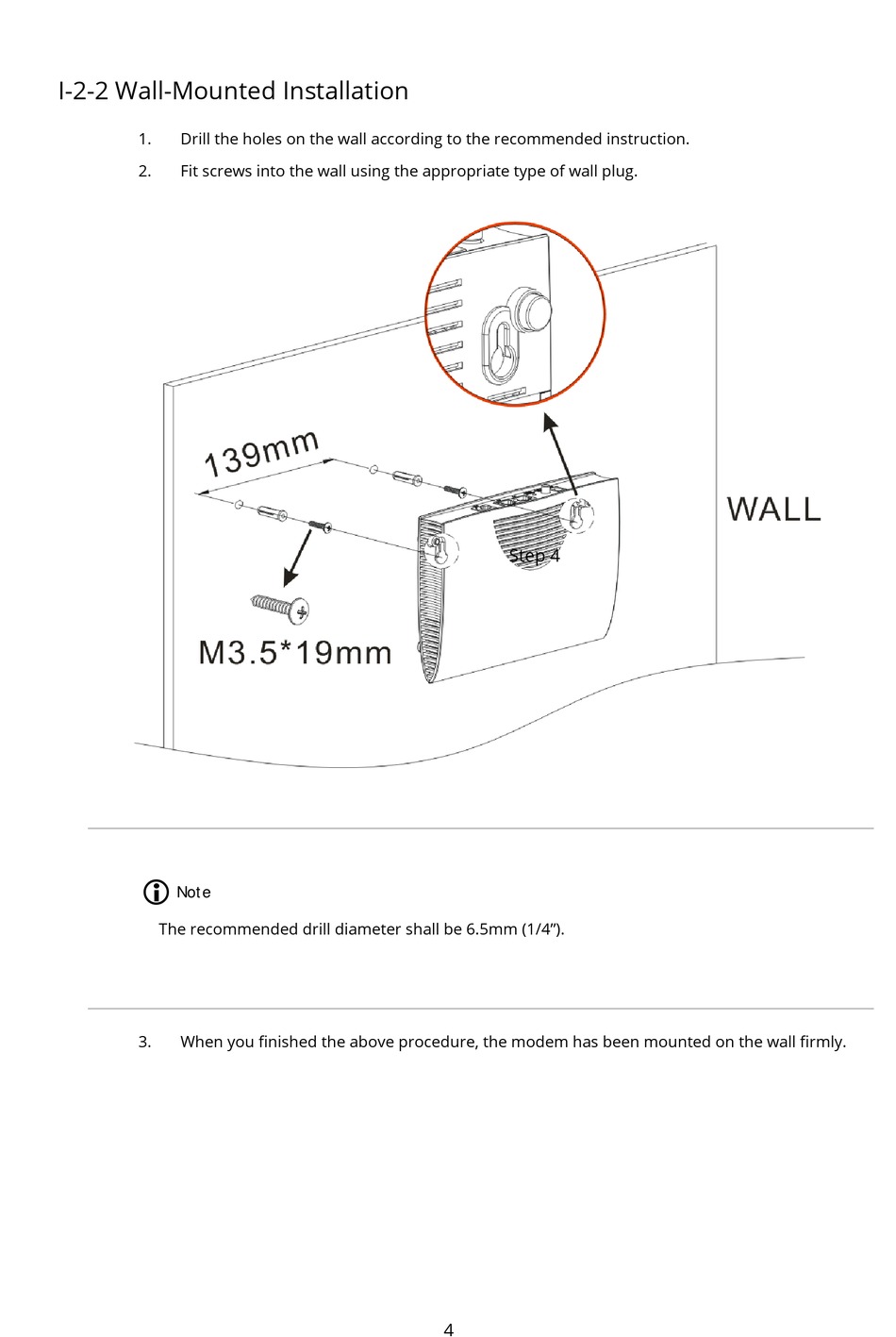

I-2-2 Wall-Mounted Installation

1. Drill the holes on the wall according to the recommended instruction.
2. Fit screws into the wall using the appropriate type of wall plug.

Note
The recommended drill diameter shall be 6.5mm (1/4").
3. When you finished the above procedure, the modem has been mounted on the wall firmly.
Step 4
4
