Note:
Switch these two icons by click the mouse cursor on them.
- means "Enable".
- means "Disable".

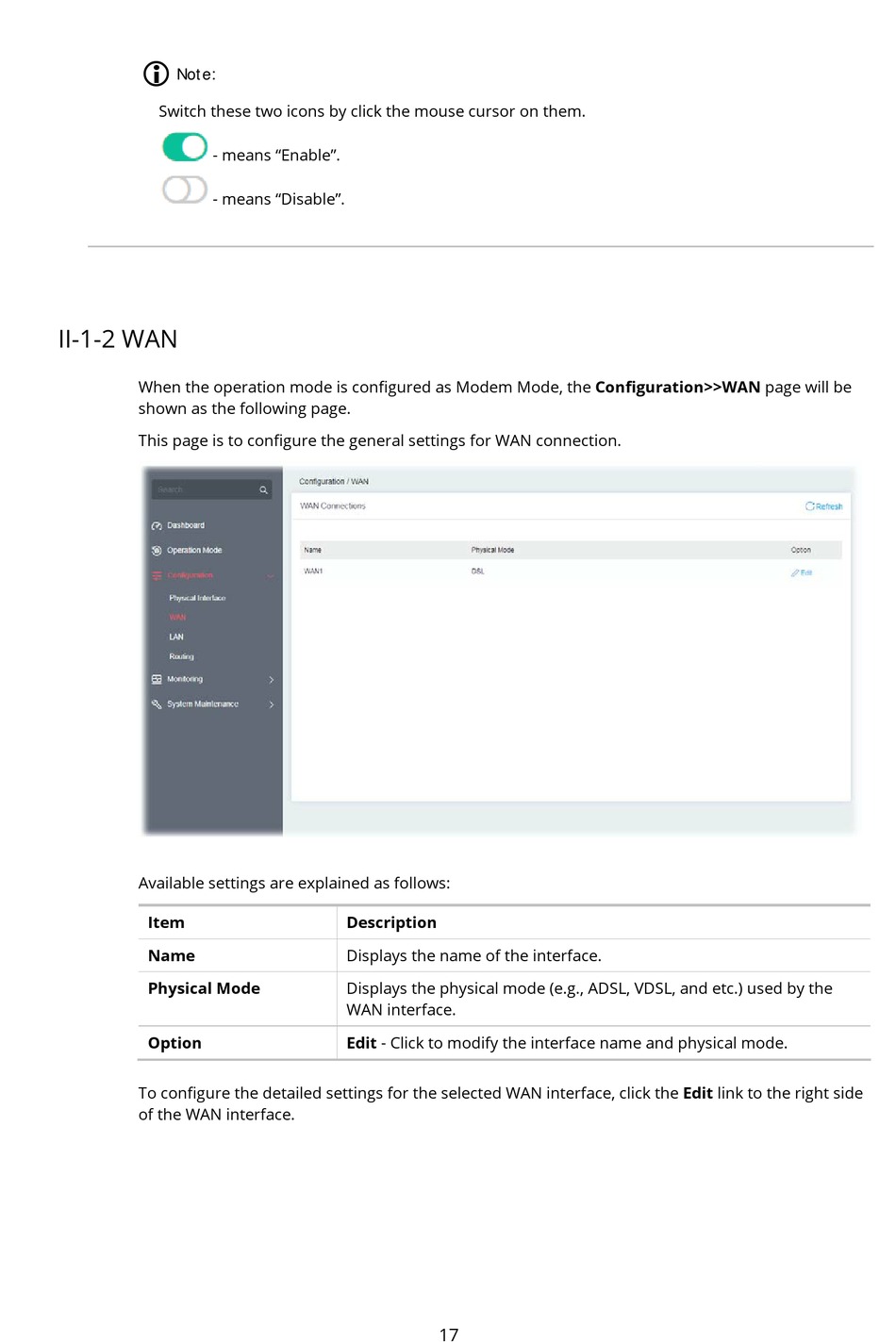

II-1-2 WAN

When the operation mode is configured as Modem Mode, the Configuration>>WAN page will be
shown as the following page.
This page is to configure the general settings for WAN connection.
Available settings are explained as follows:
Item
Name
Physical Mode
Option
To configure the detailed settings for the selected WAN interface, click the Edit link to the right side
of the WAN interface.
Description
Displays the name of the interface.
Displays the physical mode (e.g., ADSL, VDSL, and etc.) used by the
WAN interface.
Edit - Click to modify the interface name and physical mode.
17
