Hanna Instruments HI96101C Instruction Manual

Ph, chlorine, cyanuric acid, iodine, bromine, iron lr ism
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
HI96101C
pH, Chlorine, Cyanuric Acid,
Iodine, Bromine, Iron LR ISM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HI96101C and is the answer not in the manual?

Questions and answers

Related Manuals for Hanna Instruments HI96101C

Summary of Contents for Hanna Instruments HI96101C

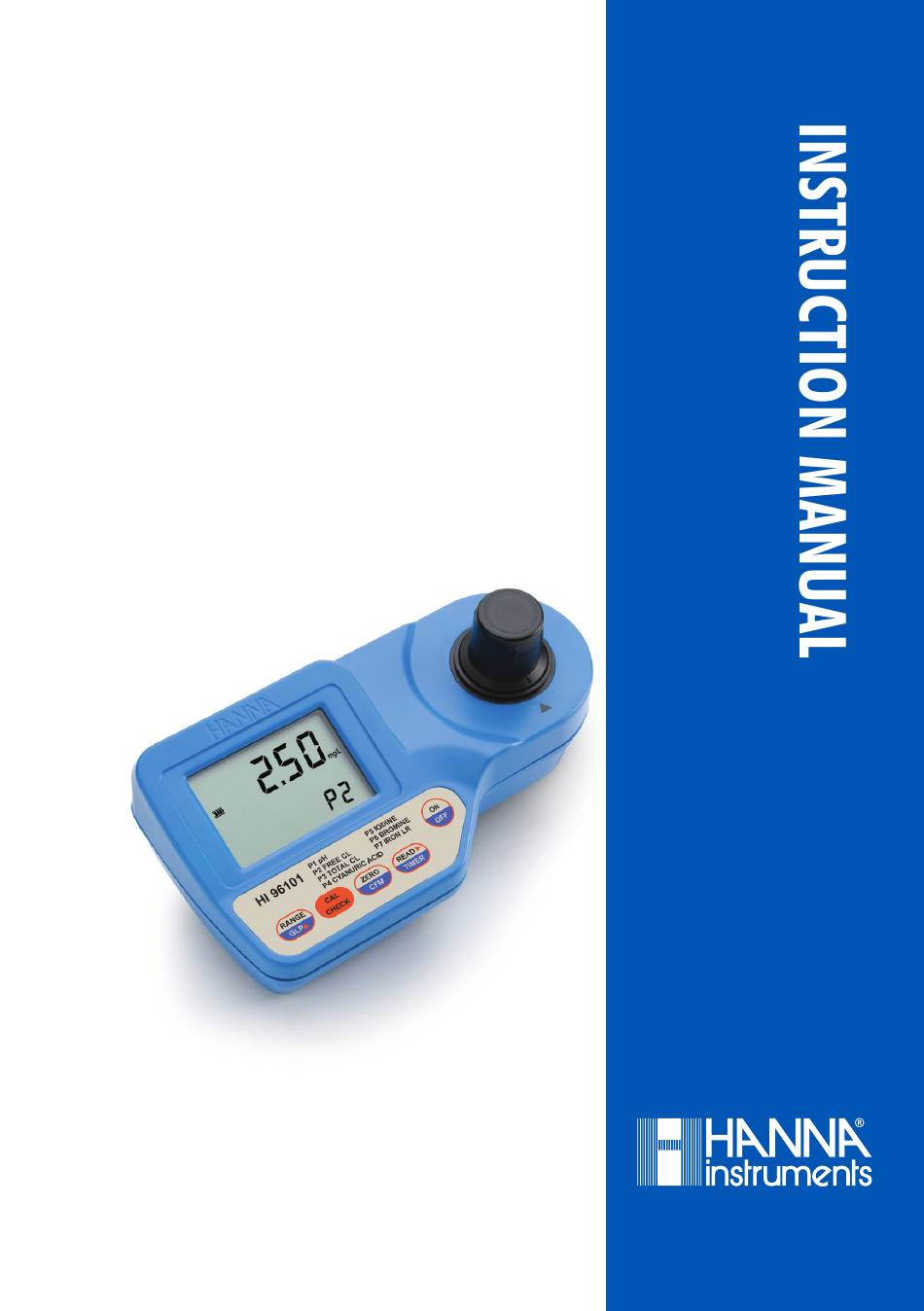

  • Page 1 HI96101C pH, Chlorine, Cyanuric Acid, Iodine, Bromine, Iron LR ISM...
  • Page 2 If you need additional technical information, do not hesitate to e‑mail us at tech@hannainst.com or view our worldwide contact list at www.hannainst.com. All rights are reserved. Reproduction in whole or in part is prohibited without the written consent of the copyright owner, Hanna Instruments Inc., Woonsocket, Rhode Island, 02895, USA.
  • Page 3 PRELIMINARY EXAMINATION ..................... GENERAL DESCRIPTION ..................... ABBREVIATIONS ....................... SPECIFICATIONS ....................... PRECISION AND ACCURACY ....................PRINCIPLE OF OPERATION ....................FUNCTIONAL DESCRIPTION ....................ERRORS AND WARNINGS ....................GENERAL TIPS FOR AN ACCURATE MEASUREMENT .............. STARTUP .......................... RANGE SELECTION ......................MEASUREMENT PROCEDURE ..................... VALIDATION PROCEDURE ....................
  • Page 4 Please examine this product carefully. Make sure that the instrument is not damaged. If any damage occurred during shipment, please contact your local Hanna Instruments Office. Each HI96101 Ion Selective Meter is supplied complete with: • Sample Cuvettes and Caps (2 pcs.) •...
  • Page 5 With the powerful CAL Check™ validation function, you are able to validate good performance of your instrument at any time. The validation procedure is extremely user friendly. Just use the exclusive Hanna Instruments ready‑made, NIST traceable standards to verify the performance of the instrument and recalibrate if necessary.
  • Page 6 °C: degree Celsius °F: degree Fahrenheit mg/L: milligrams per liter. mg/L is equivalent to ppm (parts per million) milliliter millivolts USEPA: US Environmental Protection Agency Range 6.5 to 8.5 pH Free Chlorine 0.00 to 5.00 mg/L Total Chlorine 0.00 to 5.00 mg/L Cyanuric Acid 0 to 80 mg/L Iodine...

  • Page 7: Required Reagents

    Method For pH: Phenol red method. The reaction with the reagent causes a red tint in the sample. For Chlorine: Adaptation of the EPA, DPD method and Standard Method 4500‑Cl G. The reaction between chlorine and the reagent causes a pink tint in the sample.
  • Page 8 Precision is how closely repeated measurements agree with each other. Precision is usually expressed as standard deviation (SD). Accuracy is defined as the nearness of a test result to the true value. Although good precision suggests good accuracy, precise results can be inaccurate. The figure explains these definitions.
  • Page 9 The optical system of Hanna Instruments’ HI96 series colorimeters is based on special subminiature tungsten lamps and narrow‑band interference filters to guarantee both high performance and...
  • Page 10 A microprocessor controlled special tungsten lamp emits radiation which is first optically conditioned and beamed to the sample contained in the cuvette. The optical path is fixed by the diameter of the cuvette. Then the light is spectrally filtered to a narrow spectral bandwidth, to obtain a light beam of intensity I or I.

  • Page 11: Instrument Description

    INSTRUMENT DESCRIPTION 1) RANGE/GLP key 2) CAL CHECK key 3) ZERO/CFM key 4) READ /TIMER key 5) ON/OFF key 6) Liquid Crystal Display (LCD) 7) Cuvette alignment indicator 8) Cuvette holder KEYPAD DESCRIPTION • ON/OFF: to turn the meter on and off. •...
  • Page 12 DISPLAY ELEMENTS DESCRIPTION 1) The measuring scheme (lamp, cuvette, detector), appears during different phases of zero or reading measurement 2) Error messages and warnings 3) The battery icon indicates the charge state of the battery 4) The hourglass appears when an internal check is in progress 5) Status messages 6) The chronometer appears when the reaction timer is running 7) The month, day and date icons appear when a date is displayed...
  • Page 13 The instrument shows clear messages when erroneous condition appears. Messages are also displayed when the obtained values are outside expected range. The beeper is playing a beep on errors. a) on zero reading Light High: There is too much light to perform a measurement. Please check the preparation of the zero cuvette.
  • Page 14 Over Range: A flashing value of the maximum concentration indicates an over range condition. The concentration of the sample is beyond the programmed range: dilute the sample and re‑run the test. c) during calibration procedure Standard Low: The standard reading is less than expected. Standard High: The standard reading is higher than expected.
  • Page 15 The instructions listed below should be carefully followed during testing to ensure best accuracy. • Color or suspended matter in large amounts may cause interference, therefore these should be removed by treatment with active carbon and by prior filtration. • For a correct filling of the cuvette: the liquid in the cuvette forms a concavity on the top;...
  • Page 16 • It is important that the sample does not contain any debris. This would corrupt the reading. • Each time the cuvette is used, the cap must be tightened to the same degree. • Whenever the cuvette is placed into the measurement cell, it must be dry outside, and completely free of fingerprints, oil or dirt.
  • Page 17 Prepare the instrument for measurement as follows: • Unpack the instrument by removing the dust protection sleeve from the instrument cuvette holder. • Place the battery in the instrument as described in the “BATTERY REPLACEMENT” chapter. • Place the instrument on a flat table. •...
  • Page 18 To compensate the meter for the sample turbidity or color, the measurement takes place in two phases. First, the meter is zeroed using the unreacted sample. After the reagents are added the reacted sample is measured. Important note: Free and Total Chlorine have to be measured separately with fresh unreacted samples if both values are requested.
  • Page 19 • Press ZERO/CFM and the lamp, cuvette and detector icons will appear on the display, depending on the measurement phase. • After a few seconds, the display will show “-0.0-”. The meter is now zeroed and ready for measurement. • Remove the cuvette and add 5 drops of the HI93710‑0 Indicator.

  • Page 20: Free Chlorine Measurement

    • Press READ /TIMER. The lamp, cuvette and detector icons will appear on the display, depending on the measurement phase. • At the end of measurement, the instrument directly displays the pH value on the Liquid Crystal Display. FREE CHLORINE MEASUREMENT •...
  • Page 21 • After a few seconds, the display will show “-0.0-”. The meter is now zeroed and ready for measurement. • Remove the cuvette. • Add the content of one packet of HI93701‑0 reagent. Replace the cap and shake gently for 20 seconds.
  • Page 22 • Alternatively, wait for one minute and just press READ /TIMER. In both cases, the lamp, cuvette and detector icons will appear on the display, depending on the measurement phase. • At the end of measurement, the instrument directly displays concentration in mg/L of free chlorine on the Liquid Crystal Display.

  • Page 23: Total Chlorine Measurement

    TOTAL CHLORINE MEASUREMENT • Fill the cuvette up to the 10 mL mark with unreacted sample and replace the cap. • Place the cuvette into the holder and ensure that the notch on the cap is positioned securely into the groove. •...
  • Page 24 • Replace the cuvette into the cuvette holder and ensure that the notch on the cap is positioned securely into the groove. • Press and hold READ /TIMER for three seconds. The display will show the countdown prior to measurement. The beeper is playing a beep at the end of countdown period. •...

  • Page 25: Cyanuric Acid Measurement

    Interferences Interference may be caused by: Bromine, Iodine, Chlorine Dioxide, Ozone, Oxidized Manganese and Chromium. In case of water with alkalinity greater than 250 mg/L CaCO or acidity greater than 150 mg/L CaCO the color of the sample could disappear or develop only partially. To resolve this, neutralize the sample with diluted HCl or NaOH.
  • Page 26 • After a few seconds, the display will show “-0.0-”. The meter is now zeroed and ready for measurement. • Fill a beaker up to the 25 mL mark with the sample, add the content of one packet of HI93722‑0 reagent and swirl gently to mix.

  • Page 27: Iodine Measurement

    • Alternatively, wait for 45 seconds then just press READ /TIMER. In both cases, the lamp, cuvette and detector icons will appear on the display, depending on the measurement phase. 45" • At the end of measurement, the instrument directly displays concentration in mg/L of cyanuric acid on the LCD.
  • Page 28 • After a few seconds, the display will show “-0.0-”. The meter is now zeroed and ready for measurement. • Remove the cuvette. • Add the content of one packet of HI93718‑0 reagent. Replace the cap and shake gently for about 20 seconds to dissolve most of the reagent.
  • Page 29 • Alternatively, wait for 2 minutes and 30 seconds then just press READ /TIMER. In both cases, the lamp, cuvette and detector icons will appear on the display, depending on the measurement phase. • At the end of measurement, the instrument directly displays concentration in mg/L of iodine on the LCD.

  • Page 30: Bromine Measurement

    BROMINE MEASUREMENT • Fill the cuvette up to the 10 mL mark with unreacted sample and replace the cap. • Place the cuvette into the cuvette holder and ensure that the notch on the cap is positioned securely into the groove. •...
  • Page 31 • Replace the cuvette into the cuvette holder and ensure that the notch on the cap is positioned securely into the groove. • Press and hold READ /TIMER for three seconds. The display will show the countdown prior to measurement. The beeper is playing a beep at the end of countdown period. •...
  • Page 32 IRON LR MEASUREMENT • Fill one graduating mixing cylinder up to the 25 mL mark with deionized water. • Add the content of one packet of HI93746‑0 reagent, close the cylinder and shake vigorously for 30 seconds. This is the blank. •...
  • Page 33 • Press ZERO/CFM and the lamp, cuvette and detector icons will appear on the display, depending on the measurement phase. • After a few seconds, the display will show “-0.0-”. The meter is now zeroed and ready for measurement. • Remove the cuvette. •...
  • Page 34 • Place the cuvette into the cuvette holder and ensure that the notch on the cap is positioned securely into the groove. • Press and hold READ /TIMER for three seconds. The display will show the countdown prior to measurement. The beeper is playing a beep at the end of countdown period. •...
  • Page 35 Use the validation procedure to ensure that the instrument is properly calibrated. Warning: Do not validate the instrument with any standard solutions other than the Hanna Instruments CAL Check™ Standards, otherwise erroneous results will be obtained. Note: The validation is performed only for the selected parameter. For full validation of the instrument, the following procedure must be performed for each parameter.
  • Page 36 • After a few seconds, the display will show “-0.0-”. The meter is now zeroed and ready for validation. • Remove the cuvette. • Place the specific CAL Check™ Standard Cuvette B into the cuvette holder, for: pH: B, HI96710‑11 Free Chlorine: B, HI96701‑11 Total Chlorine: B,...
  • Page 37 Note: It is possible to interrupt calibration procedure at any time by pressing CAL CHECK or ON/OFF keys. Warning: Do not calibrate the instrument with standard solutions other than the Hanna Instruments CAL Check™ Standards, otherwise erroneous results will be obtained.
  • Page 38 • Press ZERO/CFM and the lamp, cuvette and detector icons will appear on the display, depending on the measurement phase. • After a few seconds the display will show “-0.0-”. The meter is now zeroed and ready for calibration. The blinking “READ” asks for reading calibration standard. •...

  • Page 39: Date Input

    • Press READ /TIMER and the lamp, cuvette and detector icons will appear on the display, depending on the measurement phase. • After measurement the instrument will show for three seconds the CAL Check™ Standard value. Note: If the display shows “STD HIGH”, the standard value was too high. If the display shows “STD LOW”, the standard value was too low.
  • Page 40 • When the correct year has been set, press ZERO/CFM or READ /TIMER to confirm. Now the display will show the month blinking. • Press RANGE/GLP to edit the desired month (01‑12). If the key is kept pressed, the month number is automatically increased.

  • Page 41: Last Calibration Date

    • The instrument displays “Stor” for one second and the calibration is saved. • The instrument will return automatically to measurement mode by displaying dashes on the LCD. In the GLP mode, the last user calibration date can be verified and the factory calibration can be restored.
  • Page 42 FACTORY CALIBRATION RESTORE It is possible to delete the calibration and restore factory calibration. • Press and hold for three seconds RANGE/GLP to enter GLP mode for the selected range. • Press READ /TIMER to enter in the factory calibration restore screen. The instrument asks for confirmation of user calibration delete.
  • Page 43 To save battery, the instrument shuts down after 10 minutes of non‑use in measurement mode and after 1 hour of non‑use in calibration mode. If a valid measurement was displayed before auto‑shut off, the value is displayed when the instrument is switched on.
  • Page 44 To replace the instrument’s battery, follow the steps: • Turn the instrument off by pressing ON/OFF. • Turn the instrument upside down and remove the battery cover by turning it counterclockwise. • Extract the battery from its location and replace it with a fresh one. •...
  • Page 45 Reagent Set HI93701-01 Reagents for 100 free chlorine tests HI93701-03 Reagents for 300 free chlorine tests HI93710-01 Reagents for 100 pH tests HI93710-03 Reagents for 300 pH tests HI93711-01 Reagents for 100 total chlorine tests HI93711-03 Reagents for 300 total chlorine tests HI93716-01 Reagents for 100 bromine tests HI93716-03...
  • Page 46 HI96746-11 CAL Check™ Standard Cuvettes for Iron Low Range (1 set) HI93703-50 Cuvette cleaning solution (230 mL) HI740318 Carrying case HI740029P 9V battery (10 pcs.) HI731318 Cloth for wiping cuvettes (4 pcs.) HI731331 Glass cuvettes (4 pcs.) HI731335 Caps for cuvettes (4 pcs.) MAN96101 01/18...

  • Page 47: Recommendations For Users

    To validate your warranty, fill out and return the enclosed warranty card within 14 days from the date of purchase. Hanna Instruments reserves the right to modify the design, construction or appearance of its products without advance notice.
  • Page 48 World Headquarters Hanna Instruments Inc. Highland Industrial Park 584 Park East Drive Woonsocket, RI 02895 USA www.hannainst.com Local Office Hanna Instruments USA 270 George Washington Highway Smithfield, RI 02917 Phone: 800.426.6287 Fax: 401.765.7575 e‑mail: tech@hannainst.com MAN96101 Printed in ROMANIA...
