- Page 1 GA-AM1M-S2H User's Manual Rev. 1102...
- Page 2 Jan. 27, 2014 Jan. 27, 2014 Copyright © 2016 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved. The trademarks mentioned in this manual are legally registered to their respective owners. Disclaimer Information in this manual is protected by copyright laws and is the property of GIGABYTE.
-
Page 3: Table Of Contents
Table of Contents GA-AM1M-S2H Motherboard Layout ................4 GA-AM1M-S2H Motherboard Block Diagram ..............5 Chapter 1 Hardware Installation ..................6 Installation Precautions ..................6 Product Specifications ..................7 Installing the APU ..................... 9 Installing the Memory ..................9 Installing an Expansion Card ................9 Back Panel Connectors .................. -
Page 4: Ga-Am1M-S2H Motherboard Layout

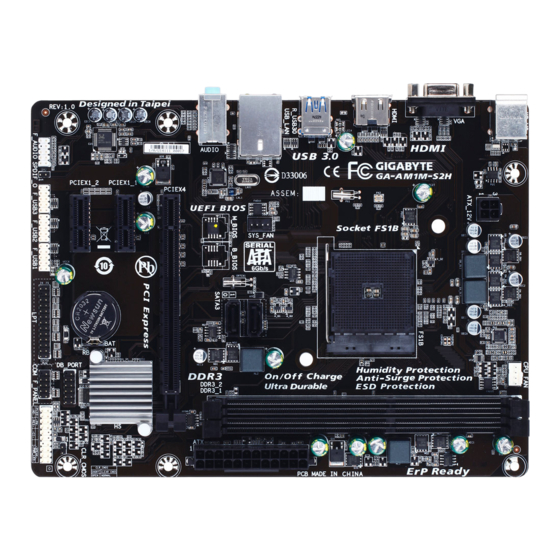

GA-AM1M-S2H Motherboard Layout CPU_FAN KB_MS ATX_12V Socket FS1b R_USB30 SYS_FAN SATA3 1 0 USB_LAN Realtek ® GbE LAN M_BIOS AUDIO PCIEX4 PCIEX1_1 ® Super I/O CODEC PCIEX1_2 CLR_CMOS F_AUDIO F_USB3 F_USB1 SPDIF_O F_USB2 F_PANEL Box Contents 5 GA-AM1M-S2H motherboard 5 Motherboard driver disk... -
Page 5: Ga-Am1M-S2H Motherboard Block Diagram
GA-AM1M-S2H Motherboard Block Diagram APU CLK+/- (100 MHz) DISP CLK+/- (100 MHz) 1 PCI Express x4 DDR3 1600/1333 MHz PCIe CLK Memory (100 MHz) RJ45 Realtek ® D-Sub AMD APU GbE LAN HDMI PCI Express Bus BIOS 2 USB 3.0/2.0 8 USB 2.0/1.1... -
Page 6: Chapter 1 Hardware Installation
Chapter 1 Hardware Installation Installation Precautions The motherboard contains numerous delicate electronic circuits and components which can become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's manual and follow these procedures: • Prior to installation, make sure the chassis is suitable for the motherboard. •... -
Page 7: 1-2 Product Specifications
1-2 Product Specifications FS1b Socket: Š AMD Athlon series processors ™ AMD Sempron series processors ™ (Go to GIGABYTE's website for the latest CPU support list.) Memory 2 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory Š... - Page 8 Back Panel 1 x PS/2 keyboard port Š Connectors 1 x PS/2 mouse port Š 1 x D-Sub port Š 1 x HDMI port Š 2 x USB 3.0/2.0 ports Š 2 x USB 2.0/1.1 ports Š 1 x RJ-45 port Š...
-
Page 9: Installing The Apu
Installing the APU Read the following guidelines before you begin to install the APU: • Make sure that the motherboard supports the APU. (Go to GIGABYTE's website for the latest APU support list.) • Always turn off the computer and unplug the power cord from the power outlet before installing the APU to prevent hardware damage. -
Page 10: Back Panel Connectors
Back Panel Connectors PS/2 Keyboard and PS/2 Mouse Port Use the upper port (green) to connect a PS/2 mouse and the lower port (purple) to connect a PS/2 keyboard. D-Sub Port The D-Sub port supports a 15-pin D-Sub connector and supports a maximum resolution of 1920x1200 (the actual resolutions supported depend on the monitor being used). -
Page 11: Internal Connectors
Mic In Jack (Pink) The Mic in jack. Microphones must be connected to this jack. To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. • When removing the cable connected to a back panel connector, first remove the cable from your device and then remove it from the motherboard. - Page 12 1/2) ATX_12V/ATX (2x2 12V Power Connector and 2x12 Main Power Connector) With the use of the power connector, the power supply can supply enough stable power to all the components on the motherboard. Before connecting the power connector, first make sure the power supply is turned off and all devices are properly installed.
- Page 13 DEBUG PORT 5) SATA3 0/1 (SATA 6Gb/s Connectors) The SATA connectors conform to SATA 6Gb/s standard and are compatible with SATA 3Gb/s and SATA 1.5Gb/s standard. Each SATA connector supports a single SATA device. Pin No. Definition SATA3 6) F_PANEL (Front Panel Header) Connect the power switch, reset switch, speaker, chassis intrusion switch/sensor and system status indicator on the chassis to this header according to the pin assignments below.
- Page 14 7) SPDIF_O (S/PDIF Out Header) This header supports digital S/PDIF Out and connects a S/PDIF digital audio cable (provided by expansion cards) for digital audio output from your motherboard to certain expansion cards like graphics cards and sound cards. For example, some graphics cards may require you to use a S/PDIF digital audio cable for digital audio output from your motherboard to your graphics card if you wish to connect an HDMI display to the graphics card and have digital audio output from the HDMI display at the same time.
- Page 15 10) COM (Serial Port Header) The COM header can provide one serial port via an optional COM port cable. For purchasing the optional COM port cable, please contact the local dealer. Pin No. Definition Pin No. Definition NDCD- NDSR- NSIN NRTS- DEBUG NSOUT NCTS- PORT NDTR-...
-
Page 16: Chapter 2 Bios Setup
14) BAT (Battery) The battery provides power to keep the values (such as BIOS configurations, date, and time information) in the CMOS when the computer is turned off. Replace the battery when the battery voltage drops to a low level, or the CMOS values may not be accurate or may be lost. You may clear the CMOS values by removing the battery: 1. -
Page 17: Startup Screen
Startup Screen The following startup Logo screen will appear when the computer boots. (Sample BIOS Version: F1) Function Keys On the main menu of the BIOS Setup program, press arrow keys to move among the items and press <Enter> to accept or enter a sub-menu. Or you can use your mouse to select the item you want. •... - Page 18 ` M.I.T. Current Status This screen provides information on CPU/memory frequencies/parameters. ` Advanced Frequency Settings & Processor Graphics Clock Allows you to set the onboard graphics clock. The adjustable range is from 300 MHz to 2000 MHz. & CPU NorthBridge Frequency Allows you to manually set the CPU North Bridge frequency.
- Page 19 ` Advanced Memory Settings & E xtreme Memory Profile (X.M.P.) , System Memory Multiplier, Memory Frequency(MHz) (Note) The settings above are synchronous to those under the same items on the Advanced Frequency Settings menu. & Memory Timing Mode Manual and Advanced Manual allows the Channel Interleaving, Rank Interleaving, and memory timing settings below to be configurable.
-
Page 20: System Information
& CPU/System Fan Fail Warning Allows the system to emit warning sound if the CPU fan or system fan are not connected or fail. Check the fan condition or fan connection when this occurs. (Default: Disabled) & CPU Fan Speed Control Allows you to determine whether to enable the fan speed control function and adjust the fan speed. -
Page 21: 2-4 Bios Features
& System Date Sets the system date. The date format is week (read-only), month, date, and year. Use <Enter> to switch between the Month, Date, and Year fields and use the <Page Up> or <Page Down> key to set the desired value. - Page 22 & Bootup NumLock State Enables or disables Numlock feature on the numeric keypad of the keyboard after the POST. (Default: Enabled) & Security Option Specifies whether a password is required every time the system boots, or only when you enter BIOS Setup. After configuring this item, set the password(s) under the Administrator Password/User Password item.
- Page 23 & Boot Mode Selection Allows you to select which type of operating system to boot. UEFI and Legacy Allows booting from operating systems that support legacy option ROM or UEFI option ROM. (Default) Legacy Only Allows booting from operating systems that only support legacy Option ROM. UEFI Only Allows booting from operating systems that only support UEFI Option ROM.
-
Page 24: Peripherals
Peripherals & HD Audio Azalia Device Enables or disables the onboard audio function. (Default: Enabled) If you wish to install a 3rd party add-in audio card instead of using the onboard audio, set this item to Disabled. & Onboard LAN Controller Enables or disables the onboard LAN function. (Default: Enabled) If you wish to install a 3rd party add-in network card instead of using the onboard LAN, set this item to Disabled. - Page 25 ` GFX Configuration & Primary Video Device Specifies the first initiation of the monitor display from the installed PCI Express graphics card or the onboard graphics. IGD Video Sets the onboard graphics as the first display. NB PCIe Slot Video Sets the PCI Express graphics card on the PCI Express slot controlled by the North Bridge as the first display.
-
Page 26: Power Management
Power Management & Resume by Alarm Determines whether to power on the system at a desired time. (Default: Disabled) If enabled, set the date and time as following: Wake up day: Turn on the system at a specific time on each day or on a specific day in a month. Wake up hour/minute/second: Set the time at which the system will be powered on automatically. -
Page 27: Save & Exit
& Power On Password Set the password when Power On By Keyboard is set to Password. Press <Enter> on this item and set a password with up to 5 characters and then press <Enter> to accept. To turn on the system, enter the password and press <Enter>. Note: To cancel the password, press <Enter>... -
Page 28: Chapter 3 Appendix
& Save Profiles This function allows you to save the current BIOS settings to a profile. You can create up to 8 profiles and save as Setup Profile 1~ Setup Profile 8. Press <Enter> to complete. Or you can select Select File in HDD/USB/FDD to save the profile to your storage device. -
Page 29: Regulatory Statements
Regulatory Statements Regulatory Notices This document must not be copied without our written permission, and the contents there of must not be imparted to a third party nor be used for any unauthorized purpose. Contravention will be prosecuted. We believe that the information contained herein was accurate in all respects at the time of printing. - Page 30 FCC Notice (U.S.A. Only) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- Page 31 - 31 -...
-
Page 32: Contact Us
Contact Us GIGA-BYTE TECHNOLOGY CO., LTD. Address: No.6, Baoqiang Rd., Xindian Dist., New Taipei City 231, Taiwan TEL: +886-2-8912-4000, FAX: +886-2-8912-4005 Tech. and Non-Tech. Support (Sales/Marketing) : http://esupport.gigabyte.com WEB address (English): http://www.gigabyte.com WEB address (Chinese): http://www.gigabyte.tw GIGABYTE eSupport • To submit a technical or non-technical (Sales/Marketing) question, please link to: http://esupport.gigabyte.com - 32 -...
