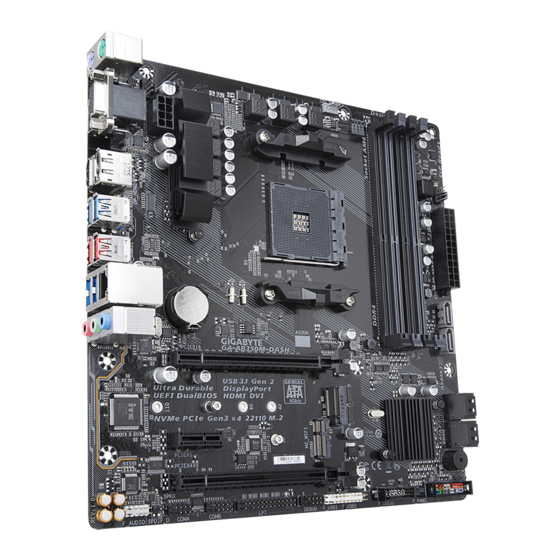

GIGA-BYTE TECHNOLOGY GA-AB350M-DASH User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Questo manuale d'istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per
AB350M Dash
GA-AB350M-DASH
User's Manual
Rev. 1002
For more product details, please visit GIGABYTE's website.
To reduce the impacts on global warming, the packaging materials of this product
are recyclable and reusable. GIGABYTE works with you to protect the environment.
o cerca il tuo prodotto tra le
migliori offerte di Schede Madri
Gigabyte

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GA-AB350M-DASH and is the answer not in the manual?

Questions and answers

Related Manuals for GIGA-BYTE TECHNOLOGY GA-AB350M-DASH

Summary of Contents for GIGA-BYTE TECHNOLOGY GA-AB350M-DASH

  • Page 1 Gigabyte AB350M Dash o cerca il tuo prodotto tra le migliori offerte di Schede Madri GA-AB350M-DASH User's Manual Rev. 1002 For more product details, please visit GIGABYTE's website. To reduce the impacts on global warming, the packaging materials of this product...
  • Page 2 Apr. 12, 2018 Apr. 12, 2018 Copyright © 2018 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved. The trademarks mentioned in this manual are legally registered to their respective owners. Disclaimer Information in this manual is protected by copyright laws and is the property of GIGABYTE.

  • Page 3: Table Of Contents

    Table of Contents GA-AB350M-DASH Motherboard Layout ................4 Chapter 1 Hardware Installation ..................5 Installation Precautions ..................5 1-2 Product Specifications ..................6 Installing the CPU .................... 9 Installing the Memory ..................9 Installing an Expansion Card ................. 10 Back Panel Connectors .................. 10 Internal Connectors ..................

  • Page 4: Ga-Ab350M-Dash Motherboard Layout

    GA-AB350M-DASH Motherboard Layout SYS_FAN1 KB_MS CPU_FAN ATX_12V Socket AM4 R_USB30 R_USB31 USB30_LAN TPM IC M_BIOS AUDIO GA-AB350M-DASH Realtek ® GbE LAN PCIEX16 ® Super I/O PCIEX1 AMD B350 PCIEX4 CODEC BUZZER CLR_CMOS F_AUDIO COMA COMB F_USB1 F_USB30 F_PANEL SPKR F_USB2...

  • Page 5: Chapter 1 Hardware Installation

    Chapter 1 Hardware Installation Installation Precautions The motherboard contains numerous delicate electronic circuits and components which can become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's manual and follow these procedures: • Prior to installation, make sure the chassis is suitable for the motherboard. •...

  • Page 6: Product Specifications

    1-2 Product Specifications AM4 Socket: Š AMD Ryzen processor ™ AMD 7th Generation A-series/Athlon processors ™ (Go to GIGABYTE's website for the latest CPU support list.) Chipset AMD B350 Š Memory 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory Š Dual channel memory architecture Š Support for DDR4 2667 /2400/2133 MHz memory modules (Note) Š S upport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in Š...
  • Page 7 Storage Interface Š 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe /x2 SSD support) (Note) 6 x SATA 6Gb/s connectors Š Support for RAID 0, RAID 1, and RAID 10 Š Chipset: Š 2 x USB 3.1 Gen 2 Type-A ports (red) on the back panel 2 x USB 3.1 Gen 1 ports available through the internal USB header 4 x USB 2.0/1.1 ports available through the internal USB headers CPU:...
  • Page 8 BIOS 1 x 128 Mbit flash Š Use of licensed AMI UEFI BIOS Š PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Š Unique Features Š Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

  • Page 9: Installing The Cpu

    1-3 Installing the CPU Read the following guidelines before you begin to install the CPU: • Make sure that the motherboard supports the CPU. (Go to GIGABYTE's website for the latest CPU support list.) • Always turn off the computer and unplug the power cord from the power outlet before installing the CPU to prevent hardware damage.

  • Page 10: Installing An Expansion Card

    Dual Channel Memory Configurations Table DDR4_4 DDR4_2 DDR4_3 DDR4_1 2 Modules DS/SS DS/SS DS/SS DS/SS 4 Modules DS/SS DS/SS DS/SS DS/SS (SS=Single-Sided, DS=Double-Sided, "- -"=No Memory) Due to CPU limitations, read the following guidelines before installing the memory in Dual Channel mode. Dual Channel mode cannot be enabled if only one memory module is installed. When enabling Dual Channel mode with two or four memory modules, it is recommended that memory of the same capacity, brand, speed, and chips be used.
  • Page 11 USB 3.1 Gen 1 Port The USB 3.1 Gen 1 port supports the USB 3.1 Gen 1 specification and is compatible to the USB 2.0 specification. Use this port for USB devices. USB 3.1 Gen 2 Type-A Port (Red) The USB 3.1 Gen 2 Type-A port supports the USB 3.1 Gen 2 specification and is compatible to the USB 3.1 Gen 1 and USB 2.0 specification. Use this port for USB devices. RJ-45 LAN Port The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. The following describes the states of the LAN port LEDs. Connection/ Connection/Speed LED: Activity LED:...

  • Page 12: Internal Connectors

    Internal Connectors ATX_12V F_AUDIO SPKR CPU_FAN F_USB30 SYS_FAN1/2 F_USB1/F_USB2 ASATA3 0/1 COMA/COMB SATA3 0/1/2/3 M2F_32G CLR_CMOS F_PANEL Read the following guidelines before connecting external devices: • First make sure your devices are compliant with the connectors you wish to connect. • Before installing the devices, be sure to turn off the devices and your computer. Unplug the power cord from the power outlet to prevent damage to the devices.
  • Page 13 1/2) ATX_12V/ATX (2x4 12V Power Connector and 2x12 Main Power Connector) With the use of the power connector, the power supply can supply enough stable power to all the components on the motherboard. Before connecting the power connector, first make sure the power supply is turned off and all devices are properly installed. The power connector possesses a foolproof design. Connect the power supply cable to the power connector in the correct orientation.
  • Page 14 S B_ DEBUG PORT 6) ASATA3 0/1, SATA3 0/1/2/3 (SATA 6Gb/s Connectors) The SATA connectors conform to SATA 6Gb/s standard and are compatible with SATA 3Gb/s and SATA 1.5Gb/s standard. Each SATA connector supports a single SATA device. The SATA connectors support RAID 0, RAID 1, and RAID 10. Refer to Chapter 3, "Configuring a RAID Set," for instructions on configuring a RAID array.
  • Page 15 8) F_PANEL (Front Panel Header) Connect the power switch, reset switch, speaker, chassis intrusion switch/sensor and system status indicator on the chassis to this header according to the pin assignments below. Note the positive and negative pins before connecting the cables. • PLED/PWR_LED (Power LED, Yellow/Purple): Power LED Power Switch Speaker...
  • Page 16 10) SPKR (Mono Speaker Header) The system reports system startup status by issuing a beep code. One single short beep will be heard if no problem is detected at system startup. This header can also provide audio output in the operating system. Pin No.
  • Page 17 13) COMA/COMB (Serial Port Headers) The COM header can provide one serial port via an optional COM port cable. For purchasing the optional COM port cable, please contact the local dealer. Pin No. Definition Pin No. Definition NDCD- NDSR- NSIN NRTS- DEBUG NSOUT...
  • Page 18 16) BAT (Battery) The battery provides power to keep the values (such as BIOS configurations, date, and time information) in the CMOS when the computer is turned off. Replace the battery when the battery voltage drops to a low level, or the CMOS values may not be accurate or may be lost. You may clear the CMOS values by removing the battery: 1. Turn off your computer and unplug the power cord. 2. Gently remove the battery from the battery holder and wait for one minute. (Or use a metal object like a screwdriver to touch the positive and negative terminals of the battery holder, making them short for 5 seconds.) 3.

  • Page 19: Chapter 2 Bios Setup

    Chapter 2 BIOS Setup BIOS (Basic Input and Output System) records hardware parameters of the system in the CMOS on the motherboard. Its major functions include conducting the Power-On Self-Test (POST) during system startup, saving system parameters and loading operating system, etc. BIOS includes a BIOS Setup program that allows the user to modify basic system configuration settings or to activate certain system features.
  • Page 20 M.I.T. This section provides information on the BIOS version, CPU base clock, CPU frequency, memory frequency, total memory size, CPU temperature and Vcore. Whether the system will work stably with the overclock/overvoltage settings you made is dependent on your overall system configurations. Incorrectly doing overclock/overvoltage may result in damage to CPU, chipset, or memory and reduce the useful life of these components. This page is for advanced users only and we recommend you not to alter the default settings to prevent system instability or other unexpected results.
  • Page 21 & Core Performance Boost Ratio (Note 1) Allows you alter the ratio for the CPB. The adjustable range is dependent on the CPU being installed. (Default: Auto) & Turbo Performance Boost Ratio (Note 1) Allows you to determine whether to improve CPU performance. (Default: Disabled) &...
  • Page 22 & Memory Frequency (MHz) The first memory frequency value is the normal operating frequency of the memory being used; the second is the memory frequency that is automatically adjusted according to the System Memory Multiplier settings. ` Advanced Memory Settings & Extreme Memory Profile (X.M.P.) , System Memory Multiplier, Memory Frequency(MHz) (Note 1) The settings above are synchronous to those under the same items on the Advanced Frequency Settings menu.
  • Page 23 & C PU Vcore/CPU VDDP/DRAM Channel A/B Voltage/+3.3V/+5V/+12V/VCORE SOC Displays the current system voltages. & CPU/System 1/Chipset/MOS Temperature Displays current CPU/Chipset/System/MOS temperature. & CPU/System Fan Speed Displays current CPU/system fan speeds. & CPU/System 1/Chipset/VRM MOS/VSOC MOS Temperature Sets the warning threshold for temperature. When temperature exceeds the threshold, BIOS will emit warning sound.
  • Page 24 & Fan Speed Percentage Allows you to control the system fan speed. This item is configurable only when 1st System Fan Speed Control is set to Manual. Options are: 0.75 PWM value / C ~ 2.50 PWM value / & Fan Control Use Temperature Input Allows you to select the reference temperature for fan speed control. &...

  • Page 25: System Information

    System Information This section provides information on your motherboard model and BIOS version. You can also select the default language used by the BIOS and manually set the system time. & System Language Selects the default language used by the BIOS. &...

  • Page 26: Bios Features

    BIOS Features & Boot Option Priorities Specifies the overall boot order from the available devices. Removable storage devices that support GPT format will be prefixed with "UEFI:" string on the boot device list. To boot from an operating system that supports GPT partitioning, select the device prefixed with "UEFI:" string. Or if you want to install an operating system that supports GPT partitioning such as Windows 7 64-bit, select the optical drive that contains the Windows 7 64-bit installation disk and is prefixed with "UEFI:" string. & Hard Drive/CD/DVD ROM Drive/Floppy Drive/Network Device BBS Priorities Specifies the boot order for a specific device type, such as hard drives, optical drives, floppy disk drives, and devices that support Boot from LAN function, etc. Press <Enter> on this item to enter the submenu that presents the devices of the same type that are connected.
  • Page 27 & SATA Support Last Boot HDD Only Except for the previous boot drive, all SATA devices are disabled before the OS boot process completes. (Default) All Sata Devices All SATA devices are functional in the operating system and during the POST. This item is configurable only when Fast Boot is set to Enabled or Ultra Fast.
  • Page 28 & Network Stack Disables or enables booting from the network to install a GPT format OS, such as installing the OS from the Windows Deployment Services server. (Default: Disabled) & Ipv4 PXE Support Enables or disables IPv4 PXE Support. This item is configurable only when Network Stack is enabled. & Ipv4 HTTP Support Enables or disables HTTP boot support for IPv4. This item is configurable only when Network Stack is enabled.

  • Page 29: Peripherals

    Peripherals & AMD CPU fTPM Enables or disables the TPM 2.0 function integrated in the AMD CPU. (Default: Route to SPI TPM) & Initial Display Output Specifies the first initiation of the monitor display from the installed PCI Express graphics card or the onboard graphics. IGD Video Sets the onboard graphics as the first display. (Note) Sets the graphics card on the PCIEX16 slot as the first display. (Default) PCIe 1 Slot Sets the graphics card on the PCIEX4 slot as the first display. PCIe 2 Slot & Legacy USB Support Allows USB keyboard/mouse to be used in MS-DOS. (Default: Enabled) & XHCI Hand-off Determines whether to enable XHCI Hand-off feature for an operating system without XHCI Hand-off support.
  • Page 30 & HD Audio Controller Enables or disables the onboard audio function. (Default: Enabled) If you wish to install a 3rd party add-in audio card instead of using the onboard audio, set this item to Disabled. & Above 4G Decoding Enables or disables 64-bit capable devices to be decoded in above 4 GB address space (only if your system supports 64-bit PCI decoding).

  • Page 31: Chipset

    Chipset & IOMMU Enables or disables AMD IOMMU support. (Default: Auto) & Integrated Graphics (Note) Enables or disables the onboard graphics function. The BIOS will automatically enable or disable the onboard graphics depending on the Auto graphics card being installed. (Default) Disables the onboard graphics.

  • Page 32: Power Management

    2-7 Power Management & AC BACK Determines the state of the system after the return of power from an AC power loss. The system returns to its last known awake state upon the return of the AC power. Memory Always On The system is turned on upon the return of the AC power.
  • Page 33 & Soft-Off by PWR-BTTN Configures the way to turn off the computer in MS-DOS mode using the power button. Press the power button and then the system will be turned off instantly. (Default) Instant-Off Delay 4 Sec. Press and hold the power button for 4 seconds to turn off the system. If the power button is pressed for less than 4 seconds, the system will enter suspend mode.

  • Page 34: Save & Exit

    2-8 Save & Exit & Save & Exit Setup Press <Enter> on this item and select Yes. This saves the changes to the CMOS and exits the BIOS Setup program. Select No or press <Esc> to return to the BIOS Setup Main Menu. & Exit Without Saving Press <Enter>...

  • Page 35: Chapter 3 Appendix

    Chapter 3 Appendix 3-1 Configuring a RAID Set RAID Levels RAID 0 RAID 1 RAID 10 Minimum Number of ≥2 Hard Drives Number of hard drives * Size of the smallest drive (Number of hard drives/2) * Array Capacity Size of the smallest drive Size of the smallest drive Fault Tolerance Before you begin, please prepare the following items: • At least two SATA hard drives or M.2 SATA SSDs. (To ensure optimal performance, it is recommended that you use two hard drives with identical model and capacity).
  • Page 36 C-2. Configuring Legacy RAID ROM Enter the legacy RAID BIOS setup utility to configure a RAID array. Skip this step and proceed with the installation of Windows operating system for a non-RAID configuration. Steps: 1. After the POST memory test begins and before the operating system boot begins, look for a message which says "Press <Ctrl-F> to enter RAID Option ROM Utility". Press <Ctrl> + <R> to enter the RAID BIOS setup utility. 2. To create a new array, press <Enter> on the Create Array option. 3. The selection bar will move to the Disks section on the right of the screen. Select the hard drives to be included in the RAID array. Use the up or down arrow key to select a hard drive and press <Insert>. The selected hard drive will be shown in green.

  • Page 37: Drivers Installation

    Drivers Installation • Before installing the drivers, first install the operating system. (The following instructions use Windows 10 as the example operating system.) • After installing the operating system, insert the motherboard driver disk into your optical drive. Click on the message "Tap to choose what happens with this disc" on the top-right corner of the screen and select "Run Run.exe."...

  • Page 38: Regulatory Statements

    Regulatory Statements Regulatory Notices This document must not be copied without our written permission, and the contents there of must not be imparted to a third party nor be used for any unauthorized purpose. Contravention will be prosecuted. We believe that the information contained herein was accurate in all respects at the time of printing. GIGABYTE cannot, however, assume any responsibility for errors or omissions in this text. Also note that the information in this document is subject to change without notice and should not be construed as a commitment by GIGABYTE.
  • Page 39 FCC Notice (U.S.A. Only) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 40: Contact Us

    Contact Us GIGA-BYTE TECHNOLOGY CO., LTD. Address: No.6, Baoqiang Rd., Xindian Dist., New Taipei City 231, Taiwan TEL: +886-2-8912-4000, FAX: +886-2-8912-4005 Tech. and Non-Tech. Support (Sales/Marketing) : http://esupport.gigabyte.com WEB address (English): http://www.gigabyte.com WEB address (Chinese): http://www.gigabyte.tw GIGABYTE eSupport • To submit a technical or non-technical (Sales/Marketing) question, please link to: http://esupport.gigabyte.com - 40 -...
