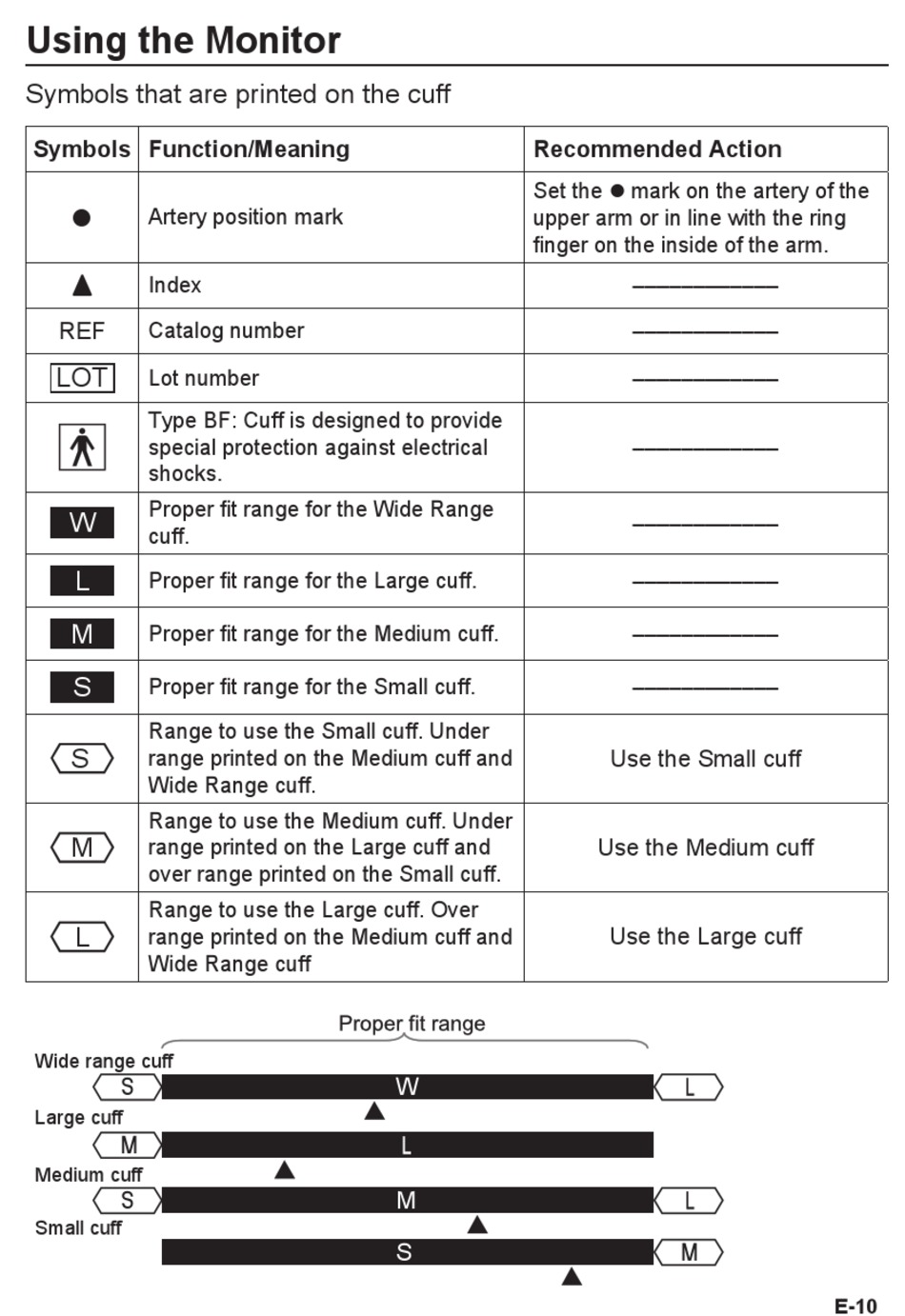

Using the Monitor
Symbols that are printed on the cuff
Symbols Function/Meaning
l
Artery position mark
Index
REF
Catalog number
LOT
Lot number
Type BF: Cuff is designed to provide
special protection against electrical
shocks.
Proper fit range for the Wide Range
W
cuff.
L
Proper fit range for the Large cuff.
M
Proper fit range for the Medium cuff.
S
Proper fit range for the Small cuff.
Range to use the Small cuff. Under
S
range printed on the Medium cuff and
Wide Range cuff.
Range to use the Medium cuff. Under
M
range printed on the Large cuff and
over range printed on the Small cuff.
Range to use the Large cuff. Over
L
range printed on the Medium cuff and
Wide Range cuff
Wide range cuff
S
Large cuff
M
Medium cuff
S
Small cuff
Recommended Action
Set the l mark on the artery of the
upper arm or in line with the ring
finger on the inside of the arm.
W
M
S
––––––––––––
––––––––––––
––––––––––––
––––––––––––
––––––––––––
––––––––––––
––––––––––––
––––––––––––
Use the Small cuff
Use the Medium cuff
Use the Large cuff
M
