- Page 1 FLAME +MIRROR Unipolarinverter MANUAL Version 1.00...
- Page 2 Manual FLAME MIRROR Version 1.00 Contents 1. Short description..............2. Hardware / connections............. 2.1 Connection to the modular system (Doepfer bus) 2.2 Module overview 3. Handling ................3.1 Function 4. Appendix and technical informations ......4.1 Technical details 4.2 Warrenty 4.3 Terms of production...
- Page 3 1. Short description The module is an inverter for exclusively positive voltages. It inverts an applied positive volta- ge so that the maximum value becomes zero and zero becomes the maximum value. The input voltage is therefore not inverted into the negative voltage range (mirror axis 0v), but reflects a positive voltage around an adjustable axis within a fixed positive voltage range from 0v.

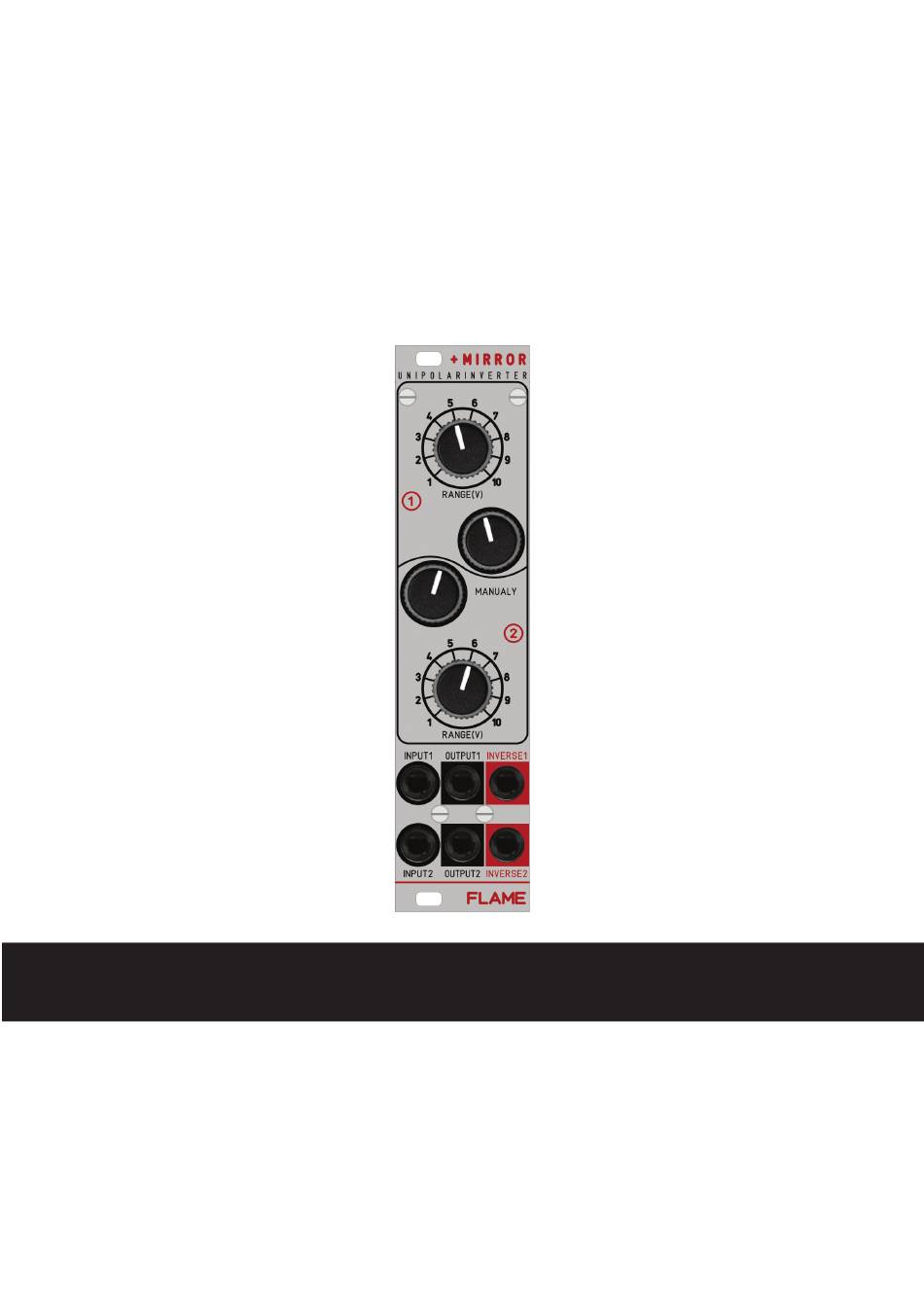

- Page 4 2.2 Modul overview Area switch Channel 1 Manually CV Pot Channel 1 Manually CV Pot Channel 2 Area switch Channel 2 Input and outputs Channel 1 Input and outputs Channel 2 Non-inverted outputs Inverted outputs...
- Page 5 3. HANDLING 3.1 FUNKTION The “+MIRROR” module is a unipolar inverter. Only positive voltages are inverted around a mir- ror axis. The module inverts an applied positive voltage in such a way that the maximum value becomes zero and zero becomes the maximum value. The input voltage is therefore not inver- ted into the negative voltage range (mirror axis 0v), but reflects a positive voltage around an adjustable axis within a fixed positive voltage range from 0v.
- Page 6 The module has two identical function groups, each with a CV input and two CV outputs (one non-inverted output, one inverted output). APPLICATIONS: - the inversion within positive voltage ranges - GATE inversions (0/+5v to +5v/0v) - opposite melody lines (in connection with a connected quantizer). ADVICE: Due to the component tolerances, the output voltages have a tolerance of up to approx.
- Page 7 - electric damage caused by improper connecting (wrong power supply/ jacks/ MIDI connections/ voltage problems). If you have any complaints please contact your dealer or send an e-mail to: service@flame-instruments.de 4.3 Terms of production conformity: CE, RoHS, UL 4.4 Disposal The device is produced with RoHS-conformity (subject to the regulations of the European Union) and is free of hazardous substances (like mercury, plumb, cadmium and hexavalent chrome).
