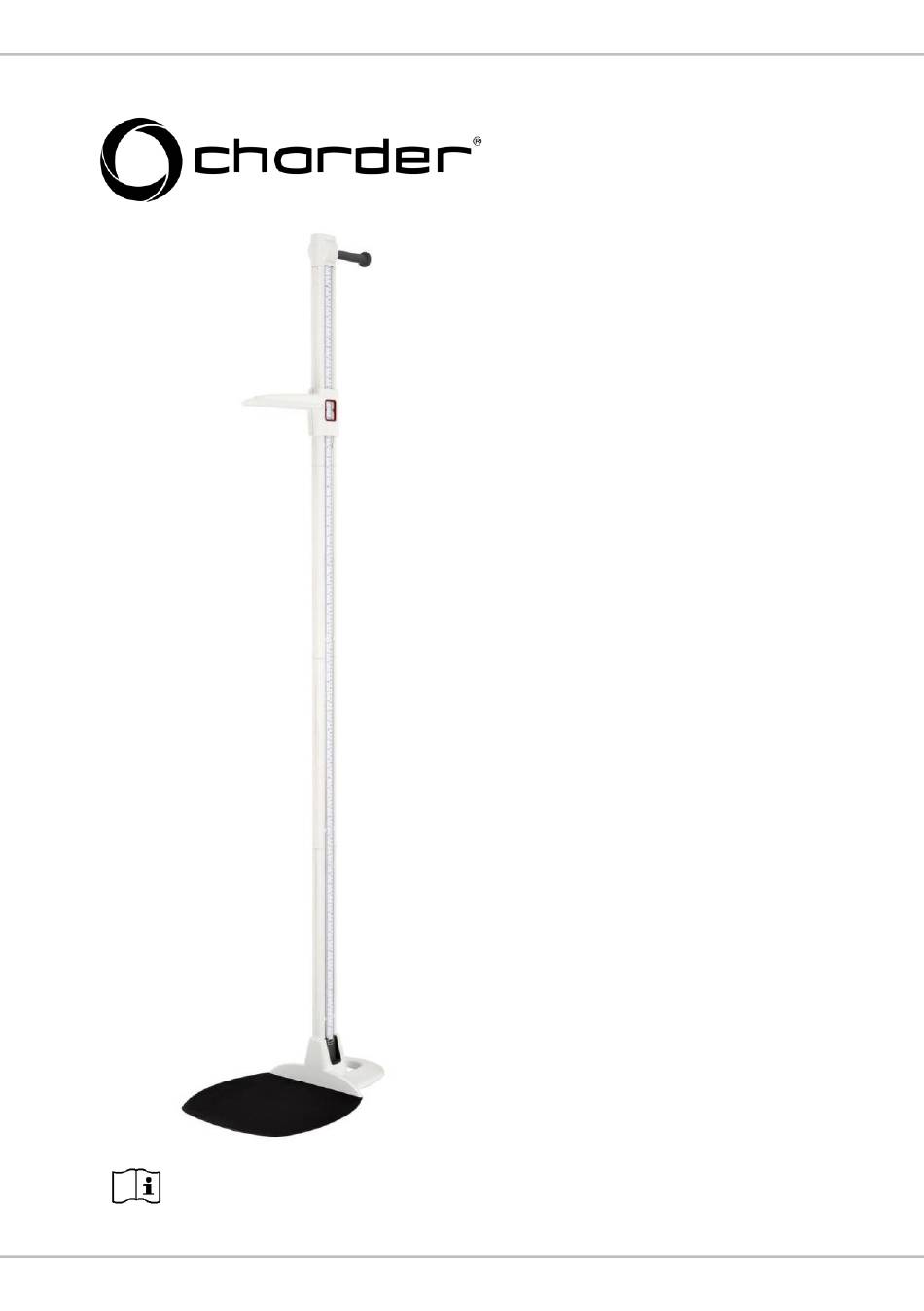

- Page 1 USER MANUAL HM202P Portable Height Stadiometer Please keep the instruction manual at hand all the time for future reference.
- Page 2 Charder Electronic Co., Ltd. (hereinafter Charder) Charder is not liable for any damage caused by a failure to adhere to requirements stated in this manual. Charder reserves the right to correct misprints in the manual without prior notice, and modify the exterior of the device for quality purposes without customer consent.
-
Page 3: Table Of Contents
CONTENTS I. Safety Notes ................4 A. General Information ............4 II. Installation ................6 Parts ..................6 Assembly ................7 Packing ................10 III. Using Device ..............11 IV. Product Specifications ........ 錯誤! 尚未定義書籤。 V. Declaration of Conformity ............16... -
Page 4: Safety Notes
I. Safety Notes A. General Information Thank you for choosing this Charder Medical device. It is designed to be easy and straightforward to operate, but if you encounter any problems not addressed in this manual, please contact your local Charder service partner. - Page 5 Incident Reporting Any serious incident that has occurred in relation to the device should be reported to the manufacturer, EU representative (if device is used in EU member state), and competent authority of user/subject's member state.
-
Page 6: Installation
II. Installation Parts Item Quantity Wall stabilizer Head Stopper Base Platform Height rod Measuring tape kit MS6111 standard slider (red) MS6110 slider (white) User Manual 1. Wall stabilizer 2. Head stopper 3. Base Platform 4. Height Rod 5. Measuring tape kit 6. -
Page 7: Assembly
Assembly Wall Stabilizer Measuring Tape Kit Head Stopper Height Rod segments optional white slider Base Platform Red Slider... - Page 8 1. Insert wall stabilizer into 2. Pull down measuring tape, and measuring tape kit attach measuring tape kit with height rod 3. Attach head stopper to measuring tape kit and rod...
- Page 9 4. Assemble height rods, 5. Hitch measuring tape to hook at measuring tape kit, and platform slider to complete assembly. together With scale: upper hook Without scale: lower hook...
-
Page 10: Packing
Packing Carefully re-pack HM202P in box as seen in image above, to avoid damaging device. -
Page 11: Using Device
Height and weight measurement (with MS6110 or MS6111) Measuring tape should be connected to upper hook. If HM202P is used with MS6110 (adjustable feet), the white slider should be used. If HM202P is used with MS6111 (without adjustable feet), the red slider should be used. - Page 12 1. Place wall stabilizer against wall 2. Ensure that subject is standing up straight. Slide head stopper down until it touches top of subject's head. View height measurement in window...
-
Page 13: Product Specifications
IV. Product Specifications Model HM202P 20-205 cm Range 8-81 in Height 1 mm Graduation Measurement 1/16 in Accuracy ± 10 mm Overall 406(W) x 585(D) x 2200(H) mm Dimensions Base 406(W) x 365(D) mm Device Weight 3.8 kg / 8.4 lb (approximate) (Carry case 1.1 kg / 2.4 lb) - Page 14 Notes _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________...
- Page 15 Notes _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________...
-
Page 16: Declaration Of Conformity
93/42/EEC as amended by 2007/47/EC Medical Device Directive Classification: Class I with measuring function RoHS Directive 2011/65/EU and Delegated Directive (EU) 2015/863 Authorized EU Representative: Manufactured by: Charder Electronic Co., Ltd. No.103, Guozhong Rd., Dali Dist., Taichung City, 41262 Taiwan (R.O.C.) CD-IN-1365 15247G 2022/06...
