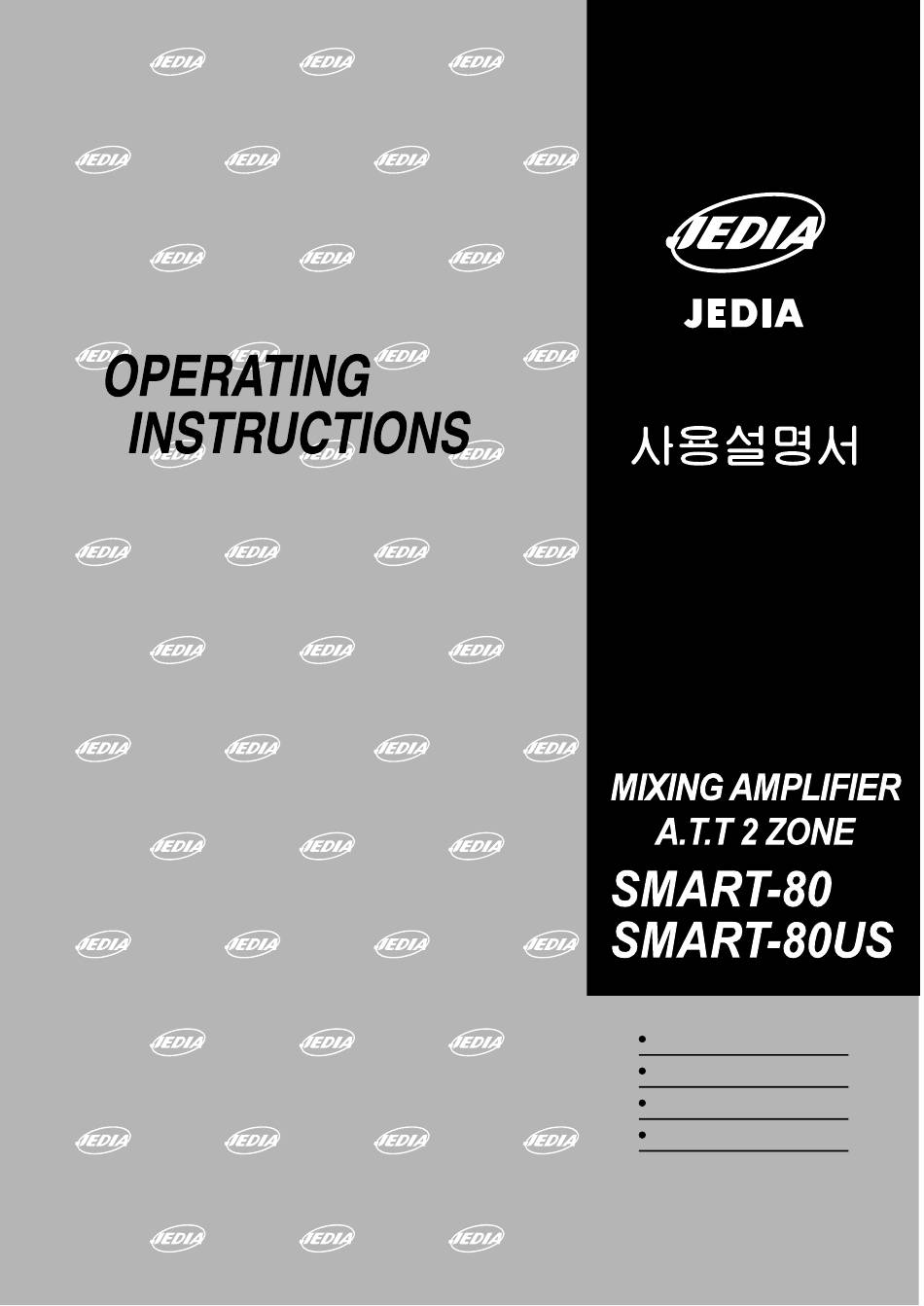

- Page 1 WWW.JEDIA.COM...
- Page 2 (SMA RT-80US 전면기능) EAR PANEL CONTROLS (후면기능) YSTEM CONNECTIONS (시스템 연결 방법) PECIFICATIONS (규격 및 성능) LOCK DIAGRAM (블럭도) WIRELESS SMART-80US USB / FM RPT PREV NEXT PLAY / II TUNING FM SCAN ▼ ▲ WIRELESS .JEDIA.COM SMART T -80...
-
Page 3: Safety Instructions
SAFETY INSTRUCTIONS 안 전 사 항 Read all safety instruction before operating the SMART-80Series. 제품을 운용하기전에 모든 안전사항을 읽어 보십시오. 1. Install equipment as follow conditions. 1. 이런 장소에 설치하여 주십시오. Install at the place, not bending curved. 진동이나 경사가 심하지 않고 바닥이 평평한 장소. Do not install this apparatus in a confined space such as a book 통풍이... - Page 4 RONT PANEL CONTROLS (전면기능) SMAR T -80 .JEDIA.COM 1. POWER SWITCH 1. 전원 스위치 Pressing this switch to ON will light the power indicator LED and 이 스위치를 누르면 파워 표시기 LED에 불이 들어오고, 기기에 전원이 supply the power to the unit.
- Page 5 RONT PANEL CONTROLS (전면기능) 10 11 12 WIRELESS SMART-80US USB / FM RPT PREV NEXT PLAY / II TUNING FM SCAN ▼ ▲ 1. POWER SWITCH 1. 전원 스위치 Pressing this switch to ON will light the power indicator LED and 이...
- Page 6 RONT PANEL CONTROLS (전면기능) 12. PLAY / II / FM SCAN 12. PLAY / II / FM SCAN - PLAY / : PLAY/PAUSE, press once to stop, press again start to play - PLAY / II : 재생중(PLAY)이 버튼을 누르면 일시정지가되고, - FM SCAN : Under FM Mode 다시한번...
- Page 7 There is DC fuse in P.C.B board VOLTAGE 220/230/240V AC MODEL SMART-80 T1A 250V(50T) SMART-80US 5.POWER REMOTE SWITCH TERMINAL This is power remote switch terminal to cotrol of power supply 제품의 주전원 S/W가 OFF된 상태에서 제품에...
- Page 8 YSTEM CONNECTIONS (시스템 연결 방법) FM ANTENNA FM DIPOLE ANTENNA AM OUTDOOR ANTENNA 75W COAXIAL CABLE ※ONLY FOR TUNER Low impedance speaker WIRELESS BELT - PACK High impedance speakers FM 75 WIRELESS ANTENNA JMPR-110 JPS-10 MICROPHONE P.A SOURCES SYSTEM DIGITAL AM/FM TUNER COUNTER EJECT ALARM SLEEP...
- Page 9 Input Sensitivity/Impedance MIC : -50dB/2K AUX: -20dB/60K (AUX1)BAL, -20dB/15K (AUX2)BAL THD at1KHz SMART-80 : Less than 1% SMART-80US : Less than 1% Rated Power(at 1% THD) SMART-80 : 80W SMART-80US : 80W Frequency Response(AT 1% THD) LESS THAN -3dB 100Hz ~ 18KHz...
- Page 10 LOCK DIAGRAM (블럭도)
- Page 12 4M-OP211060...
