Echo shindaiwa CS-360WES Service Data

00-36G-00
SERVICE DATA
ECHO:
(Serial number : 37000001 and after)
INTRODUCTION
We are constantly working on technical im-
provement of our products. For this reason,
technical data, equipment and design are
subject to change without notice. All speci-
fications and directions in this SERVICE
DATA are based on the latest product infor-
mation available at the time of publication.
ECHO SERVICE MANUAL Ord. 401-24
(Model : CS-350WES) contains lots of infor-
mation for servicing this model.

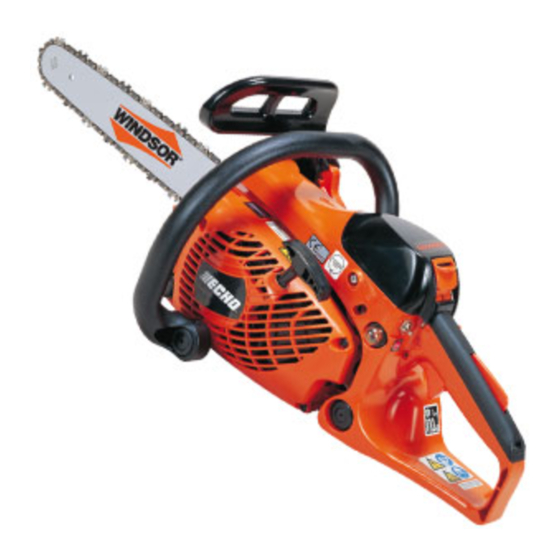

CS-360WES
CHAIN SAW
CS-360WES
STAGE MODEL
1 SERVICE INFORMATION .............................. 2
1-1 Specifi cation ............................................... 2
1-2 Technical data ............................................. 3
1-3 Torque limits................................................ 4
1-4 Special repairing materials ......................... 4
1-5 Service limits............................................... 5
1-6 Special tools ............................................... 6
2 CARBURETTOR ADJUSTMENT PROCEDURE .. 7
2-1 General adjusting rules ............................... 7
2-2 Presetting Idle adjust screw, L mixture needle
and H mixture needle ........................................ 7
2-3 Adjusting carburettor................................... 8
CONTENTS
Reference No. 00-36G-00
I S S U E D : 2 0 1 2 0 4
1
0
page
