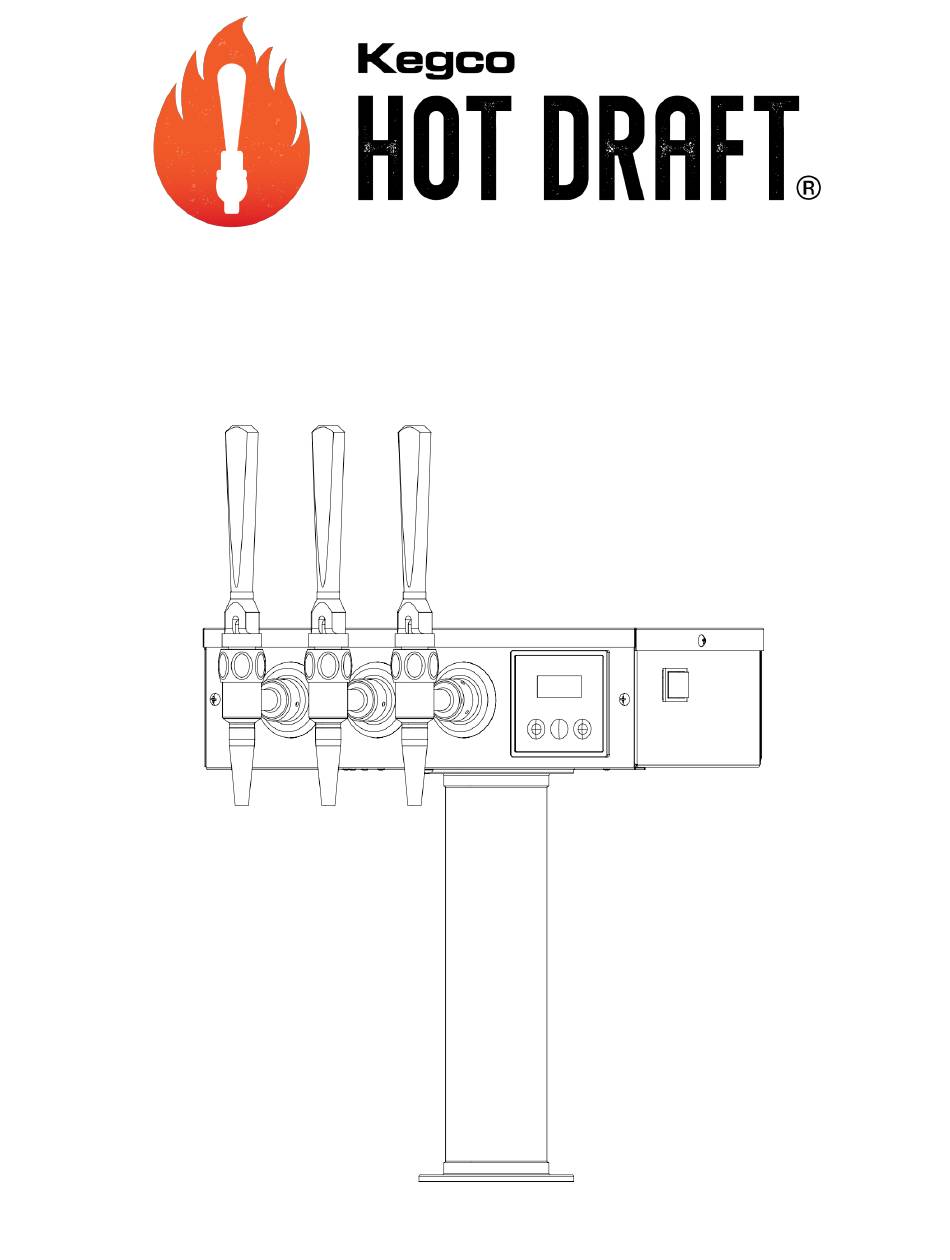

- Page 1 USER MANUAL Model: KC HDT301...
-
Page 2: Table Of Contents
FINE TUNING YOUR HOT DRAFT® TOWER SYSTEM ..................12 CLEANING AND MAINTENANCE FOR YOUR HOT DRAFT® TOWER ..............15 TROUBLESHOOTING THE HOT DRAFT® TOWER....................17 WARRANTY INFORMATION .......................... 18 8510 Miralani Dr. (888) 980 - 4810 support@kegco.com San Diego, CA 92126... -
Page 3: Safety Warning
SERIOUS BODILY INJURY OR DEATH COULD OCCUR IF YOU IGNORE THIS WARNING. “Hot liquids under pressure can be dangerous and even fatal if installed improperly installed and maintained. “ 8510 Miralani Dr. (888) 980 - 4810 support@kegco.com San Diego, CA 92126... -
Page 4: Important Safety Information
(Ref. NEC 422.31) Beverage Factory 7. If the Tower is installed in a location where liquid damage could occur in the event of a Phone: 1-(800) - 710-9939 8510 Miralani Dr. (888) 980 - 4810 support@kegco.com San Diego, CA 92126... -
Page 5: About

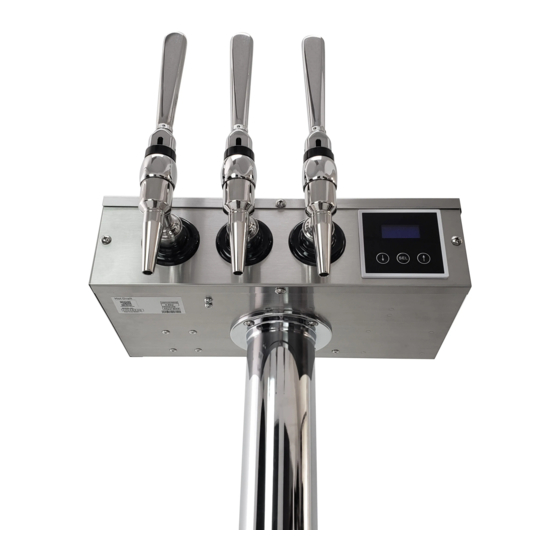

Congratulations on the purchase of your new Kegco HOT DRAFT® Tower! This U.S. patented product (https://kegco.com/pages/patents) is the property of Ryan Bros. Coffee and is the World’s First Draft System that allows you to enjoy both cold and hot products at the point of dispense without the burning effects of holding tanks or the lessening of flavor from oxidation. -
Page 6: Technical Specifications
Taps Available 3 (25 PSI – 35 PSI) Pressure Range) Display LCD Minimum Flow Rate 0.15 GPM # 10,092,132 Minimum/Maximum Inlet Patents # 10,939,781 F/70 Beverage Temperature # 10,203,131 B2 8510 Miralani Dr. (888) 980 - 4810 support@kegco.com San Diego, CA 92126... -
Page 7: Parts Diagram
16. Power Switch Beverage Line Mount 4. Outlet Thermistor 11. Flow Meter (On/Off) 23. Solenoid Valve 5. ECO (Electrical 12. Inlet Screen 17. Tower Column Cutoff) 18. Control Board 8510 Miralani Dr. (888) 980 - 4810 support@kegco.com San Diego, CA 92126... -
Page 8: Navigating Your Hot Draft® Tower
Fahrenheit. Press “SEL” to lock the temperature, at which point the * will disappear. NOTE: Different beverages have different optimal pouring temperatures. Choose the best temperature for your needs. 8510 Miralani Dr. (888) 980 - 4810 support@kegco.com San Diego, CA 92126... -
Page 9: Purge
* indicates that the temperature can be changed. Each press of either “Up” or “Down” will increase or decrease the compensation factor by 2%, between –18% and +18%. Press “SEL” to lock the temperature, at which point the * will disappear. 8510 Miralani Dr. (888) 980 - 4810 support@kegco.com San Diego, CA 92126... -
Page 10: Pouring With Your Hot Draft® Tower
While idle, the Main Screen of your Hot Draft® Tower will display the message “On Demand”, indicating that your Hot Draft® Tower is ready to pour a hot beverage. 8510 Miralani Dr. (888) 980 - 4810 support@kegco.com San Diego, CA 92126... - Page 11 If the Hot Draft® Tower pauses during a 12 oz pour, it will need to be fine-tuned for your specific beverage. See the next page for Fine Tuning your Hot Draft® Tower System. 8510 Miralani Dr. (888) 980 - 4810 support@kegco.com San Diego, CA 92126...
-
Page 12: Fine Tuning Your Hot Draft® Tower System
2. The second method of adjusting Flow Rate is to adjust the Flow Adjustment Spindle (see 7 in Parts Diagram on page 7). To access the flow adjustment spindle, the lid must be removed. ENSURE THE UNIT IS UNPLUGGED AND TURNED OFF 8510 Miralani Dr. (888) 980 - 4810 support@kegco.com San Diego, CA 92126... - Page 13 Philips head screwdriver to remove 4 screws, circled in red below. Flow rate is adjusted by using a flathead screwdriver to tighten or loosen the flow adjustment spindle, as shown below. 8510 Miralani Dr. (888) 980 - 4810 support@kegco.com San Diego, CA 92126...
- Page 14 12. ENSURE THE UNIT IS UNPLUGGED AND TURNED OFF BEFORE REACHING INSIDE THE UNIT. When finished, re-attach the lid before operating the Hot Draft® Tower. 8510 Miralani Dr. (888) 980 - 4810 support@kegco.com San Diego, CA 92126...
-
Page 15: Cleaning And Maintenance For Your Hot Draft® Tower
CLEANING AND MAINTENANCE FOR YOUR HOT DRAFT® TOWER Regular cleaning and maintenance of your Hot Draft® Tower is key to ensuring peak performance over time. Kegco offers a full line of cleaning products to keep your draft lines free of contaminants that may affect your beverage flavor and flow. - Page 16 Every 2 weeks, disassemble and clean all faucets. Scrub clean all keg couplers and tapping devices. Every 3 months or between switching kegs, clean your beverage lines with a chemical cleaner solution. Every year, replace your vinyl jumpers and vinyl direct draw lines. 8510 Miralani Dr. (888) 980 - 4810 support@kegco.com San Diego, CA 92126...
-
Page 17: Troubleshooting The Hot Draft® Tower
- Tighten until hand-tight For Beer Nut leaks, it is missing a - Remove Beer Nut and ensure there is a neoprene washer neoprene washer 8510 Miralani Dr. (888) 980 - 4810 support@kegco.com San Diego, CA 92126... -
Page 18: Warranty Information
The remedies set forth in this limited warranty are the only remedies available to the original owner or any person for breach of any covenant, duty, or obligation on the part of Kegco. Kegco is not liable to the original owner or any third party for any loss, personal injury or property damage, directly or indirectly, arising from the product. - Page 19 • The original owner, and not Kegco or its agent/representative, is liable for and shall pay for all field charges for labor or other expenses incurred in the removal and/or repair of the product or any expense incurred by the original owner in order to repair the product.
