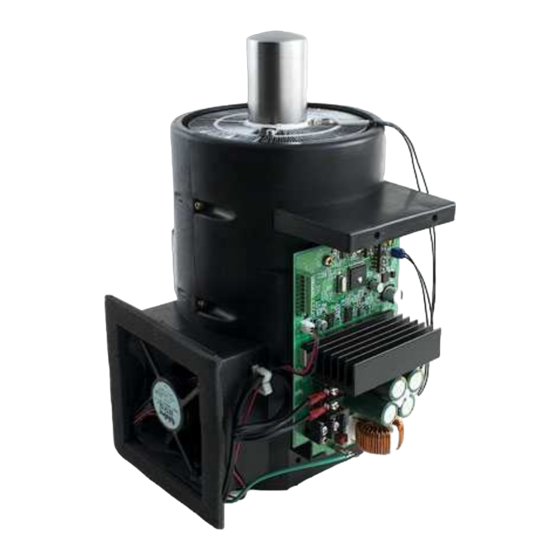

TWINBIRD SC-UD08 Operation Manual

80w fpsc module
Hide thumbs Also See for SC-UD08:

Advertisement

Available languages

Available languages

Quick Links

Download this manual
Ref. No. SCDD-090009
取扱説明書 Operation Manual
モデル Model: SC-UD08
名称：
80W 型 FPSC モジュール
Name:
80W FPSC Ｍｏｄｕｌｅ
ツインバード工業株式会社
SC 事業本部
TWINBIRD CORPORATION
SC Business Operation
TWINBIRD CORPORATION
http://fpsc.twinbird.jp
(1/19)
