Summary of Contents for Ice-O-Matic MFI2406LS Series

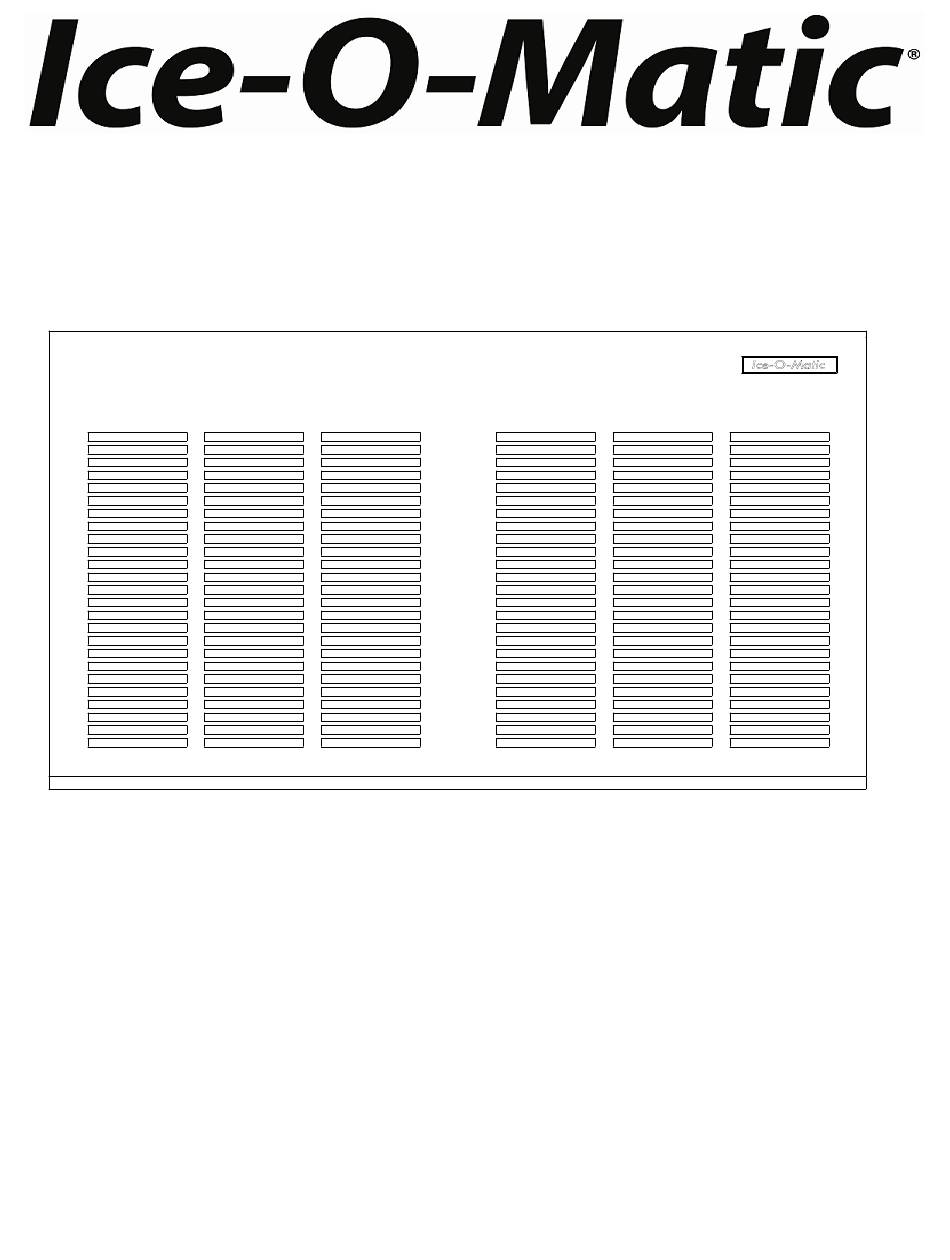

- Page 1 SERVICE AND INSTALLATION MANUAL MFI 2406LS Series Ice-O-Matic 11100 East 45th Ave Denver, Colorado 80239 Part Number 9081358-02 17-3168-02 Date 10/08...
- Page 2 SERVICE PARTS MANUAL 22 INCH WIDE ICE SERIES CUBERS MODEL-ICE0320, ICE0520 Includes 50Hz. Units ICE-O-Matic 11100 East 45th Ave Denver, Colorado 80239 Part Number 9081297-01 PD04/02 Rev1/05...
- Page 3 MFI2406LS TO THE OWNER OR USER: The service manual you are reading is intended to The is the freezer portion of a commercial ice provide you, and the maintenance or service machine. It is designed to be connected to the technician, with the information needed to install, condensing section of a refrigeration system, start up, clean, maintain and service this ice...
-
Page 4: For The Installer: Specifications
ELECTRICAL INLET 21.66" POTABLE WATER INLET 3/8" FLARE DRAIN 3/4" FPT The machine is designed to fit a B100 Ice-O-Matic storage bin with a KBT-26. Installation Limitations: The machine is designed Ice-O-Matic ice machines are designed and for indoor installations only. -
Page 5: For The Installer
Storage Bin: Be sure there is enough BTU capacity. · Ice-O-Matic’s B100 will be the presumed bin of Be sure the liquid connection is NOT in series choice. Install the legs and place the bin into with another liquid line valve. -
Page 6: For The Electrician
MFI2406LS FOR THE ELECTRICIAN CONFORM TO ALL APPLICABLE CODES Electrical Connections: DETAIL OF Locate the nameplate for the current JUNCTION BOX requirements, and then determine the wire size and type per the National Electric Code. The machine requires a solid chassis to earth ground wire. Refer to the wiring diagram. -
Page 7: For The Plumber
MFI2406LS FOR THE PLUMBER CONFORM TO ALL APPLICABLE CODES Water Supply: Drain System: The recommended water supply line is 3/8" O.D. All drains are of the gravity type, and must have a copper tubing, with a minimum operation pressure minimum of 1/4" fall per foot of horizontal run. The of 20 PSIG, and a maximum of 80 PSIG. -
Page 8: For The Installer: Final Check List
9. Has the bin and cabinet been wiped clean or sanitized? 10. Has the warranty registration card been properly filled out and mailed to Ice-O-Matic? 11. Has the owner been given the service manual and been instructed on how to maintain the ice maker? 13. -
Page 9: Initial Start-Up
MFI2406LS INITIAL START UP 1. Remove the top and front panels. 7. Switch on the other master (mode) switch, observe that: · 2. Open the water valve, and observe that the two The liquid line valve opens float reservoirs fill up with water and shut off. ·... -
Page 10: Component Identification
MFI2406LS COMPONENT IDENTIFICATION Liquid line valve(s) EPR: Evaporator Pressure Regulator Valve These valves operate to turn the ice making This valve maintains a constant pressure on its process on and off. inlet (evaporators) side regardless of the pressure on the outlet (suction) side. The EPR is factory set, When the ice level drops in the ice chute, the ice adjust only if needed. -
Page 11: Component Description: Evaporator
MFI2406LS COMPONENT DESCRIPTION: Evaporator Evaporator: A refrigerated vertical tube filled Divider: Where the ice is compressed and water and containing a water seal and auger. much of the extra water is squeezed out of it before it is discharged into the bin. Auger: A solid stainless steel double spiral auger, it pushes the ice crystals up to the top of the Motor: A split phase motor that drives the gear... -
Page 12: Control Box: Components
MFI2406LS CONTROL BOX: Components Circuit Board: Controlling the ice machine using On/Off (Mode) Switch: Manual control for that input from ice and water sensors. The board side of the machine. switches loads on and off through relays. The relays are for the gear motor (with a built in time delay to clear the evaporator of ice when the unit turns off) and for the liquid line valve. -
Page 13: Electrical Sequence
MFI2406LS ELECTRICAL SEQUENCE There are 7 indicator lights on the control board: Shut Down: · · WTR-OK (Water OK). Green. Normal = The compressor relay opens, LED1 goes out. Glowing. Glows when there is water in the · The liquid line valve closes. reservoir. -
Page 14: Operation
MFI2406LS OPERATION Water Water enters the machine through the 3/8" male flare at the rear of the cabinet, goes to the water reservoir which it enters through the float valve. The water then goes out the bottom of the reservoir tank to the bottom of the evaporator. Reservoir overflow or evaporator condensation is routed to the drain. - Page 15 MFI2406LS OPERATION: Refrigeration The remote high side supplies high pressure liquid refrigerant to the liquid line connection on the ice machine. After the sight glass, there are two separate liquid lines, each leading to a liquid line valve. When the individual ice level sensor causes the circuit board to energize the liquid line valve, the valve opens, allowing the liquid refrigerant to enter that expansion valve.
-
Page 16: Cleaning And Sanitation
MFI2406LS CLEANING and SANITATION An Ice-O-Matic ice system represents a sizable investment of time and money in any company’s business. In order to receive the best return for that investment, it MUST receive periodic maintenance. It is the USER’S RESPONSIBILITY to see that the unit is properly maintained. It is always preferable, and less costly in the long run, to avoid possible down time by keeping it clean;... -
Page 17: Sensor Maintenance
MFI2406LS SENSOR MAINTENANCE 1. The bin control uses devices that sense light, 2. The ice machine senses water level by a probe therefore they must be kept clean enough so that located in the water reservoir. At least twice a year, they can “see”. -
Page 18: Bearing Maintenance
MFI2406LS BEARING MAINTENANCE · The top bearing in the breaker should also be unscrewing the auger stud checked at least two times per year. Check the breaker bearing by: Auger Stud · removing the ice chute cover Chute Cover Cap Screw Inspect the bearing. -
Page 19: Auger Maintenance
MFI2406LS AUGER MAINTENANCE In some installations the water supply to the ice Switch off electrical power, and shut off the water maker will be so concentrated with dissolved supply. minerals, (such as calcium carbonate) that as ice For more information on removal of these parts, is made, the evaporator and auger become coated see REMOVAL AND REPLACEMENT. -
Page 20: Service Diagnosis
MFI2406LS SERVICE DIAGNOSIS Symptom Possible Cause Probable Correction No ice is made, nothing Unit off due to no power. Restore power operates Unit off due to master switch in Off position Move master switch to ON Unit off due to low water level in reservoir Check water supply, filter and float valve. - Page 21 MFI2406LS SERVICE DIAGNOSIS Symptom Possible Cause Probable Correction Water Leak Drain plugged up Clean out drain Tubing cracked Replace tubing Condensation on drain tubing Insulate tubing Hose off Reattach hose Reservoir cover off Return cover to reservoir Reservoir cracked Replace reservoir Evaporator water seal leaks Check base of evaporator &...
-
Page 22: Control System Diagnostics
MFI2406LS CONTROL SYSTEM DIAGNOSTICS The control system consists of: the water. The water OK light should go ON. If it · does not, replace the control board. Control Board 3. Ice sensor check. Is the Bin Full light Off? If it is ·... -
Page 23: Removal And Replacement
MFI2406LS REMOVAL AND REPLACEMENT WATER RESERVOIR BIN CONTROLS (Ice Level Sensors) 1. Shut off the water supply to the ice maker. 1. Disconnect electrical power. 2. Remove front panel and reservoir cover. 2. Remove front panel. 3. To remove float only, disconnect water inlet 3. -
Page 24: Removal And Replacement: Bearing And Breaker
3. Unscrew and remove ice sweep. a. Add food grade grease such as Ice-O-Matic part 4. Lift up and remove ice chute. number 6051036-01 to the seal area before 5. The breaker may be removed from the auger installing on the auger. - Page 25 MFI2406LS REMOVAL AND REPLACEMENT e. If the auger is stuck use a slide hammer type To Remove the Auger: puller to pull on the auger at the threaded hole. Turn off the water to the machine, and unclip the The size of that hole is 5/8"-18. evaporator drain hose, pull it down and drain the Inspect the auger, the critical areas of the auger evaporator into the bin or a container.
- Page 26 MFI2406LS REMOVAL AND REPLACEMENT To Replace the Water Seal: 1. Lubricate the water seal with water, and push the water seal into the bottom of the evaporator slightly past the grove for the snap ring. Moving Parts Hazard. 2. Replace the snap ring and pull the water seal Moving parts can cause down against it.
-
Page 27: Removal And Replacement: Evaporator
MFI2406LS REMOVAL AND REPLACEMENT: Evaporator To Replace the Evaporator: To Reassemble the Evaporator and Auger (Assuming all the steps for removal of the thrust 1. After the gearmotor has been inspected, fasten bearing, breaker, auger, and water seal have been the evaporator to the gear motor, torque the bolts performed.) to 110 inch pounds. -
Page 28: Removal And Replacement: Gearmotor
MFI2406LS REMOVAL AND REPLACEMENT: Gearmotor D) After replacing parts as required, (if any) To Remove and Repair the Gearmotor reassemble the gearcase. The two smaller gears Assembly: and the oil should be in the lower case, the output (Assuming that the procedures through removal of gear will be with the cover. - Page 29 MFI Series 2406LS Wiring Diagram Page 27...
- Page 30 MFI Series Service History Service History Model Number__________________Serial Number__________________Date Installed__________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________...
