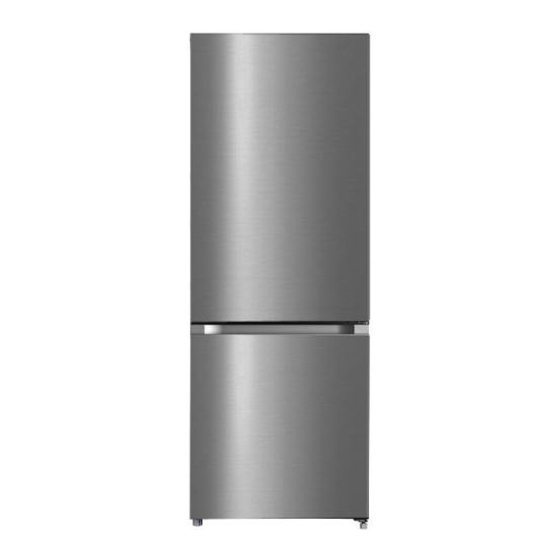

- Page 1 Fridge Freezer Combi P65514MSFX INSTRUCTIONS: Please read and keep safe for future use.
-
Page 2: Table Of Contents
INSTALLATION AND USER INSTRUCTIONS Features……………………………………………………………………………………………………………… 3 Transportation instructions..................4 Introduction & safety warnings................5 Electrical Requirements/Installation.................6 Food Storage……………………………................7 Defrosting.........................9 Arrangement of Food………………………………………………………………………………………….10 Temperature Control / Cleaning and care..............11 Replacing the interior light bulb……………………………………………………….…………………13 Top Tips ……………....................14 Problem solving......................16 Health and Safety....................17 Warranty Information.....................19 Customer Care …………………………………………………………………………………………………..21... -
Page 3: Features
Features Description Thermostat Refrigerator Glass Shelves Crisper Cover Crisper Frozen drawers Adjusting feet Bottle frames... -
Page 4: Transportation Instructions
Transportation of your Appliance • When transporting, never tilt to more than 45 degrees. • The appliance should be transported only in a vertical upright position • The packaging as supplied must be intact during transportation • If during the course of transport the appliance has to be transported horizontally, it must only be laid on its left hand side when standing in the front of the appliance. -
Page 5: Introduction & Safety Warnings
Before First Use IMPORTANT! DO NOT connect your appliance to the electricity supply until all Packing and transit protectors have been removed. • Leave to stand for at least 4 hours before switching on to allow compressor oil to settle if transported horizontally •... -
Page 6: Electrical Requirements/Installation
Electrical Requirements Before you insert the plug into the wall socket make sure that the voltage and The frequency shown in the rating plate inside the appliance corresponds to Your electricity supply. We recommend that this appliance is connected to the mains supply via a suitable switched and fused socket in a readily accessible position. -
Page 7: Food Storage
5. Once the appliance is in place adjust the levelling feet at the front by turning them. 6. Do not place the appliance near cookers, radiators or in direct sunlight as this will cause your appliance to work harder. . If installed next to a source of heat or freezer, maintain the following minimum side clearances: From Cookers 50 mm From Radiators 300 mm... - Page 8 • Eggs and Bottle’s should be stored on the shelves provided in the door • Meat and fish should be covered to prevent loss of moisture and odours. wrap such foods in aluminium foil or polythene or store in an airtight container •...
-
Page 9: Defrosting
MAKING ICE CUBES • Fill the ice - cube tray 3/4 full with water • Loosen frozen trays with the handle of a spoon, never use sharp edged objects such as knives, forks. Defrosting DEFROSTING THE REFRIGERATOR After a period of use, a thin layer of frost will be formed on the freezer compartment inner wall (or evaporator) surface, which may affect the refrigeration effect if exceeding 5mm in thickness. -
Page 10: Arrangement Of Food
WARNINGS! Do not allow children to play with the appliance or tamper with the controls. Do not obstruct the freezer fan guard to ensure that you obtain the best possible performance from your appliance. Do not use any other heated electrical appliance to speed up the defrosting process. -
Page 11: Temperature Control / Cleaning And Care
12. Place chilled cooked food and similar food near the rear of the fridge inner liner where the cold wall is located. 13. Shelves, racks, crisper bins, drawers are all removable. 14. Do not leave frozen food at room temperature to thaw; the best way to defrost food is to put it in the fridge to thaw slowly. - Page 12 Note: If the indicator light ‘5’ or ‘3’ or ‘1’ is flickering, this indicates that the refrigerator has broken down. Please contact the after-sales personnel for on-site service as soon as possible. 1. The thermostat is located within the refrigerator compartment, it controls the temperature of the refrigerator 2.
-
Page 13: Replacing The Interior Light Bulb
• Make sure that no water enters the lamp housing • Clear the defrost drain situated at the back • Excess deposits of ice should be removed on a regular basis with the handle of a spoon. Large accumulation of ice will impair the performance of the appliance •... -
Page 14: Top Tips
Top Tips • Clean and defrost your appliance regularly. • Keep raw meat and poultry below cooked food and dairy products. • Take off any unusable leaves on vegetables and wipe off any soil • Wrap cheese firstly in greaseproof paper •... - Page 15 • Don't give children ice-cream and water ices direct from the freezer. The low temperature may cause 'freezer burns' on lips • Don't freeze fizzy drinks • Don't try to keep frozen food which has thawed, it should be eaten within 24 hours or cooked and refrozen •...
-
Page 16: Problem Solving
Problem Solving Check the following: • That the plug is inserted properly in the socket and that the power supply is on • That the fuse has blown/circuit breaker has tripped/main distribution switch has been turned off • That the temperature control has been set correctly •... -
Page 17: Health And Safety
Symptom: Appliance does not cool sufficiently. Cause: Door has been opened too often, or for too long a time There may be too much food in the refrigerator, possible incorrect temperature selection Symptom: Smell inside the appliance. Cause: Some of the food is not properly wrapped or covered. The inside of the refrigerator needs cleaning;... - Page 18 • Do not place appliance on a highly polished wooden surface as damage may occur to the surface • Do not place the appliance on or near a hot surface • This appliance should not be used in an unheated, cold room i.e. garage, conservatory, annex, shed, out-house etc Mains Cable •...
-
Page 19: Warranty Information
Other Safety Considerations • Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner • The use of attachments or tools not pertaining to this appliance may cause fire, electric shock or injury •... - Page 20 Model no. Serial no. Subject to the exclusions set out below (see Exclusions), the faulty appliance will then be repaired or replaced. If for any reason, this item is replaced during the guarantee period, the guarantee on the new item will be calculated from original purchase date.
-
Page 21: Customer Care
The company, therefore, reserves the right to change the specification of its models at any time. Contact Details The After Sales Division for PowerPoint Appliances is located at the offices of the Brand owner and Distributor – Shomar Ltd, Unit 9 Western Industrial Estate, Dublin 12, Republic Of Ireland.
