Summary of Contents for Asus MZ27AQL

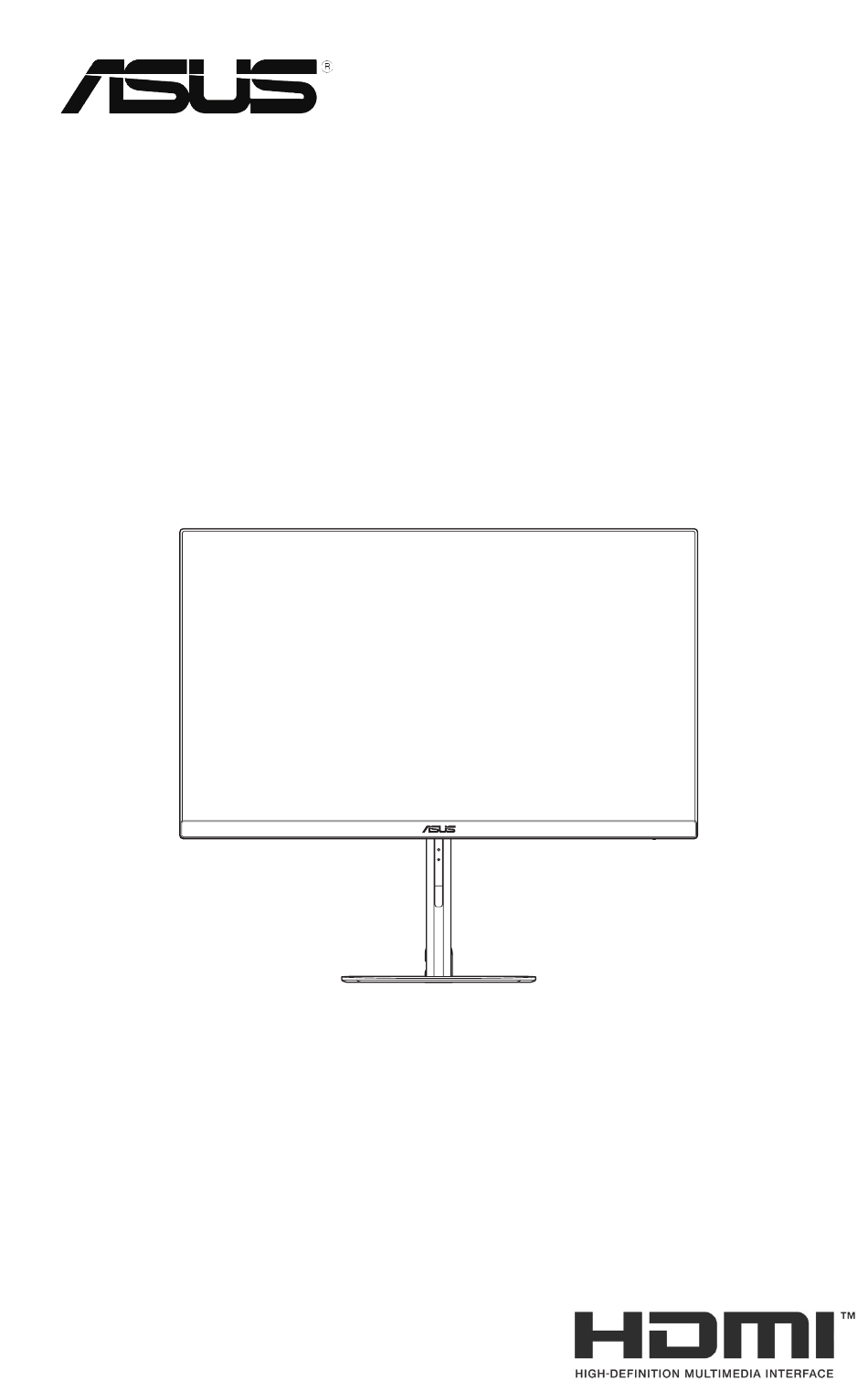

- Page 1 MZ27A Series LCD Monitor User Guide harman/kardon...
- Page 2 Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.
-
Page 3: Table Of Contents
Table of contents Notices ......................iv Safety Information ..................v Care & Cleaning ..................vii Takeback Services ..................viii Welcome! ..................1-1 Package contents ................. 1-1 Assembling the monitor base ............. 1-2 1.3.1 Connecting the Woofer ........... 1-3 Connect cables ................1-4 1.4.1 Rear of the LCD monitor .......... -
Page 4: Notices
Notices Federal Communications Commission Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received including interference that may cause undesired operation. -
Page 5: Safety Information
Safety Information • Before setting up the monitor, carefully read all the documentation that came with the package. • To prevent fire or shock hazard, never expose the monitor to rain or moisture. • Never try to open the monitor cabinet. The dangerous high voltages inside the monitor may result in serious physical injury. - Page 6 • This product complies with the “India E-Waste (Management) Rules, 2016” and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls (PBBs) and polybrominated diphenyl ethers (PBDEs) in concentrations exceeding 0.1 % by weight in homogenous materials and 0.01 % by weight in homogenous materials for cadmium, except for the exemptions listed in Schedule II of the Rule.
-
Page 7: Care & Cleaning
Care & Cleaning • Before you lift or reposition your monitor, it is better to disconnect the cables and power cord. Follow the correct lifting techniques when positioning the monitor. When lifting or carrying the monitor, grasp the edges of the monitor. Do not lift the display by the stand or the cord. • Cleaning. -
Page 8: Takeback Services
These documents are not part of the standard package. Takeback Services ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for our customers to be able to responsibly recycle our products, batteries and other components as well as the packaging materials. -
Page 9: Welcome
® Thank you for purchasing the ASUS LCD monitor! The latest widescreen LCD monitor from ASUS provides a crisper, broader, and brighter display, plus a host of features that enhance your viewing experience. With these features, you can enjoy the convenience and delightful visual... -
Page 10: Assembling The Monitor Base
Assembling the monitor base Have the front of the monitor face down on a table. Install the cable tie mount and use the two screws to secure it to the base. Attach the base to the arm. Turn the screw clockwise to secure the base. Then adjust the monitor to the angle that is most comfortable for you. -
Page 11: Connecting The Woofer
Detach the woofer stand and unroute the woofer cable. Align the triangle marks on the woofer and on the stand. Then replace the stand. Connect the woofer cable to the monitor's woofer jack. HDMI-2 HDMI-1 ASUS LCD Monitor MZ27A Series... -
Page 12: Connect Cables
Connect cables 1.4.1 Rear of the LCD monitor HDMI-2 HDMI-1 HDMI-2 HDMI-1 5-way button Earphone jack Power indicator HDMI-2 port Stereo speakers HDMI-1 port Cable tie mount 10. DisplayPort Kensington lock 11. DC-IN port Woofer jack Chapter 1: Product Introduction... -
Page 13: Monitor Introduction
The color definition of the power indicator is as the table below. Status Description White Amber Standby mode Volume: • Move the 5-way button up to enter the Voulme menu. Blue Light Filter: • Move the 5-way button down to enter the Blue Light Filter menu. ASUS LCD Monitor MZ27A Series... -
Page 14: Quickfit Function
1.5.2 QuickFit Function The QuickFit function allows users to have a preview of the document or photo layout directly on screen without printing test copies. QuickFit has three patterns: Grid pattern: Facilitates designers and users to organize content and layout on one page and achieve a consistent look and feel. Alignment Grid 1 Alignment Grid 2 Paper size: Provides users to view their documents in real size on the... -
Page 15: Eyecheck Function
5-way button down • To switch between P1~P3, Amslter Grid While focusing at the center point, to check all lines should be straight. Astigmatism To check each line should be the same width. ASUS LCD Monitor MZ27A Series... -
Page 16: Adjusting The Monitor
Adjusting the monitor • For optimal viewing, we recommend that you look at the full face of the monitor, then adjust the monitor to the angle that is most comfortable for you. • Hold the stand to prevent the monitor from falling while changing its angle. -
Page 17: Osd (On-Screen Display) Menu
OSD menu. • In OSD menu > Sound > AudioWizard > User Mode submenu, push the button to exit the equalizer settings menu. ASUS LCD Monitor MZ27A Series... -
Page 18: Osd Function Introduction
This function contains eight sub-functions that you can select for your preference. Each mode has the Reset selection, allowing you to maintain your setting or return to the preset mode. ASUS MZ27A Splendid Standard Mode HDMI-1 2560 x 1440 @ 60Hz... - Page 19 Repeating look up and down (2) Slowly roll your eyes (3) Move your eyes diagonal. • High energy blue light may lead to eye strain and AMD (Age-Related Macular Degeneration). Use Blue Light Filter to reduce 70% (max.) harmful blue light to avoiding CVS (Computer Vision Syndrome). ASUS LCD Monitor MZ27A Series...
- Page 20 Color Select the image color you like from this function. ASUS MZ27A Color Standard Mode HDMI-1 2560 x 1440 @ 60Hz Brightness Contrast Saturation Color Temp. Skin Tone BACK/EXIT MOVE/ENTER Brightness: Adjust the brightness level. The adjusting range is •...
- Page 21 4:3 is only available when input source is in 4:3 format. • OverScan is only available for HDMI input. VividPixel: ASUS Exclusive Technol ogy that brings lifelike • visuals for crystal-clear and detail-oriented enjoyment. The adjusting range is from 0~100.
- Page 22 Sound Adjust the sound settings to your preference. ASUS MZ27A Sound Standard Mode HDMI-1 2560 x 1440 @ 60Hz Volume AudioWizard BACK/EXIT MOVE/ENTER Volume: Adjusts the output volume level. • AudioWizard: Select the preset sound mode. Available options: • Music Mode, Movie Mode, Gaming Mode, and User Mode.
- Page 23 GamePlus: The GamePlus Function provides a toolkit and • creates a better gaming environment for users when playing different types of games. Particularly, Crosshair function is specially designed for new gamers or beginners interested in First Person Shooter (FPS) games. ASUS LCD Monitor MZ27A Series...
- Page 24 To activate GamePlus: • Select ON to enter the GamePlus main menu. • Move the 5-way button to select between Crosshair, Timer, and FPS Counter function. • Push the 5-way button to confirm the function you choose. Move the 5-way button to go back. GamePlus Main Menu GamePlus —...
- Page 25 Information: Display the monitor information. • Power Indicator: Turn the power LED indicator on/off. • Power Key Lock: Disable/Enable the power key. • All Reset: Select YES to revert all settings to the factory default • mode. ASUS LCD Monitor MZ27A Series...
-
Page 26: Specifications
3.2 Specifications Model MZ27AQL 27.0 inches (68.6 cm) diagonal Panel Size (Active Display Area: 596.74 (H) x 335.66 (V) mm Max. Resolution 2560 (H) x 1440 (V) pixels Brightness (Typ.) 350 cd/m Contrast Ratio (Typ.) 1000:1 Viewing Angle (Typ.) 178° (R/L), U/D 178° (U/D) Display Colors 16.78M colors (8 bits) -
Page 27: Troubleshooting (Faq)
• Select the appropriate Color Temperature via OSD. No sound or sound is low • Adjust the volume settings of both your monitor and computer. • Make sure the computer sound card driver is properly installed and activated. 3-11 ASUS LCD Monitor MZ27A Series... -
Page 28: Supported Timing List
Supported Timing List Horizontal Vertical Resolution Resolution Nominal Pixel Mode Frequency Frequency (active dot) (total dot) Color (MHz) (KHz) (Hz) 720x400@70Hz 900 x 449 31.469 70.087 28.322 640x480@60Hz 800 x 525 31.469 59.940 25.175 640x480@72Hz 832 x 520 37.861 72.809 31.500 640x480@75Hz 840 x 500... -
Page 29: Product Dimensions
Product Dimensions Unit: mm(inch) 3-13 ASUS LCD Monitor MZ27A Series...
