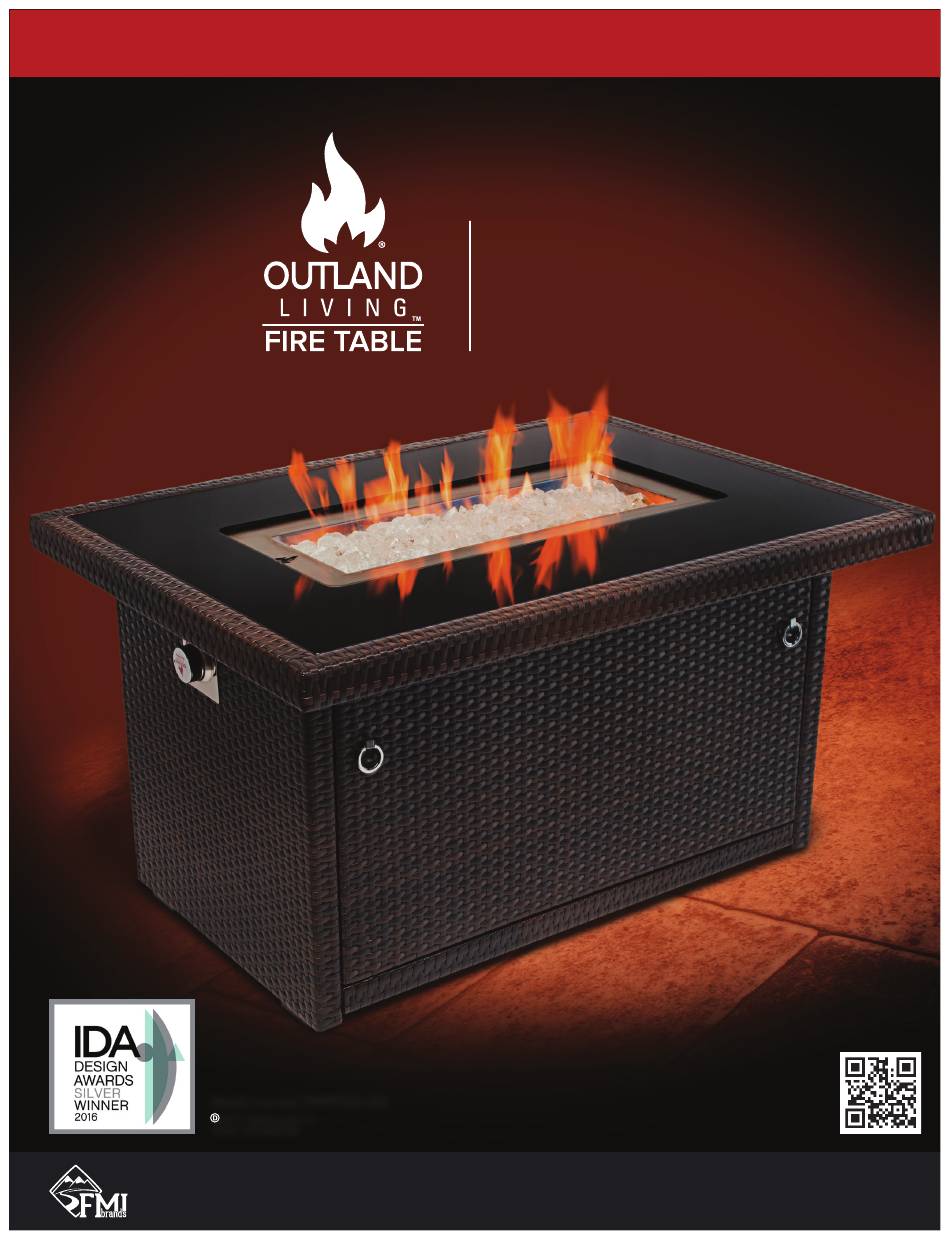

FMI Outland Living GRANVILLE FMPPC2E-403 Owner's Manual

Fire table
Hide thumbs Also See for Outland Living GRANVILLE FMPPC2E-403:

Advertisement

Quick Links

Download this manual
Model number FMPPC2E-403
2017 FMI Brands Inc.
Patent US D848,591
FMI BRANDS INC.
107 – 19052 26 Avenue | Surrey, B.C. Canada V3Z 3V7 | Toll Free 1-888-514-1663 | Fax 1-888-797-9931
Outland Living is a registered trademark of FMI Brands Inc. The OUTLAND Flame mark is a registered trademark of FMI Brands Inc.
Owner's
Manual
Wicker
colour may
be different
than shown.
LP Cylinder
not included.
D.403.000.V4

Advertisement

loading

Related Manuals for FMI Outland Living GRANVILLE FMPPC2E-403

Summary of Contents for FMI Outland Living GRANVILLE FMPPC2E-403

  • Page 1 107 – 19052 26 Avenue | Surrey, B.C. Canada V3Z 3V7 | Toll Free 1-888-514-1663 | Fax 1-888-797-9931 Outland Living is a registered trademark of FMI Brands Inc. The OUTLAND Flame mark is a registered trademark of FMI Brands Inc.

  • Page 2: Carbon Monoxide Hazard

    Owner & Safety Manual Model number FMPPC2E-403 - Tested by CSA International ANS Z21.97-2017/CSA 2.41-2017 Outdoor Decorative Gas Appliances DANGER: If you smell gas: 1 Shut off gas to the appliance. WARNING! HOT SURFACE! 2 Extinguish any open flame. 3 If odour continues, leave the area immediately. 4 After leaving the area, call your gas supplier or fire department.

  • Page 3: Minimum Clearances

    Do not store a spare LP-gas cylinder under or near this appliance. Replacement parts and a list of such parts are available from FMI b. Never fill the cylinder beyond 80 percent full. Brands Inc. through the contact information provided on the last c.
  • Page 4 Should you have any questions or comments regarding this opening(s) shall have a total free area of not less than 1 in per lb appliance, please do not hesitate to contact FMI Brands Inc. at (14.2 cm per kg) of stored fuel capacity.
  • Page 5 Contact FMI Brands Inc. should you require a replacement hose. Inspect burner prior to each use. Burner must be replaced prior...
  • Page 6 Owner & Safety Manual Required Tools (Not Supplied): Supplied parts & hardware list: Cross (Philips) Screwdriver (PH3) PART # DESCRIPTION QUANTITY PICTURE Assembly Work Surface (Top Foam Packing Insert) Scissors Table Top Frame with Tempered Glass End Panel with Gas Valve, Gas Hose and Regulator Mounting Bracket...
  • Page 7 SECTION 1: ASSEMBLY ATTENTION: For customers who have ordered the Glass Lid accessory: If you are waiting for your Glass Lid accessory to arrive, we recommend that you hold off on assembling your new Outland Firetable. The Glass Lid accessory comes with mounting brackets that are installed to the underside of the Outland Firetable for Glass Lid storage. Installing the Glass Lid mounting brackets to your Outland Firetable takes a bit more time and effort when your Outland Firetable is fully assembled.
  • Page 8 Owner & Safety Manual SECTION 1: ASSEMBLY (continued) STEP 2A BURNER TUBE ***Loosely install*** the End panel with gas valve, ✓ ✘ GAS VALVE gas hose and regulator mounting bracket assembly ORIFICE to the table top with 4 screws, but do not tighten. IMPORTANT: Align gas valve orifice inside burner SCREEN tube.
  • Page 9 SECTION 1: ASSEMBLY (continued) STEP 3 STEP 4A Mount End Panel ***loosely***, but do not tighten. Locate the (4x) press-fit studs on the End Panels. Mount the Propane Cylinder H-Frame Support onto the press-fit (4x) M6 SCREWS studs of the End Panels. Fit the holes in the ends of the H-Frame Support over the studs of one End Panel.
  • Page 10 Owner & Safety Manual SECTION 1: ASSEMBLY (continued) STEP 6 Cut and remove straps. ATTENTION: At this point, if you have purchased the Glass Lid accessory, METAL you should install your glass lid mounting brackets now, before CRIMP SCISSORS KNIFE Step 5.
  • Page 11 SECTION 1: ASSEMBLY (continued) STEP 7: PROPANE CYLINDER ASSEMBLY Place an approved 9kg (20lb) propane cylinder in to cylinder ring (Part 6). Couple the supplied gas regulator to the propane cylinder (see section labeled “Connection”). Perform LEAK TEST on all gas couplings (see section labeled “Leak Test”).
  • Page 12 Owner & Safety Manual SECTION 1: ASSEMBLY (continued) STEP 10: GLASS ROCKS ASSEMBLY Open bag of Glass Rocks and arrange neatly and evenly in the burner tray. Ensure igniter cover is not covered by glass rocks (see photo). This helps air circulate. Take care to keep rocks out of the igniter cover.
  • Page 13 SECTION 2: IGNITION WARNING: Ensure that no parts of your body, clothing, or any other combustible material are above the burner before, during STEP 1 and after ignition. Ensure the cover is stored safely away from Ensure that the gas valve knob is in the Fire Table when the Fire Table is in use.

  • Page 14: Ignition Troubleshooting

    Owner & Safety Manual SECTION 2: IGNITION (continued) STEP 2 Turn the gas cylinder valve to the ‘Closed’ position. Wait 5 minutes FIRE TABLE WON’T LIGHT? IGNITION PROBLEM? for any gas to dissipate. Ensure igniter cover is not covered by glass rocks.
  • Page 15 SECTION 3: GOT A LOW FLAME? STEP 1 CORRECTIVE ACTION Check propane level. If less than half full replace the cylinder. a. Close propane cylinder valve. Repeat the ignition sequence in section 2. b. Open and then close Fire Table gas knob valve to release pressure.

  • Page 16: Warning Notes

    Replacement part orders can be sent by mail to the address on the cover of this booklet, or faxed to (888) 797-9931. Should you have any questions or comments regarding this appliance, please do not hesitate to contact FMI Brands Inc. at (888) 514-1663 or E-Mail to info@outlandliving.com.
