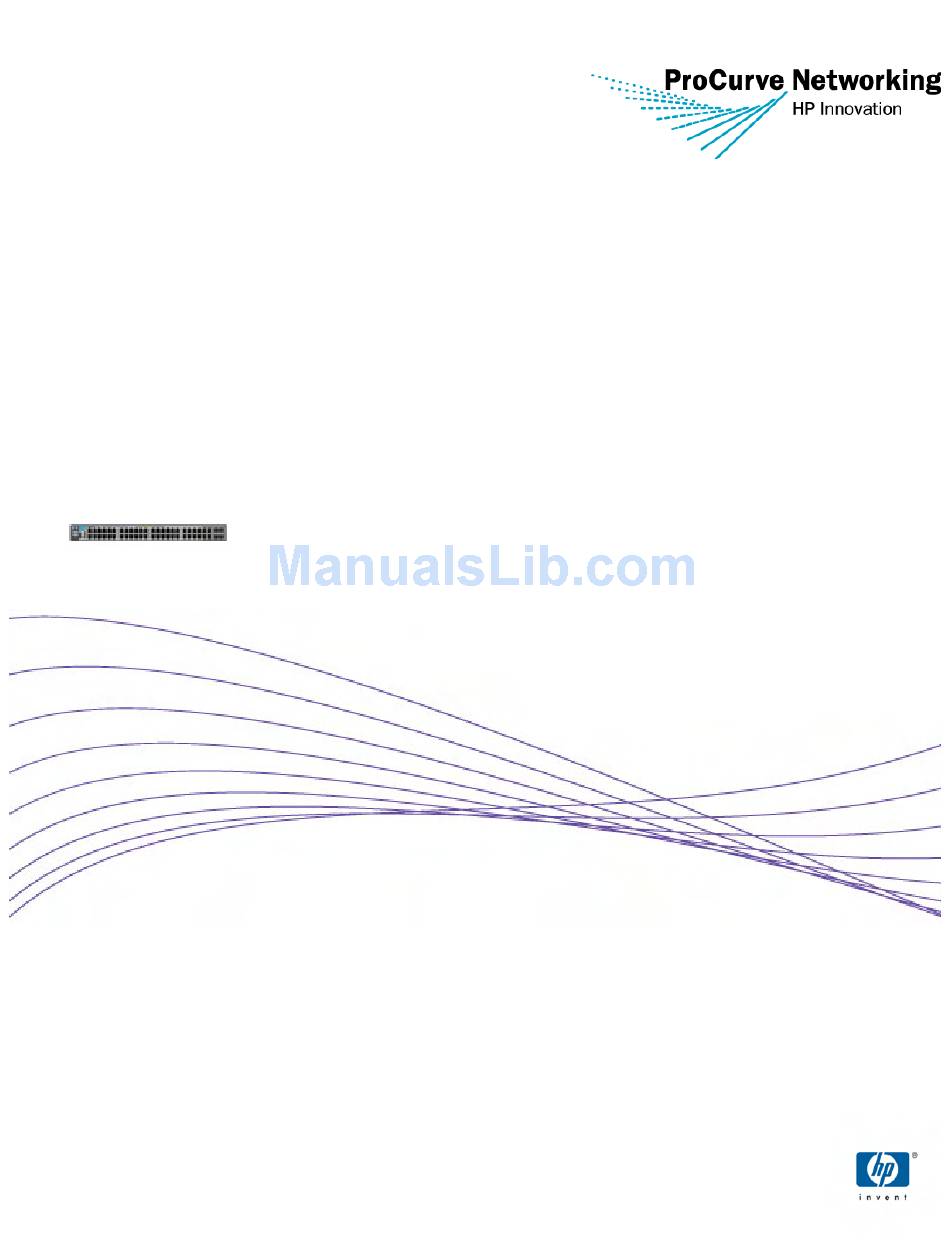

ProCurve Switch 3500yl-48G-PWR
The ProCurve 3500yl-48G-PWR is an advanced Layer 3 stackable in 1U height. It
has 44 10/100/1000Base-T ports, 4 dual-personality ports, integrated PoE on all
10/100/1000Base-T interfaces, and an expansion slot for an optional 4-port
10-GbE module. The foundation for this switch is a purpose-built, programmable
ProVision ASIC that allows the most demanding networking features such as QoS
and security to be implemented in a scalable yet granular fashion. The
3500yl-48G-PWR is a part of the ProCurve 3500yl/5400zl series of switches that
offer unprecedented investment protection, flexibility, and scalability, as well as
ease of deployment, operation, and maintenance for any network environment.
ProCurve Switch
3500yl-48G-PWR (J8693A)

Advertisement

loading

Related Manuals for HP ProCurve 3500yl-48G-PWR

Summary of Contents for HP ProCurve 3500yl-48G-PWR

  • Page 1 ProCurve Switch 3500yl-48G-PWR The ProCurve 3500yl-48G-PWR is an advanced Layer 3 stackable in 1U height. It has 44 10/100/1000Base-T ports, 4 dual-personality ports, integrated PoE on all 10/100/1000Base-T interfaces, and an expansion slot for an optional 4-port 10-GbE module. The foundation for this switch is a purpose-built, programmable ProVision ASIC that allows the most demanding networking features such as QoS and security to be implemented in a scalable yet granular fashion.

  • Page 2: Features And Benefits

    DHCP Security provides automatic • Switch CPU protection: protection against malicious network traffic trying to shut down the switch detects traffic patterns • Virus throttling: typical of WORM-type viruses and either throttles or entirely prevents the ability of the...
  • Page 3 ProCurve Switch 3500yl-48G-PWR • ICMP throttling: denial-of-service attacks by enabling any switch port to automatically throttle ICMP traffic • Multiple user authentication methods: IEEE 802.1X: user authentication using an 802.1X supplicant on the client in conjunction with a RADIUS server Web-based authentication: 802.1X, provides a browser-based...
  • Page 4 3-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone support (U6319E) • Installation with minimum configuration, system-based pricing (U4826E) • Installation with HP-provided configuration, system-based pricing (U4830E) easy mapping by network management applications per-port, • Friendly port names: descriptive names to ports •...

  • Page 5: Specifications

    1 open module slots pps (64-byte packets) 44 10/100/1000 ports (IEEE Routing/switching capacity: 802.3 Type 10Base-T, IEEE 148 Gbps 802.3u Type 100Base-TX, IEEE Switch fabric speed: 173 Gbps 802.3ab 1000Base-T Gigabit Routing table size: 10,000 Ethernet) entries Supports a maximum of 4 Environment...
  • Page 6 ProCurve Switch 3500yl-48G-PWR Accessories ProCurve Gigabit-LH-LC Mini-GBIC (J4860B) with one 1000Base-LH port; designed for long-distance single-mode fiber connectivity ProCurve Gigabit-LX-LC Mini-GBIC (J4859B) with one 1000Base-LX port; designed for long-distance single-mode fiber connectivity, will support multimode fiber connectivity to limited distances ProCurve Gigabit-SX-LC Mini-GBIC (J4858B) with one 1000Base-SX port;...
  • Page 7 62.5 um multimode cable @ 150 MHz/km = 1-50 meters 100 m Notes When used in the ProCurve Switch gl 20-port 10/100/1000 Module (J4908A), the J8177B mini-GBIC can be installed in either the upper or lower mini-GBIC port, but will block access to the other port.
  • Page 8 ProCurve Switch 3500yl-48G-PWR ProCurve 10-GbE X2-SC ER Optic (J8438A) 10-Gigabit X2 transceiver that supports ER distance of up to 40km with SC connector ProCurve 10-GbE X2-SC LR Optic (J8437A) 10-Gigabit X2 transceiver that supports LR distance of 10 km with SC connector ProCurve 10-GbE X2-SC SR Optic (J8436A) Transceiver that supports 10G SR fiber standard;...
  • Page 9 Windows XP, Microsoft Windows 2003, Microsoft Windows XP Professional (SP1 or greater) Browsers Microsoft Internet Explorer version 5.0 or later Supported platforms HP OpenView Network Node Manager version 6.41 or 7.01 or 7.5 RADIUS server support Microsoft IAS Features Device auto-discovery Topology and mapping...
  • Page 10 Power supplies ProCurve Switch zl 875W Power Supply (J8712A) Standard 875 W power supply for 5400 series switches. Supplies 273 W for PoE power plus 600 W for switch power. System requirements Minimum processor: 2.0 GHz Intel Pentium or equivalent Recommended processor: 3.0 GHz Intel...
  • Page 11 ProCurve Switch 3500yl-48G-PWR ProCurve Switch zl 1500W Power Supply (J8713A) High-power 1500 W power supply for 5400 series switches. Supplies 900 W for PoE power plus 600 W for switch power. 220 V only. yl Modules ProCurve Switch yl 10-GbE 2P CX4 + 2P X2 Module...
  • Page 12 ProCurve Switch 3500yl-48G-PWR ProCurve Switch yl 10-GbE 2P CX4 + 2P X2 Module (J8694A) 10-GbE module with two fixed CX4 ports and two X2 slots for ProCurve Switch 3500yl series and ProCurve Switch 6200yl-24G-mGBIC zl Modules ProCurve Switch 5400zl 24p Mini-GBIC Module...
  • Page 13 ProCurve Switch 3500yl-48G-PWR ProCurve Switch 5400zl 4p 10-GbE CX4 Module (J8708A) 4-port 10-GbE CX4 module for 5400 series switches. No CX4 cables supplied with this module. ProCurve Switch 5400zl 20p 10/100/1000 + 4p Mini-GBIC Module (J8705A) 20-port 10/100/1000 PoE + 4-port mini-GBIC module for...
  • Page 14 ProCurve Switch 3500yl-48G-PWR ProCurve Switch 5400zl 4p 10-GbE X2 Module (J8707A) 4-port 10-GbE X2 module for 5400 series switches Ports 4 open transceiver slots Physical characteristics Dimensions: 10.3 (d) x 8.13 (w) x 1.75 (h) in. (26.16 x 20.65 x 4.45 cm) Weight: 1.74 lb.
  • Page 15 © 2006 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty.
