WT417
Cat No.
Assembly Instructions - Please keep for future reference

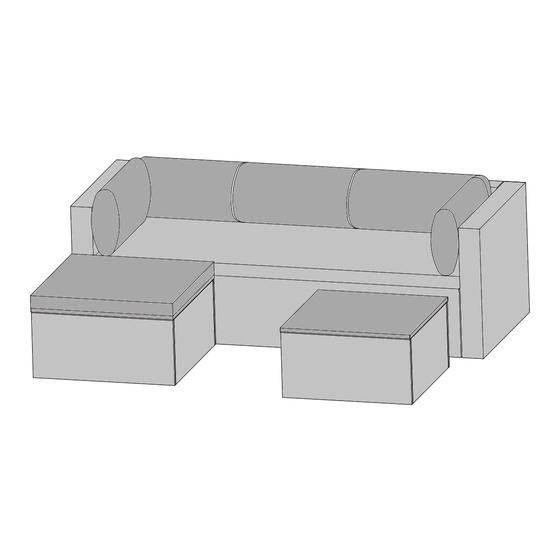

Cadiz Rattan Corner Sofa
No. People
Assembly Time
60 - 90
Minutes
Important - Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the JDW customer helpline: 0871 231 2000
Advertisement
Related Manuals for N Brown Group Cadiz WT417
Summary of Contents for N Brown Group Cadiz WT417
- Page 1 WT417 Cat No. Assembly Instructions - Please keep for future reference Cadiz Rattan Corner Sofa No. People Assembly Time 60 - 90 Minutes Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the JDW customer helpline: 0871 231 2000...
- Page 2 Safety and Care Advice Important - Please read these instructions fully before starting assembly • • • Check you have all the Make sure you have We do not recommend the components and tools enough space to lay out use of power listed on the next pages.
- Page 3 Exploded View...
- Page 4 Components - Panels Please check that you have all the components listed below before constructing your item. Part No Description...
-
Page 5: Components - Fixings
Components - Fixings Please check that you have all the components listed below before constructing your item. M6x25mm M6x35mm M6x30mm Tools Required Allan Key Ruler - Use this to measure your screws (mm) - Page 6 Assembly Instructions Note: All Bolt Head Caps and Nut Caps should not be attached before finally tightening all Bolts with the Allen Key. Only tighten all bolts when you are satisfied with the alignment of all components. Step 1 • Connect the sofa back part (Part B) with the left armrest part...
- Page 7 Step 3 • Connect the sofa right armrest part (Part D) with the back part (Part B) and seat front, fasten them together by bolts (Part L) and washers (Part O). • Fasten the seat part (Part C) with the right armrest part (Part D) by bolts (Part M) and washers (Part O).
- Page 8 Step 5 • Connect the other leg part (Part J) with table top, fasten them by bolts (Part N) and washers (Part O). Fasten the leg part (Part J) with the leg part (Part I) by bolts (Part N) and washers (Part O).
- Page 9 Step 7 • Connect the ottoman seat part (Part E) with the leg part (Part F), Fasten them together by bolts (Part N) and washers (Part O). Step 8 • Connect the other leg part (Part G) with ottoman seat part(Part E), fasten them by bolts (Part N) and...
- Page 10 Step 9 • Put the cushions (Part Q, Part R and Part S) on the seat. CARE AND CLEANING: 1. TO CLEAN,WIPE WITH DAMP CLOTH.DO NOT USE BLEACH,ACID SOLVENTS OR ABRASIVE CLEANERS OR FRAME PARTS. 2. DURING VARYING WEATHER CONDITIONS AND WINTER PERIOD,WE STRONGLY RECOMMEND THAT IT CAN BE.STORED IN A DRY AREA WITH A SUITABLE COVER BEFORE STORAGE,PLS INSURE IT IS CLEAN AND DRY.
- Page 11 Manchester M60 6ES...
