QUICK START GUIDE
!
CAUTION
Turn off water supply and disconnect electrical
supply to unit prior to installation.
Use caution when handling back panel. The
edges could be sharp.

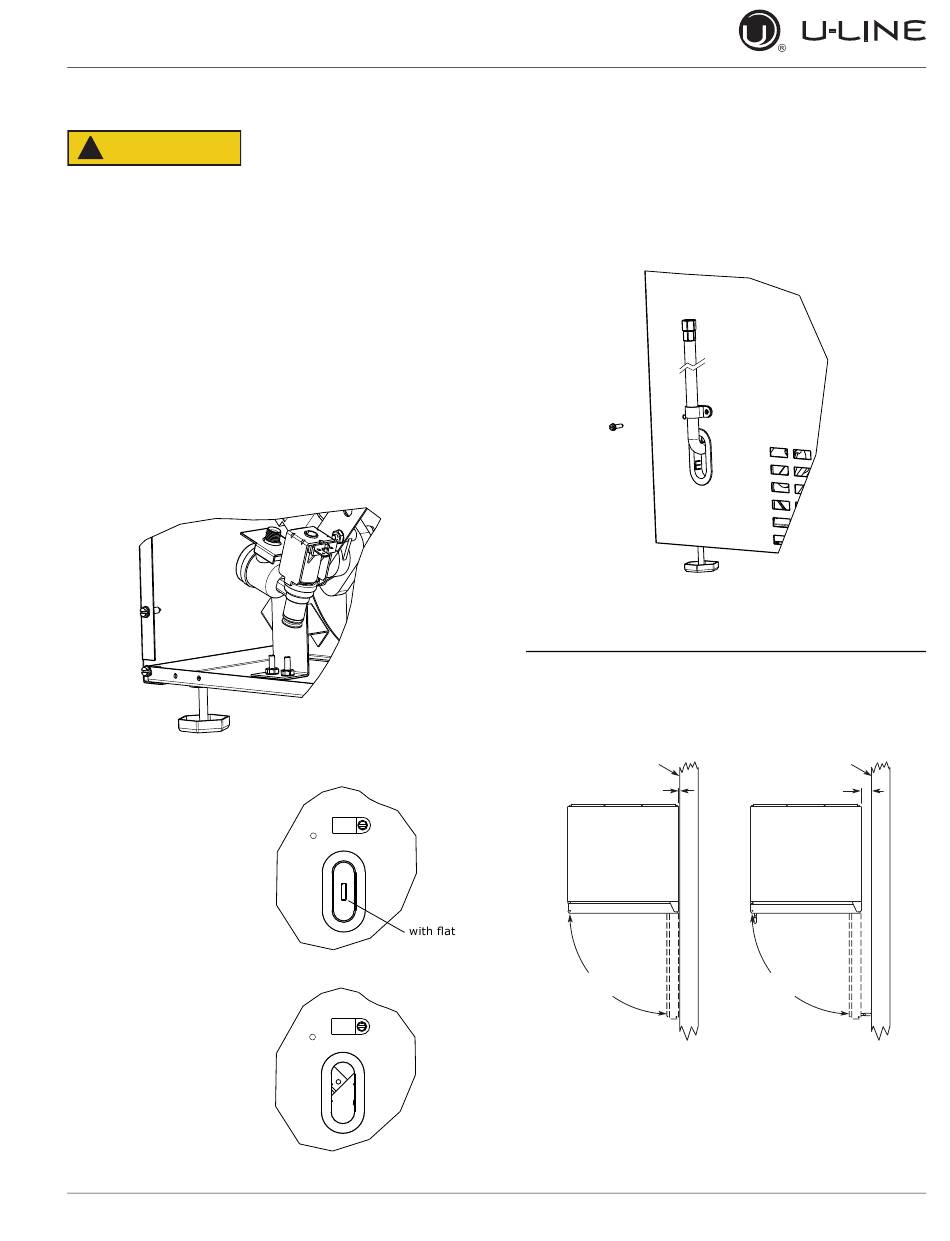

1. Turn off water supply and disconnect electrical supply
to product prior to attempting installation.
2. Remove the back panel.
3. Locate water valve inlet.
4. Break away filler feature
in bushing with flat
screwdriver.
5. Thread water line
through back panel hole
(with bushing).
6. Locate water valve inlet
and connect to valve.
7. Turn on water supply and check for leaks.
8. Reinstall back panel.
9. Install retaining clip.

Door Swing

1200 SERIES
Remove
screwdriver
Door Swing
Units have a zero clearance for the door to open 90°,
when installed adjacent to cabinets.
7
Wall
1/4" Min.
(6 mm)
90°
Door Swing
u-line.com
Wall
2-1/8" Min.
(54 mm)
90°
