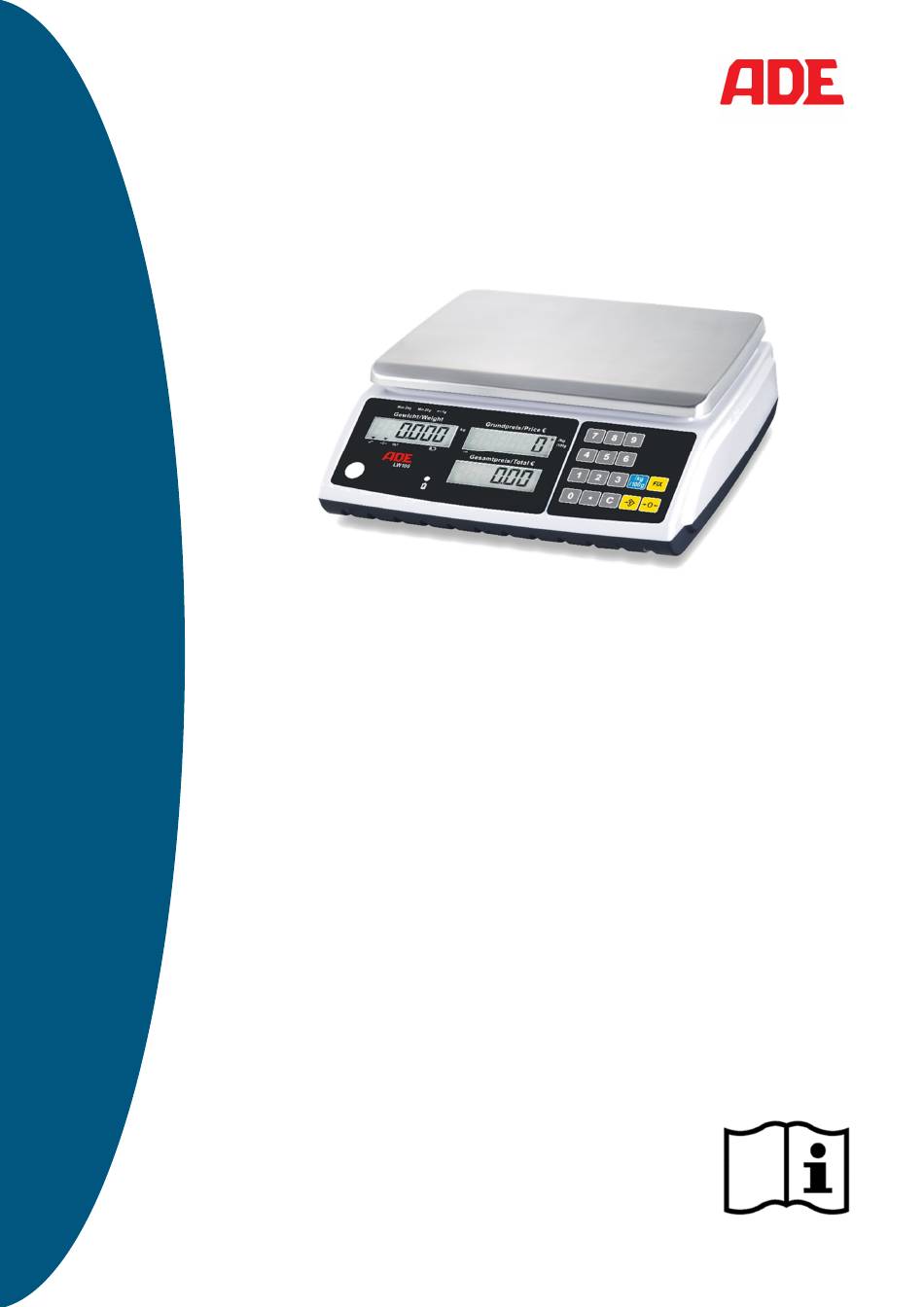

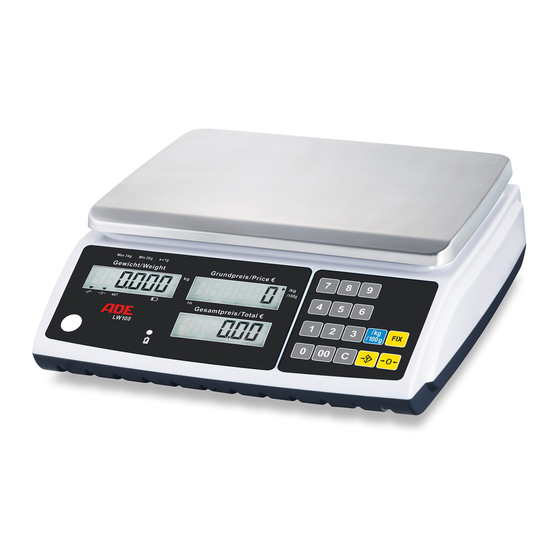

- Page 1 OPERATING MANUAL Electronic, price-computing retail scales LW100 series Calibrated retail scale - LW100 series LW100-210408-Rev002-UM-en...
-
Page 2: Table Of Contents
1. Table of Contents Table of Contents ..............................2 About this operating manual ..........................3 General information ..........................3 Storage ..............................3 Target group ............................3 Safety instructions ..............................3 Intended use ................................4 Scope of delivery ..............................5 Start-Up the scale ..............................5 Operating and display elements ........................ -
Page 3: About This Operating Manual
2. About this operating manual This symbol means: "Consult operating instructions". To achieve accurate results, read the instructions for use carefully before use and follow all instructions provided therein. Keep the instructions for use for future reference. General information - This operating manual describes the safe operation as well as the operation, care and maintenance of the scale. -
Page 4: Intended Use
In such cases, please contact authorised customer support. 4. Intended use Your ADE scale is a quality product and was manufactured for use as a non-automatic scale. The scale is used to determine the weight and price of goods to be weighed and is intended for use in supermarkets, grocery stores, retail stores, markets and similar areas of application. -
Page 5: Scope Of Delivery
5. Scope of delivery Check the delivery contents for completeness as soon as you receive the scale. Carefully unpack the scale and accessories and remove all packaging materials. Included in the delivery are: - Price computing scale - Weighing platform - Power supply unit - Operating manual - Declaration of Conformity... -
Page 6: Operating And Display Elements
Switch on the scale. When switching on the scale, the weighing platform must be unloaded. The scale runs through a test programme and acknowledges the end of the power-on sequence with a sound signal. If the weighing platform is loaded during the power-on sequence, the scale is not properly ready for operation. -
Page 7: Operating Controls
Operating controls Button terms and functions Symbol Description Function Keypad with 10 keys: Keypad with 0 to 9 for price and PLU input. 10 keys … Menu: To change parameters. Double zero multifunction key: To enter a "double zero”. To adjust the backlight. Delete key Pressing this key deletes the last digit of basic price. -
Page 8: Menu Guidance Keys
Menu guidance keys Symbol Description Function For calling and confirming function and parameter TARE settings LEFT / RIGHT To switch between the different functions and Navigation parameters. keys To return to the higher-level function and the normal ZERO weighing mode. Display Display of the (net) weight of the item to be weighed Display of the basic price (per kg) -
Page 9: Battery Status Indicator
Battery status indicator Display indication Low battery indicator (only in battery mode). The indication of the function is shown by an arrow (▼) in the display. In order to protect the scale, it switches off automatically 30 minutes after the battery symbol lights up if the charging voltage is too low. The battery must be fully charged before operating the scale again. -
Page 10: Zero-Setting
Zero-Setting Press the key when the scale shows a weight, even though the weighing surface is completely empty. The display “Weight” of the scale shows 0.000 again. Price-computing Place the sample on the weighing surface. The display "Weight" shows the weighing result. To determine the price, use the numeric keys or the key to enter the price per... - Page 11 If you want to enter a new fixed price as basic price, press the key to delete the stored value. It is also possible to enter a new basic price value after the display has shown the entered fixed price (basic price) for at least four seconds. To exit the fixed price function, press the key.
-
Page 12: Backlight And Parameter Settings
9. Backlight and parameter settings Backlight setting Users can choose to enable or disable the backlighting of the scale display. Activating the backlighting makes it easier to read the weighing results, but at the same time leads to increased power consumption. The scale offers three different backlight setting options: oFF: The backlight is switched off permanently. - Page 13 Faults Fault Cause Measure The scale has switched off Switch on the scale automatically. The display shows nothing. The scale is not connected to the Use the optional mains adapter to mains. connect the scale to the mains. Close the window. Draughts or air movements Choose a different location.
-
Page 14: Storage And Transport Conditions
Warranty ADE will repair or replace this product if evidence is provided that it has failed within 1 year from the date of sale (proof of purchase is required) due to lack of workmanship or defective material. -
Page 15: Technical Data
11. Technical data Model: LW100-3 Maximum load: 3 kg Digit display: Minimum load: Weighing surface: 265 x 205 mm stainless steel Dimensions: 285 x 375 x 115 mm Net weight: 2.8 kg / 3.4 kg (without / with accu) Operating -10°C bis +40°C temperature: Display:... -
Page 16: Declaration Of Conformity
- RoHS Directive 2011/65/EU in their respectively applicable versions. This declaration will lose its validity if any modification is made to the scale without our consent. Hamburg, April 2021 ADE Germany GmbH Neuer Hoeltigbaum 15 22143 Hamburg / Germany Manufacturer:... - Page 17 LW100-210408-Rev002-UM-en...
- Page 18 LW100-210408-Rev002-UM-en...
- Page 19 LW100-210408-Rev002-UM-en...
- Page 20 Distributor: LW100-210408-Rev002-UM-en...
