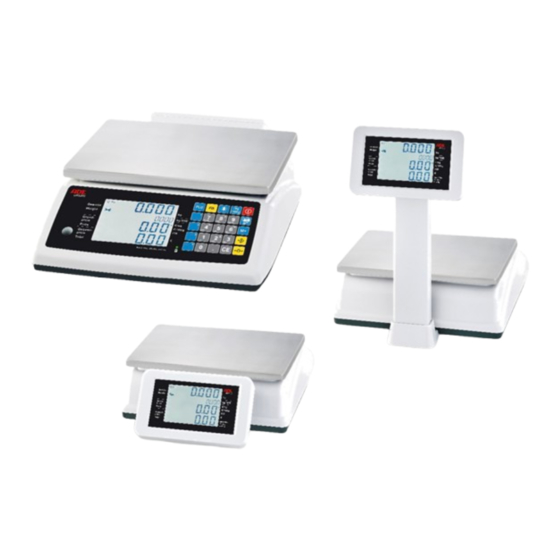

- Page 1 OPERATING MANUAL Electronic, price-computing retail scales Retail scale - LWX200 series LWX200-210408-Rev003-UM-en...
-
Page 2: Table Of Contents
1. Table of Contents Table of Contents ..............................2 About this operating manual ..........................3 General information ..........................3 Storage ..............................3 Target group ............................3 Safety instructions ..............................3 Intended use ................................4 Scope of delivery ..............................5 Start-Up the scale ..............................5 Assembling the stand (optional) ...................... -
Page 3: About This Operating Manual
2. About this operating manual This symbol means: "Consult operating instructions". To achieve accurate results, read the instructions for use carefully before use and follow all instructions provided therein. Keep the instructions for use for future reference. General information - This operating manual describes the safe operation as well as the operation, care and maintenance of the scale. -
Page 4: Intended Use
In such cases, please contact authorised customer support. 4. Intended use Your ADE scale is a quality product and was manufactured for use as a non-automatic scale. The scale is used to determine the weight and price of goods to be weighed and is intended for use in supermarkets, grocery stores, retail stores, markets and similar areas of application. -
Page 5: Scope Of Delivery
5. Scope of delivery Check the delivery contents for completeness as soon as you receive the scale. Carefully unpack the scale and accessories and remove all packaging materials. Included in the delivery are: - Scale - Column (consisting of two parts) to raise the customer display - 4 screws (ISO 7046, M4 x 8) - Power supply - Operating manual... -
Page 6: Assembling The Stand (Optional)
Assembling the stand (optional) Loosen the 4 screws (10) of the column mounting below the platform. Be careful not to put too much pressure on the scale. The measuring cell could otherwise be irreparably damaged. Lift the customer display (1) out of the base and carefully pull the display cable out of the scale housing. -
Page 7: Operating Controls
Operating controls Button terms and functions Symbol Description Function (Alphanumeric) keypad with 10 keys: 0 to 9 for price entry. Keypad with 10 keys A to Z for entering PLU information … Arrow keys for navigation Decimal point Delete key Pressing this key deletes the price entry and the “Basic price”... -
Page 8: Menu Guidance Keys
Basic price unit Switching between the price units per kg and per Unit 100 g. “►” appears on the display in front of the selected unit (€/kg or €/100 g). Backlight Light For setting and switching the backlight on/off. On and off key ON/OFF The scale is switched on by pressing this key. -
Page 9: Battery Status Indicator
Display of the (net) weight of the item to be weighed Display of the tare weight Display of the product name when using the PLU function Display of the basic price Depending on the selected setting per kg or per 100 g. Display of the total price determined from (net) weight and basic price Display symbols Symbol... -
Page 10: Using The Scale
8. Using the scale Preliminary Note Do not load the scale with weights that exceed the maximum capacity. As soon as you perceive the signal for an overload - this is shown by “-OL-” on the display and an acoustic signal - immediately remove the load from the scale so as not to irreparably damage the load cell. -
Page 11: Taring
Taring With this function, the user can weigh objects together with other items (such as container, film or paper towel), without the weight of those items affecting the weighing result. 0.000 Place the objects to be tared on the platform (e.g. 0.275 container, foil or paper towel) and press the key. -
Page 12: Saving Direct Plu
Saving direct PLU To save a direct PLU, select one of the … keys and hold it pressed for approx. 3 seconds. The display shows “PName” and starts to flash. Use the … (alphanumeric) keys to enter the name of the product (e.g. APPLE). Confirm your entry by pressing the key. -
Page 13: Retrieving Direct Plu
Retrieving direct PLU PLU retrieval for determination based on weight 0.000 APPLE 0.000 To retrieve a direct PLU, select one of the … keys. 1.20 The display shows the data stored on the PLU. 0.00 0.750 Now place the goods to be weighed on the scale. APPLE 0.000 In addition to the basic price, the display shows the weight... - Page 14 The display now shows “PName” and starts to flash. Use the … (alphanumeric) keys to enter the name of the product (e.g. APPLE). Confirm your entry by pressing the key. CAUTION: A maximum of 9 letters can be entered. If you make a typo, you can correct it using the key.
-
Page 15: Retrieving Indirect Plu
Retrieving indirect PLU PLU retrieval for determination based on weight SELECT To retrieve an indirect PLU, press the key. Use the … keys to select the memory space (00 - 99) from which the data must be retrieved. 0.000 APPLE 0.000 The display shows the data stored on the PLU. -
Page 16: Fixed Price Function
Fixed price function In the standard version, the scale is set so that the basic price is automatically deleted each time the weighing surface is unloaded and the display returns to “0.00”. However, the scale can also be set (or the fixed price function enabled) so that the basic price is still displayed as a fixed price even after the weighing surface has been unloaded. -
Page 17: Changing Automatic Switch-Off Time
Changing automatic switch-off time In order to change the automatic switch-off time, it is necessary to open a secure menu. Open the menu only when you really have to. Accidental or intentional changes to the parameters can have a significant impact on the functionality of the scale. -
Page 18: Storage And Transport Conditions
Faults Fault Cause Measure The scale has switched off Switch on the scale automatically. The display shows nothing. The scale is not connected to the Use the optional mains adapter to mains. connect the scale to the mains. Close the window. Draughts or air movements Choose a different location. -
Page 19: Disposal
Warranty ADE will repair or replace this product if evidence is provided that it has failed within 1 year from the date of sale (proof of purchase is required) due to lack of workmanship or defective material. -
Page 20: Technical Data
11. Technical data Model: LWX200-6 LWX200-15 LWX200-30 Maximum load: 6 kg 15 kg 30 kg Digit display: 1 g<3 kg>2 g 2 g<6 kg>5 g 5 g<15 kg>10 g Weighing surface: 300 x 230 mm stainless steel Dimensions: 325 x 465 x 130 mm (flat design) 325 x 465 x 410 mm (with high display) Net weight: 4.2 kg (flat design) -
Page 21: Declaration Of Conformity
- RoHS Directive 2011/65/EU in their respectively applicable versions. This declaration will lose its validity if any modification is made to the scale without our consent. Hamburg, April 2021 ADE Germany GmbH Neuer Hoeltigbaum 15 22143 Hamburg / Germany Manufacturer:... - Page 22 LWX200-210408-Rev003-UM-en...
- Page 23 LWX200-210408-Rev003-UM-en...
- Page 24 Distributor: LWX200-210408-Rev003-UM-en...
