Summary of Contents for Argo X3I ECO PLUS AF27 HL

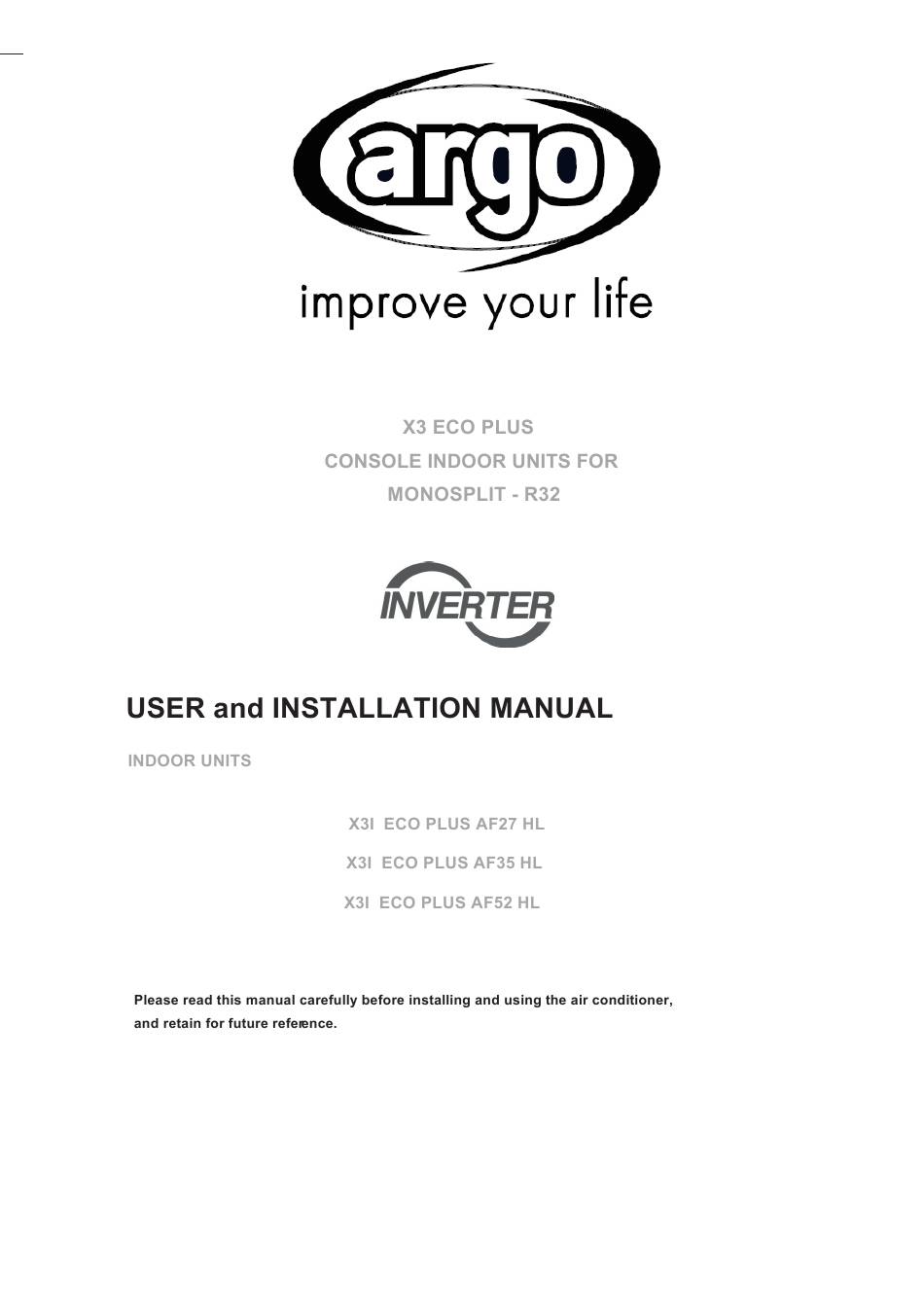

  • Page 1 V 04/20...

  • Page 2: Table Of Contents

    Contents OPERATION INSTRUCTIONS The Refrigerant ............................1 Precautions ..............................2 1. Part names and their functions .......................7 2. How to use the remote control to operate the unit ................. 8 3. Maintenance ............................13 4. Operating guide ........................... 16 5.
  • Page 3 Explanation of Symbols Indicates a hazardous situation that, if not avoided, will DANGER result in death or serious injury. Indicates a hazardous situation that, if not avoided, could WARNING result in death or serious injury. Indicates a hazardous situation that, if not avoided, may CAUTION result in minor or moderate injury.

  • Page 4: Operation Instructions

    Appliance filled with flammable gas R32. Before use the appliance, read the owner’s manual first. Before install the appliance, read the installation manual first. Before repair the appliance, read the service manual first. The Refrigerant OPERATION INSTRUCTIONS To realize the function of the air conditioner unit, a special refrigerant circulates in the system.

  • Page 5: Precautions

    Precautions OPERATION INSTRUCTIONS WARNING Operation and Maintenance This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Page 6 Precautions OPERATION INSTRUCTIONS WARNING Maintenance must be performed by qualified professionals. Otherwise, it may cause personal injury or damage. Do not repair air conditioner by yourself. It may cause electric shock or damage. Please contact dealer when you need to repair air conditioner. Do not extend fingers or objects into air inlet or air outlet.
  • Page 7 Precautions OPERATION INSTRUCTIONS WARNING Attachment Installation must be performed by qualified professionals. Otherwise, it may cause personal injury or damage. Must follow the electric safety regulations when installing the unit. According to the local safety regulations, use qualified power supply circuit and circuit break. Do install the circuit break.
  • Page 8 Precautions OPERATION INSTRUCTIONS WARNING Do not put through the power before finishing installation. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. The temperature of refrigerant circuit will be high, please keep the interconnection cable away from the copper tube.
  • Page 9 Precautions OPERATION INSTRUCTIONS WARNING For the air conditioner with plug, the plug should be reachable after finishing installation. For the air conditioner without plug, an circuit break must be installed in the line. If you need to relocate the air conditioner to another place, only the qualified person can perform the work.

  • Page 10: Part Names And Their Functions

    Part names and their functions OPERATION INSTRUCTIONS INDOOR UNIT CAUTION Air outlet selection switch stop the operation and turn the breaker OFF. Do not touch the metal parts on the inside This setting blows air from upper outlet only. This setting automatically decides a blow pattern 1.

  • Page 11: How To Use The Remote Control To Operate The Unit

    How to use the remote control to operate the unit OPERATION INSTRUCTIONS Remote Controller Description ON/OFF Press it to start or stop operation. : Press it to decrease temperature setting. : Press it to increase temperature setting. MODE Press it to select operation mode (AUTO/COOL/DRY/FAN/HEAT).
  • Page 12 How to use the remote control to operate the unit OPERATION INSTRUCTIONS Remote Controller Description Note: ● This is a general use remote controller, it could be used for the air conditioners with multifunction; For some function, which the model doesn't have, if press the corresponding button on the remote controller that the unit will keep the original running status.
  • Page 13 How to use the remote control to operate the unit OPERATION INSTRUCTIONS SWING: Press this button to set up &down swing angle, which circularly changes as below: This remote controller is universal . If any command is sent out, the unit will carry out the command as indicates the guide louver swings as: I FEEL:...
  • Page 14 How to use the remote control to operate the unit OPERATION INSTRUCTIONS TEMP: Press this button, could select displaying the indoor setting temperature or indoor ambient temperature.When the indoor unit firstly power on it will display the setting temperature, if the temperature's displaying status is changed from other status to" ",displays the ambient temperature, 5s later or within 5s, it receives other remote control signal that will return to display the setting temperature.
  • Page 15 How to use the remote control to operate the unit OPERATION INSTRUCTIONS Combination of "MODE " and "-" buttons : About switch between Fahrenheit and centigrade " " " - " At unit OFF, press MODE buttons simultaneously to switch between Combination of "...

  • Page 16: Maintenance

    Maintenance OPERATION INSTRUCTIONS Before inspection and maintenance of the unit. PLEASE set power switch to “OFF” to cut off the power supply. Units ● Indoor unit, Outdoor unit and Remote controller 1. Wipe them with dry soft cloth. ● Front panel Open the front panel.
  • Page 17 Maintenance OPERATION INSTRUCTIONS Titanium Apatite Photocatalytic 4. Clean or replace each filter. Air-Purifying Filter See figure. Air filter 5. Set the air filter and Titanium Apatite Photocatalytic Air-Purifying Filter as they were and close the front panel. • Operation without air filters may result in troubles as dust will accumulate inside the indoor unit.
  • Page 18 Maintenance OPERATION INSTRUCTIONS Check Check that the base, stand and other fittings of the outdoor unit are not decayed or corroded. Check that nothing blocks the air inlets and the outlets of the indoor unit and the outdoor unit. Check that the drain comes smoothly out of the drain hose during COOL or DRY operation. •...

  • Page 19: Operating Guide

    Operating guide OPERATION INSTRUCTIONS Working principle and special functions for cooling Principle: Air conditioner absorbs heat in the room and transmit to outdoor and discharged, so that indoor ambient temperature decreased, its cooling capacity will increase or decrease by outdoor ambient temperature. Anti-freezing function: If the unit is running in COOL mode and in low temperature, there will be frost formed on the heat exchanger, when indoor heat exchanger temperature decreased below 0...
  • Page 20 Operating guide OPERATION INSTRUCTIONS To distribute cool air through out the roon, The temperature should not be set lower than adjust air flow direction as shown by the what you need. This would result to increase energy cost. arrows (see picture) to diffuse cool air. Clean the air filter every week for higher Close window and door while operating the unit efficiency.

  • Page 21: Precautions

    Precautions OPERATION INSTRUCTIONS Check electrical system(voltage and frequency). Turn off the airconditioner if ,while running, Use the proper power supply indicated on the electricity interference occurs.If the unit is not unit to operate the airconditioner and only fuses to be used for a long time,cut off the power with specified capacity.Do not use pieces of wire supply main switch.

  • Page 22: Checking Before Contact The Service Man

    Checking before contact the service man OPERATION INSTRUCTIONS Check the following before contact the service man.You may find the solution to your problems. After checking,if it still does not operate, please contact your local dealer. PROBLEM CAUSES Check if eletrical wire is damaged & check if breaker NO operation switch is still on.

  • Page 23: Installation Instructions

    Installation of indoor unit INSTALLATION INSTRUCTIONS SELECTION OF INSTALLATION LOCATION. Exposed Half conceated Concealed Such a place where cool air can be distributed Mounting plate throughout the room. Such a place where condensation water is easily drained out. Such a place that can handle the weight of indoor unit. Molding Such a place which has easy access for maintenance.
  • Page 24 Installation of indoor unit INSTALLATION INSTRUCTIONS Refrigerant piping 1)Drill a hole ( 55mm in diameter ) in the spot indicated by the symbol in the illustration as below . 2)The location of the hole is different depending on which side of the pipe is taken out . 3)For piping ,see Connecting the refrigerant pipe ,under Indoor Unit Installation(1).
  • Page 25 Installation of indoor unit INSTALLATION INSTRUCTIONS Boring a wal l hole and installing wal l embedded pipe For walls containing metal frame or metal board ,be sure to use a wall embedded Inside Outside pipe and wall cover in the feed-through hole to prevent water leakage. Wall embedded pipe (field supply) Be sure to caulk the gaps around the pipes with caulking material to prevent...
  • Page 26 Installation of indoor unit INSTALLATION INSTRUCTIONS Installing indoor unit 3 tabs 1.Preparation Casing Open the front panel, remove the 4 screws and dis- mount the front grille while pulling it forward. Front grille Follow the arrows to disengage the clasps on the front case to remove it.
  • Page 27 Installation of indoor unit INSTALLATION INSTRUCTIONS The mounting plate should be installed on a wall which can support the weight of the indoor unit. 1) Temporarily secure the mounting plate to the wall, make sure that the panel is completely level, and mark the boring points on the wall.
  • Page 28 Installation of indoor unit INSTALLATION INSTRUCTIONS Connecting the refrigerant pipe 1) Use torque wrenches when tightening the flare nuts to prevent damage to the flare nuts and gas leaks. Open-end wrench (fixed) Coat here with refrigeration oil Flare nut Wrench Connection pipe Indoor unit tubing 2) Align the centres of both flares and tighten the flares and tighten the flare nuts 3 or 4 turns by hand.
  • Page 29 Installation of indoor unit INSTALLATION INSTRUCTIONS Checking for gas leakage 1)Check for leakage of gas after air purging 2)See the sections on air purges and gas leak checks in the installation manual for the outdoor unit. Check for leakage here Apply soapy water and ch- eck carefully for leaking gas.
  • Page 30 Installation of indoor unit INSTALLATION INSTRUCTIONS Wiring With a Multi indoor unit, install as described in the installation manual supplied with the Multi outdoor unit. Live the sensor securing plate, remove the front metal plate cover, and connect the branch wiring to the terminal block. 1)Strip wire ends (15mm) 2)Mach wire colours with terminal numbers on indoor and outdoor unit’s terminal blocks and firmly screw wires to the corresponding terminals.

  • Page 31: Pipe Preparation

    Pipe preparation INSTALLATION INSTRUCTIONS Wrong Cutting Tool Right PIPE & ELECTRICAL WIRE CUTTING Sloped Cut Rough Cut Use cutting tools easily found in the market. Measure precisely both outer & inner pipe. Provide a little bit longer pipe than the measurement. Wire must be 1.5 m.

  • Page 32: Refrigerant Piping Work

    Refrigerant piping work INSTALLATION INSTRUCTIONS 9.1 Select copper pipes for gas and liquid as informed in specific table(see the pipe table below) 9.2 For dust and moisture protection, before assembly of the pipe and its insulation,both end of the pipe must be covered. 9.3 Avoid pipe bending as much as possible.If it is necessary, the bending radius must be more than 3cm.

  • Page 33: Routine Check After Installation

    Routine check after installation INSTALLATION INSTRUCTIONS Check after installation Items to be checked Possible malfunction Situation Has it been fixed firmly? The unit may drop,shake or emit noise. Have you done the refrigerant leakage test? It may cause insufficient refrigerating capacity. Is heat insulation sufficient? It may cause condensation and dripping.

  • Page 34: Configuration Of Connection Pipe

    INSTALLATION INSTRUCTIONS 1. Standard length of connection pipe Sheet 1 Max length of connection pipe Max length Max length Cooling Cooling of connec- of connec- tion pipe tion pipe 4. The additional refrigerant oil and refrigerant charging required after prolonging connection pipe basis of of connection pipe.
  • Page 35 INSTALLATION INSTRUCTIONS Sheet 2. Additional refrigerant charging amount for R32 Diameter of connection pipe mm Indoor unit throttle Outdoor unit throttle Cooling only, cooling and Cooling only Liquid pipe Gas pipe cooling and heating heating (g / m) (g / m) (g / m) Note: The additional refrigerant charging amount in Sheet 2 is recommended value, not compulsory.

  • Page 36: Safety Operation Of Flammable Refrigerant

    Safety operation of flammable refrigerant INSTALLATION INSTRUCTIONS Qualification requirement for installation and maintenance man All the work men who are engaging in the refrigeration system should bear the valid certification awarded by the authoritative organization and the qualification for dealing with the refrigeration system recognized by this industry. If it needs other technician to maintain and repair the appliance, they should be supervised by the person who bears the qualification for using the flammable refrigerant.
  • Page 37 Safety operation of flammable refrigerant INSTALLATION INSTRUCTIONS a. Shut down the unit and cut power supply b. Eliminate the refrigerant c. Vacuuming d. Clean it with N2 gas e. Cutting or welding f. Carry back to the service spot for welding The refrigerant should be recycled into the specialized storage tank.
  • Page 38 REGULATION (EU) No. 517/2014 - F-GAS The unit contains R32, a fluorinated greenhouse gas with global warming potential (GWP) = 675. Do not release R32 into the atmosphere. www.argoclima.com...
  • Page 39 WIFI GUIDE How to set and operate the air conditioner with Wifi 1. Make sure that the device (smartphone or Tablet) used is equipped with a standard version of Android (version 4.4 or higher) and iOS (iOS7.0 or higher) as the operating system. For more details refer to the App.
  • Page 40 2. Registration and access. After installing the application, open "EWPE SMART" and click Sign up to register. PLEASE NOTE: • USERNAME: must be UNIQUE, composed of name + number, without spaces (eg Rossi57) • Personal email: if already registered, retrieve Username / Password. It is not possible to create another account with the same mail.
  • Page 41 Select the relevant type: 1) in case of a portable air conditioner: the third box on right 2) in case of rensidential air conditioner: the fist box on left 3) in case of commercial air conditioner: the central box V 09/19...
  • Page 42 After choosing the category of interest, proceed with the reset of the unit. Different unit reset systems can be chosen depending on the type of unit / system and remote control (with or without wifi key). Follow step by step the operative instructions depending on the selected reset system. After performing the reset following the instructions, click on Next to automatically add the unit (it’s necessary to enter Wi-Fi password).
  • Page 43 WIRE CONTROL OR REMOTE CONTROL WITH WIFI REMOTE CONTROL WITHOUT WIFI PORTABLE AIR BUTTON BUTTON (MODE and TURBO) CONDITIONER (CONTROL Direct the remote control towards Direct the remote control towards PANEL RESET) the unit. the unit. Press the button on the touch With the remote control off, press Press the "Mode"...
  • Page 44 Configuration of the main functions In the Homepage click on the device you wish to control and access the operating interface of it. 1. Select, operating mode, temperature and fan speed. Mode 2. Temperature for each mode: just slide your finger on the indicated temperature V 09/19...
  • Page 45 3. Ventilation speed for each mode: just slide your finger on the fan symbol (the adjustment possibilities vary depending on the mode) 4. Set advanced functions Click Function (Func) in the lower left corner of the interface to enter the advanced settings. V 09/19...
  • Page 46 X-FAN fucntion Vertical flap swinging Horizontal flap swinging (if available) Sleep function Light on indoor unit display Temperature unit conversion Swing setting Clic Up & down swing to turn the swing function on or off. Click the arrow in the lower right corner of the icon to go to the next screen and set the swing level.
  • Page 47 List of Preselections Clic Timer. Then clic + and make adjustments. Other functions 1. Homepage menu Click profile picture in the upper left corner of the homepage and set each menu function V 09/19...
  • Page 48 2. Group Control Click Group Control to use the present devices (Ex. Change the group name to "hhh" and set up the devices in the group list). When this group is working you can change the settings of the whole group. 3.
  • Page 49 Help Press Help to view the instructions for EWPE SMART APP 4. Feedback Clic Feedback to send a feedback on the product. 5. How to reset the air conditioner WiFi module: Turn off the unit with the remote control and disconnect the air conditioner power for at least 10 seconds.
  • Page 50 Analysis of common network setting errors: If the short distance control does not work, perform the checks specified below: • Make sure the air conditioner power is connected. • Make sure that the air conditioner's WiFi function is normally active. •...
