C3. ADAPTING BLOWER
FOR RECIRCULATION
NOTE: The exhaust adaptor with damper is not
needed for recirculating models. You may want to
save them for possible future use.

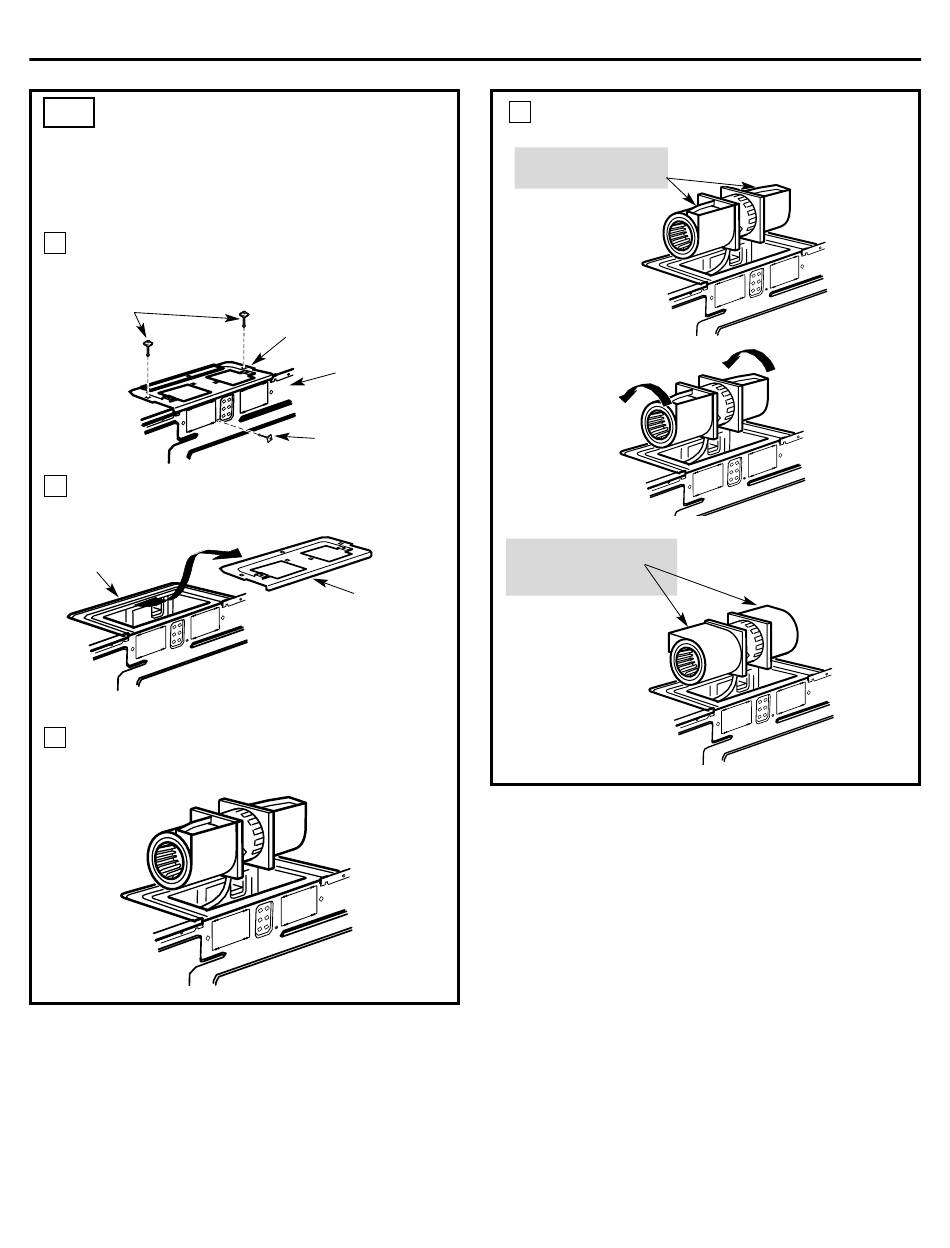

1 Remove and save screws that hold blower plate and
blower unit to the oven.
Blower Plate Screws
2 Slide the blower plate from under its retaining
flange and lift it off.
Retaining
Flange
3 Carefully pull out the blower unit. The wires
will extend far enough to allow you to adjust the
blower unit.
Installation Instructions
Blower Plate
Back of Oven
Blower Motor Screw
Blower Plate
4
Roll the blower unit 90° so that fan blade openings
are facing toward the front of the oven.
BEFORE: Fan Blade
Openings Facing Up
AFTER: Fan Blade
Openings Facing
Forward
20
Roll
