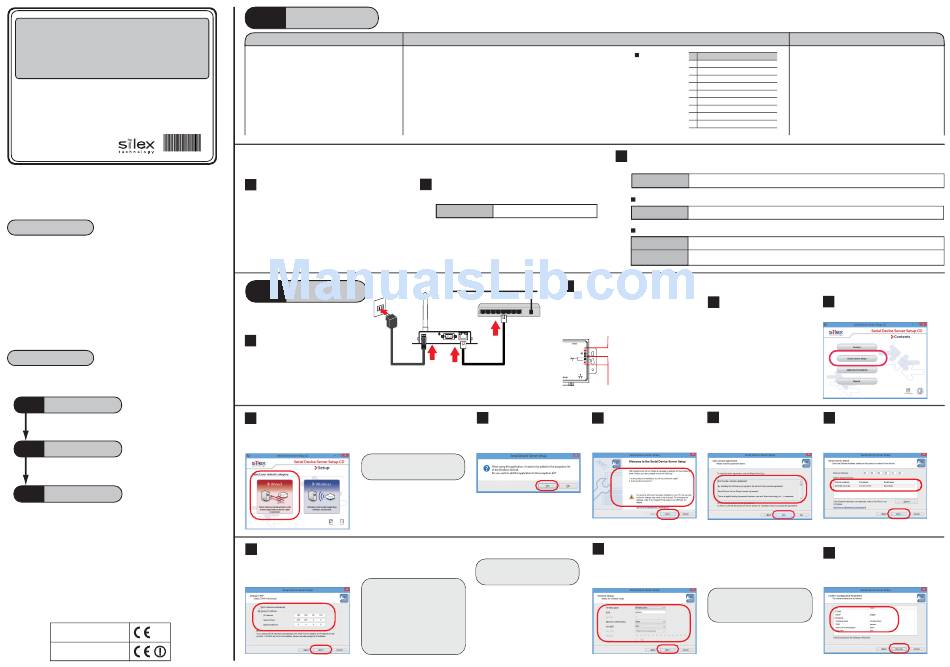

Silex technology SD-300 Setup Manual

Serial Device Server
SD-300 / SD-310AN
Setup Guide
Jun, 2015
English
WA102480XA
Thank you for purchasing the Serial Device Server, SD-300/SD-310AN.
This Setup Guide provides information on how to set up and use SD-300/
SD-310AN.
Package Contents
The following items are included in SD-300/SD-310AN package.
□ SD-300/SD-310AN
□ AC adaptor
□ Setup Guide (this document)
□ GPL license notice
□ Warranty Booklet
□ Rubber foot (4pcs)
Setup Procedure
The following is the procedure to setup SD-300/SD-310AN.
Step1
Before You Begin
Prepare the items and information that will be
necessary to setup SD-300/SD-310AN.
Step2
Setup
Install SD-300/SD-310AN to your network and
configure the network settings.
Step3
Link to Serial Device
Link to your serial device.
SD-300 (wired model)

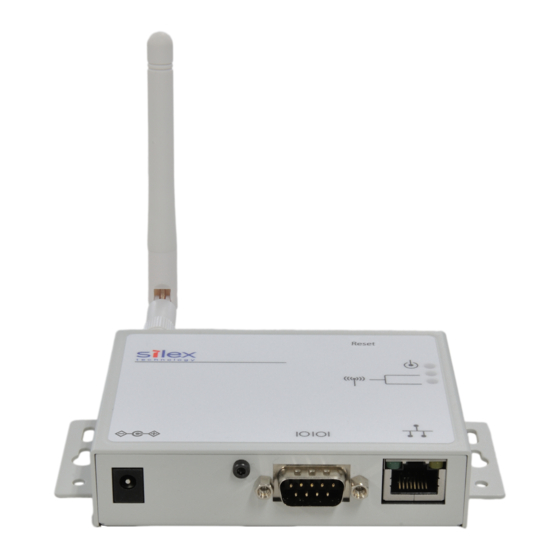

SD-310AN (wireless model)
1-1. Necessary Items
Step1
Before You Begin
The following items are required in order to use SD-300/SD-310AN.
Network Cable
Connect SD-300/SD-310AN to a wired LAN. Connect SD-300/SD-310AN and your serial device.
The serial port PIN assignment is shown on the right.
* In a 100BASE-TX network, a network cable supporting
Use the serial cable that came with your serial device (the one you may have
100BASE-TX (category 5 or above) is required.
been using to connect the PC and serial device directly) or that is recommended
in the operating manual of your serial device.
* Even if you wish to use SD-300/SD-310AN on a wireless
network, we recommend that you setup
SD-300/SD-310AN using a wired network, since
configuration based on a wired network is much easier.
1-2. Downloading the necessary items
This section explains how to download the necessary utilities and user's manual from our website.
Access the URL below from the computer you are
2
1
using to configure the SD-300/SD-310AN.
USA : silex technology america, Inc.
URL : http://www.silexamerica.com/
Europe : silex technology europe GmbH
URL : http://www.silexeurope.com/
Step2
Setup
2-1.Before Setup
④
Connect a network cable to
1
SD-300/SD-310AN and the other
end to an Ethernet Hub.
Connect an AC adaptor to
SD-300/SD-310AN and power plug
AC adaptor
to an outlet.
* This connection image uses SD-310AN as an example.
3
Click Wired.
* If the User Account Control screen is
displayed, click Yes or Continue.
8
Select Assign IP Address and enter the designated IP address and click Next.
* When there is a DHCP server on
your network and you wish to
obtain an IP address automatically
from it, select Get IP Address
Automatically and click Next.
* When the window without the
option, "Get IP Address
Automatically" is displayed, please
enter the IP address (mandatory),
subnet mask and default gateway.
Serial Cable
Go to the Support page and select the product model.
Product Model SD-300 or SD-310AN
2
Network
Check the LEDs on SD-300/SD-310AN.
- Orange LED turns ON
- Green/Yellow LEDs turn OFF
Ethernet Hub
SD-310AN
Orange LED : ON
②
③
①
Network cable
Yellow and Green LED : OFF
4 5
The Serial Device Server Setup screen
Click Yes.
is displayed. Click Next.
9
Configure the settings to use a wireless LAN and click Next.
* When you are using SD-300 (a wired
model), go on to 10.
PIN Assignment
Pin Details
1 DCD(Data Carrier Direct) Input
2 RxD(Receive Data) Input
3 TxD(Transmit Data) Output
4 DTR(Data Terminal Ready) Output
5 GND(Ground) Input
6 DSR(Data Set Ready) Input
7 RTS(Request To Send) Output
8 CTS(Clear To Send) Input
9 RI(Ring Indicate) Input or +5 VDC Power Input
Download the utilities and user's manual below and extract them on your computer.
3
User's Manual SD-300/SD-310AN User's Manual
The below is used on the computer where you configure SD-300/SD-310AN.
Serial Device Server Setup
Utility
The below is used on the computer where you use SD-300/SD-310AN.
SX Virtual Link for Serial Device Server
Utility
SX Virtual Link for Serial Device Server Installation
Installation Guide
2-2. Configure Network Settings
1
Open the folder "Serial Device Server
Setup" you have downloaded and
double-click Sdsetup.exe.
6
Read the SOFTWARE LICENSE
AGREEMENT and click Yes.
* The configuration will not be
necessary if you plan to use
SD-310AN on a wired LAN
network. Click Next then.
Wireless LAN Settings (only for SD-310AN)
Collect the information such as SSID, encryption mode,
encryption key, etc. of your wireless network.
* If you will use SD-310AN in a wired network after
finishing the setup, you do not have to collect these
information.
2
Click Device Server Setup.
7
Select SD-300/SD-310AN and click
Next.
10
Check the settings and click Execute.
