Summary of Contents for Pro-Elec PELL0307

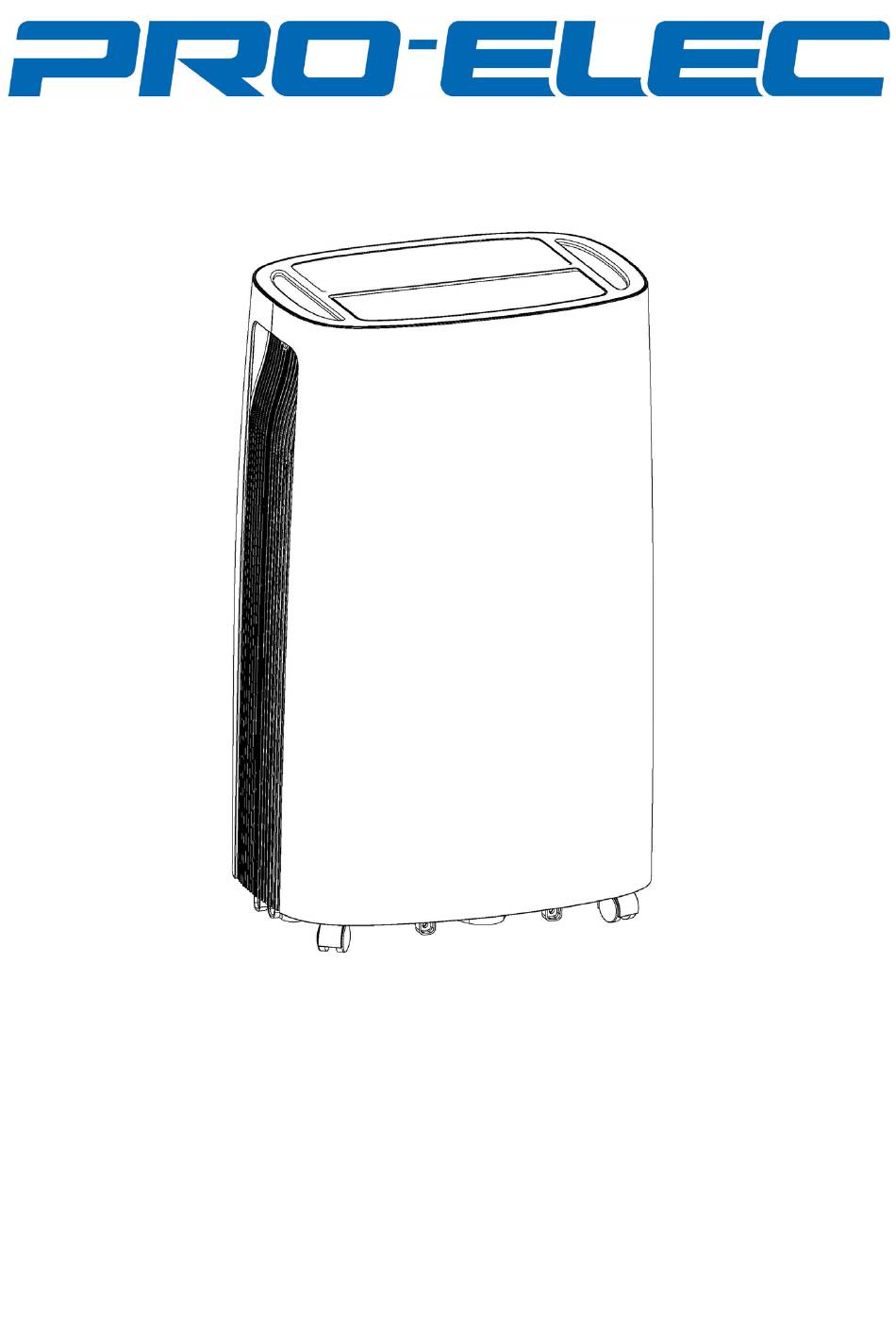

- Page 1 LOCAL DEHUMIDIFIER Model: PELL0307 and PELL0308...
-
Page 2: Important Safety Information
Please read these instructions carefully before use and retain for future reference. IMPORTANT SAFETY INFORMATION • Do not use any means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer. • The appliance shall be stored in a room without continuously operating ignition sources (for example: open flames, an operating gas appliance or an operating electric heater). -
Page 3: Transportation And Storage
• Do not place cups or other objects on the appliance to prevent water or other liquids from spilling into the air conditioning. • • Do not wipe or wash the appliance with chemical solvents such as gasoline and supply, and clean it with a moist soft cloth. If the machine is really dirty, use a mild detergent. -
Page 4: Product Overview
PRODUCT OVERVIEW Control Panel Filter Box Handle Water Tank Air Deflector Power Cord Caster Activated carbon filter cloth (Optional) PU Filter Layer (Optional) POSITIONING & INSTALLATION Positioning Warning: before using the unit, keep it upright for at least two hours. •... -
Page 5: Control Panel
CONTROL PANEL The LED indicator display features the following functions: 1. When the unit is plugged in, it will indicate the room humidity level. 2. If you set the humidity desired, it will indicate the humidity that you have selected 3. -
Page 6: Water Drainage
Fan Speed Setting • Press the to set the fan speed to high or low, and the corresponding fan speed LED will illuminate. Swing setting • After the machine is started, press to start or stop the air-outlet deflector swing movement. Time-setting •... -
Page 7: Continuous Water Drainage
CONTINUOUS WATER DRAINAGE • The dehumidifier features a continuous drainage port. Using a plastic pipe (with an inner diameter of 10mm) inserted into the drain hole (on intermediate plate), and arrange the drain pipe through the cut out in the water tank front panel. •... -
Page 8: Further Safety Information
Long term storage If the dehumidifier is not going to be used for a long time, please follow the steps below: • Unplug the unit from the mains. • Remove the internal water tank and empty it and replace it. •... - Page 9 Ventilated area • Ensure that the area is in the open or that it is adequately ventilated before breaking into the system or conducting any hot work. A degree of ventilation shall continue during the period that the work is carried out. The ventilation should safely disperse any released refrigerant and preferably expel it externally into the atmosphere.
- Page 10 protection is affected. This shall include damage to cables, excessive number of connections, terminals not made to original specification, damage to seals, incorrect fitting of glands, etc. • Ensure that apparatus is mounted securely. Ensure that seals or sealing materials have not degraded such that they no longer serve the purpose of preventing the ingress of flammable atmospheres.
- Page 11 Removal and evacuation • When breaking into the refrigerant circuit to make repairs – or for any other purpose – conventional procedures shall be used. However, it is important that best practice is followed since flammability is a consideration. The following procedure shall be adhered to: Remove refrigerant.
- Page 12 • Isolate system electrically. • Before attempting the procedure ensure that: Mechanical handling equipment is available, if required, for handling refrigerant cylinders. All personal protective equipment is available and being used correctly. Pump down refrigerant system, if possible. If a vacuum is not possible, make a manifold so that refrigerant can be removed from various parts of the system.
- Page 13 • If compressors or compressor oils are to be removed, ensure that they have been evacuated to an acceptable level to make certain that flammable refrigerant does not remain within the lubricant. The evacuation process shall be carried out prior to returning the compressor to the suppliers.
-
Page 14: Troubleshooting
TROUBLESHOOTING Trouble Cause Solution • Power is off • Switch the power on • Water tank is full • Drain internal water tank Appliance does not work • The ambient temperature is too • Recommend to use the low or too high machine in at the temperature range of 7-35 C (44-95... -
Page 15: Technical Specification
TECHNICAL SPECIFICATION PELL0307 PELL0308 Main voltage 220-240V ~ 50Hz Rated input power 260W 325W Power standby mode Dehumidifying capacity 16L/24hr 20L/24hr Air flow 120m³/h Sound power level ≤47dB(A) Refrigerant/charge R290/75g R290/90g Fan speeds Recommended room floor area 16m² 20m² Dimensions... - Page 16 INFORMATION ON WASTE DISPOSAL FOR CONSUMERS OF ELECTRICAL & ELECTRONIC EQUIPMENT. When this product has reached the end of its life it must be treated as Waste Electrical & Electronic Equipment (WEEE). Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used.
