Summary of Contents for exemys SSE232-IA3

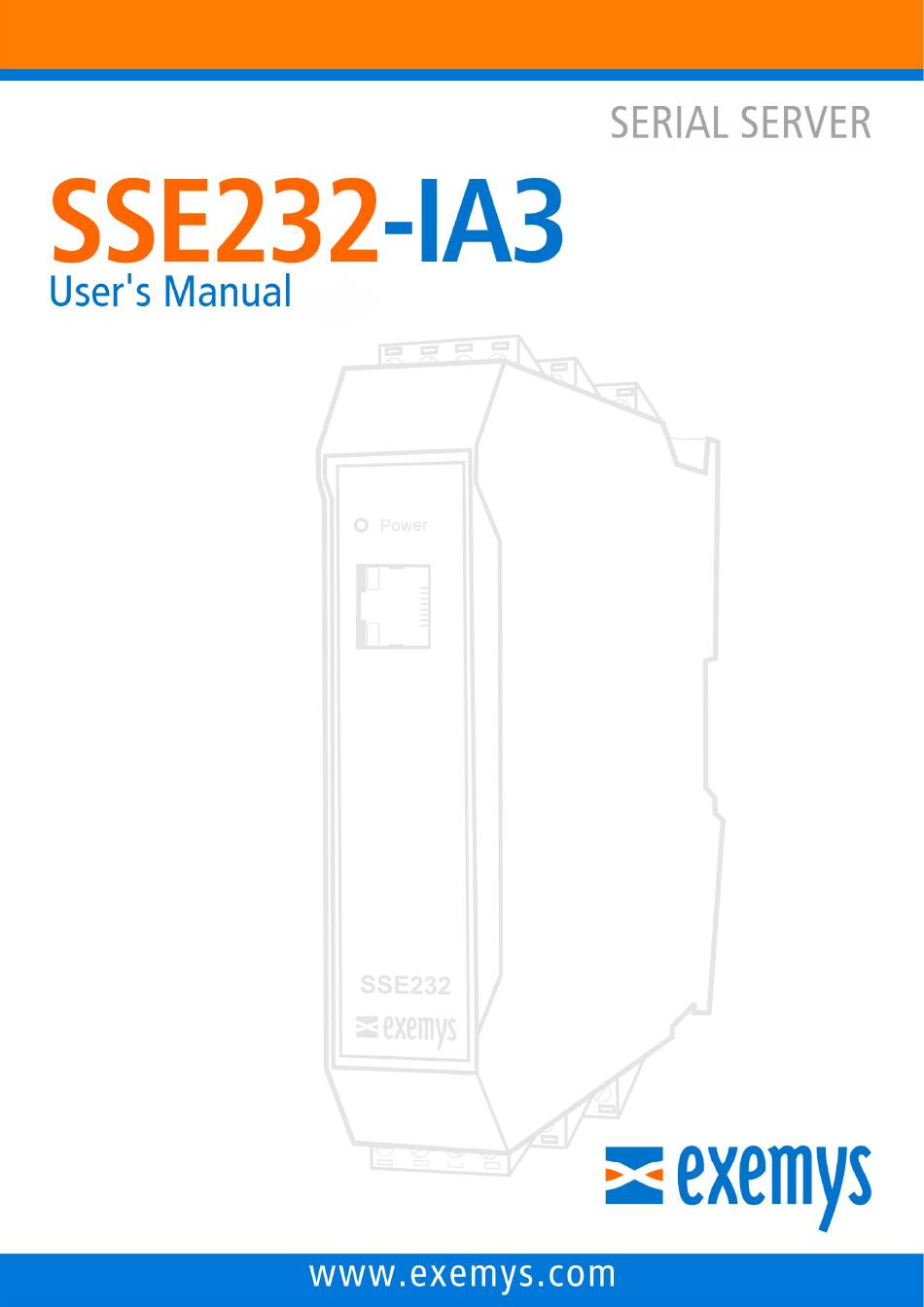

- Page 1 SSE232-IA3 – Serial Server- User’s Manual Exemys www.exemys.com Rev.4...
- Page 2 SSE232-IA3 – Serial Server- User’s Manual Exemys Exemys Products are in constant evolution to satisfy our customer needs. For that reason, the specifications and capabilities are subject to change without prior notice. Updated information can be found at www.exemys.com Copyright © Exemys, 2007. All Rights Reserved .
-
Page 3: Table Of Contents
SSE232-IA3 – Serial Server- User’s Manual Exemys INDEX INDEX INDEX INDEX INTRODUCTION _____________________________________________________________ 5 Purpose of the manual Purpose of the manual ___________________________________________________________ 5 Purpose of the manual Purpose of the manual Product Overview Product Overview Product Overview Product Overview _______________________________________________________________ 5... - Page 4 SSE232-IA3 – Serial Server- User’s Manual Exemys MIB ________________________________________________________________________ 23 DIGITAL INPUTS AND OUTPUTS _______________________________________________ 24 Configuration and control ______________________________________________________ 24 I/O Tunnel ___________________________________________________________________ 24 Characteristics, supply and wiring ________________________________________________ 25 8.3.1 Digital Inputs ____________________________________________________________________ 25 8.3.2 Digital Outputs ___________________________________________________________________ 26...
-
Page 5: Introduction

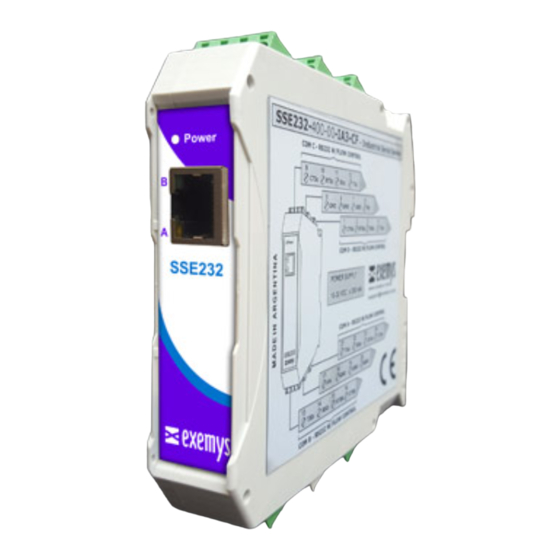

Product Overview Product Overview SSE232-IA3 is a serial interface RS-232 / RS-485 to Ethernet converter and vice versa. It allows the access, through Ethernet, to devices such as alarm panels, data acquisition, PLCs or any serial interface device. The device is the interface between the serial communication device and the Ethernet network, acting as a transparent converter. -
Page 6: Ordering Codes Ordering Codes
SSE232-IA3 – Serial Server- User’s Manual Exemys Ordering Codes Ordering Codes Ordering Codes Ordering Codes The complete product ordering code is: Ordering Code Ordering Code Description Description Ordering Code Ordering Code Description Description 1 configurable Serial Port (RS232 with flow control... -
Page 7: Installation
Connecting the power supply SSE232-IA3 allows a power supply from +10 to 30 VDC. Positive power supply must be connected to terminal N° 5 or N° 17 (according to the model) and negative power supply to terminal N° 6 or N°... -
Page 8: Serial Port Wirings Serial Port Wirings
To connect the device RS232 serial port to PC serial port or any other serial device, it must be connected as can be shown in the following figure. You should consider SSE232-IA3 is a DTE device, which means it must cross wire with those of the PC. -
Page 9: Leds Indicators Leds Indicators
SSE232-IA3 has two LEDs indicators on the Ethernet connector, one green and one yellow. The yellow one shows the connection to the network, while the green one indicates the status of TCP / UDP connections. -
Page 10: Configuration
SSE232-IA3 configuration is done through a configuration web page connecting the device to the Ethernet network on which it is going to work. To access to the configuration web page, you must connect SSE232-IA3 to Ethernet network and install Exemys Device Locator software. -
Page 11: Configuration Web Page
3.3 O O O O pera pera pera peration Modes tion Modes tion Modes tion Modes When you enter the SSE232-IA3 configuration web page, you can configure the device to use it in one of the following modes: www.exemys.com Rev.4... -
Page 12: Server Mode
Mode er Mode In this operating mode the user must configure a server port in which the SSE232-IA3 will be listening and waiting for a client to establish a connection. This connection can be made in the TCP or UDP protocols. -
Page 13: Client Mode
SSE232-IA3 – Serial Server- User’s Manual Exemys connection by inactivity time on the connection. This inactivity time can be configured on the same web page. If set to zero, there will be no shutdown due to inactivity. 3.3.2 3.3.2 Client... -
Page 14: Common Par Common Parameters Common Par Ameters
SSE232-IA3 – Serial Server- User’s Manual Exemys Common Common Common Common parameters parameters parameters parameters 3.4.1 3.4.1 3.4.1 3.4.1 Serial Port Configuration Serial Port Configuration Serial Port Configuration Serial Port Configuration The following parameters can be configured in the device serial port:... -
Page 15: Packaging
Packaging Packaging SSE232-IA3 sends all the data received by its serial port to the established TCP or UDP connection transparently. To optimize the use of the network it is usually expected to join several bytes in the serial port before sending them to the network. For this you can use two criteria: Silence... -
Page 16: Typical Uses
Software. To download a 30-day trial or purchase a license contact sales@exemys.com. For this mode you must configure SSE232-IA3 in TCP server mode. In the redirector you must indicate the IP address of the SSE232-IA3 and the port (usually the 10000 port). -
Page 17: Udp Point
SSE232-IA3 – Serial Server- User’s Manual Exemys UDP Point UDP Point- - - - to to to to- - - - Point Tunnel Point Tunnel UDP Point UDP Point Point Tunnel Point Tunnel In point-to-point connection in UDP Client-Client, once the link between two SSE232 is established, the received data in a serial port will be sent by the remote serial port and vice versa. -
Page 18: Udp Multipoint Tunnel
UDP Multipoint Tunnel UDP Multipoint Tunnel In this configuration, incoming data to any SSE232-IA3 serial port will output through all the serial ports of the other SSE232s. That means its operation is like RS-485 network but using the Ethernet network as transport. -
Page 19: Monitoring
MONITORING MONITORING MONITORING SSE232-IA3 manages the data traffic that sends and receives. This data is reflected in its web page in the Monitoring Monitoring menu. Here you can see the status of the connections and different data counters sent and... - Page 20 SSE232-IA3 – Serial Server- User’s Manual Exemys TCP Server Waiting...: Waiting...: Waiting...: Waiting...: Waiting for the client connection. Connected Connected Connected Connected: A client established the connection to the server. The client IP address that made the connection is reported.
-
Page 21: Administrator Configurations
To delete the password, only an empty password must be saved. Restart tart tart tart If necessary, the SSE232-IA3 can be restarted. In this way all your connections will be closed, and all your tasks will begin again as if you had just energized the device. Factory Factory Reset Reset... - Page 22 SSE232-IA3 – Serial Server- User’s Manual Exemys Then press the Download Download Download button and through informative messages you can follow the update process. Download Device will restart and be ready to operate again after the download. www.exemys.com Rev.4...
-
Page 23: Snmp
Here you can also configure the read and read/write communities. You should consider that both communities cannot have the same name. This file describes the set of objects or parameters of the SSE232-IA3 accessible by SNMP. You can download the SSE232.MIB file from www.exemys.com/documentation. -
Page 24: Digital Inputs And Outputs
SSE232-IA3 – Serial Server- User’s Manual Exemys 8 8 8 8 DIGITAL I DIGITAL I DIGITAL I DIGITAL INPUTS AND OUTPUTS NPUTS AND OUTPUTS NPUTS AND OUTPUTS NPUTS AND OUTPUTS The Model "SSE232-1C0-10C-IA3-IS" has Inputs/Outputs and everything related to them is explained in the following chapter. -
Page 25: Characteristics, Supply And Wiring
SSE232-IA3 – Serial Server- User’s Manual Exemys From firmware version 3.6 digital output #10 can be configured to show the link state between the two SSE232s creating the tunnel. The output will remain on while the link is active. 8.3 Characteristics, supply and wiring... -
Page 26: Digital Outputs
SSE232-IA3 – Serial Server- User’s Manual Exemys Parameter Minimum Maximum Units Input activated [Vdc] Input impedance [KΩ] 8.3.2 8.3.2 Digital Outputs Digital Outputs 8.3.2 8.3.2 Digital Outputs Digital Outputs The digital outputs are of the open collector type. The connected load must be supplied with an external voltage source and must be shared with the GND Terminal with the device power supply (it can use the same device power supply). -
Page 27: Monitoring
8.4 Monitoring Monitoring Monitoring Monitoring On the Monitoring Monitoring->Inputs / Inputs / Outputs Outputs menu, the SSE232-IA3 monitors the configured inputs reflecting Monitoring Monitoring Inputs / Inputs / Outputs Outputs their status with a "green" color indicator light, which indicates that an Active input is found. The outputs also have an indicator light, in this case "Yellow", and the control over them we have it through... -
Page 28: Ethernet Command Console
SSE232-IA3from Firmware version 3.2, provides a command console and monitoring via Ethernet. To access it, a TCP connection must be made to the SSE232-IA3, using port 999 for the connection. Each command must end with the character CR (ASCII 13) and for each one it will receive a reply confirming that the command has been executed was successful or not. -
Page 29: Input Reading
SSE232-IA3. The IN IN IN IN command lets you know the status of one of the inputs available in the SSE232-IA3. If you request the status of an input that is not available, it will respond with an error. -
Page 30: Automatic Report Of Digital Inputs
Automatic Report of Digital Inputs..When connected to the Ethernet console the SSE232-IA3 will inform the status of all inputs; and this report will be repeated every time a change in any of the available input is detected. -
Page 31: Exemys Device Locator
Download the Exemys Device locator: http://www.exemys.com/beta/software/edl_setup.exe Exemys Device Locator must execute on a PC connected to the same network where the Exemys device is being configured. Exemys Device Locator When is executed for the first time, it will search for any Exemys device within the network. - Page 32 SSE232-IA3 – Serial Server- User’s Manual Exemys All Exemys devices have a configuration password. If you have configured one, enter it in the Device Device Device Device Password Password Password Password box. You can type an IP address, Netmask or Gateway, or you can click on "enable DHCP" check box for device to search a DHCP server.
-
Page 33: Packaging Rules
Once a data is received, the SSE232-IA3 will wait for a "long silence" configured by the user before sending the packet over the network. If the silence is set to 0, the SSE232-IA3 will send the received data to the serial port immediately. B.2 Termina... -
Page 34: Command Console
SSE232-IA3 – Serial Server- User’s Manual Exemys C C C C ..COMMAND CONSOLE COMMAND CONSOLE COMMAND CONSOLE COMMAND CONSOLE SSE232 SSE232 SSE232 SSE232- - - - IA3 IA3 can be set through a command console connecting the device to a serial port on the PC. - Page 35 SSE232-IA3 – Serial Server- User’s Manual Exemys 3. Type the configuration command according to the following table. Command Description NETWORK: Change the basic parameters of the network Ip, netmask, gateway Example: NETWORK:192.168.0.212,255.255.255.0,192.168.0.200 Change the configuration password. PASSWORD: password Password must have a maximum of 10 characters or empty to delete it.
-
Page 36: Ip Address Using Arp Protocol
SSE232-IA3 – Serial Server- User’s Manual Exemys D D D D ..IP ADDRESS USING ARP IP ADDRESS USING ARP IP ADDRESS USING ARP IP ADDRESS USING ARP PROTOCOL PROTOCOL PROTOCOL PROTOCOL Exemys Device Locator, If for some reason you cannot set an IP address using the you can use the method described below. - Page 37 SSE232-IA3 – Serial Server- User’s Manual Exemys ping 192.168.0.213 ping 192.168.0.213 - - - - t t t t ping 192.168.0.213 ping 192.168.0.213 4. Wait for a few seconds until the PINGs start responding 5. Once the IP address has been set, enter the Configuration web page to set the other parameters.
-
Page 38: Termination
SSE232-IA3 – Serial Server- User’s Manual Exemys E E E E ..FACTORY SETTINGS FACTORY SETTINGS FACTORY SETTINGS FACTORY SETTINGS Parameter ameter ameter ameter Value ue ue ue Network Network Network Network 0.0.0.0 - (DHCP) Netmask. 0.0.0.0 Gateway. -
Page 39: Din Rail Mounting
SSE232-IA3 – Serial Server- User’s Manual Exemys E. E. E. E. DIN RAIL MOUNTING DIN RAIL MOUNTING DIN RAIL MOUNTING DIN RAIL MOUNTING Device can be mounted on a DIN rail. To assembly the module to the rail, make the upper side of the device fit the DIN rail and then push gently until you hear a Click! As shown in the figure.
