Serial Server
SSE232-LE
User´s Manual
Internet Enabling Solutions
www.exemys.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SSE232-LE and is the answer not in the manual?

Questions and answers

Related Manuals for exemys SSE232-LE

Summary of Contents for exemys SSE232-LE

  • Page 1 Serial Server SSE232-LE User´s Manual Internet Enabling Solutions www.exemys.com...
  • Page 2 SSE232-LE User’s Manual Exemys Exemys Products are in constant evolution to satisfy our customer needs. For that reason, the specifications and capabilities are subject to change without prior notice. Updated information can be found at www.exemys.com Copyright © Exemys, 2006 All Rights Reserved.

  • Page 3: Table Of Contents

    SSE232-LE User’s Manual Exemys Table of Contents INTRODUCTION The Manual _________________________________________________________ 5 1.1.1 Purpose of the Manual 1.1.2 Conventions, terms and acronyms Product Description ___________________________________________________ 6 INSTALLATION Power Connection ____________________________________________________ 7 Serial Connection_____________________________________________________ 7 2.2.1 RS-232 Connection 2.2.2 RS-485 and RS-422 Connection Ethernet Connection __________________________________________________ 9 2.3.1...
  • Page 4 Figure 6 - Socket-Port Scheme _______________________________________________________________14 Figure 7 - Multidrop Mode: up to 8 clients_______________________________________________________23 Figure 8 - An SSE232-LE Client Broadcasts to all clients with IPSERV = Fixed IP ___________________________25 Figure 9 - Two SSE232-LE UDP, one client and one server ___________________________________________26...

  • Page 5: Introduction

    The purpose of this manual is to provide instructions for the fast and simple installation and operation of SSE232-LE over you Ethernet network. The manual starts with the product description and then provides instructions for proper installation of its hardware. Later on, it includes detailed information on SSE232-LE configuration and operation. 1.1.2 Conventions, terms and acronyms The acronyms used in this manual are listed in the following chart.

  • Page 6: Product Description

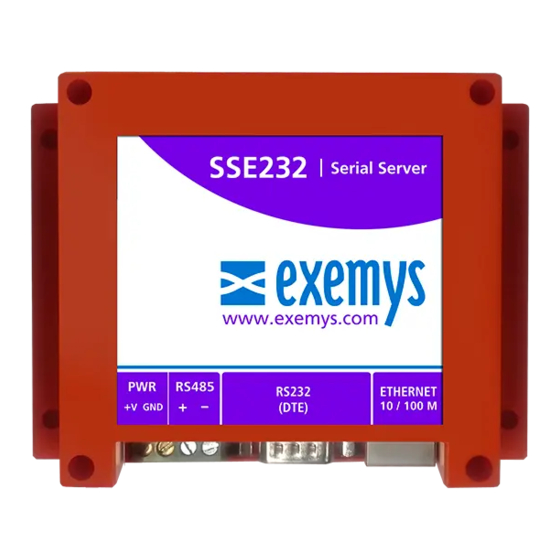

    SSE232-LE User’s Manual Exemys 1.2 Product Description SSE232-LE is a RS-232/485/422 converter to the Ethernet and vice versa. It allows access, through the Ethernet, to equipment like alarm panels, data acquisitors, PLCs or any other device with a serial interface.

  • Page 7: Installation

    Chapter Installation 2.1 Power Connection SSE232-LE powering has no polarity and accepts an input voltage range of 9 to 30 VDC and 9 to 26 VAC. 2.2 Serial Connection COM A is found in the DB25 DTE female connector, as shown in figure 3.

  • Page 8: Rs-485 And Rs-422 Connection

    Figure 3 - COM A to PC cable 2.2.2 RS-485 and RS-422 Connection Use terminals TRX+ and TRX- to connect SSE232-LE to a RS485 network. And use terminals TRX+, TRX-, RX+, RX- to connect SSE232-LE to a RS422 network. RS-485...

  • Page 9: Ethernet Connection

    2.3 Ethernet Connection RJ45 connector is used for the Ethernet connection. The Ethernet connection is essential for SSE232-LE to operate. It can be connected to a Hub or Switch with an standard network cable. 2.3.1 Connection through a Hub or Switch A UTP network cable is used to connect SSE232-LE to the Ethernet through a Hub or Switch.

  • Page 10: Configuration And Operation

    Configuration and Operation 3.1 Getting Started The first step consists in obtaining an IP address for SSE232-LE , by any of the following means: Using the Device Locator application program (most recommended method). Forcing an IP address entry to the ARP table.

  • Page 11: Access To Configuration Web Page

    3.1.2 Access to configuration Web page. Once SSE232-LE has a valid IP address you may access the web page to configure the rest of the parameters. You must use a web navigator that allows the use of Java Scripts. 1. If your web navigator is configured to search for a Proxy server, disable that option.

  • Page 12: Tcp Configuration Command Console

    SSE232-LE User’s Manual Exemys SSE232-LE will ask for the password to enter to the page. Type “admin” as user name and then the password to enter. 3. You will see the SSE232-LE configuration web page. On the left side, you will find the menu, and on the right side, you will find the configuration page.

  • Page 13: Configuration Of Network Basic Parameters Through The Console

    3.2.1 Introduction In SSE232-LE, each COM (A, B, C o D) corresponds to a TCP socket. Thus, once communication with any of these sockets is established, information will be transparently transferred from the corresponding COM to the socket and vice versa.

  • Page 14: Figure 6 - Socket-Port Scheme

    3.2.1.3 DTR Client Mode DTR client mode is similar to Client Mode but in this case the SSE232-LE will way the DTR signal to go on before trying to stablish the connection. The SSE232-LE will finish the connection if the DTR signal goes off.

  • Page 15: Sse232-Le General Configuration

    3.2.2.2 Configuration Password Both the TCP configuration console and the web page are protected by a password. The device administrator may assign access key for these resources, thus supplying safe access to SSE232-LE configuration. To change the password through the Web page: Select “Advanced”...

  • Page 16: Table 4 - Webcfg Command

    To reset the original manufacturer’s configuration from the SSE232-LE Web page: Select “Advanced” from the menu, you will see the advanced configuration page. Click on the “Set SSE232-LE to Factory Defaults” button. A message will appear asking you to confirm the action.

  • Page 17: Configuration Of Serial Ports

    This command must be entered twice for the SSE232-LE to reset to the manufacturer’s configuration. 3.2.2.5 SSE232-LE Reset If necessary, SSE232-LE may be reset. If SSE232-LE is reset, all connections are closed and SSE232-LE returns to its initial status. To reset SSE232-LE through the Web page: Select “Advanced”...
  • Page 18 COM location in the SSE232-LE connectors (see “Installation”). Window of time: Once the first data is received in the COM, SSE232-LE will wait for this specified period of time before sending a packet over the Ethernet network through the corresponding socket.

  • Page 19: Inactivity Timeout And Automatic Reset

    Automatic Reset: In Server Mode, it may be the case that the connection of a client shuts down if this client or another one tries to connect the server channel of the SSE232-LE that has the automatic reset option enabled. SSE232-LE will abort the previous connection, allowing the new client to connect.

  • Page 20: Server Mode Channel Configuration

    3.2.5 Server Mode Channel Configuration The SSE232-LE channel configured in Server Mode will be on hold, waiting for a connection in a specified port (configurable by the user). If the connection is closed, the device will stay on hold, waiting for a new connection in that Port.

  • Page 21: Client Mode Channel Configuration

    Select the “COM A” link from the menu. Enter the values as necessary. Click on the “Send” button, so the SSE232-LE may take the changes. You may use the configuration command console to change these parameters. In the commands that allow to change these parameters you must indicate the COM you are referring to.

  • Page 22: Multidrop Mode

    SSE232-LE User’s Manual Exemys Inactivity Timeout: Time of inactivity of the link, after which SSE232-LE will consider the connection to the server terminated if no flow of information is detected. To configure these parameters through the SSE232-LE Web Page: Select the “COM A” link from the menu.

  • Page 23: Supervision And Control Port

    3.2.8 Supervision and Control Port. SSE232-LE incorporates the possibility to administer digital inputs/outputs and to supervise the status of the connection sockets linked to every channel by simple commands. The Supervision and Control Port works through a TCP connection in the port 999. Each command must end with the CR character (ASCII 13).

  • Page 24: Udp Transport Protocol

    You may select the transport protocol for the Ethernet interface. Possible protocols are: TCP and UDP. The selection of the transport protocol affects all SSE232-LE channels. Thus, if you select the TCP protocol, all the channels will use this protocol. And the same applies to the UDP protocol.

  • Page 25: Client Channel With Udp Protocol

    IP= 192.168.0.108 UDP Client Channel IPSERV= 192.168.0.105 Figure 8 - An SSE232-LE Client Broadcasts to all clients with IPSERV = Fixed IP 3.3.2 Server Channel with UDP Protocol For a channel in Server Mode, you must only configure that channel’s Port. When the transport protocol is UDP, the server channel will be “linked”...

  • Page 26: Connection Between Two Udp Clients

    When two SSE232-LE connect through an UDP Transport Protocol, one of them in Client Mode and the other in Server Mode, the SSE232-LE in Server mode will not send the information received by the serial to the Client’s IP unless the client has previously sent a packet to establish communication.

  • Page 27: Appendix

    Figure 11 - Exemys Device Locator When the Device Locator is run for the first time it will search any Exemys device within the network. If there is an Exemys device in the network it will be shown in Device Locator Grid: Device: Device name, such as SSE232-LE or KIBe.
  • Page 28 If the device does not respond, the Device Locator will show a “No Response from Device” message. Make sure the device is turned on and connected to the ethernet network. The Exemys device will reset so the changes in the configuration take effect. Click on the “Close” button to close the Properties dialog box.

  • Page 29: Indicator Leds Codes

    Description It flashes alternately with the Yellow It flashes alternately with Green Led Critical failure. SSE232-LE is searching for a DHCP server on the It is steady on network. SSE232-LE is waiting for an IP address It is ½ second on and ½ second off.

  • Page 30: Default Configuration

    Listen Port (Server Mode) 1000 Server IP Address (Client Mode) 192.168.0.99 IP Port Server Number (Client Mode) 1000 Inactivity Timeout Disabled COM Type Depends on the SSE232-LE model A.4. Connectors Pinout DB25 Female Connector DCE Ethernet Connector Rx + (1) (out) (out) (out)

  • Page 31: Technical Specifications

    SSE232-LE User’s Manual Exemys A.5. Technical Specifications • Network protocols: TCP/IP, UDP, TELNET, HTTP, DHCP, ICMP, ARP. • Network port: Ethernet 10-Base T, RJ45 plug • Serial protocol: Transparent. • Serial port: RS-232, RS-485, RS-422, all tied to a DB25 female (DCE) Connector.
