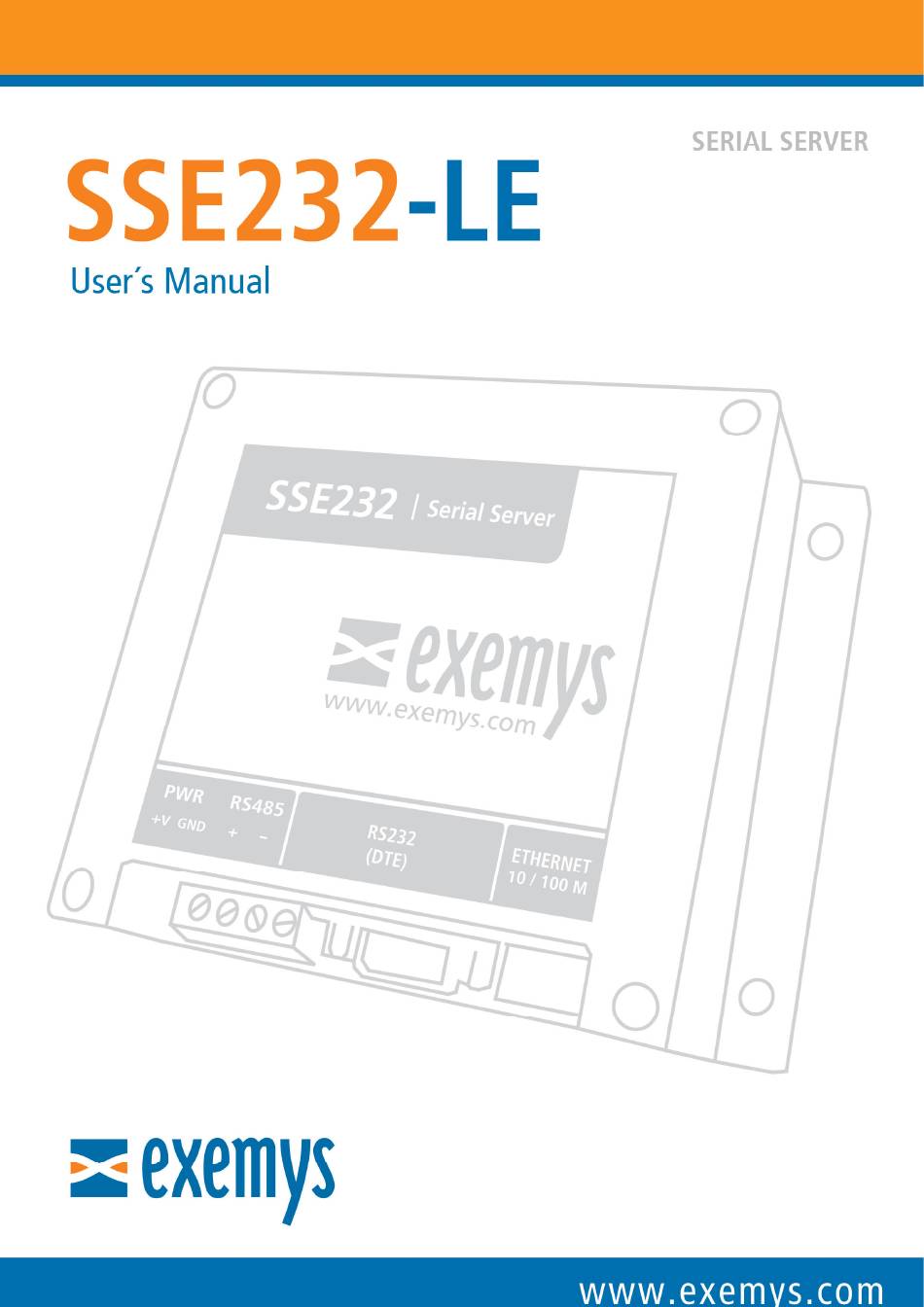

SSE232-LE – Serial Server- User's Manual
Exemys
www.exemys.com
Rev.6
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SSE232-LE and is the answer not in the manual?

Questions and answers

Related Manuals for exemys SSE232-LE

Summary of Contents for exemys SSE232-LE

  • Page 1 SSE232-LE – Serial Server- User’s Manual Exemys www.exemys.com Rev.6...
  • Page 2 SSE232-LE – Serial Server- User’s Manual Exemys Exemys Products are in constant evolution to satisfy our customer needs. For that reason, the specifications and capabilities are subject to change without prior notice. Updated information can be found at www.exemys.com Copyright © Exemys, 2007. All Rights Reserved .

  • Page 3: Table Of Contents

    SSE232-LE – Serial Server- User’s Manual Exemys INDEX INDEX INDEX INDEX INTRODUCTION ........................5 Purpose of the manual Purpose of the manual ......................5 Purpose of the manual Purpose of the manual Product Overview Product Overview Product Overview Product Overview ........................5 Ordering Codes Ordering Codes ........................
  • Page 4 SSE232-LE – Serial Server- User’s Manual Exemys MIB ............................23 ETHERNET COMMAND CONSOLE ..................24 Supervision and control ......................24 Monitoring Monitoring ..........................24 Monitoring Monitoring A. EXEMYS DEVICE LOCATOR ....................25 B. PACKAGING RULES ....................... 27 B.1 Silence B.1 Silence ............................27 B.1 Silence...

  • Page 5: Introduction

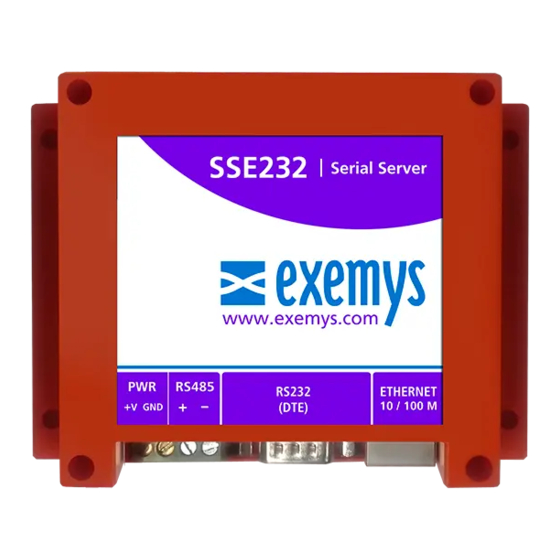

    Product Overview Product Overview SSE232-LE is a serial interface RS-232 / RS-485 to Ethernet converter and vice versa. It allows the access, through Ethernet, to devices such as alarm panels, data acquisition, PLCs or any serial interface device. The device is the interface between the serial communication device and the Ethernet network, acting as a transparent converter.

  • Page 6: Ordering Codes Ordering Codes Ordering Codes

    SSE232-LE – Serial Server- User’s Manual Exemys Ordering Codes Ordering Codes Ordering Codes Ordering Codes The complete product ordering code is: Ordering Code Ordering Code Description Description Ordering Code Ordering Code Description Description (1) serial port RS-232/RS-485 SSE232-1B0-00-LE LE LE LE...

  • Page 7: Installation

    RS232 serial port to PC serial port or any other serial device, it must be connected as can be shown in the following figure. You should consider SSE232-LE is a DTE device, which means it must cross wire with those of the PC.

  • Page 8: Rs-485 Serial Port Wirings

    SSE232-LE – Serial Server- User’s Manual Exemys 2.2.2 2.2.2 2.2.2 2.2.2 RS RS RS RS- - - - 485 485 serial port wirings serial port wirings serial port wirings serial port wirings To connect the device RS485 serial port to PC serial port or any other serial device, it must be connected in the terminals as can be shown in the following figure.

  • Page 9: Ethernet Connection Ethernet Connection

    SSE232-LE has two LEDs indicators on the Ethernet connector, one green and one yellow. The yellow one shows the connection to the network, while the green one indicates the status of TCP / UDP connections.

  • Page 10: Configuration

    SSE232-LE configuration is done through a configuration web page connecting the device to the Ethernet network on which it is going to work. To access to the configuration web page, you must connect SSE232-LE to ethernet network and install Exemys Device Locator software.

  • Page 11: Configuration Web Page

    3.3 O O O O pera pera pera peration Modes tion Modes tion Modes tion Modes When you enter the SSE232-LE configuration web page, you can configure the device to use it in one of the following modes: www.exemys.com Rev.6...

  • Page 12: Server Mode

    Mode In this operating mode the user must configure a server port in which the SSE232-LE will be listening and waiting for a client to establish a connection. This connection can be made in the TCP or UDP protocols.

  • Page 13: Client Mode

    SSE232-LE – Serial Server- User’s Manual Exemys 3.3.2 3.3.2 Client Client Mode Mode 3.3.2 3.3.2 Client Client Mode Mode In this mode the device tries to make a connection to a server device. The IP address and destination port must be configured. This connection can be made in the TCP TCP or UDP UDP protocols.

  • Page 14: Common Par Common Parameters Common Par Ameters Ameters

    SSE232-LE – Serial Server- User’s Manual Exemys Common Common Common Common parameters parameters parameters parameters 3.4.1 3.4.1 3.4.1 3.4.1 Serial Port Configuration Serial Port Configuration Serial Port Configuration Serial Port Configuration The following parameters can be configured in the device serial port:...

  • Page 15: Packaging

    Packaging Packaging SSE232-LE sends all the data received by its serial port to the established TCP or UDP connection transparently. To optimize the use of the network it is usually expected to join several bytes in the serial port before sending them to the network. For this you can use two criteria: Silence...

  • Page 16: Typical Uses

    Software. To download a 30-day trial or purchase a license contact sales@exemys.com. For this mode you must configure SSE232-LE in TCP server mode. In the redirector you must indicate the IP address of the SSE232-LE and the port (usually the 10000 port).

  • Page 17: Udp Point

    SSE232-LE – Serial Server- User’s Manual Exemys UDP Point UDP Point- - - - to to to to- - - - Point Tunnel Point Tunnel UDP Point UDP Point Point Tunnel Point Tunnel In point-to-point connection in UDP Client-Client, once the link between two SSE232 is established, the received data in a serial port will be sent by the remote serial port and vice versa.

  • Page 18: Udp Multipoint Tunnel Udp Multipoint Tunnel Udp Multipoint Tunnel

    UDP Multipoint Tunnel UDP Multipoint Tunnel In this configuration, incoming data to any SSE232-LE serial port will output through all the serial ports of the other SSE232s. That means its operation is like RS-485 network but using the Ethernet network as transport.

  • Page 19: Monitoring

    MONITORING MONITORING MONITORING SSE232-LE manages the data traffic that sends and receives. This data is reflected in its web page in the Monitoring Monitoring menu. Here you can see the status of the connections and different data counters sent and...
  • Page 20 SSE232-LE – Serial Server- User’s Manual Exemys TCP Server Waiting...: Waiting...: Waiting...: Waiting...: Waiting for the client connection. Connected Connected Connected Connected: A client established the connection to the server. The client IP address that made the connection is reported.

  • Page 21: Administrator Configurations

    To delete the password, only an empty password must be saved. Restart tart tart tart If necessary, the SSE232-LE can be restarted. In this way all your connections will be closed, and all your tasks will begin again as if you had just energized the device. Factory Factory Factory...
  • Page 22 SSE232-LE – Serial Server- User’s Manual Exemys Device will restart and be ready to operate again after the download. www.exemys.com Rev.6...

  • Page 23: Snmp

    Here you can also configure the read and read/write communities. You should consider that both communities cannot have the same name. This file describes the set of objects or parameters of the SSE232-LE accessible by SNMP. You can download the SSE232.MIB file from www.exemys.com/documentation.

  • Page 24: Ethernet Command Console

    SSE232-LE from Firmware version 3.2, provides a command console and monitoring via Ethernet. To access it, a TCP connection must be made to the SSE232-LE, using port 999 for the connection. Each command must end with the character CR (ASCII 13) and for each one it will receive a reply confirming that the command has been executed was successful or not.

  • Page 25: Exemys Device Locator

    PC connected to the same network where the Exemys device is being configured. Exemys Device Locator When is executed for the first time, it will search for any Exemys device within the network. Device: Device: Device model name...
  • Page 26 SSE232-LE – Serial Server- User’s Manual Exemys All Exemys devices has a configuration password. If you have configured one, enter it in the Device Device Device Device Password Password Password Password box. You can type an IP address, Netmask or Gateway, or you can click on "enable DHCP" check box for device to search a DHCP server.

  • Page 27: Packaging Rules

    Once a data is received, the SSE232-LE will wait for a "long silence" configured by the user before sending the packet over the network. If the silence is set to 0, the SSE232-LE will send the received data to the serial port immediately. B.2 Termina...

  • Page 28: Command Console

    SSE232-LE – Serial Server- User’s Manual Exemys C C C C ..COMMAND CONSOLE COMMAND CONSOLE COMMAND CONSOLE COMMAND CONSOLE SSE232 SSE232 SSE232 SSE232- - - - LE LE LE LE can be set through a command console connecting the device to a serial port on the PC.
  • Page 29 SSE232-LE – Serial Server- User’s Manual Exemys 3. Type the configuration command according to the following table. Command Description NETWORK: Change the basic parameters of the network Ip, netmask, Example: NETWORK:192.168.0.212,255.255.255.0,192.168.0.200 gateway Change the configuration password. PASSWORD: password Password must have a maximum of 10 characters or empty to delete it.

  • Page 30: Ip Address Using Arp Protocol

    SSE232-LE – Serial Server- User’s Manual Exemys D D D D ..IP ADDRESS USING ARP IP ADDRESS USING ARP IP ADDRESS USING ARP IP ADDRESS USING ARP PROTOCOL PROTOCOL PROTOCOL PROTOCOL Exemys Device Locator, If for some reason you cannot set an IP address using the you can use the method described below.
  • Page 31 SSE232-LE – Serial Server- User’s Manual Exemys ping 192.168.0.213 ping 192.168.0.213 - - - - t t t t ping 192.168.0.213 ping 192.168.0.213 4. Wait for a few seconds until the PINGs start responding 5. Once the IP address has been set, enter the Configuration web page to set the other parameters.

  • Page 32: Factory Settings

    SSE232-LE – Serial Server- User’s Manual Exemys E E E E ..FACTORY SETTINGS FACTORY SETTINGS FACTORY SETTINGS FACTORY SETTINGS Parameter ameter ameter ameter Value ue ue ue Network Network Network Network 0.0.0.0 - (DHCP) Netmask. 0.0.0.0 Gateway.
