exemys SSE232-IA User Manual

Serial server
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Serial Server
SSE232-IA
User´s Manual
Internet Enabling Solutions
www.exemys.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SSE232-IA and is the answer not in the manual?

Questions and answers

Related Manuals for exemys SSE232-IA

Summary of Contents for exemys SSE232-IA

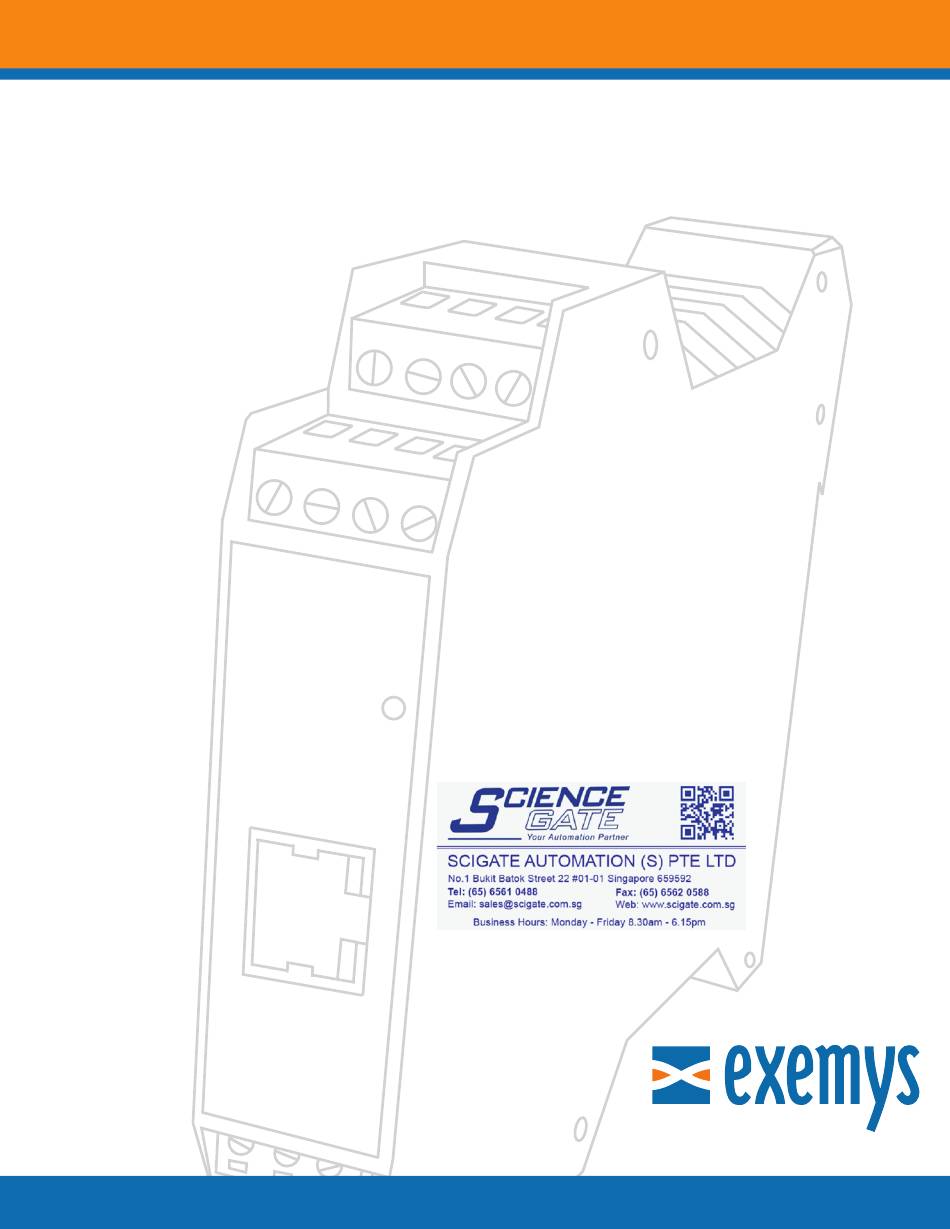

  • Page 1 Serial Server SSE232-IA User´s Manual Internet Enabling Solutions www.exemys.com...
  • Page 2 SSE232-IA User’s Manual Exemys Exemys Products are in constant evolution to satisfy our customer needs. For that reason, the specifications and capabilities are subject to change without prior notice. Updated information can be found at www.exemys.com Copyright © Exemys, 2006 All Rights Reserved.

  • Page 3: Table Of Contents

    SSE232-IA User’s Manual Exemys Table of Contents INTRODUCTION The Manual The Manual The Manual The Manual ________________________________ ________________________________ ________________________________ ________________________________________________________ ________________________ ________________________ ________________________ 6 6 6 6 1.1.1 Purpose of this Manual 1.1.2 Conventions, terms and acronyms Product Description Product Description________________________________...
  • Page 4 Figure 10 - Multidrop Mode: up to 8 clients ______________________________________________________ 26 Figure 11 - An SSE232-IA Client Broadcasts to all clients with IPSERV = Fixed IP __________________________ 30 Figure 12 - Two SSE232-IA UDP, one client and one server ___________________________________________ 31...
  • Page 5 SSE232-IA User’s Manual Exemys Figure 15 - Assembly of the device on DIN rail ____________________________________________________ 36 Figure 16 - Disassembling of the device _________________________________________________________ 36 www.exemys.com Rev. 4 Pagev...

  • Page 6: Introduction

    The purpose of this manual is to provide instructions for the fast and simple installation and operation of SSE232-IA over your Ethernet network. The manual starts with the product description and then provides instructions for proper installation of its hardware. Later on, detailed information on SSE232-IA configuration and operation is included. 1.1.2 1.1.2...

  • Page 7: Product Description Product Description

    An IP Address. aaa.bbb.ccc.ddd 1.2 Product Description SSE232-IA is a RS-232/485/422 converter to the Ethernet and vice versa. It allows access, through the Ethernet, to equipment like alarm panels, data acquisition systems, PLCs or any other device with a serial interface.
  • Page 8 SSE232-IA User’s Manual Exemys INTERNET Web browser Configuration Serial Device ETHERNET Serial Device Outputs ET HERNET Inputs ETHERNET RS/232 TCP configuration Serial Configuration Console Console I / O Control Figure Figure Figure Figure 2 2 2 2 - - - - Example of Application...

  • Page 9: Installation

    Power Input Connection scheme Power Input Connection scheme 2.2 I/O Configuration The amount of inputs/outputs supplied by SSE232-IA is indicated in the product code, as shown in figure 1 Table Table 3 3 3 3 - - - - I/O Configuration...

  • Page 10: Serial Connection Serial Connection

    (middle). 2.3 Serial Connection The SSE232-IA supplies up to four serial ports, depending on the model, that are identified as COM A, COM B, COM C and COM D. According to the model, serial ports may only be RS-232, RS-485 or configurable by software RS- 232/485/422, as shown below.

  • Page 11: Rs-232 Connection

    232 Connection 232 Connection 232 Connection COM A is always found in all SSE232-IA models. A cable can be used to connect RS-232 serial ports to a PC serial port, as can be observed in figure 6. SSE232-IA DB9 Hembra...

  • Page 12: Ethernet Connection Ethernet Connection

    Connection through a Hub or Switch Connection through a Hub or Switch A UTP network cable must be used to connect SSE232-IA to the Ethernet through a Hub or Switch. Figure 8 shows how the UTP cable is wired when using a Hub or Switch.

  • Page 13: Configuration And Operation

    Chapter Configuration and Operation 3.1 Getting Started The first step consists in obtaining an IP address for the SSE232-IA by any of the following methods: Using the Device Locator application program (recommended method). Forcing an IP address entry to the ARP table.

  • Page 14: Access To Configuration Web Page

    Access to configuration Web page. Access to configuration Web page. Once an SSE232-IA has a valid IP address you may access its web page to configure the other parameters. You must use a web browser that allows the use of JavaScript.

  • Page 15: Tcp Configuration Command Console

    The SSE232-IA will ask for a password. Type “admin” as user name and the password to enter. 3. You will see the SSE232-IA web page. On the left frame you will find the menu, and on the right frame you will find the configuration page.

  • Page 16: Configuration Of Network Basic Parameters Through The Console

    Introduction Introduction The SSE232-IA maps each COM (A, B, C or D) to a communication socket. Thus, once socket connection is established, information will be transparently transferred from the corresponding COM to the socket and vice versa, as depicted in Figure 10.
  • Page 17 1002 and 1003 are mapped to COM A, B, C and D respectively, but this may be changed for each COM. As it can be observed in Figure 10, the SSE232-IA has also 3 fixed TCP ports: Supervision and Control (Port 999), Configuration Command Console (Port 998) and HTTP Server (Port 80).

  • Page 18: Sse232-Ia General Configuration

    Configuration Password Both the TCP configuration console and the web page are protected by a password. The device administrator may assign access key for these resources, thus supplying safe access to SSE232-IA configuration. To change the password through the Web page: Select “Advanced”...
  • Page 19 Enabling and Disabling Web Configuration Enabling and Disabling Web Configuration The administrator may enable or disable SSE232-IA Web page configuration. Once disabled, the administrator will only be able to access the configuration remotely through the TCP command console or, locally, by the serial command console. In both cases, the administrator will be able to re-enable Web configuration.

  • Page 20: Configuration Of Serial Ports

    IA Reset IA Reset IA Reset If necessary, the SSE232-IA may be reset. If the SSE232-IA is reset, all connections are closed and SSE232-IA returns to its initial status. To reset SSE232-IA through the Web page: Select “Advanced” from the menu, you will see the Advanced Configuration page.
  • Page 21 RS-422. Please note that the physical location of COM A depends on which protocol you use. Refer to “Installation” for further details. Time Window Time Window: Once the first byte of data is received in a COM, the SSE232-IA will wait for Time Window Time Window this specified period of time before sending a packet over the Ethernet network through the corresponding socket.

  • Page 22: Inactivity Timeout And Automatic Reset

    That is, the SSE232-IA will abort the previous connection, allowing the new client to connect. If the automatic reset is not enabled for that server channel, the SSE232-IA will deny the newer connection. Note that in this case, the server may still use the inactivity timeout feature.

  • Page 23: Server Mode Channel Configuration

    SSE232-IA User’s Manual Exemys You may configure the Automatic Reset Option through the SSE232-IA Web Page: Select “Network” from the menu. You will see the Network configuration page. Select the Automatic Reset Enabling from the combo box. Click on the “Send” button, so the SSE232-IA may take the changes.

  • Page 24: Client Mode Channel Configuration

    SSE232-IA User’s Manual Exemys You may use the configuration command console to change these parameters. When executing commands that allow you to change any channel parameters, you must indicate the COM associated with a given connection. Table Table 11 11 11 11 - - - - Server Mode Channel Configuration...

  • Page 25: Multidrop Mode (Only For Models Sse232-1Xxx-Ia)

    SSE232 1XXX 1XXX In one-channel SSE232-IA models, it is possible to accept up to 8 clients simultaneously. SSE232- 1XXX-IA maintains 8 server type connections on the same channel and transmits information received by every communication link to the serial port www.exemys.com...

  • Page 26: Supervision And Control Port

    Supervision and Control Port. Supervision and Control Port. The SSE232-IA allows to control digital inputs/outputs and to supervise the status of connection sockets linked to every channel by simple commands. The Supervision and Control Port works through a TCP connection in the port 999. Each command must end with the CR character (ASCII 13).
  • Page 27 The INA command shows the status of all available inputs in each SSE232-IA model. The IN command allows to know the status of one of the available inputs in each SSE232-IA model. If you request an unavailable input, the answer will be “error”.
  • Page 28 If the automatic digital input report option is enabled, SSE232-IA will inform the status of all the inputs when a client connects to the TCP Port 999 and every time a change in any of the available inputs is detected.

  • Page 29: Udp Transport Protocol Udp Transport Protocol

    SSE232-IA User’s Manual Exemys If the Automatic Digital Inputs Report is enabled, the SSE232-IA will inform the status of the inputs through the message DIR in the Supervision and Control Port (TCP Port 999). The client of this connection will not have to execute any command for the SSE232-IA to send this message.

  • Page 30: Client Channel With Udp Protocol

    If the IP server address of that channel coincides with the broadcast address (IPSERV = 255.255.255.255), SSE232-IA will transmit serial data as a UDP broadcast. The serial will transmit whatever is received from the Ethernet side, no matter if data was delivered using the broadcast address or a specified IP address.

  • Page 31: Connection Between Two Udp Clients

    When two SSE232-IA connect through an UDP Transport Protocol, one of them in Client Mode and the other in Server Mode, the SSE232-IA device running in Server mode will not send any serial data to the Client’s IP unless the client has previously sent a packet to establish communication.
  • Page 32 SSE232-IA User’s Manual Exemys 1001 1000 E T H E R N E T RS-232 / 485 / 422 RS-232 / 485 / 422 IP= 192.168.0.105 IP= 192.168.0.106 UDP Client Channel UDP Client Channel IPSERV= 192.168.0.106 IPSERV= 192.168.0.105 PORTSERV= 1000...

  • Page 33: Appendix

    When the Device Locator is run for the first time it will search any Exemys device within the network. If there is an Exemys device in the network it will be shown in the Device Locator Grid: Device: Device name, such as SSE232-IA or KIBe.
  • Page 34 DHCP Lease: if “Yes”, then the device network parameters where obtained from a DHCP server. It is not necessary that the Exemys device be properly configured. If your Exemys device is It is not necessary that the Exemys device be properly configured. If your Exemys device is It is not necessary that the Exemys device be properly configured.
  • Page 35 SSE232-IA User’s Manual Exemys The Exemys device will reset so the changes in the configuration take effect. Click on the “Close” button to close the Properties dialog box. After reset, wait about five seconds until the device acknowledges newer requests from the Device Locator.
  • Page 36 SSE232-IA User’s Manual Exemys A.3. Mouting The device should be mounted on a DIN rail (as shown in figure 15), to allow it to place on electric panel, control panel cabinets, and interconnection cases. Make the upper side of the device fit the DIN rail (A) and then push gently until you hear a Click! (B).
  • Page 37 1000 1001 1002 1003 Server IP Address (Client Mode) 192.168.0.99 192.168.0.99 192.168.0.99 192.168.0.99 IP Port Server Number (Client Mode) 1000 1001 1002 1003 Inactivity Timeout Disabled Disabled Disabled Disabled COM Type Depends on the SSE232-IA model www.exemys.com Rev. 4 Page37...
  • Page 38 SSE232-IA User’s Manual Exemys A.5. Technical Specifications • Network Protocols: TCP / IP, UDP, TELNET, HTTP, DHCP, ICMP, ARP, SNMP. • Network Interface: Ethernet 10 BaseT, RJ45 connector. • Serial Protocols: Transparent. • Serial Interface: In pluggable terminal blocks. • Devices Supported: Any RS232/485/422 Serial Port device requiring Ethernet access.
  • Page 39 SSE232-IA User’s Manual Exemys www.exemys.com Rev. 4 Page39...
