Summary of Contents for Tower Hobbies TXP30

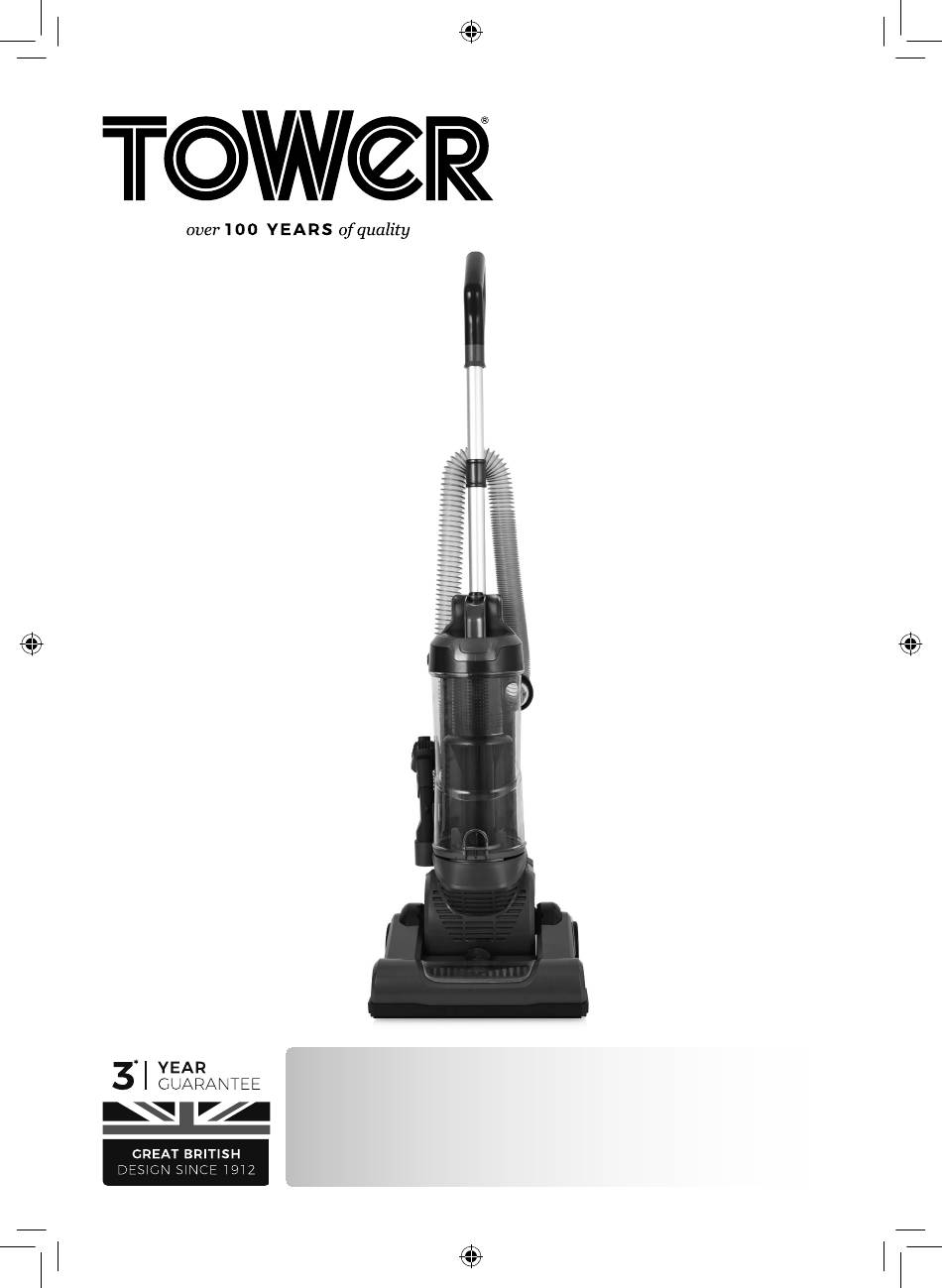

- Page 1 T108000 TXP30 Bagless Upright Vacuum Cleaner SAFETY AND INSTRUCTION MANUAL PLEASE READ CAREFULLY *Subject to registering your Extended Guarantee online at www.towerhousewares.co.uk.
- Page 2 GREAT BRITISH DESIGN, INNOVATION AND EXCELLENCE SINCE 1912 Since the turn of the 20th century, Tower has been designing, developing and manufacturing housewares and small appliances used by millions of households throughout the UK and beyond. During the 1960s, the rise in popularity of pressure cooking saw Tower become the UK’s largest producer of pressure cookers, right through into the late 1980s.
-
Page 3: Table Of Contents
Contents: Thank you for purchasing this appliance from the Specifications Tower range. Components and structure Please read this manual carefully BEFORE using the Technical Data appliance for your own safety. It has been designed to provide many years of Important Safety trouble-free use. -
Page 4: Specifications
1 - Specifications: This box contains: Instruction Manual Vacuum Cleaner Crevice/brush multi-tool Rectangular filter Sponge filter Cylinder filter Structure of your appliance: Handle Hose Dust tank release button Suction release valve Dust tank lid Dust Tank Filter assembly 2-in-1 brush/crevice tool Floor head 10. -
Page 5: Technical Data
2 - Technical Data: Description: TXP30 Bagless Upright Vacuum Cleaner Model: T108000 Voltage: 220-240V ~ 50/60Hz Wattage: 750W Documentation We declare that this product conforms to the following product legislation in accordance with the following directive(s): 2014/30/EU Electromagnetic Compatibility Directive. -
Page 6: Important Safety Information
Important Safety Information: Please read these notes carefully BEFORE using your Tower appliance • • Check that the voltage Switch off at the wall of the main circuit socket then remove the corresponds with the plug from the socket rating of the appliance when not in use or before operating. - Page 7 • • Take care when any DO NOT pick up appliance is used near anything that is burning pets. or smoking such as cigarettes, matches or • Not suitable for carpets hot ashes. with long fibres as the • bristles will damage the Use extra care when fibres.
-
Page 8: Before First Use
4 - Before First Use Read all instructions and safety information carefully before first use. Please retain this information for future reference. Remove the product from the box. Remove any packaging from the product. Please retain all packaging until you have checked and counted all the parts and the contents against the parts list. - Page 9 Releasing the Power Cable: To use your vacuum cleaner, start by unhooking the power cable from the on-board storage hook, located at the back of the vacuum cleaner. To do this, unlock the storage hook by rotating it 180 degrees, then carefully unravel the cable to your desired length.
-
Page 10: Troubleshooting
6 - Troubleshooting Problem Possible Solution The vacuum will not Ensure the vacuum cleaner is plugged into a mains socket and that work the socket switch is turned on. Check if any fuses on your main board have tripped. The vacuum will The dust container may be full, or the filters may require cleaning. -
Page 11: Cleaning & Care
8 - Cleaning & Care Cleaning: Always remove the plug from the wall socket before you clean the unit. Release the locking block to open up the top half of the unit housing. Shake the contents into a dustbin until fully empty. Replace the upper portion of the housing and fasten the locking block to secure it into place. - Page 12 Leave the filter to dry thoroughly for at least 24 hours before attempting to use it again. Once the filter is dry, put it back into the vacuum cleaner, ensuring it locks into place, and reattach the dust tank to the body of the vacuum. The vacuum cleaner is now ready for normal use.
-
Page 13: Wiring Safety
9 - Wiring Safety for UK Use Only Fuse Neutral Live (Blue) (Brown) IMPORTANT As the colours in the mains lead of this Always ensure that the cord grip is appliance may not correspond with fastened correctly. the coloured markings identifying the The plug must be fitted with a fuse terminals in your plug, please proceed of the same rating already fitted and... - Page 14 10 - Warranty This product is guaranteed for 12 months from the date of original purchase. If any defect arises due to faulty materials of workmanship, the faulty products must be returned to the place of purchase. Refund or replacement is at the discretion of the retailer.
- Page 15 Notes:...
- Page 16 thank you! We hope you enjoy your appliance for many years. As a thank you for purchasing one of our fantastic products, we are offering you an extra 2 years peace of mind. *To receive your extra 2 years guarantee, register your appliance online within 28 days of purchase by visiting: www.towerhousewares.co.uk Should you have a problem with your appliance, or need any spare parts,...
