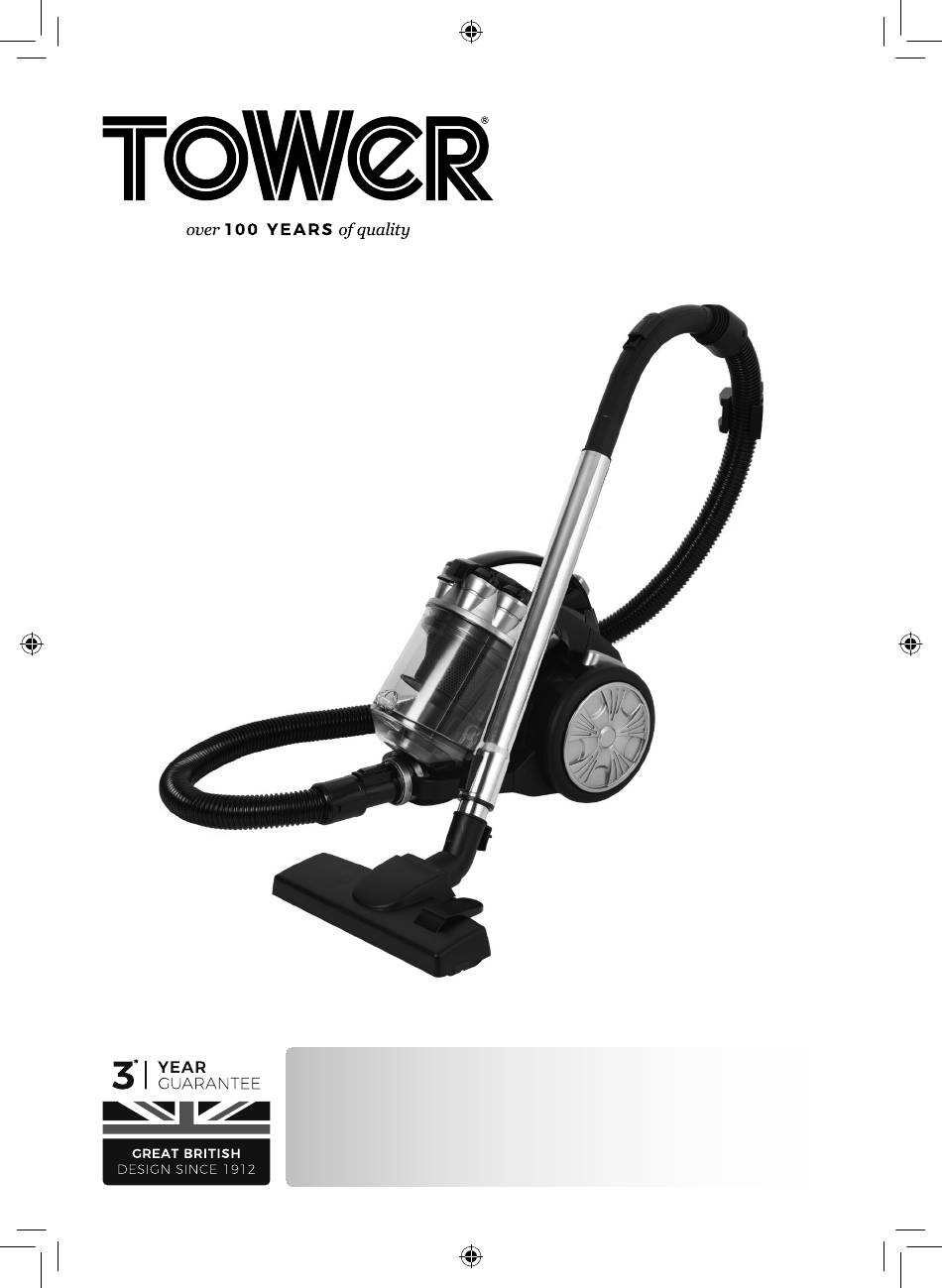

T102000BLG RXP10 Multi-Cyclonic Cylinder Vacuum Cleaner SAFETY AND INSTRUCTION MANUAL PLEASE READ CAREFULLY *Subject to registering your Extended Guarantee online at www.towerhousewares.co.uk.
Page 2
GREAT BRITISH DESIGN, INNOVATION AND EXCELLENCE SINCE 1912 Since the turn of the 20th century, Tower has been designing, developing and manufacturing housewares and small appliances used by millions of households throughout the UK and beyond. During the 1960s, the rise in popularity of pressure cooking saw Tower become the UK’s largest producer of pressure cookers, right through into the late 1980s.
Contents: Thank you for purchasing this appliance from the Specifications Tower range. Components and structure Please read this manual carefully BEFORE using the Technical Data appliance for your own safety. It has been designed to provide many years of Important Safety trouble-free use.
1 - Specifications: This box contains: Instruction Manual Cylinder Vacuum Cleaner Crevice Tool Brush Tool Structure of your appliance: Airflow control switch Hose Dust tank handle Dust tank release button Dust tank Cord retraction button Floor brush Power ON/OFF button Pole 10.
2 - Technical Data: Description: RXP10 Multi-Cyclonic Cylinder Vacuum Cleaner Model: T102000BLG Voltage: 220-240V Frequency: 50/60Hz Product Power: 700W Documentation We declare that this product conforms to the following product legislation in accordance with the following directive(s): 2014/30/EU Electromagnetic Compatibility Directive.
Important Safety Information: Please read these notes carefully BEFORE using your Tower appliance • • Check that the voltage Switch off at the wall of the main circuit socket then remove the corresponds with the plug from the socket rating of the appliance when not in use or before operating.
Page 7
• • Take care when any DO NOT pick up appliance is used near anything that is burning pets. or smoking such as cigarettes, matches or • Not suitable for carpets hot ashes. with long fibres as the • bristles will damage the Use extra care when fibres.
4 - Before First Use Read all instructions and safety information carefully before first use. Please retain this information for future reference. Remove the product from the box. Remove any packaging from the product. Please retain all packaging until you have checked and counted all the parts and the contents against the parts list.
Page 9
Using the Vacuum: To use your vacuum cleaner, start by plugging it into a mains socket. Once the vacuum is plugged in, unravel the power cord to your desired length. DO NOT extend the power cord beyond the red mark, as this is likely to damage it.
6 - Troubleshooting Problem Possible Solution The vacuum will not Make sure the vacuum cleaner is plugged into an active mains work socket and the socket switch is in the ON position. This vacuum cleaner is equipped with a motor protective ther- mostat.
8 - Cleaning & Care Emptying the Dust Tank: The dust tank should be emptied when dust reaches the MAX mark, as shown in the illustration. Note: There is no MAX marking on the body of the dust tank. Refer to the the adjacent illustration to ascertain maximum fill capacity for the dust tank.
9 - Wiring Safety for UK Use Only Fuse Neutral Live (Blue) (Brown) IMPORTANT As the colours in the mains lead of this Always ensure that the cord grip is appliance may not correspond with fastened correctly. the coloured markings identifying the The plug must be fitted with a fuse terminals in your plug, please proceed of the same rating already fitted and...
Page 13
10 - Warranty This product is guaranteed for 12 months from the date of original purchase. If any defect arises due to faulty materials of workmanship, the faulty products must be returned to the place of purchase. Refund or replacement is at the discretion of the retailer.
Page 16
thank you! We hope you enjoy your appliance for many years. As a thank you for purchasing one of our fantastic products, we are offering you an extra 2 years peace of mind. *To receive your extra 2 years guarantee, register your appliance online within 28 days of purchase by visiting: www.towerhousewares.co.uk Should you have a problem with your appliance, or need any spare parts,...
