KidKraft Austin 14953B Assembly Instructions

© 2010 KidKraft, LP
Please retain this information for future reference
HARDWARE PARTS LIST
A. Cross Dowel Bolt
x 14 pcs
2 in / 50 mm
B. Screw x 2 pcs
1
7/8 in / 22 mm
C. Cross Dowel Nut
x 14 pcs
D. Nylon Washer
x 2 pcs
Allen Wrench x 1 pc
STEP 1
A
The following tools
(not included) are
required for assembly:
A
®
Phillips Screwdriver
Flathead Screwdriver
Helpful Hint: Check all predrilled
holes for excess sawdust and clean
out the holes with a flathead screwdriver
if necessary.
WARNING:
ADULT ASSEMBLY REQUIRED.
-Product includes small parts with potentially hazardous sharp points and sharp edges
in the unassembled state. Keep unassembled parts away from children.
-Do not allow children to play inside with lid closed. In certain situations, sufficient air
may not be available for breathing.

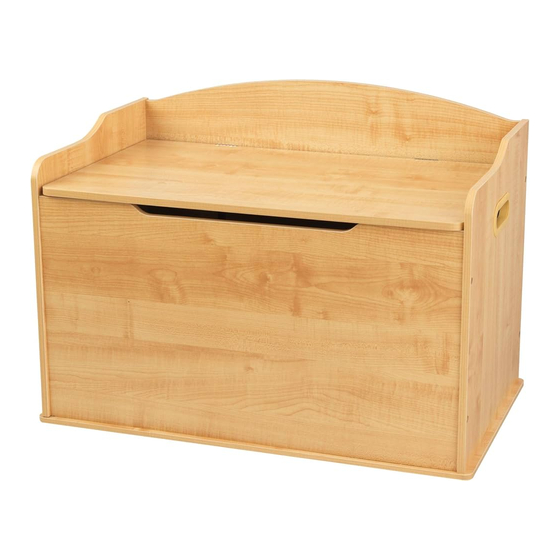

Austin Toy Box
2
C
1
C
C 3
C
2
USE AND MAINTENANCE:
-Use on level surfaces only
-Please check assembly at regular intervals, and
frequently tighten hardware if necessary. If
maintenance is not carried out, the product could
cease to function properly.
Assembly Instructions
4
3
STEP 2
C
C
C
C
IMPORTANT:
Lid support mechanism must be installed properly (Step 5)
or a head/neck entrapment may exist. Check to make sure
the Lid Support is properly installed by moving the lid back
and forth. When you let go of the lid it should stop, not fall
or slam shut.
Item #14951 White, 14953B Natural, 14954C Honey,
14955B Cherry, 14956C Espresso, 14957 Pink, 14958C Vanilla,
14959 Blueberry, 14960 Bubblegum, 14961 Red, 14962 Gray
To order replacement parts, please visit www.kidkraft.com
5
STEP 3
D
A
4
A
A
A
IMPORTANT! DO NOT
TIGHTEN SCREWS OR
BOLTS UNTIL COMPLETELY
ASSEMBLED.
6
C
5
D
C
A
C
6
A
C
A
A
Customer Service
1-800-933-0771
www.kidkraft.com
1
