KidKraft Austin 14951A Assembly Instructions

© 2011 KidKraft, LP
Please retain this information for future reference

HARDWARE

PARTS LIST

A. Cross Dowel Bolt
x 14 pcs
1 7/8 in / 48 mm
B. Cross Dowel Bolt
x 2 pcs
1
7/8 in / 22 mm
C. Cross Dowel Nut
x 14 pcs
D. Nylon Washer
x 2 pcs

STEP 1

A
E. Nylon Nut x 2 pcs
F. Wood Dowel
A
x 10 pcs
F
Allen Wrench x 1 pc
Wrench x 1 pc
F
The following tools
(not included) are
required for assembly:
Helpful Hint: Check all predrilled
®
Phillips Screwdriver
holes for excess sawdust and clean
out the holes with a flathead screwdriver
if necessary.
Flathead Screwdriver

WARNING:

ADULT ASSEMBLY REQUIRED.
Product includes small parts with potentially hazardous
sharp points and sharp edges in the unassembled state.
Keep unassembled parts away from children.

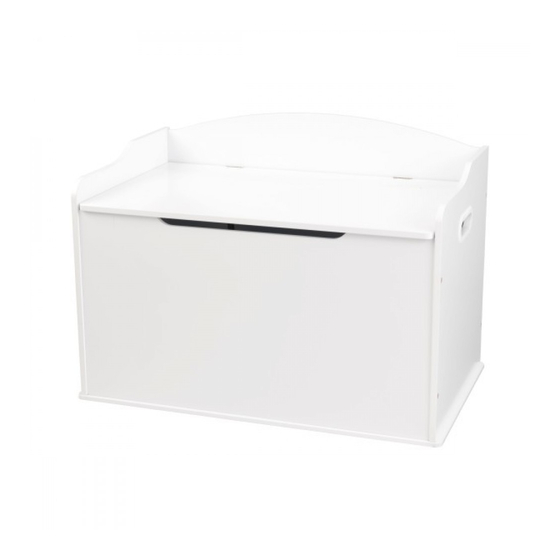

Austin Toy Box
2
C
F
F
1
C
C 3
F
F
C
2
F
F
F
F

USE AND MAINTENANCE:

-Use on level surfaces only
-Please check assembly at regular intervals, and
frequently tighten hardware if necessary. If
maintenance is not carried out, the product could
cease to function properly.
Assembly Instructions
4
3

STEP 2

C
C
C
C
IMPORTANT:
Lid support mechanism must be installed properly (Step 5)
or a head/neck entrapment may exist. Check to make sure
the Lid Support is properly installed by moving the lid back
and forth. When you let go of the lid it should stop, not fall
or slam shut.
To order replacement parts, please visit www.kidkraft.com
5

STEP 3

D
A
4
A
A
A
IMPORTANT! DO NOT
TIGHTEN SCREWS OR
BOLTS UNTIL COMPLETELY
ASSEMBLED.
Item #14951A White, 14962 Gray
6
C
5
D
C
A
C
6
A
C
A
A
Customer Service
1-800-933-0771
www.kidkraft.com
1
