KidKraft 14562A Assembly Instructions

Please retain this information for future reference
HARDWARE:
Allen Wrench
A. Lid Support
x 1pc
x 1 pc
Wrench x 1pc
B. Cross Dowel Bolt
x 8 pcs
(2 7/8 in, 72 mm)
The following tools
(not included) is
required for
C. Nylon Washer
assembly:
x 2 pcs
Phillips screwdriver
D. Cross Dowel Nut
x 8 pc
E. Nut x 2 pcs
F. Screw x 4 pcs
(3/4 in, 19 mm)
CAUTION: Adult Assembly Required. Hardware
contains small screws with sharp points. Keep
unassembled parts out of reach of small children.
•Do not allow children to play inside with lid closed. In certain
situations, sufficient air may not be available for breathing.

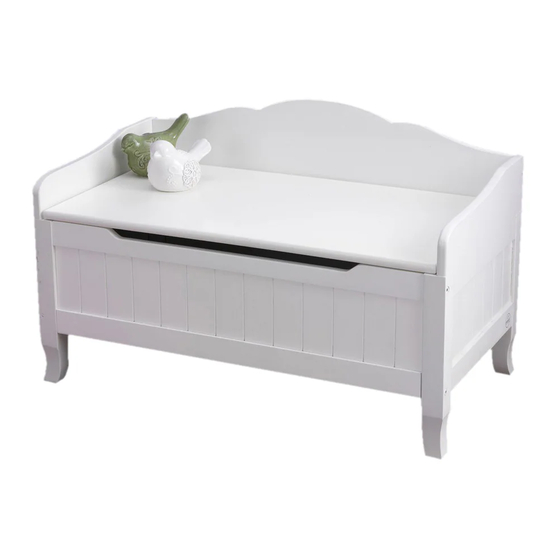

Davenport Toy Chest
PARTS LIST:
1
5
USE AND MAINTENANCE:
-Use on level surfaces only
-Please check assembly at regular intervals, and frequently
tighten hardware if necessary. If maintenance is not carried out,
the product could cease to function properly
Assembly Instructions
2
IMPORTANT: Lid support mechanism (Part A)
must be installed properly (Step 4) or a
head/neck entrapment may exist. Check to
make sure the Lid Support is properly installed
by moving it back and forth. When you let go of
the lid it should stop, not fall or slam shut.
To order replacement parts, please visit www.kidkraft.com
4
3
WARNING: CHOKING HAZARD
Small parts and sharp points, not
suitable for children under 3 years.
IMPORTANT! DO NOT TIGHTEN
SCREWS OR BOLTS UNTIL
COMPLETELY ASSEMBLED.
Item # 14562A
6
Customer Service
1-800-933-0771
www.kidkraft.com
