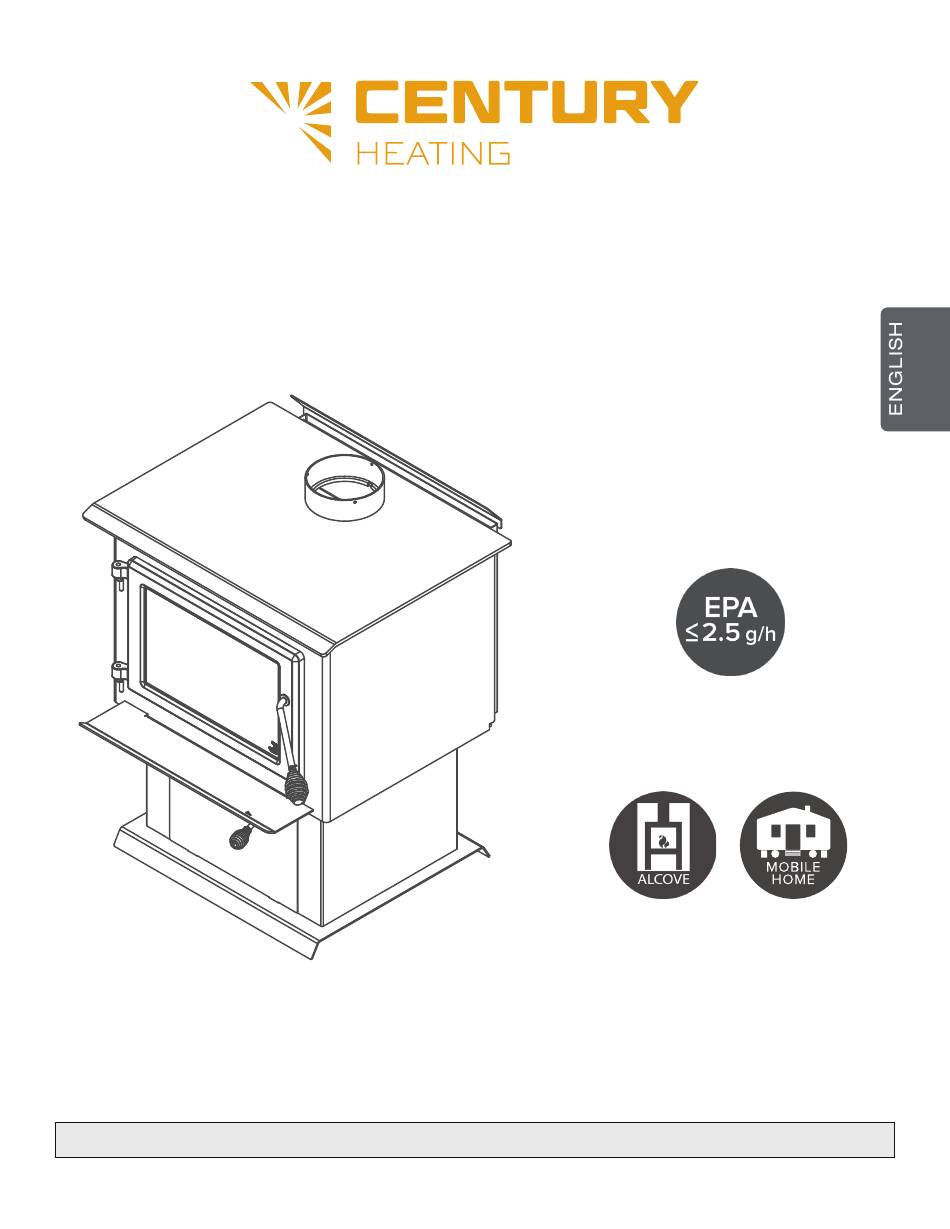

Installation and Operation Manual
FW2900
(
model)
CB00026
US Environmental Protection Agency
phase II certified wood stove compliant
with 2020 cord wood standard
Safety tested according to ULC S627,
UL 1482 and UL 737 standards by an
accredited laboratory.
MOBILE
HOME
CONTACT LOCAL BUILDING OR FIRE OFFICIALS ABOUT RESTRICTIONS AND INSTALLATION INSPECTION REQUIREMENTS IN
LOCAL AREA.
READ THIS ENTIRE MANUAL BEFORE INSTALLATION AND USE OF THIS WOOD STOVE. FAILURE TO FOLLOW THESE
INSTRUCTIONS COULD RESULT IN PROPERTY DAMAGE, BODILY INJURY OR EVEN DEATH.
READ AND KEEP THIS MANUAL FOR REFERENCE
46221A
Printed in Canada
2021-06-22
Advertisement
Table of Contents
Related Manuals for Century Heating FW2900
Summary of Contents for Century Heating FW2900
- Page 1 Installation and Operation Manual FW2900 model) CB00026 US Environmental Protection Agency phase II certified wood stove compliant with 2020 cord wood standard Safety tested according to ULC S627, UL 1482 and UL 737 standards by an accredited laboratory. MOBILE HOME CONTACT LOCAL BUILDING OR FIRE OFFICIALS ABOUT RESTRICTIONS AND INSTALLATION INSPECTION REQUIREMENTS IN LOCAL AREA.
- Page 3 It is also highly recommended to register the warranty online at https://www.century-heating.com/en/warranty/warranty-registration/ Registering the warranty will help to quickly find the information needed on the unit. Installation and Operation Manual - FW2900 Page 3...
-
Page 4: Table Of Contents
7.5 Exhaust System ........................25 PART B - INSTALLATION ......................27 8. Safety Information and Standards ..................27 8.1 Mobile Home ........................27 8.2 Regulations Covering Stove Installation ................27 8.3 Location of the Certification Label ..................28 Page 4 Installation and Operation Manual - FW2900... - Page 5 Appendix 7: Mobile Home Installation ..................50 Appendix 8: Optional ash pan installation ................51 Appendix 9: Exploded Diagram and Parts List ................ 52 CENTURY HEATING LIMITED WARRANTY ................55 Dealer: Installer: Phone Number: Serial Number: Installation and Operation Manual - FW2900 Page 5...
- Page 6 CERTIFICATION PLATE Page 6 Installation and Operation Manual - FW2900...
-
Page 7: Part A - Operation And Maintenance
This product can expose you to chemicals including carbon monoxide, which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov/ Installation and Operation Manual - FW2900 Page 7... -
Page 8: General Information
Optimum overall efficiency at a specific burn rate (LHV). This appliance is officially tested and certified by an independent agency. Tested and certified in compliance with CFR 40 part 60, subpart AAA, section 60.534(a)(1(ii) and draft ASTM WK47329-14 Carbon monoxide. Page 8 Installation and Operation Manual - FW2900... -
Page 9: Specifications
CAN/CSA- Z240 MH standard. Tested and certified in compliance with CFR 40 part 60, subpart AAA, section 60.534(a)(1(ii) and draft ASTM WK47329-14. Installation and Operation Manual - FW2900 Page 9... -
Page 10: Dimensions
Combustion chamber - side view 17 1/2" 444mm 9" 21" 228mm 533mm 17 1/2" 17 1/2" 444mm 444mm 9" 9" 21" 21" 228mm 228mm 533mm 533mm Combustion chamber - front view Door opening Page 10 Installation and Operation Manual - FW2900... -
Page 11: Epa Certification Loading
5 min. Then, close the door with the primary air control open. Leave to burn with the primary air control open for approximately 10 minutes and then close the primary air control completely for the low burn rate and halfway for the medium burn rate. Installation and Operation Manual - FW2900 Page 11... -
Page 12: Materials
Although the stove may be able to heat the main living areas of the house to an adequate temperature, it is strongly recommended to also have a conventional oil, gas or electric heating system to provide backup heating. Page 12 Installation and Operation Manual - FW2900... -
Page 13: Emissions And Efficiency
Hardwoods are denser than softwoods. Homeowners with access to both hardwood and softwood use both types for different purposes. Installation and Operation Manual - FW2900 Page 13... -
Page 14: Log Length
Do not burn compressed logs made of wax impregnated sawdust or logs with any chemical additives. Follow the manufacturer’s instructions and warnings. Page 14 Installation and Operation Manual - FW2900... -
Page 15: Drying Time
− Dry wood is much lighter in weight than wet wood, − The face of a fresh cut feels warm and dry; − The moisture content read by a moisture meter is between 15% to 20%. Installation and Operation Manual - FW2900 Page 15... -
Page 16: Operating The Stove
Ensure the blower power cord is not in contact with any surface of the stove to prevent electrical shock or fire damage. Do not run the power cord underneath the Airflow with a blower stove. Page 16 Installation and Operation Manual - FW2900... -
Page 17: Burning Wood Efficiently
The conventional method to build a wood fire is to crumple 5 to 10 sheets of newspaper and place them into the firebox and hold them in place with ten pieces of kindling wood. The kindling should be placed on and behind the newspaper. Installation and Operation Manual - FW2900 Page 17... -
Page 18: Combustion Cycles
Page 18 Installation and Operation Manual - FW2900... -
Page 19: Rekindling A Fire
The best time to remove ash is in the morning, after an overnight fire when the heater is relatively cold, but there is still a little chimney draft to draw the ash dust into the heater and prevent going out into the room. Installation and Operation Manual - FW2900 Page 19... -
Page 20: Air Intake Control
This kind of fire is good for mild weather and should provide enough heat for up to four hours. Small fires like this are a good time to use softer wood species and avoid overheating the house. Page 20 Installation and Operation Manual - FW2900... - Page 21 6.7.5 Logs Orientation In a relatively square firebox, the wood can be loaded north-south (ends of the logs visible) or east-west (sides of the logs visible). Installation and Operation Manual - FW2900 Page 21...
-
Page 22: Maintenance
This is normal and can be easily removed when the heater is cold by wiping with a damp cloth or paper towel and then drying. Page 22 Installation and Operation Manual - FW2900... - Page 23 Reinstall the glass, being careful to centre the glass in the door and not to over-tightening the retaining screw. The two main causes of broken door glass are uneven placement in the door and over- tightening the retaining screws. Installation and Operation Manual - FW2900 Page 23...
-
Page 24: Door
Leave about ½" (13 mm) long of the gasket when cutting and press the end into the groove. Tuck any loose fibers under the gasket and into the silicone. Close the door. Do not use the stove for 24 hours. Page 24 Installation and Operation Manual - FW2900... -
Page 25: Exhaust System
Establish a routine for the fuel, wood burner and firing technique. Check daily for creosote build-up until experience shows how often you need to clean to be safe. Installation and Operation Manual - FW2900 Page 25... - Page 26 Do not use the appliance again until the stove and its chimney have been inspected by a qualified chimney sweep or a fire department inspector. Page 26 Installation and Operation Manual - FW2900...
-
Page 27: Part B - Installation
This stove must be connected to a chimney complying with the requirements for Type HT chimneys in the Standard for Factory-Built Chimneys for Residential Type and Building Heating Appliances, UL 103 and ULC S629 or to a code-approved masonry chimney with a flue liner. Installation and Operation Manual - FW2900 Page 27... -
Page 28: Location Of The Certification Label
The clearances of the appliance and the flue pipes must be met individually, meaning the appliance cannot be installed closer to the combustible materials than the single or double wall pipe allows. For a safe way to reduce clearances refer to section «9.3 Reducing Clearances Safely» Page 28 Installation and Operation Manual - FW2900... - Page 29 48" 36" 122 cm 92 cm Clearances - Back and side Clearances - Corner 84" (L) 2133 mm Clearances - Ceiling Installation and Operation Manual - FW2900 Page 29...
-
Page 30: Clearances
6" (153 mm) from combustible materials must be used. Only in this case, the same clearances as a certified double wall pipe connector can be used. Page 30 Installation and Operation Manual - FW2900... - Page 31 6" (153 mm) from combustible materials must be used. Only in this case, the same clearances as a certified double wall pipe connector can be used. Installation and Operation Manual - FW2900 Page 31...
- Page 32 12 ½" (318 mm) 84" (2130 mm) 84" (2130 mm) The pipe distances listed in this table refer to the distances obtained when the stove is installed in accordance with the appliance clearances above mentioned. Page 32 Installation and Operation Manual - FW2900...
-
Page 33: Floor Protection
Heat shield The floor protection at the back of the stove is limited to the stove’s required clearance if such clearance is smaller than 8 inches (203 mm). Installation and Operation Manual - FW2900 Page 33... - Page 34 Brick, with a minimum of 24 gauge (0.61 mm) sheet metal backing, spaced out at least 1" (25 mm)* by non-combustible spacers 12" (305 mm) * In Canada this space can be ⅞" (21 mm). Page 34 Installation and Operation Manual - FW2900...
- Page 35 Mounting hardware must not be located closer than 8" (200 mm) from the vertical centre line of the appliance. G) Edge clearance for ceiling shields to side and back walls: 3" (75 mm). Shield extension beyond each side of the appliance: 18" (450 mm). Installation and Operation Manual - FW2900 Page 35...
- Page 36 Heat shield clearances Heat shield clearances Heat shield clearances Page 36 Installation and Operation Manual - FW2900...
-
Page 37: The Venting System
Only components intended for the brand and model of chimney should be used. Never fabricate or substitute parts from other chimney brands. The chimney must be a type suitable for solid fuel. Installation and Operation Manual - FW2900 Page 37... - Page 38 Do not downsize the flue to less than 6" unless the venting system is straight and exceeds 25 feet in height. When passing through a combustible wall, the use of an insulated listed thimble is required. Page 38 Installation and Operation Manual - FW2900...
-
Page 39: Minimum Chimney Height
Called ‘stack effect’, it produces a slightly negative pressure in the lower part of the house (compared to the outside) and a slightly positive pressure zone in the high part of the house. Installation and Operation Manual - FW2900 Page 39... -
Page 40: Supply Of Combustion Air
(such as a kitchen range exhaust) causes the pressure in the house to become negative relative to outdoors. Air supply in conventional houses Page 40 Installation and Operation Manual - FW2900... -
Page 41: Installing The Chimney Connector
Best Acceptable Avoid The rules below are based on those found in the CSA B365 installation code. Please carefully follow these installation instruction rules, or those enforced by the local code. Installation and Operation Manual - FW2900 Page 41... - Page 42 • A straight flue pipe assembly offers the least restriction to gas flow and results in a stronger draft. Straight assemblies also need less maintenance because there are no corners to collect creosote. • The chimney connector must be clean and in good condition. Page 42 Installation and Operation Manual - FW2900...
-
Page 43: Appendix 1: Optional Fresh Air Intake Kit Installation
(HVAC type, must meet ULC S110 or UL 181 class 0 or class 1) (B), sold separately. Refer to air intake kit installation instructions for more details. Installation and Operation Manual - FW2900 Page 43... -
Page 44: Appendix 2: Optional Fire Screen Installation
Lift the fire screen upwards and push the bottom part towards the stove then let the fire screen rest on the bottom of the door opening. Warning: Never leave the stove unattended while in use with the fire screen. Page 44 Installation and Operation Manual - FW2900... -
Page 45: Appendix 3: Optional Blower Installation
Ensure that the blower’s power cord is not in contact with any surface of the stove to prevent electrical shock or fire damage. Do not run the power cord beneath the stove. Installation and Operation Manual - FW2900 Page 45... -
Page 46: Appendix 4: Optional Thermodisc Installation
Screw the thermodisc (A) with the screws (B) provided on the back of the stove. The electrical cord of the thermodisc should not touch any surface of the stove to avoid electric shock or fire. Do not run the power cord under the stove. Page 46 Installation and Operation Manual - FW2900... -
Page 47: Appendix 5: Log Retainers Installation
APPENDIx 5: LOG RETAINERS INSTALLATION Installation and Operation Manual - FW2900 Page 47... -
Page 48: Appendix 6: Air Tubes And Baffle Installation
Put the baffle in place. Repeat steps 1 and 2 for the three other tubes. To remove the tubes use the above steps in reverse order. Page 48 Installation and Operation Manual - FW2900... - Page 49 Note that secondary air tubes (B) can be replaced without removing the baffle board (A) and that all tubes are identical. Installation and Operation Manual - FW2900 Page 49...
-
Page 50: Appendix 7: Mobile Home Installation
APPENDIx 7: MOBILE HOME INSTALLATION Page 50 Installation and Operation Manual - FW2900... -
Page 51: Appendix 8: Optional Ash Pan Installation
Place the refractory brick (A), the ash Screw the metal plate (A) behind the stove. plug (B) and the ash pan (C). DETAIL F Installation and Operation Manual - FW2900 Page 51... -
Page 52: Appendix 9: Exploded Diagram And Parts List
APPENDIx 9: ExPLODED DIAGRAM AND PARTS LIST Page 52 Installation and Operation Manual - FW2900... - Page 53 3 1/4" X 4 1/2" X 1 1/4" REFRACTORY BRICK PL36274 3.625" X 5.75" X 1 1/4" REFRACTORY BRICK 24096 ROUND CAST IRON ASH PLUG PL74004 DRAWER GUIDE AC02055 QUICK CONNECT THERMODISC KIT Installation and Operation Manual - FW2900 Page 53...
- Page 54 METALLIC BLACK STOVE PAINT - 342 g (12oz) AEROSOL AC01315 RIGID FIRESCREEN 30898 ROUND WOODEN BLACK HANDLE AC02081 5"Ø FRESH AIR INTAKE KIT PL74054 BACK OF THE BASE PL74055 FACE PLATE SE65598 AIR INTAKE ADAPTER Page 54 Installation and Operation Manual - FW2900...
-
Page 55: Century Heating Limited Warranty
CENTURY HEATING LIMITED WARRANTY CENTURY HEATING LIMITED WARRANTY The warranty of the manufacturer extends only to the original retail purchaser and is not transferable. This warranty covers brand new products only, which have not been altered, modified nor repaired since shipment from factory. - Page 56 This document is available for free download on the Stove Builder International inc. manufacturer’s website. It is a copyrighted document. 250, rue de Copenhague, Resale is strictly prohibited. The manufacturer may update St-Augustin-de-Desmaures (Québec) Canada this document from time to time and cannot be responsible G3A 2H3 for problems, injuries, or damages arising out of the use 418-908-8002...
