Sqaure Ladder Handle
Code
701DH153236xxx
Measurements
*
*mm
Components
Material
SS316 + wood
*
H
(36'')
914 mm
(2-27/32'')
72 mm
#
Name
1
Exterior Handle
2
Interior Handle
3
Gasket
4
Plastic Washer
5
Set Screw M6x5mm
6
Collar
7
Screw M8x45mm
8
Screw M8x80mm
9
Allen Key 3mm
C/C
(24'')
609 mm
(1-1/4'')
32 mm
Qty
1
1
4
2
4
2
2
2
1
Advertisement
Table of Contents
Related Manuals for Richelieu 701DH153236 Series
Summary of Contents for Richelieu 701DH153236 Series

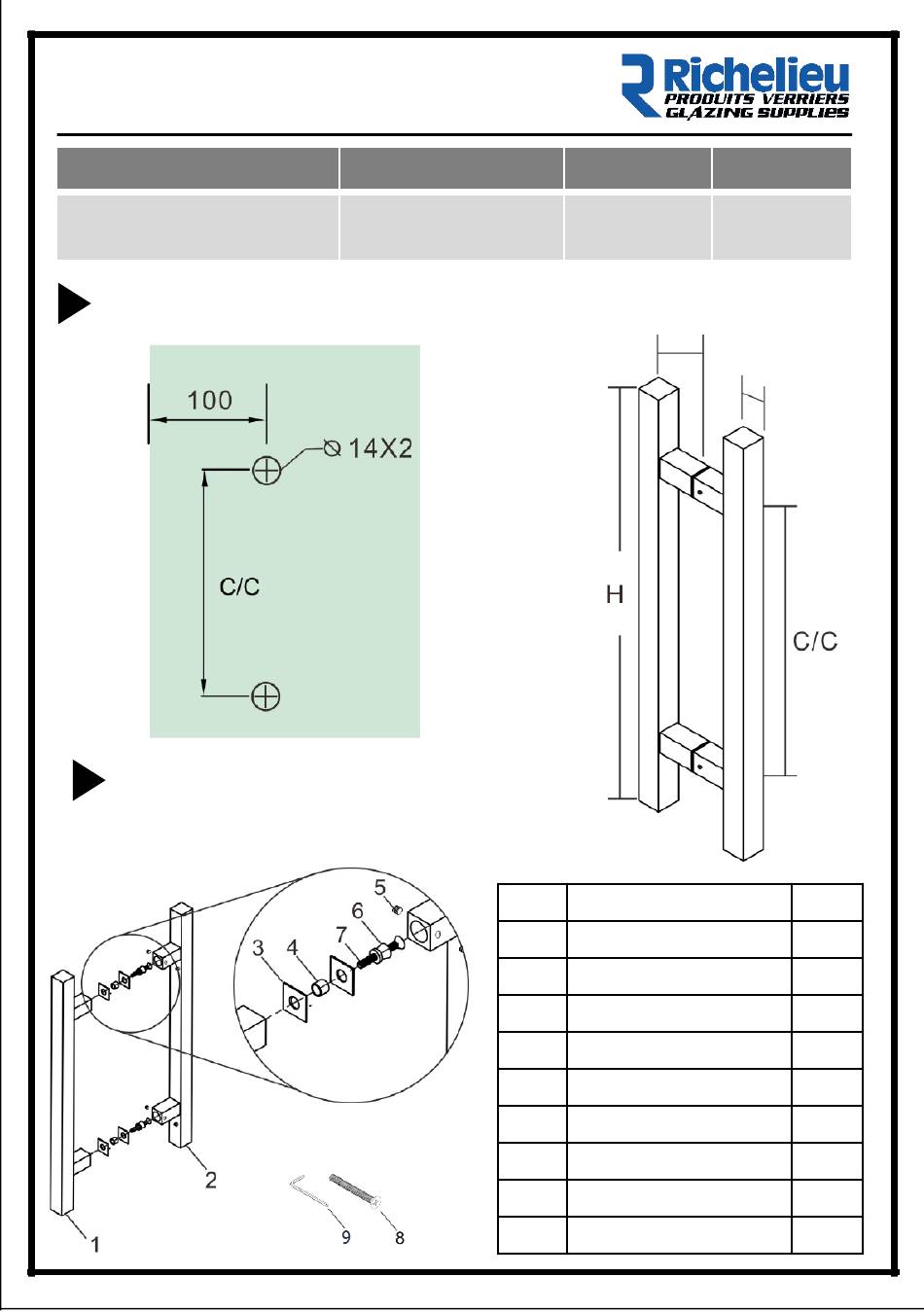

- Page 1 Sqaure Ladder Handle Code Material (36’’) (24’’) 701DH153236xxx SS316 + wood 914 mm 609 mm (2-27/32’’) Measurements 72 mm (1-1/4’’) 32 mm Components Name Exterior Handle Interior Handle Gasket Plastic Washer Set Screw M6x5mm Collar Screw M8x45mm Screw M8x80mm Allen Key 3mm...
- Page 2 Square Ladder Handle Installation Install the exterior handle as shown with one gasket and metal washer on each side of the glass. *Philips screwdriver not included *Use the 45mm screw for glass doors 8-12mm thick *Use the 80mm screw fo wood doors 35-50mm thick Install the interior handle onto the collars.
- Page 3 Poignée échelle carrée Code Matériel (36’’) (24’’) 701DH153236xxx SS316 + wood 914 mm 609 mm (2-27/32’’) Dimensions 72 mm (1-1/4’’) 32 mm Composantes Qté Poignée extérieure Poignée intérieure Joint Rondelles en plastique Vis M6x5mm Collier Vis M8x45mm Vis M8x80mm Clé Allen 3mm...
- Page 4 Poignée échelle carrée Installation Installez la poignée extérieure comme illustré avec un joint et une rondelle métallique de chaque côté du verre. *Tournevis Philips non inclus *Utilisez la vis de 45 mm pour les portes en verre de 8-12 mm *Utilisez la vis de 80 mm pour les portes en bois de 35-50 mm Installez la poignée intérieure sur les colliers.
