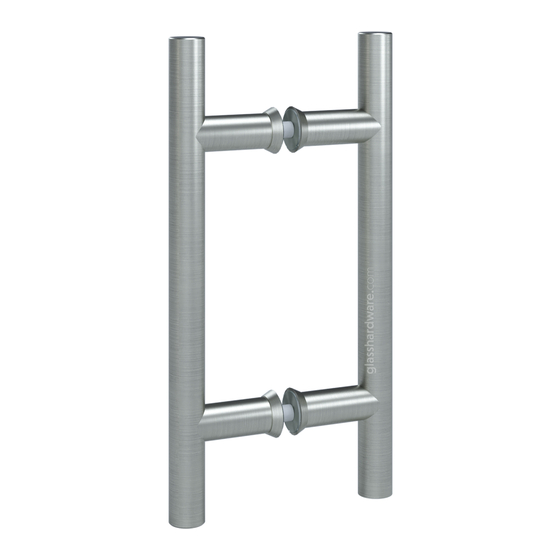

Round Ladder Handle
Code
701DH2R10360900

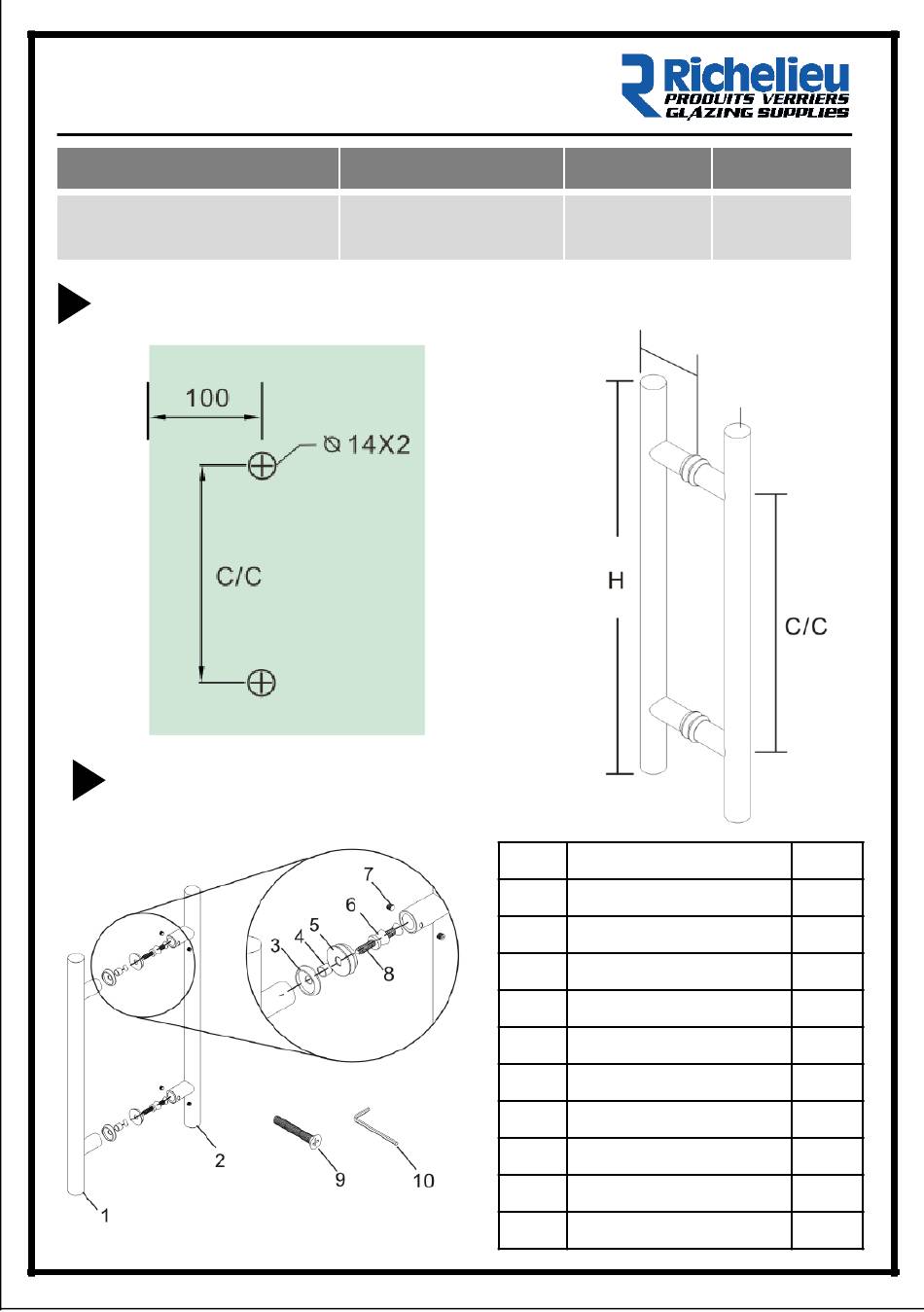

Measurements
*
*mm
Components
Material
SS316
*
H
(60'')
1520 mm
(2-27/32'')
72 mm
#
Name
1
Exterior Handle
2
Interior Handle
3
Metal Washer dia32mm
4
Plastic Washer
5
Gasket
6
Collar
7
Set Screw M6x6mm
8
Screw M8x45mm
9
Screw M8x80mm
10
Allen Key 3mm
C/C
(48'')
1220 mm
Ø (1-1/4'')
32 mm
Qty
1
1
4
2
4
2
4
2
2
1
Advertisement
Table of Contents
Related Manuals for Richelieu 701DH2R10360900
Summary of Contents for Richelieu 701DH2R10360900
- Page 1 Round Ladder Handle Code Material (60’’) (48’’) 701DH2R10360900 SS316 1520 mm 1220 mm (2-27/32’’) Measurements 72 mm Ø (1-1/4’’) 32 mm Components Name Exterior Handle Interior Handle Metal Washer dia32mm Plastic Washer Gasket Collar Set Screw M6x6mm Screw M8x45mm Screw M8x80mm...
- Page 2 Round Ladder Handle Installation Install the exterior handle as shown with one gasket and metal washer on each side of the glass. *Philips screwdriver not included *Use the 45mm screw for glass doors 8-12mm thick *Use the 80mm screw fo wood doors 35-50mm thick Install the interior handle onto the collars.
- Page 3 Poignée échelle ronde Code Matériel (60’’) (48’’) 701DH2R10360900 SS316 1520 mm 1220 mm (2-13/16’’) Dimensions 72 mm Ø (1-1/4’’) 32 mm Composantes Qté Poignée extérieure Poignée intérieure Rondelles en métal 32mm Rondelles en plastique Joints Collier Vis M6x6mm Vis M8x45mm Vis M8x80mm Clé...
- Page 4 Poignée échelle ronde Installation Installez la poignée extérieure comme illustré avec un joint et une rondelle métallique de chaque côté du verre. *Tournevis Philips non inclus *Utilisez la vis de 45 mm pour les portes en verre de 8-12 mm *Utilisez la vis de 80 mm pour les portes en bois de 35-50 mm Installez la poignée intérieure sur les colliers.
