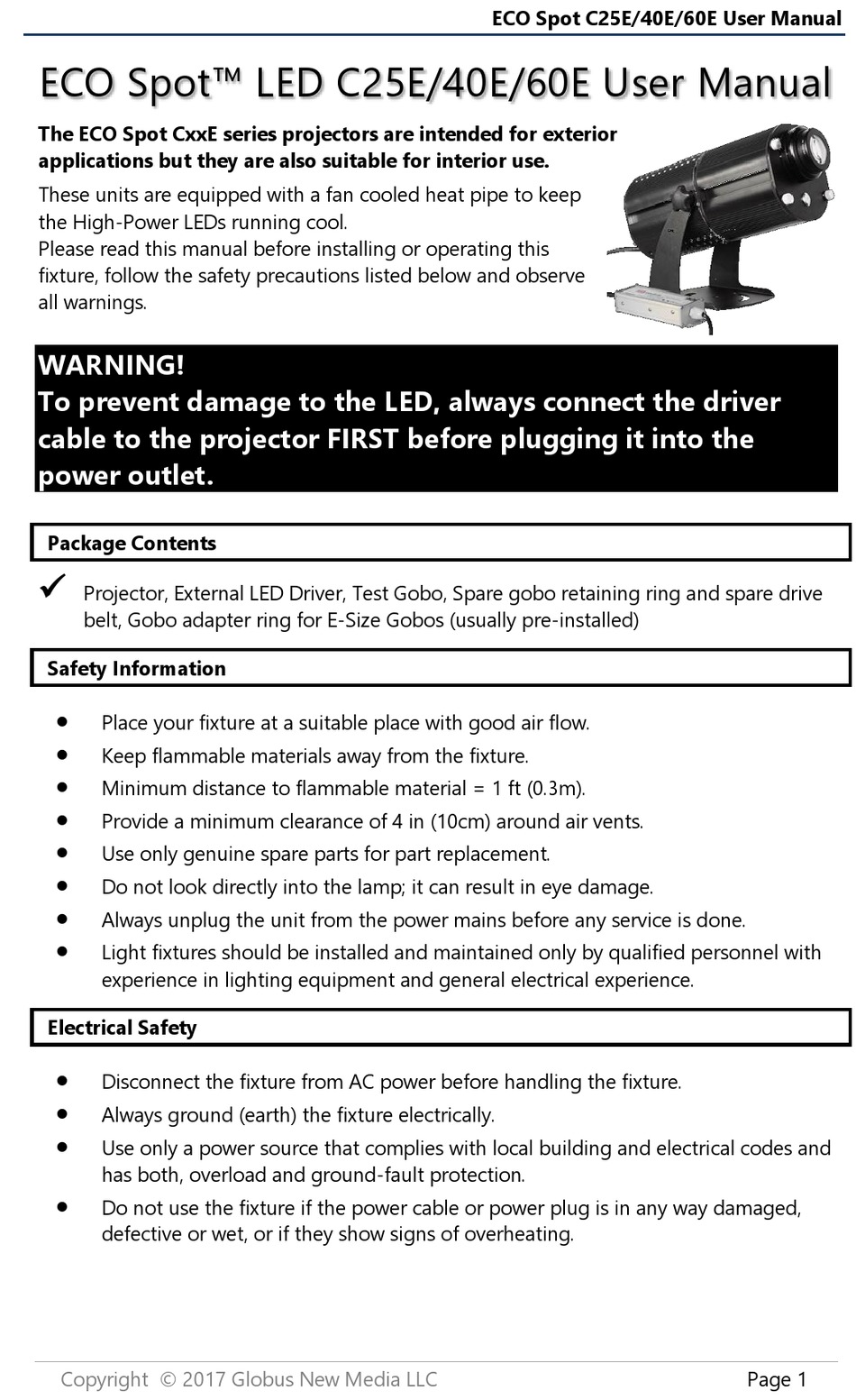

ECO Spot™ LED C25E/40E/60E User Manual

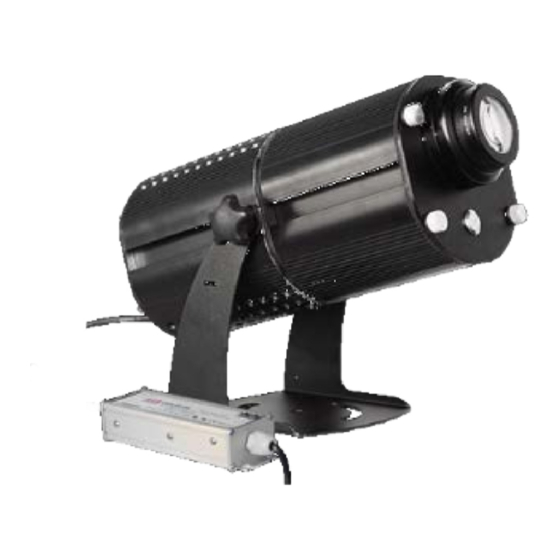

The ECO Spot CxxE series projectors are intended for exterior
applications but they are also suitable for interior use.
These units are equipped with a fan cooled heat pipe to keep
the High-Power LEDs running cool.
Please read this manual before installing or operating this
fixture, follow the safety precautions listed below and observe
all warnings.
WARNING!
To prevent damage to the LED, always connect the driver
cable to the projector FIRST before plugging it into the
power outlet.

Package Contents


Projector, External LED Driver, Test Gobo, Spare gobo retaining ring and spare drive
belt, Gobo adapter ring for E-Size Gobos (usually pre-installed)

Safety Information

•
Place your fixture at a suitable place with good air flow.
•
Keep flammable materials away from the fixture.
•
Minimum distance to flammable material = 1 ft (0.3m).
•
Provide a minimum clearance of 4 in (10cm) around air vents.
•
Use only genuine spare parts for part replacement.
•
Do not look directly into the lamp; it can result in eye damage.
•
Always unplug the unit from the power mains before any service is done.
•
Light fixtures should be installed and maintained only by qualified personnel with
experience in lighting equipment and general electrical experience.

Electrical Safety

•
Disconnect the fixture from AC power before handling the fixture.
•
Always ground (earth) the fixture electrically.
•
Use only a power source that complies with local building and electrical codes and
has both, overload and ground-fault protection.
•
Do not use the fixture if the power cable or power plug is in any way damaged,
defective or wet, or if they show signs of overheating.
